D322N - Square D 60A 240V 3-Pole Fusible General Duty Safety Switch NEMA 1 Indoor Surface Mount

D322N

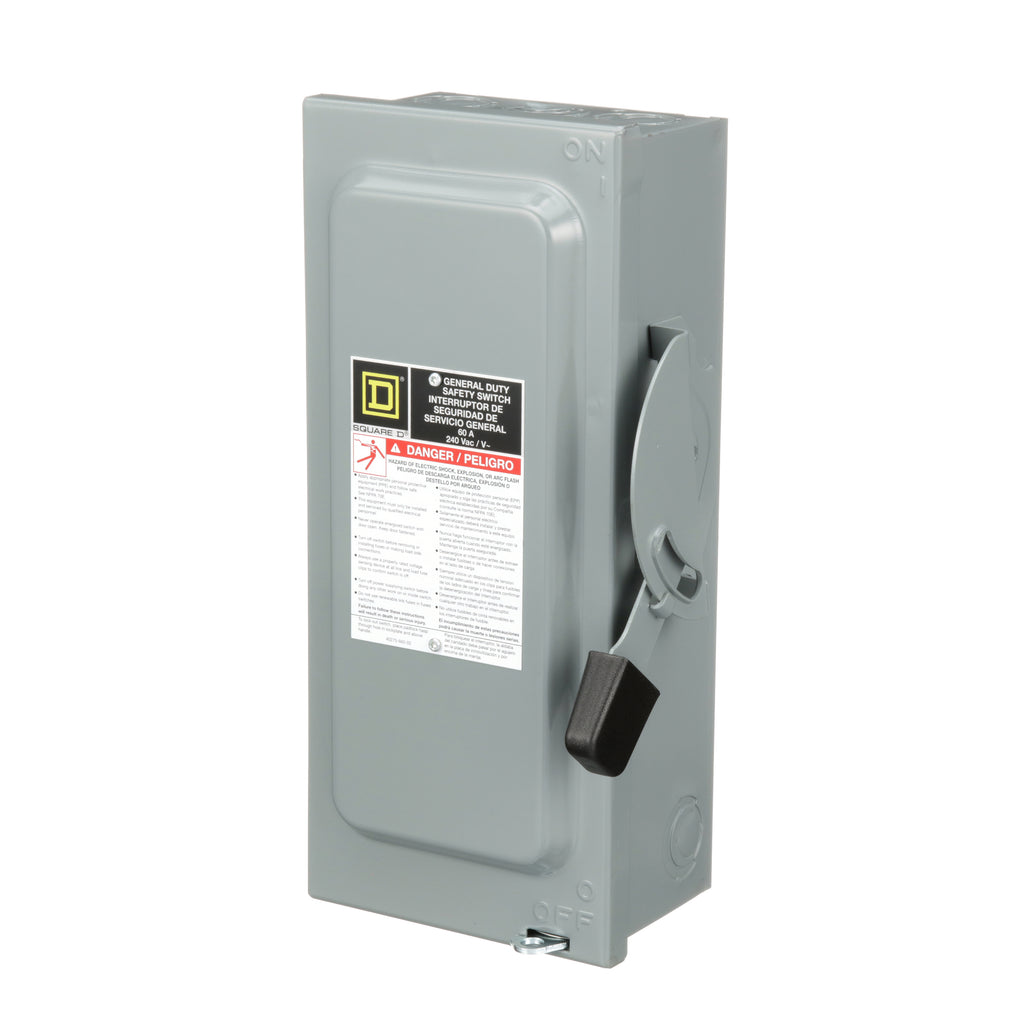

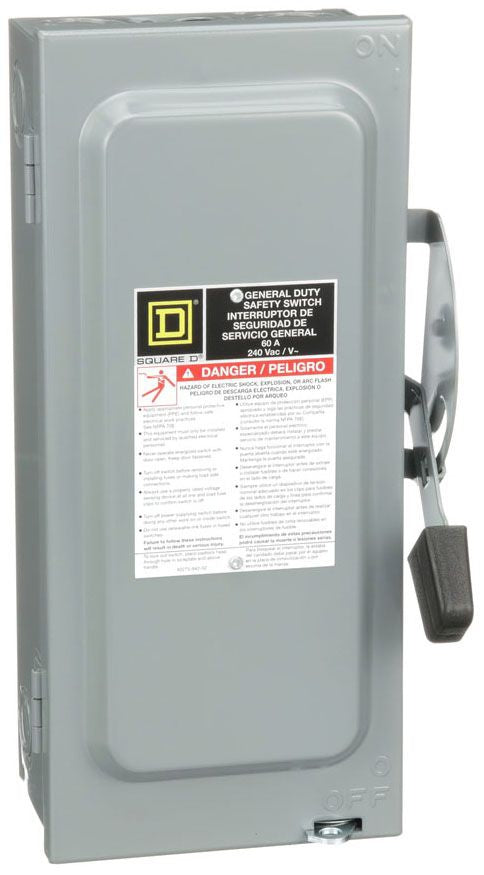

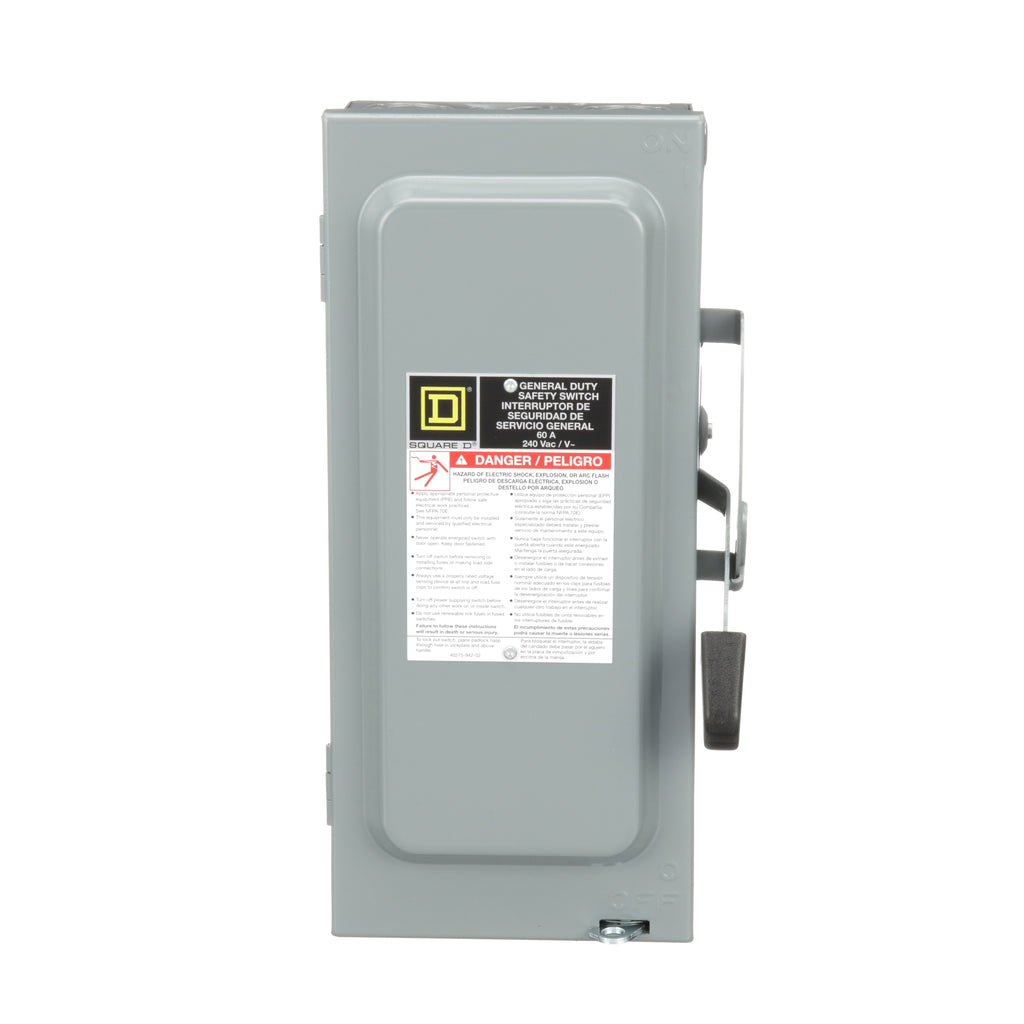

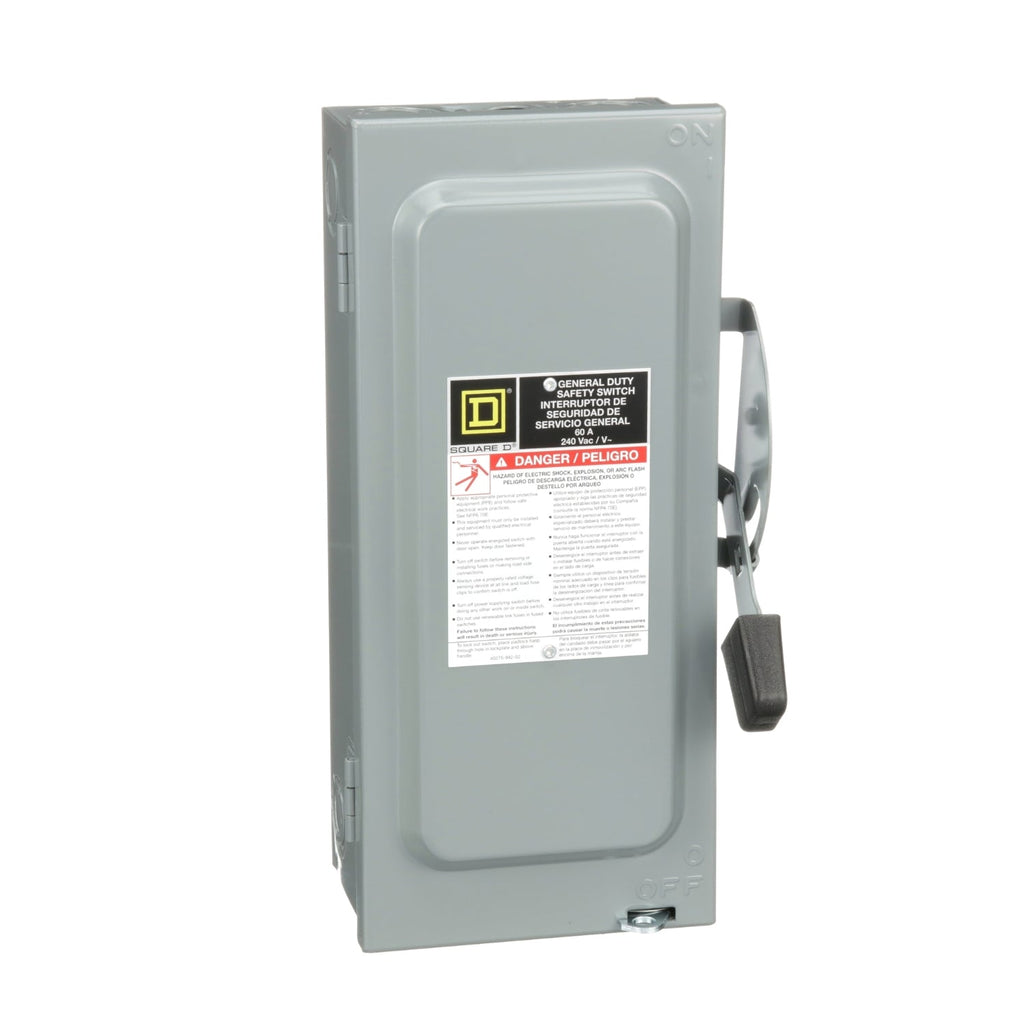

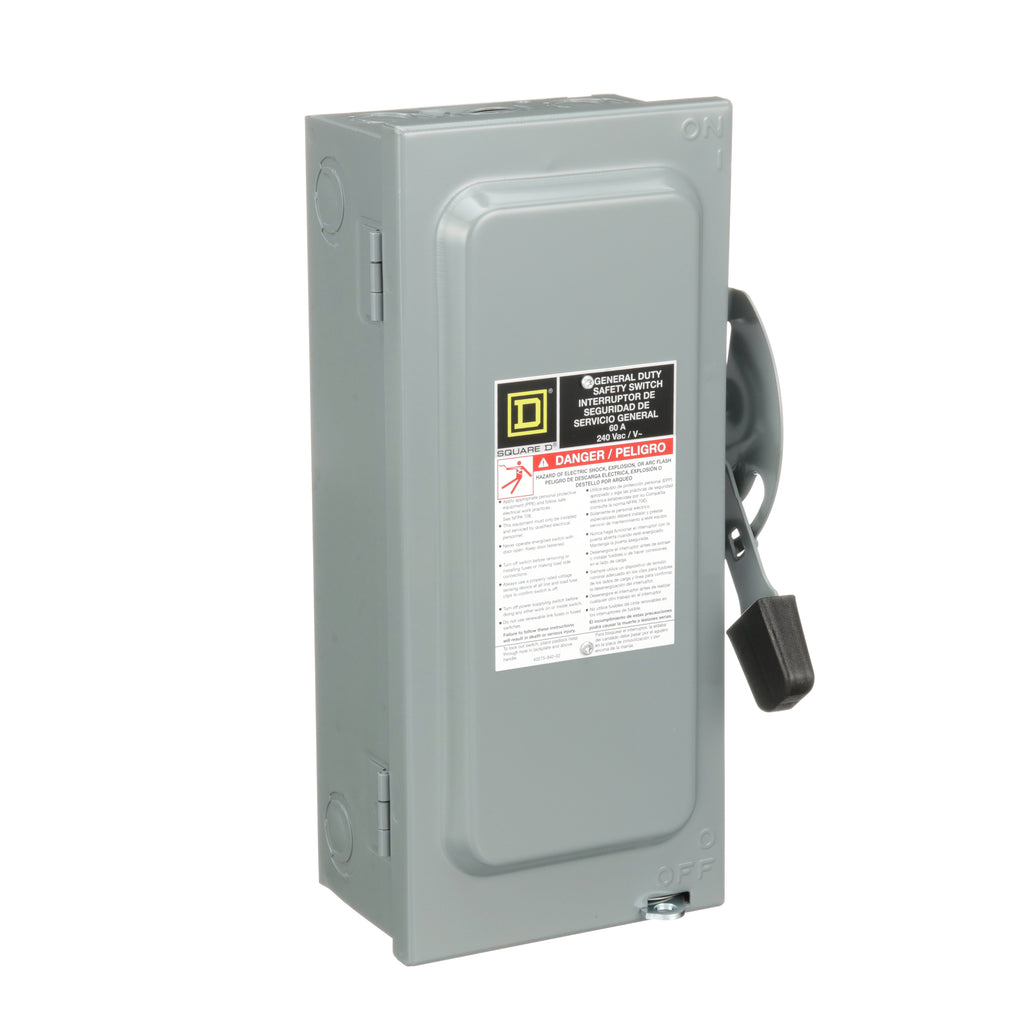

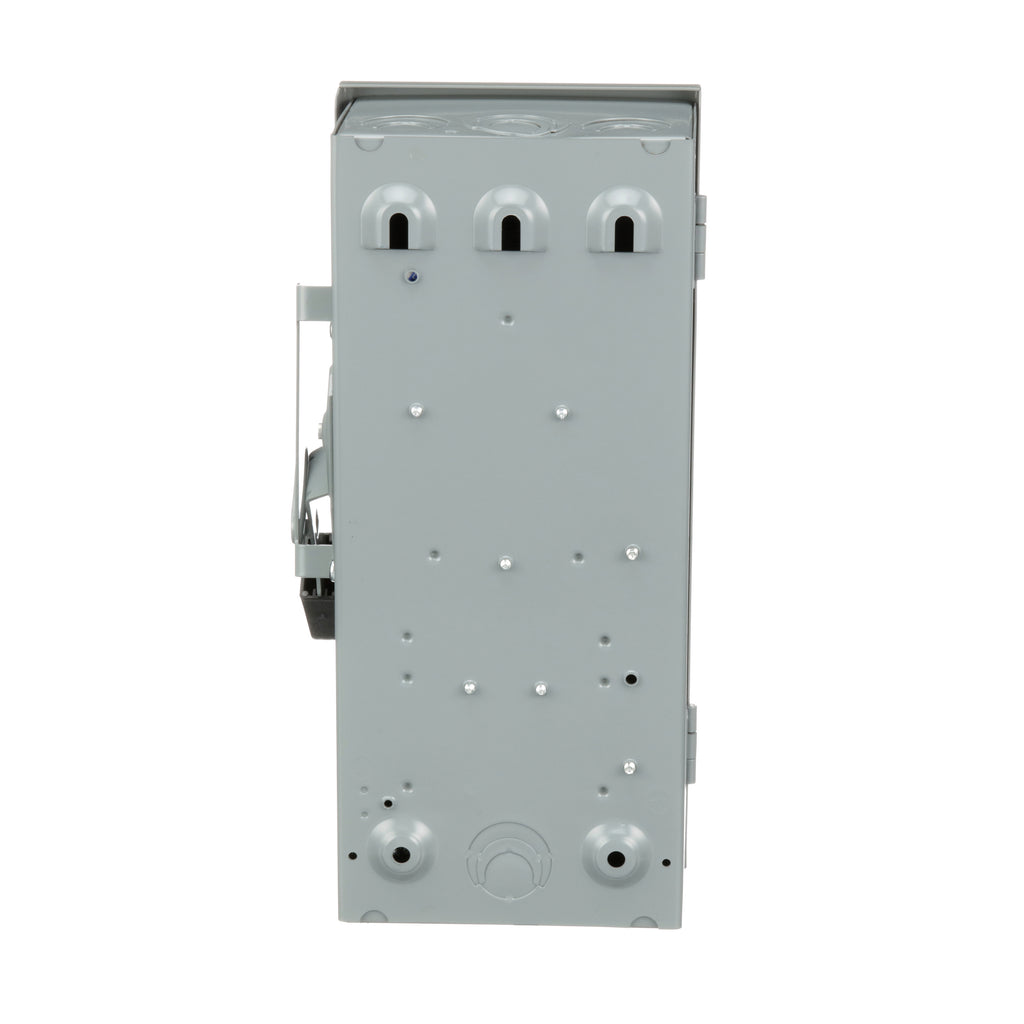

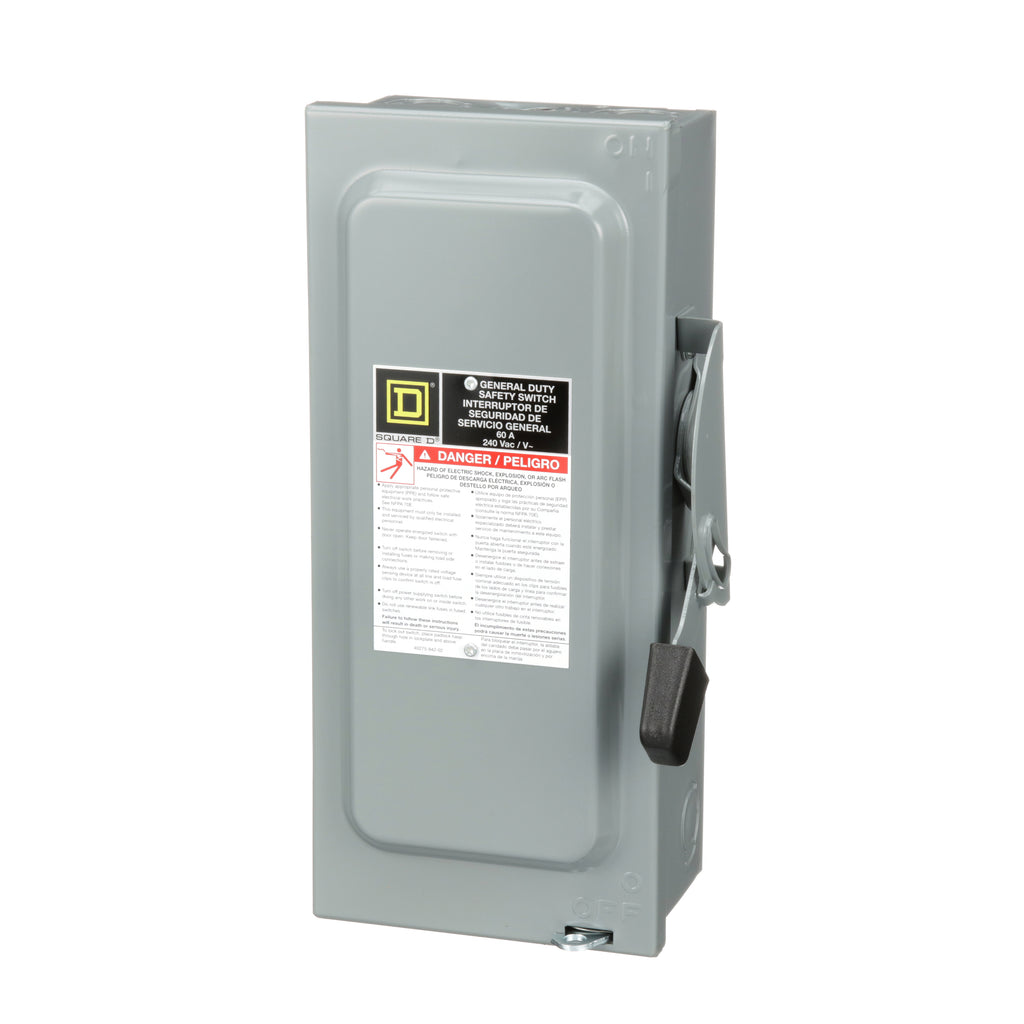

D322N is a Square D 60 Amp, 240 Volt, 3-Pole fusible general duty safety switch designed for indoor use with a NEMA 1 enclosure.This switch features a single throw action with factory installed neutral and is suitable for controlling power to lighting, air conditioning, and appliances. It supports Class H, K, R, or T cartridge fuses and has a short circuit current rating of up to 100kA depending on fuse type. The surface mount design and UL listing (File E2875) ensure reliable and safe operation in residential and commercial applications.

Key Specifications
• Amperage: 60A
• Voltage Rating: 240VAC
• Number of Poles: 3-Pole
• Mounting Type: Surface Mount
• Interrupt Rating: Up to 100kA (depending on fuse)
• Enclosure Type: NEMA 1 (Indoor)
• Fuse Type: Cartridge (Class H, K, R, or T)
• Action: Single Throw
• Factory Installed Neutral: Yes
• Approvals: UL Listed (File E2875)
• Wire Size Range: #10 to #2 AWG Aluminum, #14 to #2 AWG Copper
• Dimensions: Approx. 14.6" H x 6.75" W x 4.88" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: D322N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : D
• Voltage : 240 AC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : RLF



Product Data

• UPC : 785901461234
• GTIN : 00785901461234
• Country of Origin : United States
• Dimensions : 14.88 in (377.95 mm) x 7.45 in (189.23 mm) x 4.87 in (123.70 mm) (Height x Width x Depth)
• Weight : 8.001
• Certification : UL listed
