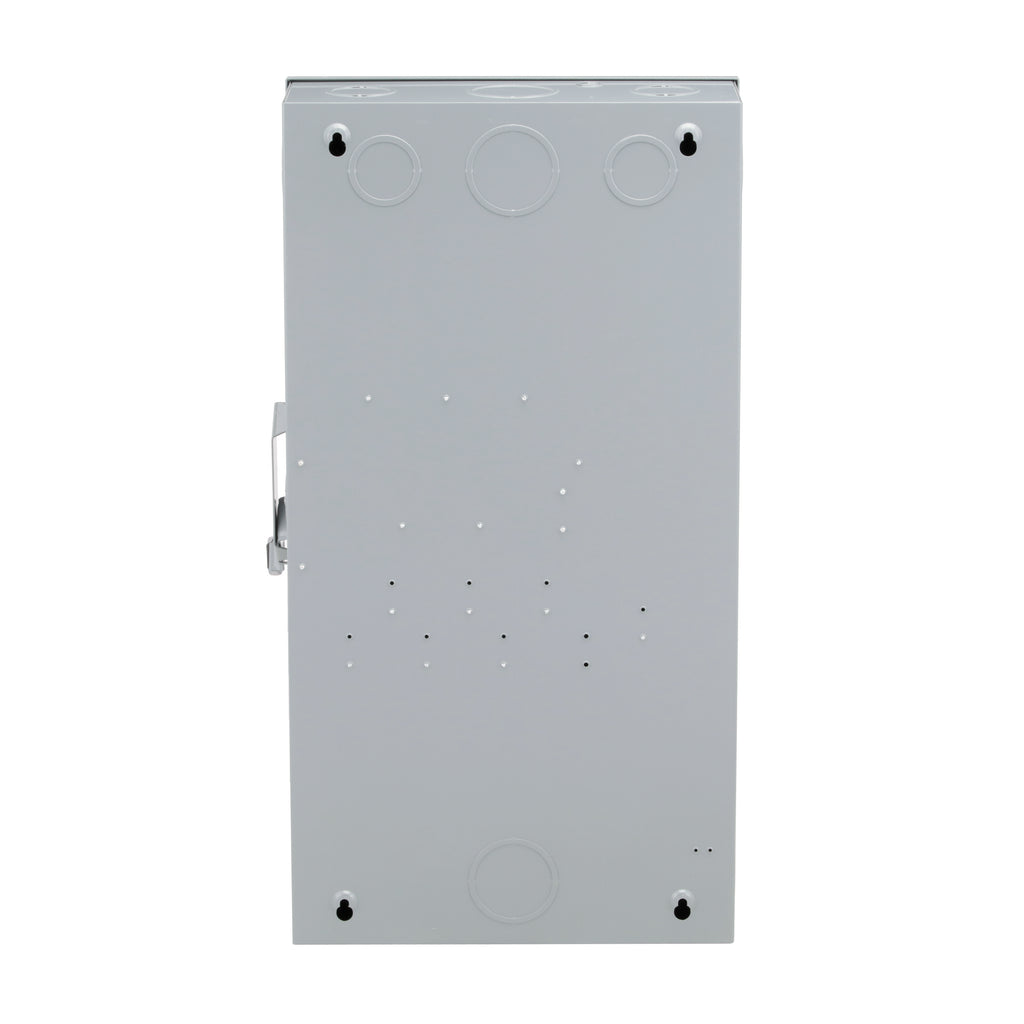

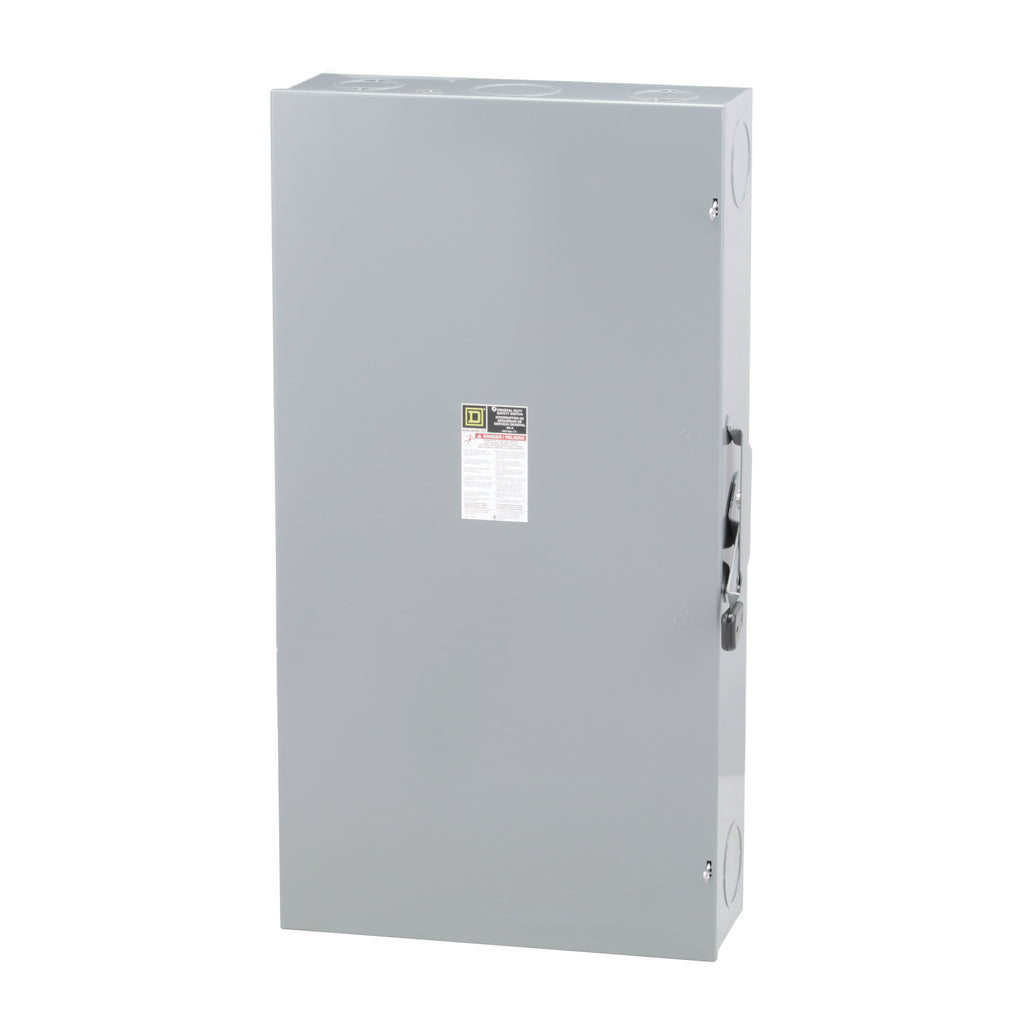

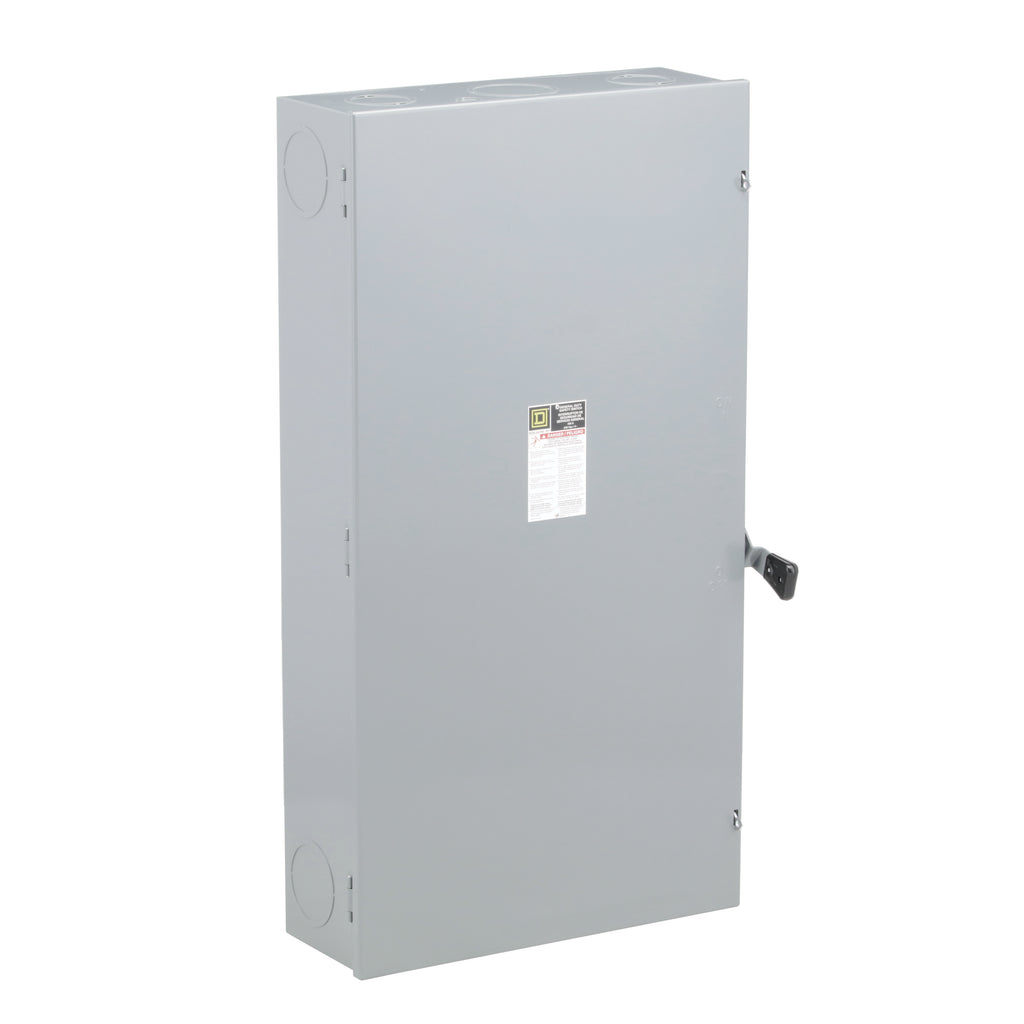

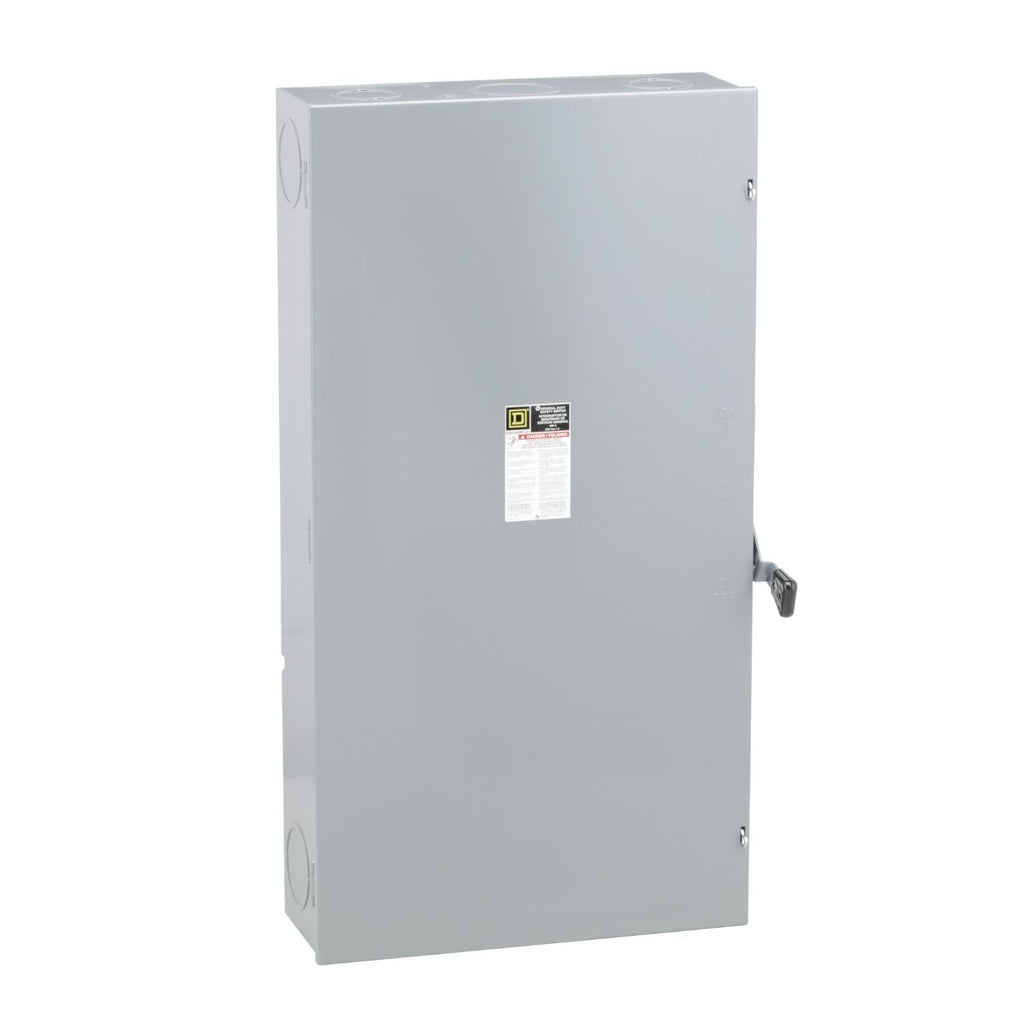

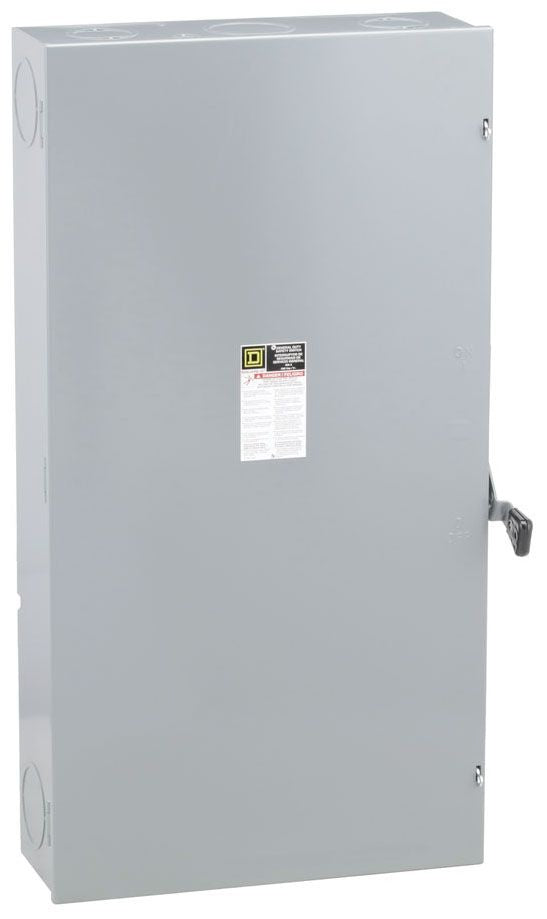

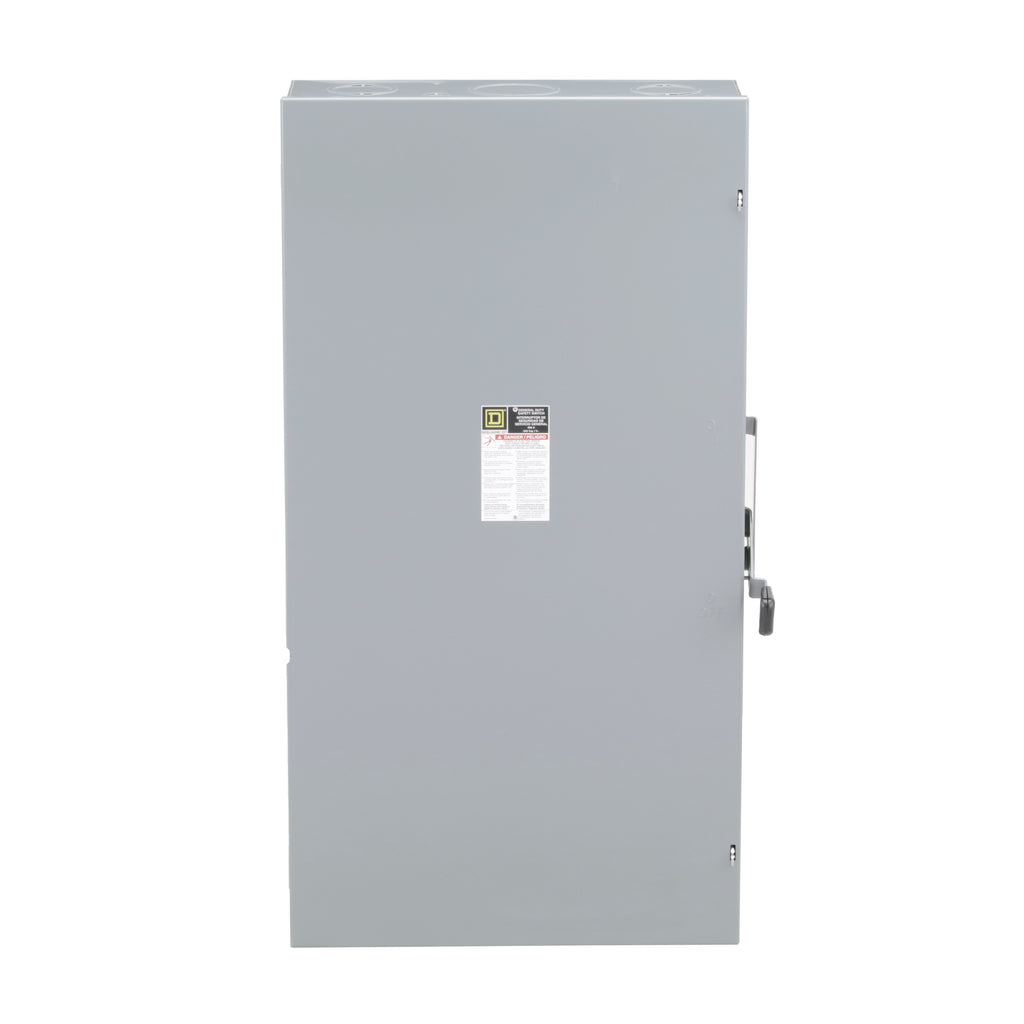

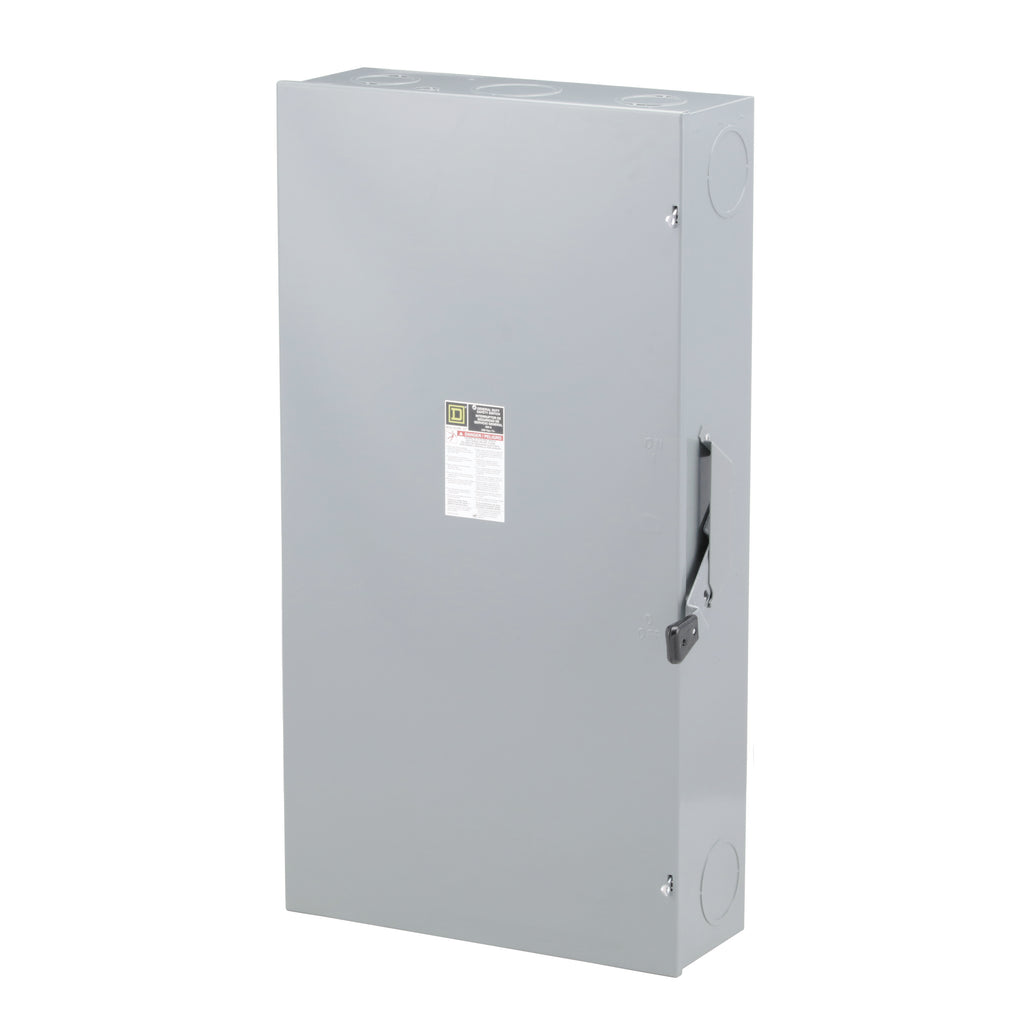

D325N - Square D 400A 240VAC 3-Pole Fusible General Duty Safety Switch NEMA 1

D325N

D325N is a Square D 3-pole fusible general duty safety switch rated for 400 amps and 240 volts AC with a NEMA 1 enclosure.The D325N switch features a 100kA interrupting rating at 240V, surface mounting type, and a 4-wire configuration suitable for 3-phase applications. It includes lug terminal connections, is UL approved, and designed for use with Class R fuses. The switch frame is type D with a steel body and complies with RoHS standards.

• Amperage: 400A
• Voltage: 240VAC
• Poles: 3
• Phase: 3
• Mounting Type: Surface
• Interrupting Rating: 100kA @ 240V
• Series/Frame: D3 / D Frame
• Trip Unit: Fusible
• Enclosure: NEMA 1
• Terminal Connection: Lug
• Certifications: UL, RoHS
• Wire Configuration: 4 wires

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: D325N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : D
• Voltage : 240 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : RLF

Product Data

• UPC : 785901461555
• GTIN : 00785901461555
• Country of Origin : Mexico
• Dimensions : 45.12 in (1146.05 mm) x 24.88 in (631.95 mm) x 8.88 in (225.55 mm) (Height x Width x Depth)
• Weight : 115
• Certification : UL listed
