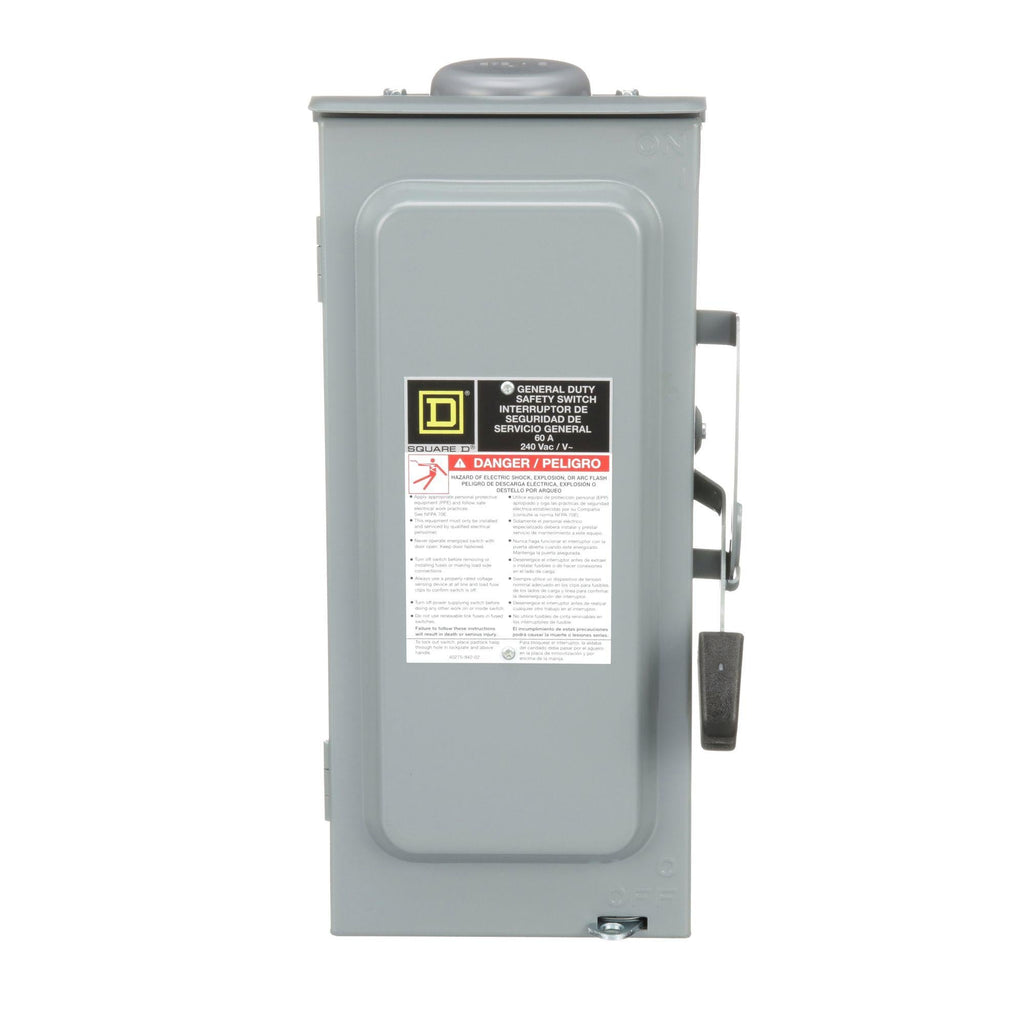

D323NRB - Square D 100A 240V 3-Pole Fusible General Duty Safety Switch NEMA 3R Surface Mount

D323NRB

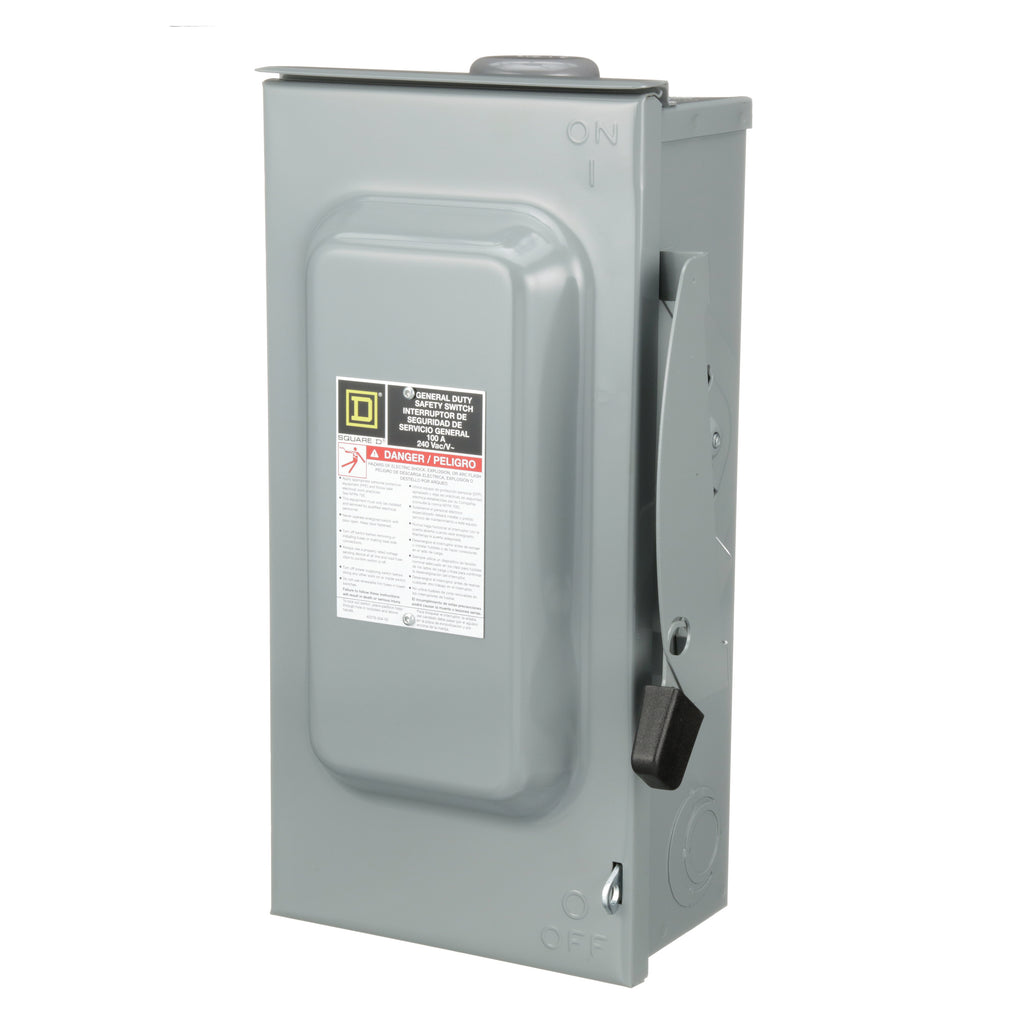

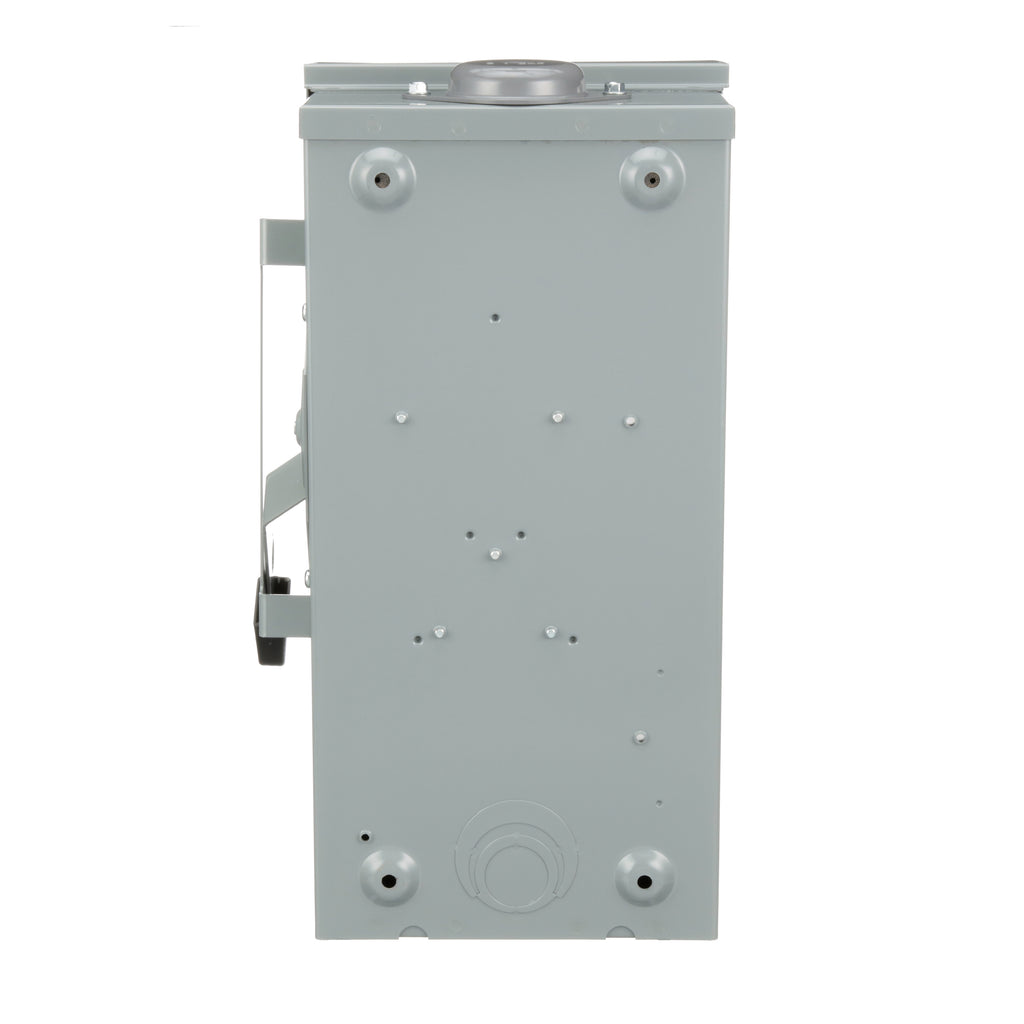

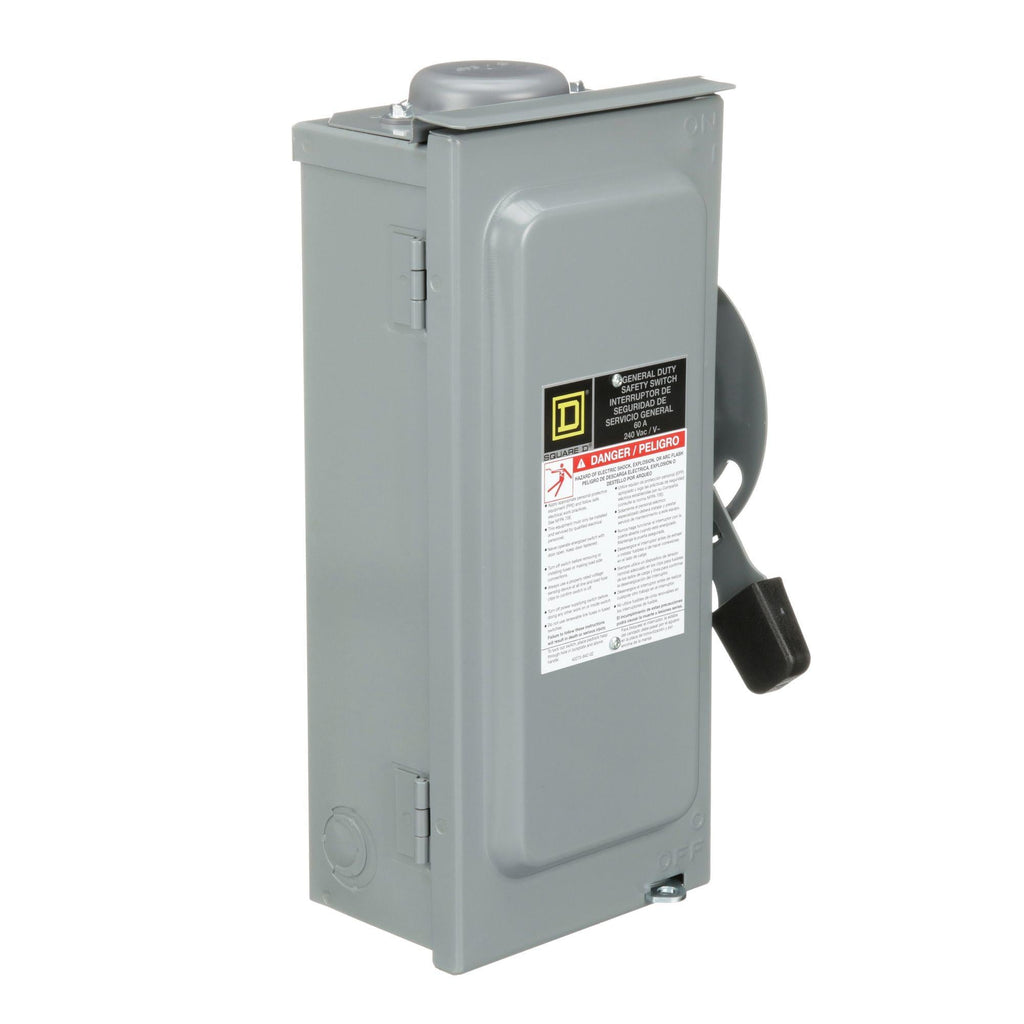

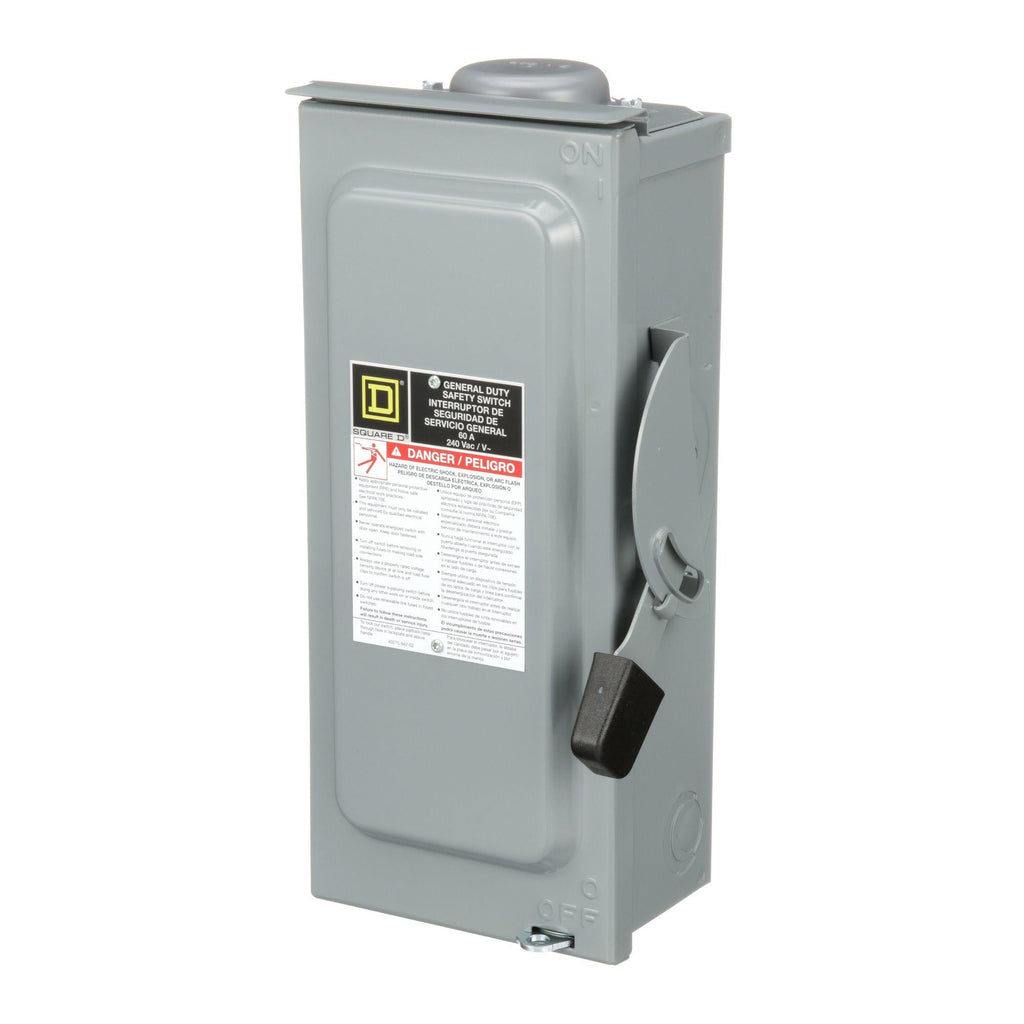

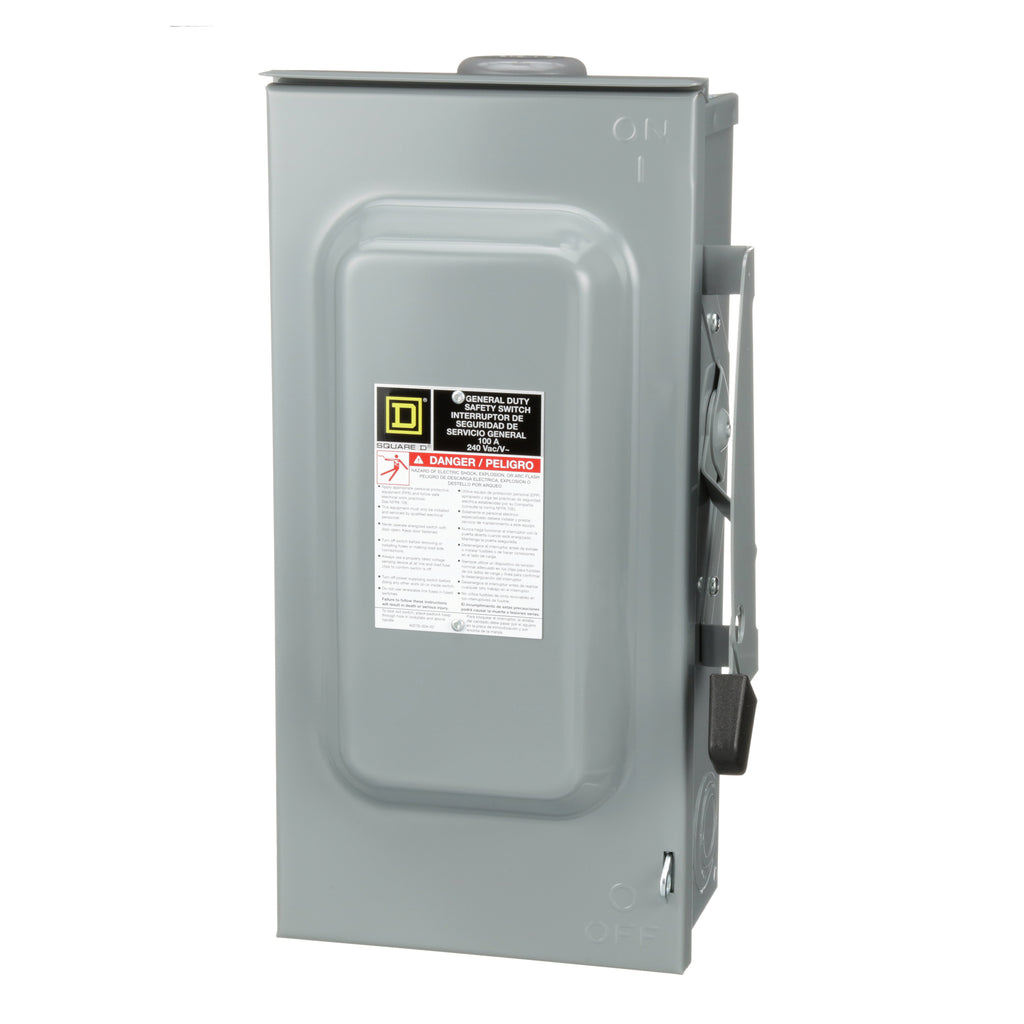

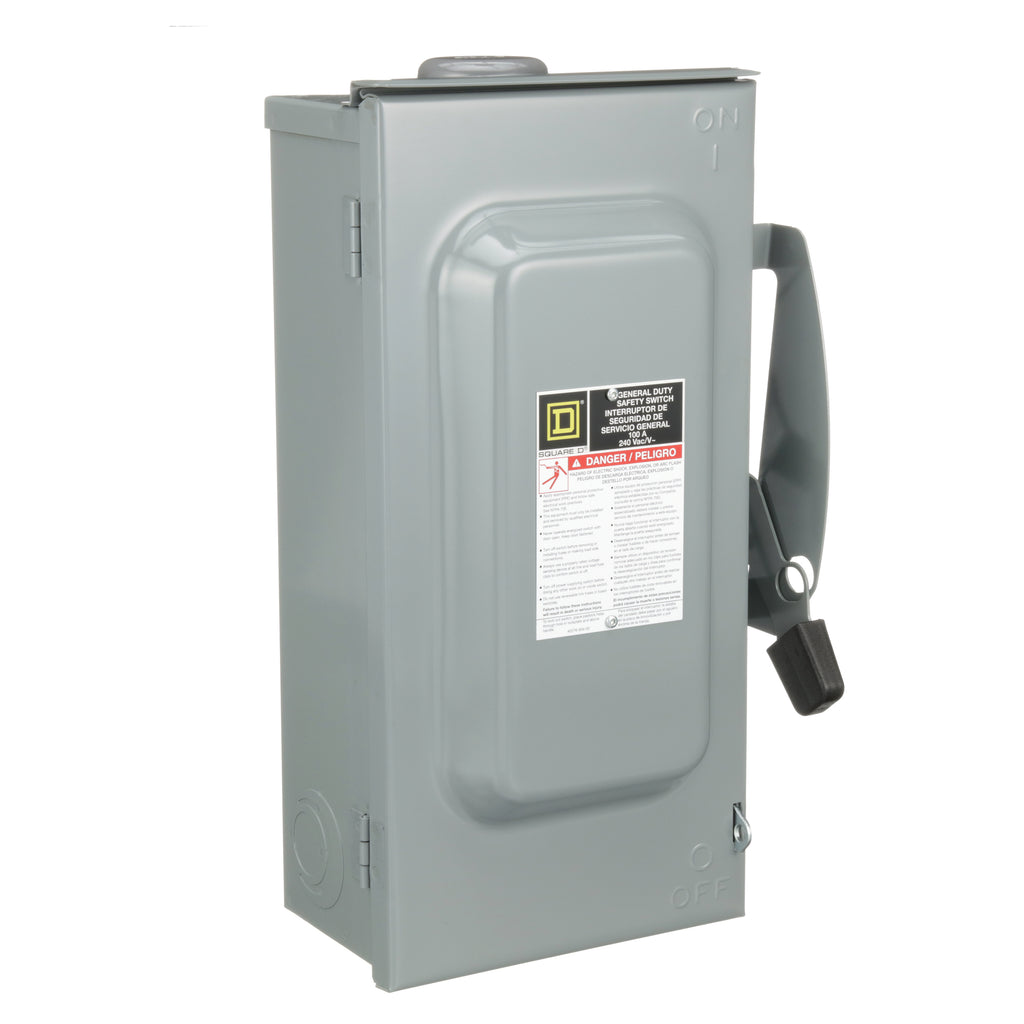

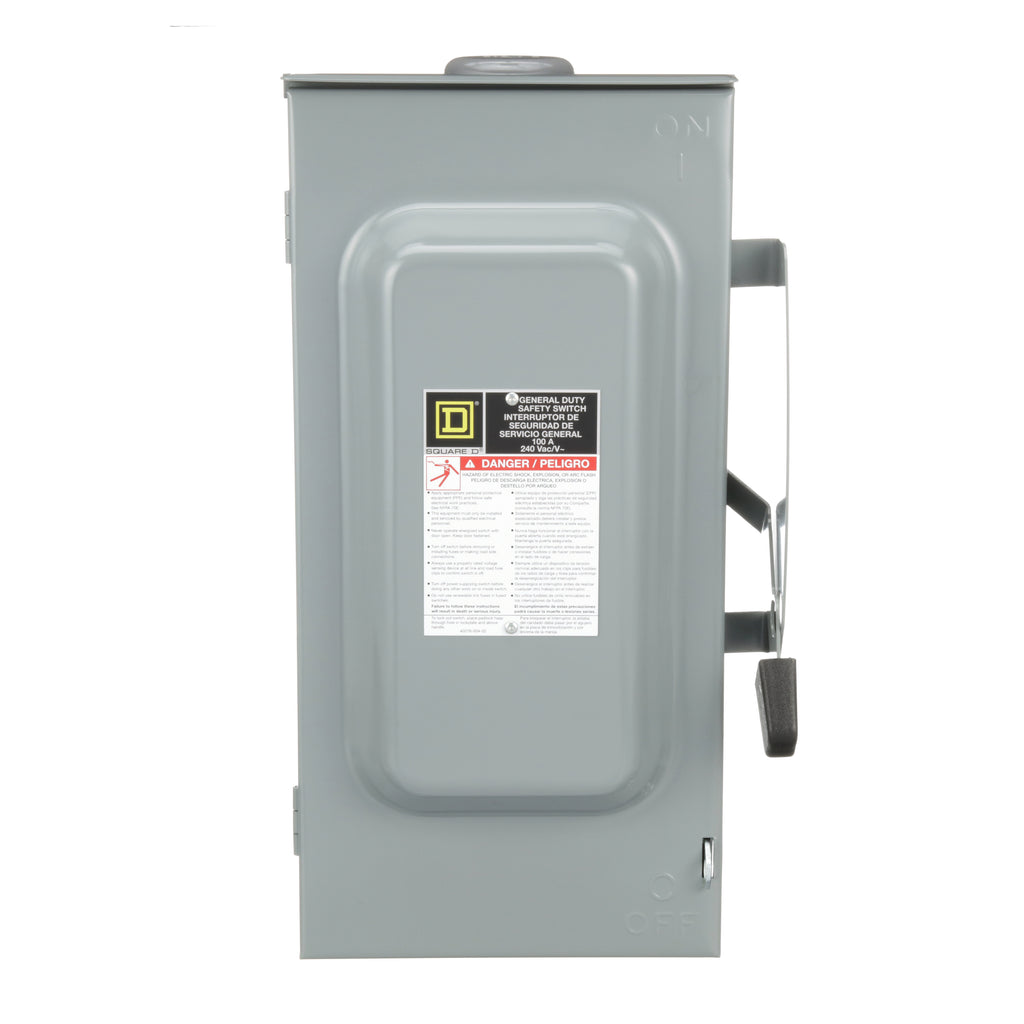

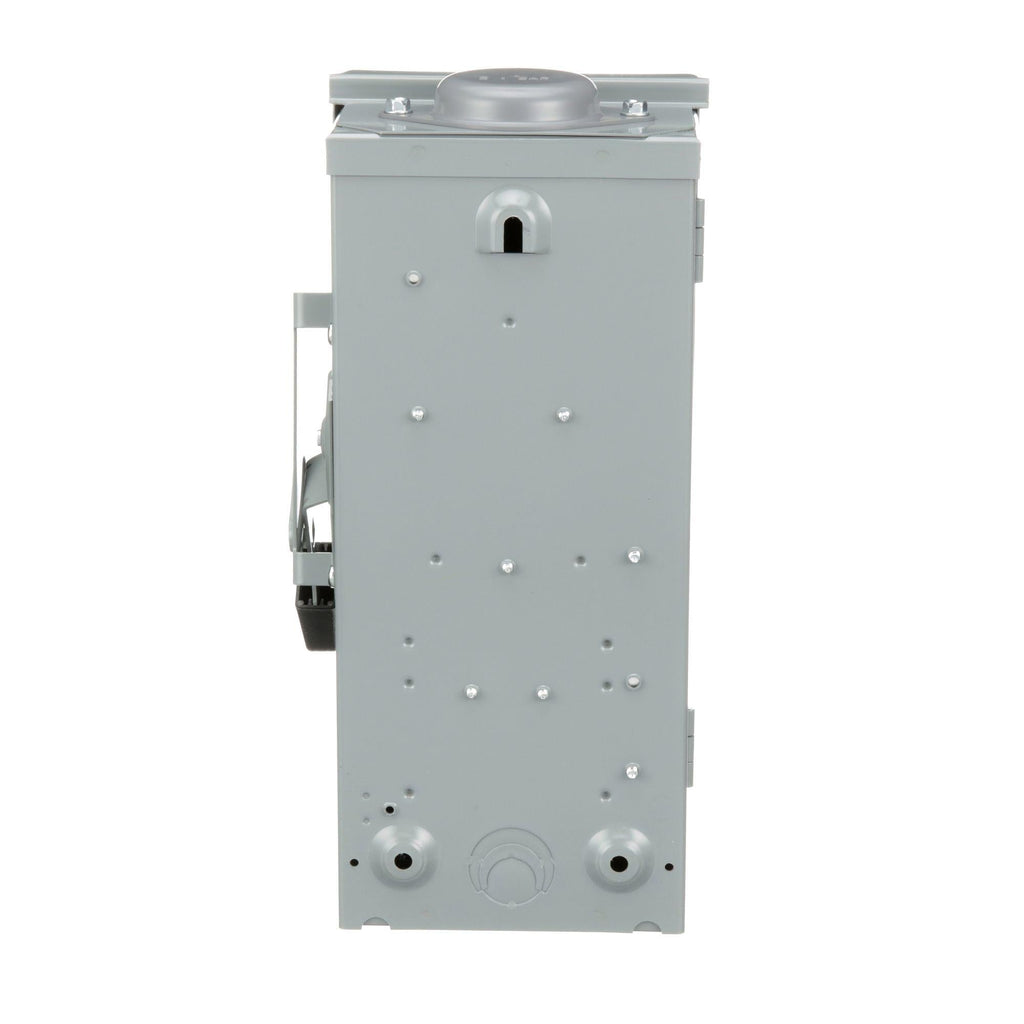

D323NRB is a Square D 100 amp, 240 volt, 3-pole fusible general duty safety switch with a NEMA 3R rainproof enclosure and factory installed neutral.This general duty single throw safety switch is designed for residential and commercial applications including lighting, air conditioning, and appliances. It features a 100kA interrupt rating at 240VAC, surface mounting, and accepts Class H, K, or R cartridge fuses. The enclosure is made of galvannealed steel and rated for rainproof and sleet/ice proof use indoors or outdoors. UL listed for safety and reliability.

Key Specifications
• Amperage: 100A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Surface Mount
• Interrupt Rating: 100kA at 240V
• Series/Frame: Series D
• Trip Unit: Fusible Disconnect
• Enclosure Rating: NEMA 3R
• Enclosure Material: Galvannealed Steel
• Factory Installed Neutral: Yes
• Fuse Type: Class H, K, or R Cartridge
• Certifications: UL Listed File E2875

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: D323NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : D
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : RLF

Product Data

• UPC : 785901461401
• GTIN : 00785901461401
• Country of Origin : United States
• Dimensions : 17.5 in (444.5 mm) x 10.5 in (266.7 mm) x 6.5 in (165.1 mm) (Height x Width x Depth)
• Weight : 16.191
• Certification : UL listed
