Description

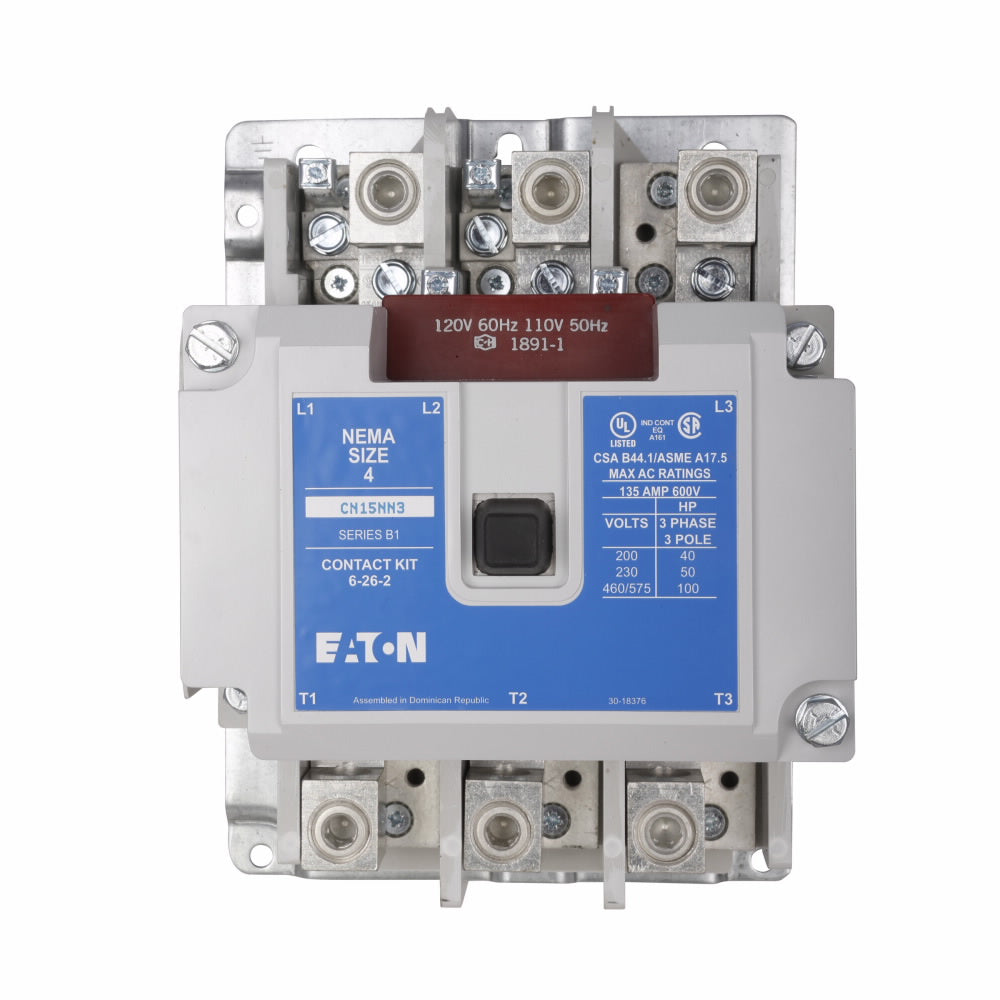

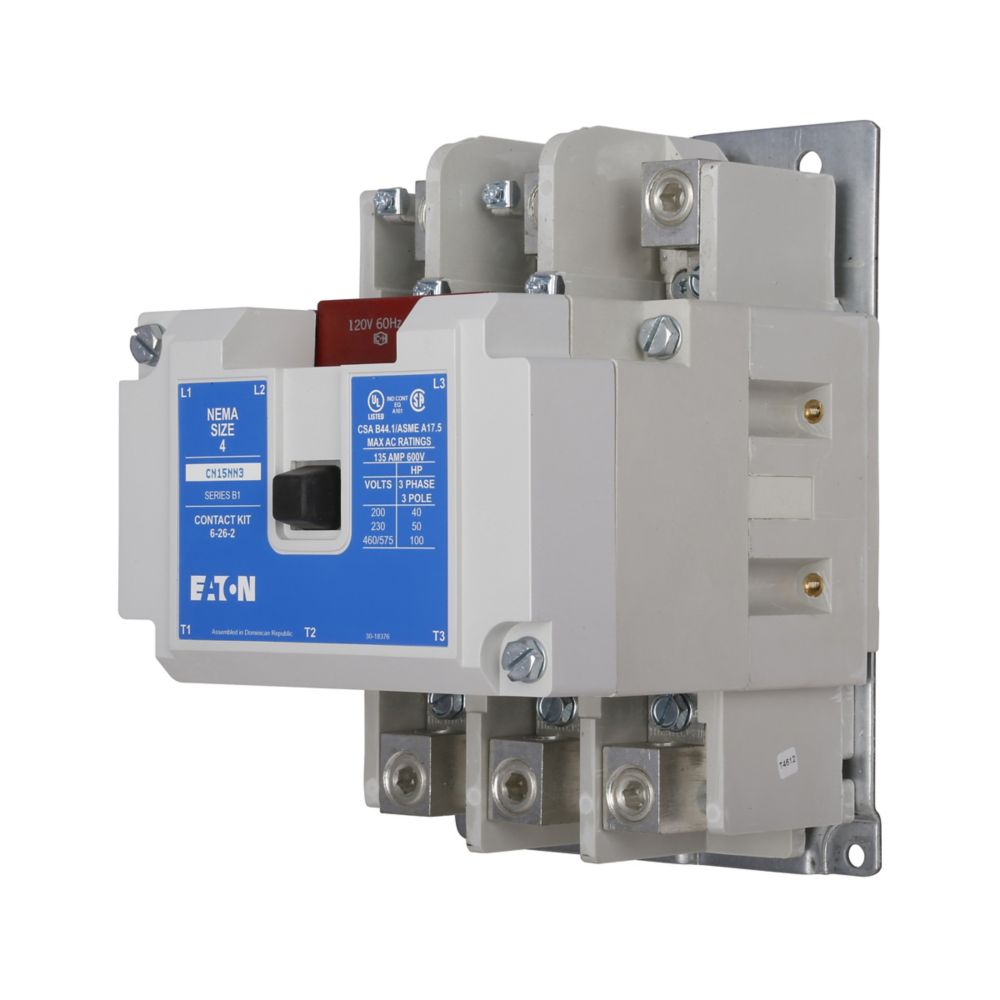

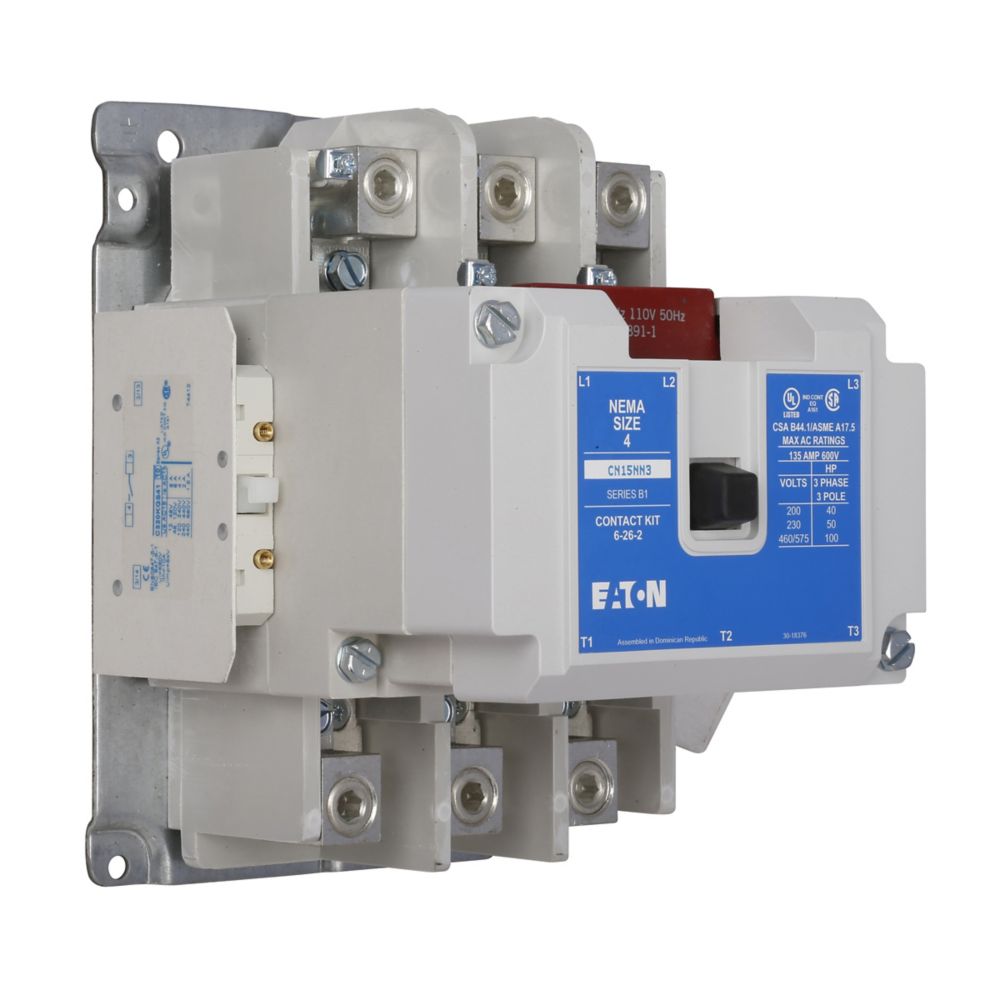

CN15NN3B
CN15NN3B is an Eaton Freedom NEMA motor control contactor designed for reliable motor switching applications.This full voltage non-reversing contactor features a 135 ampere rating with three poles and a NEMA Size 4 open enclosure. It supports coil voltages of 240V at 60 Hz or 220V at 50 Hz and is suitable for three-phase motor control. The contactor handles horsepower ratings of 40 hp at 208V, 50 hp at 240V, and 100 hp at 480/600V. It is UL Listed and CSA Certified for safety and performance.
- Amperage Rating: 135 A
- Number of Poles: Three-pole
- Coil Voltage: 240V 60 Hz / 220V 50 Hz
- NEMA Frame Size: Size 4
- Enclosure Type: Open
- Configuration: Full voltage non-reversing
- Horsepower Ratings: 40 hp at 208V, 50 hp at 240V, 100 hp at 480/600V
- Phase: Three-phase
- Overload Relay: None
- Certifications: UL Listed, CSA Certified
- Product Weight: 20 lb
Specifications
- Part Number: CN15NN3B
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 1
- Amperage : 135
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
- Aux Contacts : 1NO
- Coil Voltage Maximum : 240
- Full Load Amps : 135 A
- Coil Voltage Minimum : 220
Product Data
- UPC : 782113622477
- GTIN : 00782113622477
- Country of Origin : United States
- Dimensions : 7.25 in x 9.11 in x 7.05 in (Length/Depth x Height x Width)
- Weight : 20
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA, UL Listed
