CN15NN3A - Cutler Hammer 135A 3-Pole NEMA Size 4 Non-Reversing Contactor 120V Coil

CN15NN3A

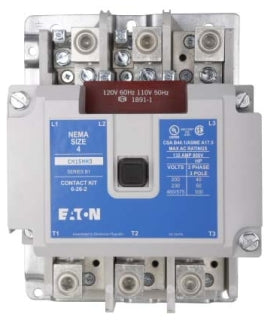

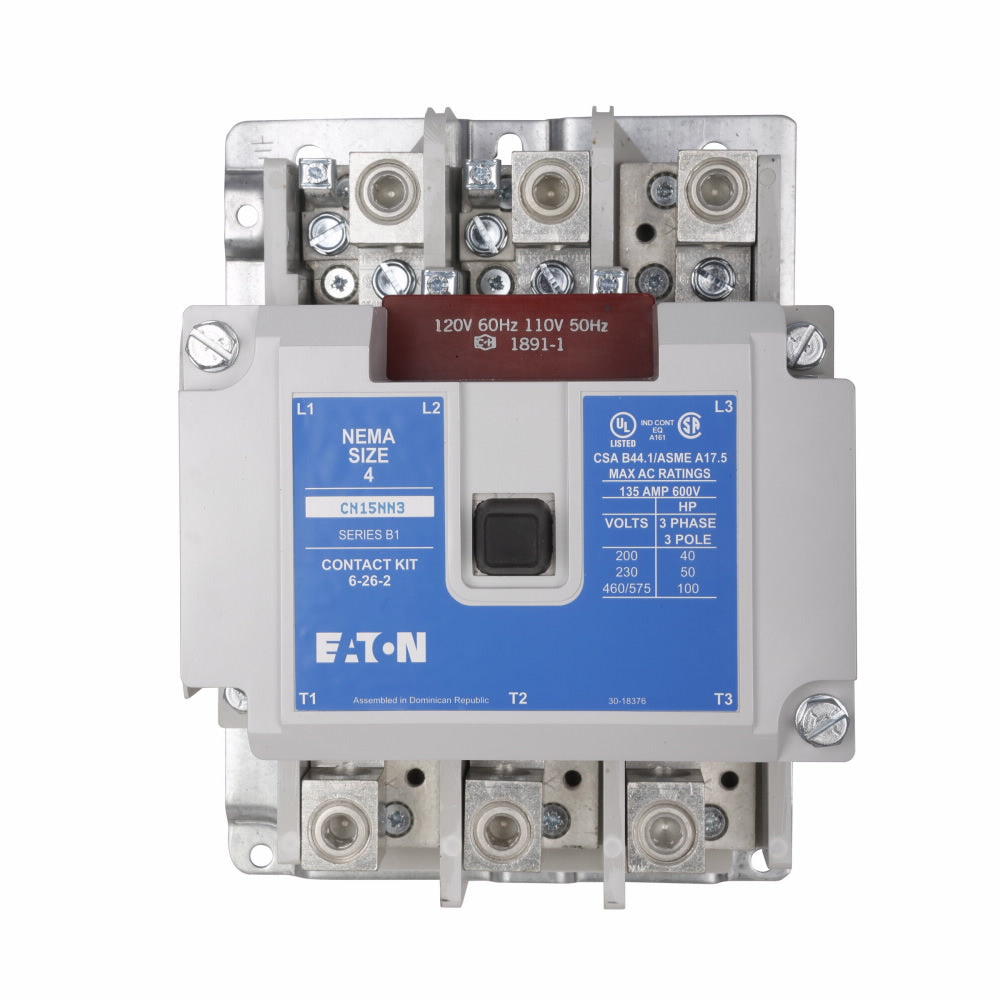

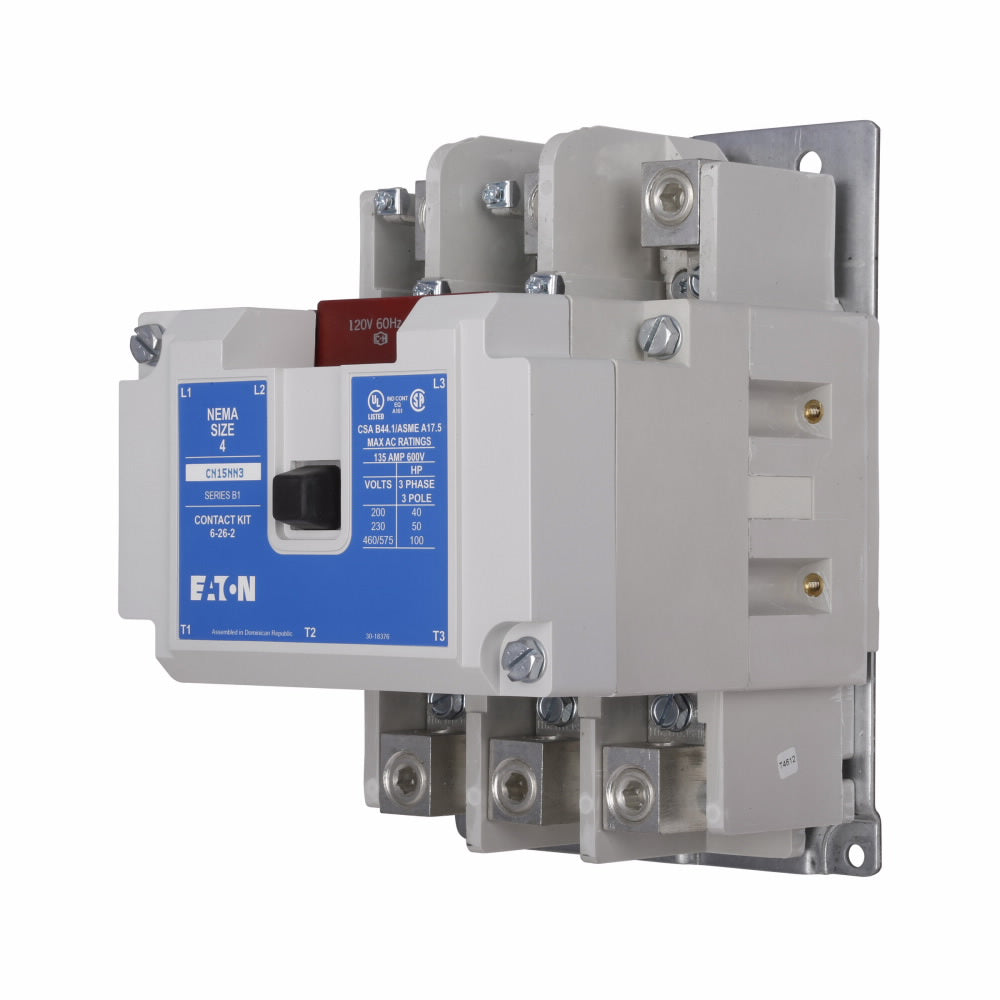

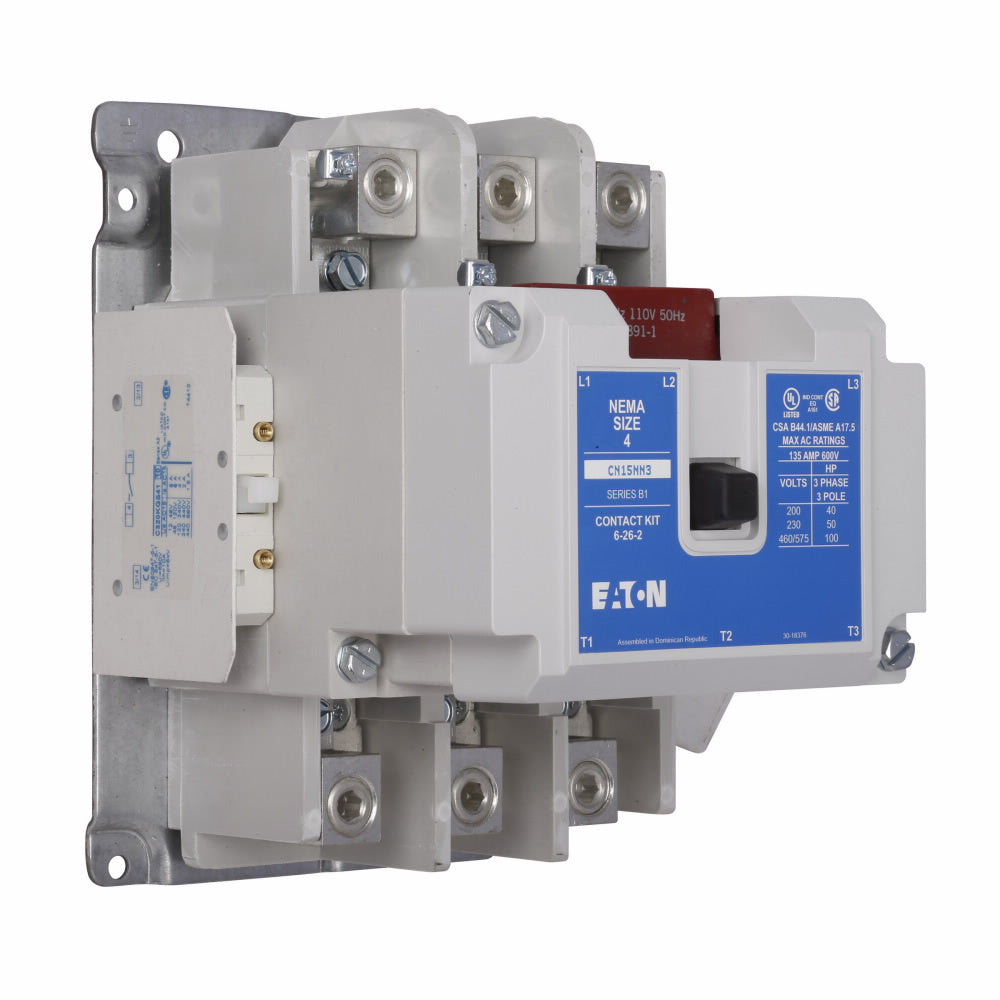

CN15NN3A is a Cutler Hammer 135 Amp, 3-pole non-reversing contactor with a NEMA Size 4 open frame and 120V coil voltage. It is designed for motor control applications requiring reliable switching performance.This Eaton Freedom series contactor features a full voltage non-reversing configuration, suitable for three-phase motor loads up to 100 HP at 480/600V. It supports coil voltages of 110V at 50 Hz and 120V at 60 Hz, with UL and CSA certifications ensuring compliance with industry standards. The contactor is built for rugged industrial environments with NEMA 4 rating, allowing horizontal or vertical panel mounting.

Key Specifications
• Amperage: 135 A
• Poles: 3
• Coil Voltage: 110V 50Hz / 120V 60Hz
• Horsepower Ratings: 40 HP @ 208V, 50 HP @ 240V, 100 HP @ 480/600V
• Mounting Type: Panel mount, horizontal/vertical
• NEMA Frame Size: 4
• Configuration: Non-reversing
• Enclosure: Open
• Certifications: UL Listed, CSA Certified
• Weight: 19.45 lbs
• Manufacturer: Cutler Hammer (Eaton)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CN15NN3A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN15NN
• Voltage : 600
• Amperage : 135
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120
• Full Load Amps : 135 A
• Coil Voltage Minimum : 110

Product Data

• UPC : 782113604138
• GTIN : 00782113604138
• Country of Origin : Dominican Republic
• Dimensions : 7.25 in x 9.1 in x 7.05 in (Length/Depth x Height x Width)
• Weight : 19.45 lb
• Certification : CSA, UL Listed
