2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CJD63L400

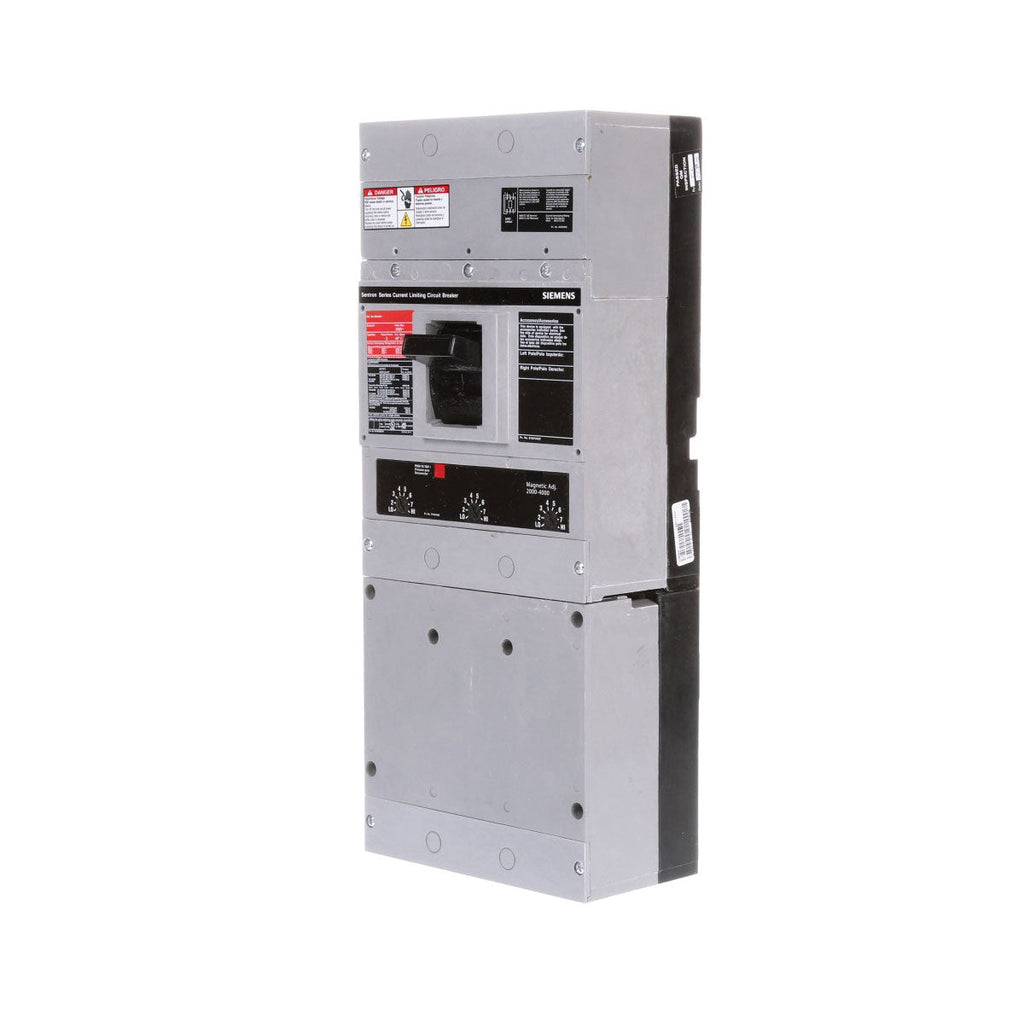

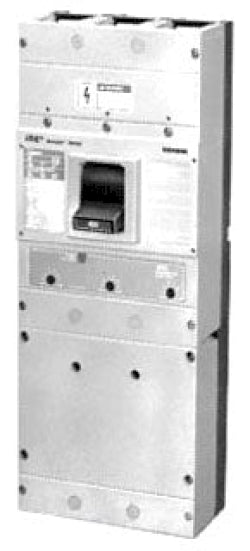

CJD63L400 is a Siemens 3 pole molded case circuit breaker with a 400 ampere rating and 600 volt AC voltage rating, designed for bolt-on mounting in industrial applications.This Siemens Sentron Series CJD type breaker features a non-interchangeable trip unit with instantaneous protection, fuseless current limiting, and a 150kA interrupting rating at 480V. It is suitable for 3-phase power distribution and includes load side lug terminals for secure connections.
- Amperage: 400A
- Voltage Rating: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 150kA at 480V
- Series/Frame: Sentron CJD
- Trip Unit: Non-Interchangeable Instantaneous
- Fuse Type: Fuseless Current Limiting
- Phase: 3
- Connection: Load Side Lug Terminals
- Certifications: CSA Approved
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: CJD63L400
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CJD
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 150kA@480V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Frame Size : JD Frame
- Protection : Magnetic Only
Product Data
- UPC : 783643213661
- GTIN : 00783643213661
- Country of Origin : Mexico
- Weight : 33.001
- Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
