CJD63B350 - Siemens 350A 600V 3-Pole Molded Case Circuit Breaker Thermal Magnetic Trip

CJD63B350

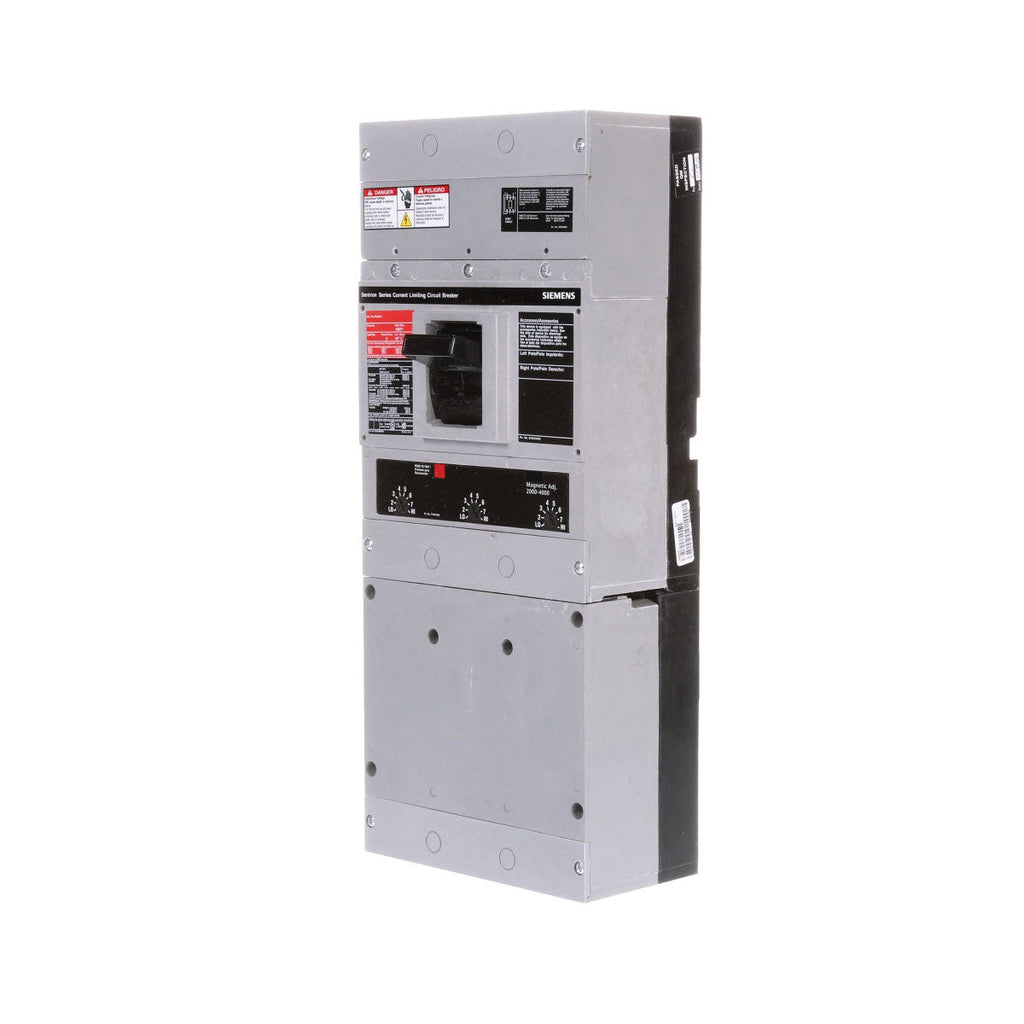

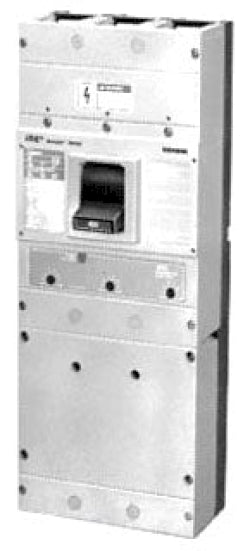

CJD63B350 is a Siemens 350 Amp, 600 Volt, 3-Pole molded case circuit breaker with thermal magnetic trip and fuseless current limiting design.This breaker features a JD frame with a bolt-on mounting type and a 100 kA interrupt rating at 600 VAC. It meets UL 489 and IEC 60947-2 standards and is rated for standard 40°C operation. The trip unit is non-interchangeable, providing reliable thermal magnetic protection.

• Manufacturer: Siemens
• Amperage: 350 A
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Frame Type: JD (CJD series)
• Mounting Type: Bolt-On
• Interrupt Rating: 100 kA at 600 VAC
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Standards: UL 489, IEC 60947-2
• Operating Temperature: 40°C Standard
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: CJD63B350
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CJD
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 150kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : JD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643213609
• GTIN : 00783643213609
• Country of Origin : Mexico
• Weight : 33.246
• Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
