CJD63B225 - Siemens 225A 600V 3P Bolt-On Molded Case Circuit Breaker, Sentron Series, 150kA@480V, Fuseless Current Limiting, Non-Interchangeable Trip, LI

CJD63B225

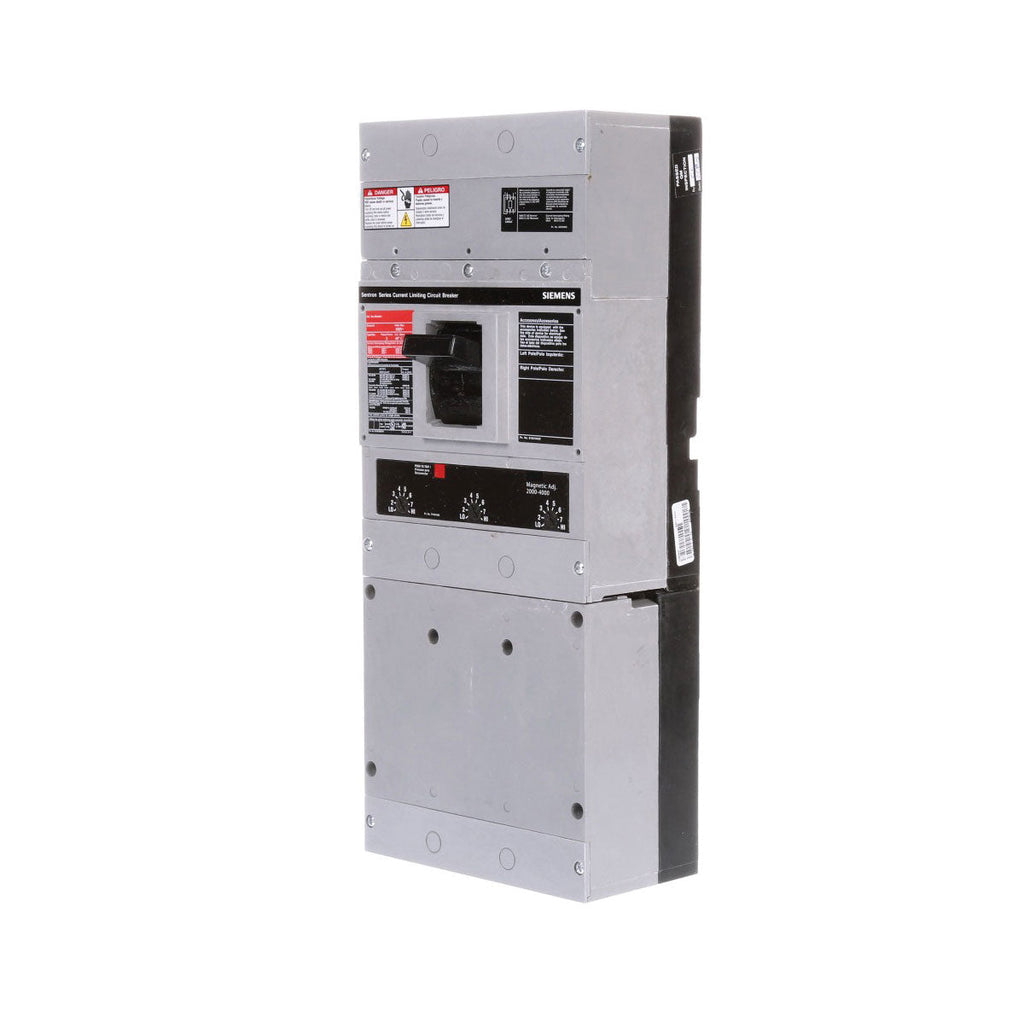

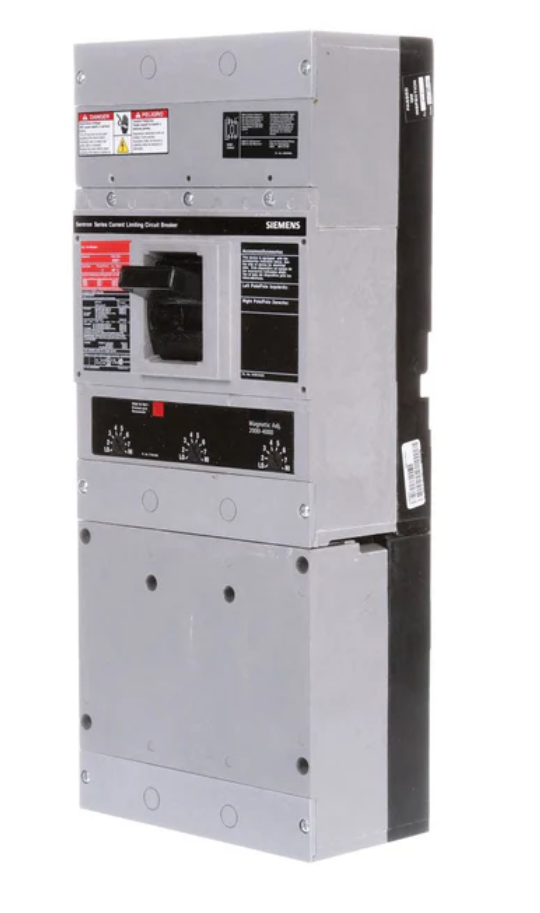

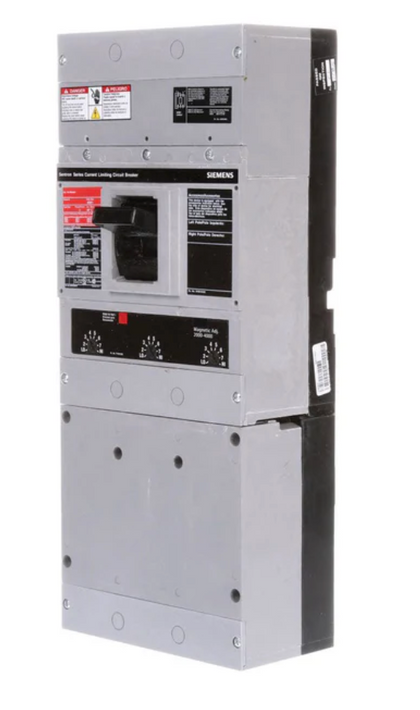

CJD63B225 is a Siemens Sentron Series molded case circuit breaker designed for robust low voltage power distribution.

This 3-pole, bolt-on circuit breaker offers a 225A current rating, 600V AC voltage rating, and a high interrupting capacity of 150kA at 480V. It features a fuseless, current-limiting design, non-interchangeable thermal-magnetic trip unit (LI), and is rated for operation up to 40°C. The CJD frame is known for reliability in commercial and industrial applications.

Key Specifications

• Part Number: CJD63B225
• Manufacturer: Siemens
• Amperage: 225A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 150kA at 480V, 100kA at 600V
• Series/Frame: Sentron Series, CJD Frame
• Trip Unit: Non-interchangeable, thermal-magnetic (LI)
• Current Limiting: Fuseless design
• Certifications: Not specified in available data
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: CJD63B225
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CJD
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 150kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : JD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643213579
• GTIN : 00783643213579
• Country of Origin : Mexico
• Weight : 32.9
• Wire Size : 3/0 AWG-500KCM (CU), 4/0 AWG-500KCM (AL)
