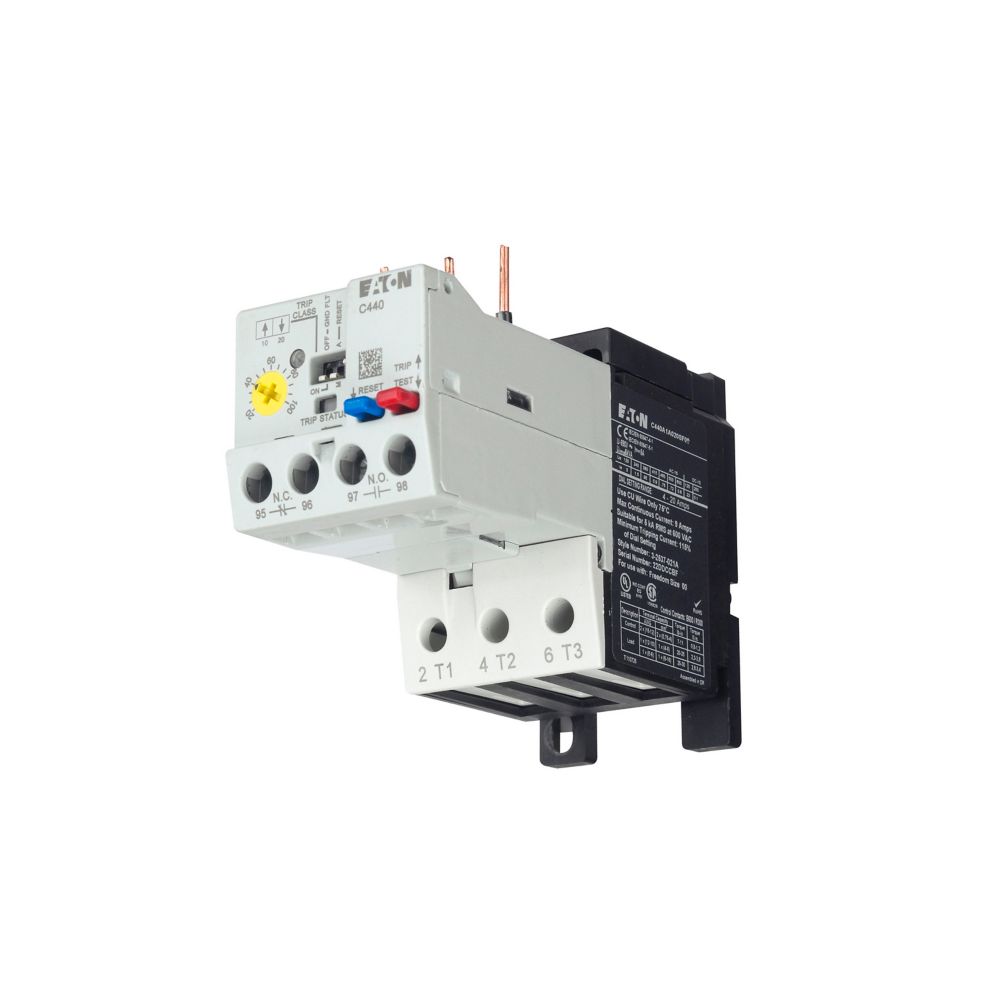

C440A1A020SF2 - Eaton 4-20A Electronic Overload Relay, NEMA Size 2, 45mm Frame, Class 10/20/30 Trip

C440A1A020SF2

C440A1A020SF2 is an Eaton electronic overload relay designed for motor protection with an adjustable current range of 4 to 20 amps and a compact 45mm NEMA Size 2 frame.This relay features selectable trip classes 10, 20, and 30, manual or automatic reset, and phase loss protection that can be enabled or disabled. It mounts directly to Eaton AN19GNO and CN15GN3 starters and contactors. The device includes one normally open and one normally closed auxiliary contact, a large FLA selection dial, trip status indicator, and DIP switch selectable settings for trip class, phase unbalance, and ground fault. It is UL and CE certified for reliable motor control.

Key Specifications
• Current Range: 4 to 20 Amps
• Frame Size: 45mm, NEMA Size 2
• Trip Classes: 10, 20, 30 selectable
• Reset Type: Manual or Automatic
• Mounting: Direct mount to AN19GNO or CN15GN3
• Auxiliary Contacts: 1 Normally Open, 1 Normally Closed
• Phase Loss Protection: Selectable ON/OFF
• Certifications: UL, CE
• Weight: Approximately 0.8 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C440A1A020SF2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Overload Relay
• Relay Style : Solid State
• Amperage Maximum : 20
• Amperage Minimum : 4

Product Data

• UPC : 786685411897
• Country of Origin : Dominican Republic
• Dimensions : 4.32 in x 3.8 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.87
• Certification : UL Listed,CSA Certified,CE Marked
