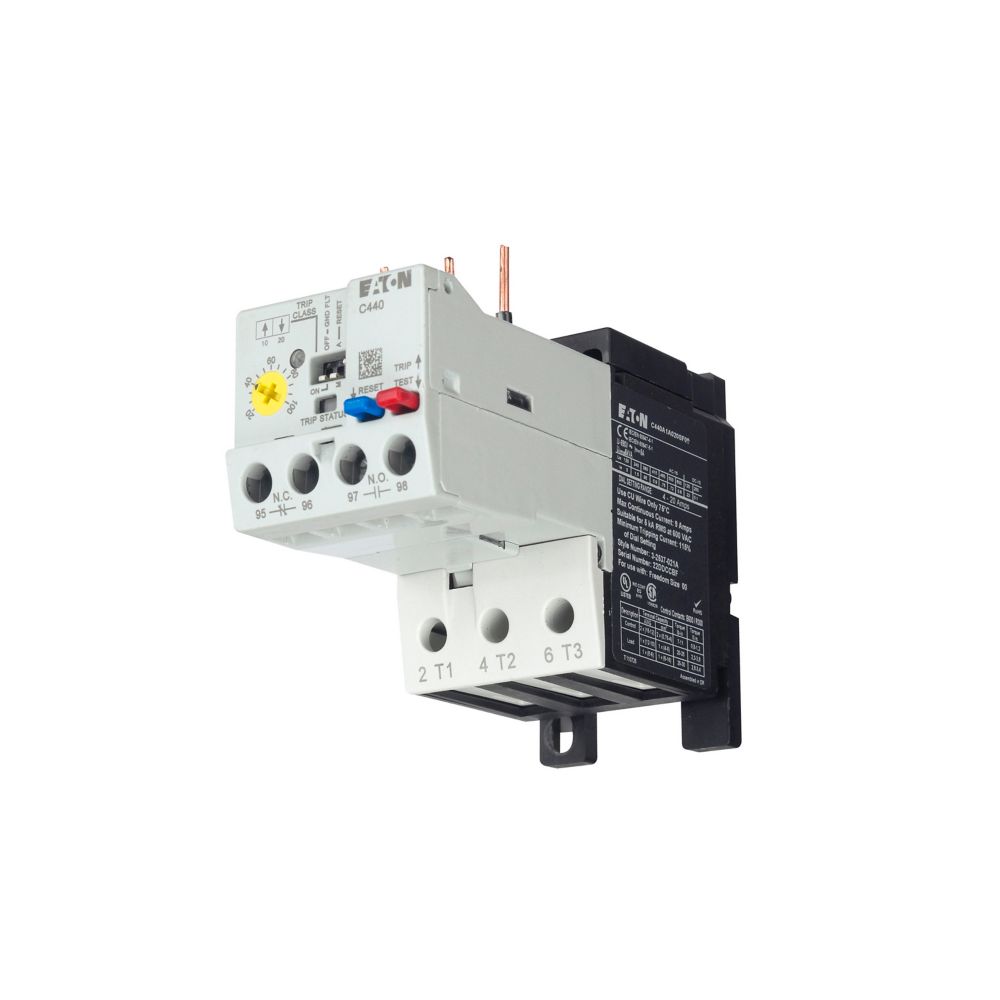

C440A1A005SF0 - Eaton 1-5A Electronic Overload Relay, 45mm Frame, Selectable Trip Class 10/20/30, Freedom Size 0

C440A1A005SF0

C440A1A005SF0 is an Eaton electronic overload relay designed for motor protection with adjustable current range from 1 to 5 amps and a compact 45 mm frame size.This relay features selectable trip classes 10, 20, and 30, manual or automatic reset options, and includes auxiliary contacts (1 N.O. and 1 N.C.). It provides phase loss protection that can be enabled or disabled and mounts directly to Eaton AN19BNO or CN15BN3 starters and contactors. Certified UL Listed, CSA Certified, and CE Marked, it offers reliable motor protection in a Freedom Size 0 frame.

• Amperage range: 1-5 A adjustable
• Frame size: 45 mm (Freedom Size 0)
• Trip class: Selectable 10, 20, 30
• Reset type: Manual or automatic
• Auxiliary contacts: 1 normally open, 1 normally closed
• Phase loss protection: Selectable ON/OFF
• Mounting: Direct mount to AN19BNO or CN15BN3
• Certifications: UL Listed, CSA Certified, CE Marked
• Rated short-time withstand current: Manual and auto
• Product dimensions: 4.32 in length, 3.8 in height, 1.8 in width

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C440A1A005SF0
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : C440 Electronic
• Type : C440
• Relay Style : Solid State
• Aux Contacts : 2NO/2NC
• Amperage Maximum : 5
• Amperage Minimum : 1

Product Data

• UPC : 78668541175
• GTIN : 00786685411750
• Country of Origin : Dominican Republic
• Dimensions : 4.32 in x 3.8 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.87
• Certification : CE, CSA, UL Listed
