C440A1A005SF1 - Eaton 1-5A Electronic Overload Relay, Freedom Size 1, 45mm Frame, Class 10/20/30 Trip

C440A1A005SF1

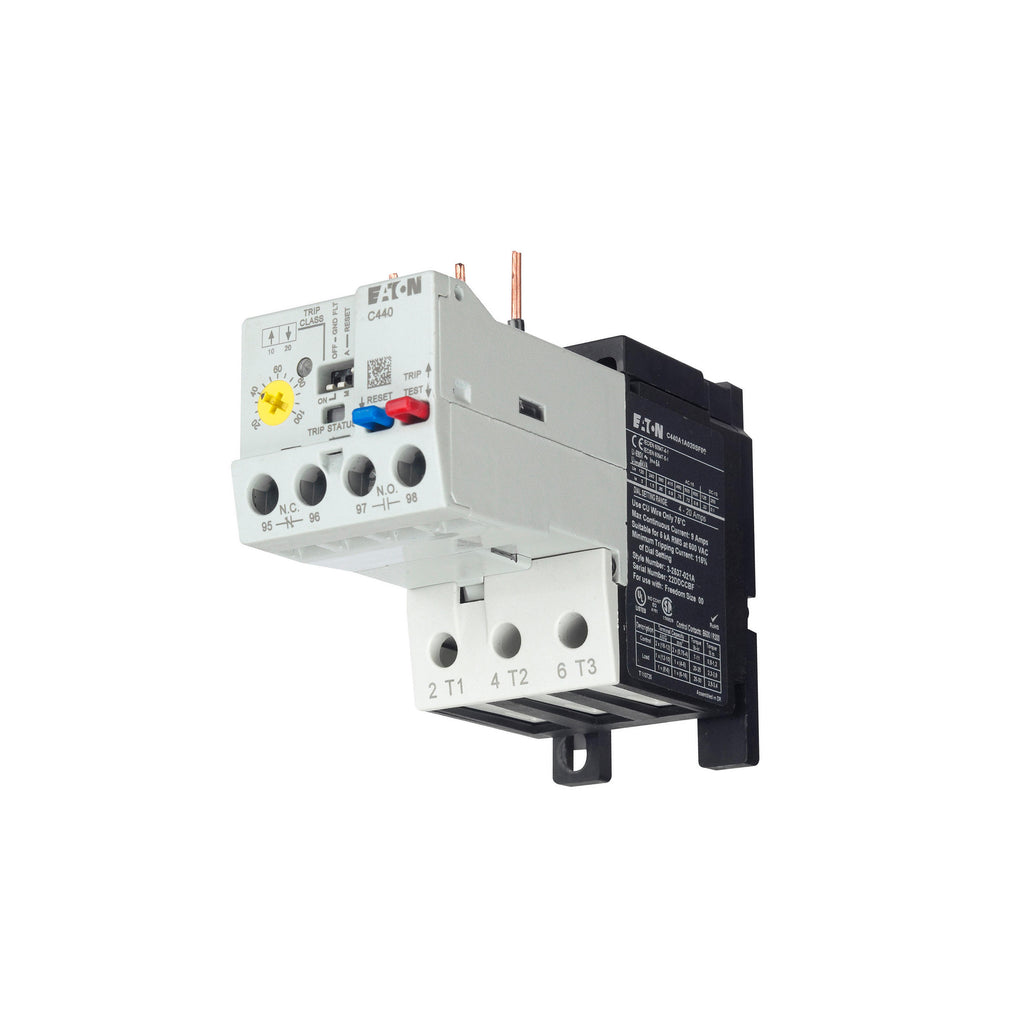

C440A1A005SF1 is an Eaton electronic overload relay designed for motor protection with an adjustable current range of 1 to 5 amps.This relay features a Freedom Size 1, 45mm frame and supports selectable trip classes 10, 20, and 30 for precise motor overload protection. It includes manual or automatic reset options, phase loss protection that can be enabled or disabled, and auxiliary contacts (1 normally open and 1 normally closed). The device mounts directly to AN19DNO and CN15DN3 starters and contactors. Certified by CSA and UL, and CE marked, it ensures compliance with industry standards.

Key Specifications
• Amperage Range: 1-5 Amps
• Frame Size: 45 mm (Freedom Size 1)
• Trip Classes: Selectable 10, 20, 30
• Reset Type: Manual or Automatic
• Auxiliary Contacts: 1 N.O. / 1 N.C.
• Phase Loss Protection: Selectable ON/OFF
• Mounting: Direct mount to AN19DNO and CN15DN3
• Certifications: CSA Certified, UL Listed, CE Marked
• Type: Electronic Overload Relay
• Dimensions: Approx. 4.32 in length, 3.8 in height, 1.8 in width

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C440A1A005SF1
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : C440 Electronic
• Type : C440
• Relay Style : Solid State
• Amperage Maximum : 5
• Amperage Minimum : 1

Product Data

• UPC : 786685411811
• GTIN : 00786685411811
• Country of Origin : Dominican Republic
• Dimensions : 4.32 in x 3.8 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.87 lb
• Certification : UL Listed,CSA Certified,CE Marked
