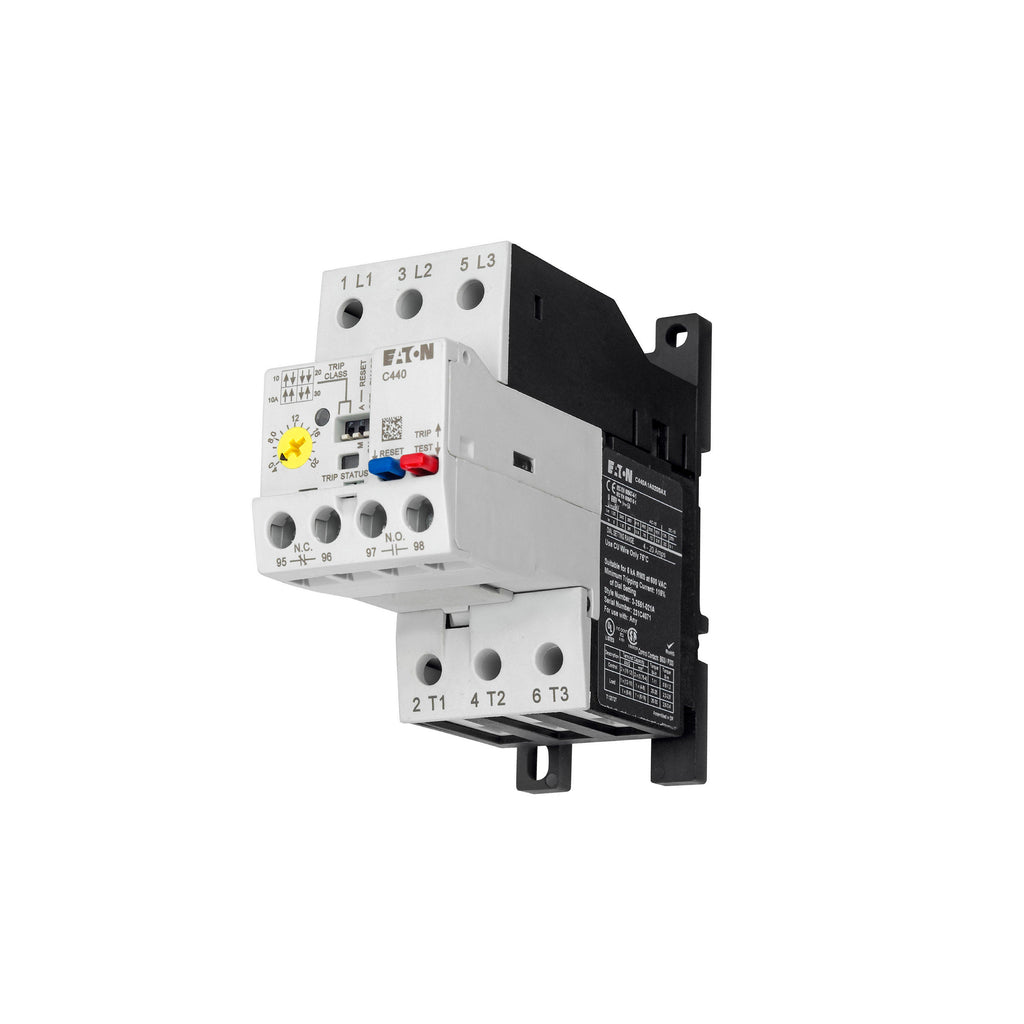

C440A1A020SAX - Eaton Electronic Overload Relay 4-20A Adjustable, 3 Poles, 45mm Frame, Separate Mount

C440A1A020SAX

C440A1A020SAX is an Eaton electronic overload relay designed for motor control applications with an adjustable amperage range of 4 to 20 amps.This electronic overload relay features a 45mm frame size, 3 poles, and a selectable Class 10 trip type, suitable for separate mounting in motor protection circuits. It complies with UL, CSA, and CE certifications, ensuring reliable and safe operation in industrial environments.

• Adjustable amperage range: 4-20 A
• Frame size: 45 mm
• Poles: 3
• Trip class: Selectable Class 10
• Mounting type: Separate mount
• Certifications: UL, CSA, CE
• Application: Motor protection and control
• Series: Eaton C440
• Interrupt rating: Standard for motor overload relays

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C440A1A020SAX
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : C440 Electronic
• Type : C440
• Relay Style : Solid State
• Aux Contacts : 2NO/2NC
• Amperage Maximum : 20
• Amperage Minimum : 4

Product Data

• UPC : 786685412368
• GTIN : 00786685412368
• Country of Origin : Dominican Republic
• Dimensions : 4.32 in x 3.8 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.87 lb
• Certification : CE, CSA, UL Listed
