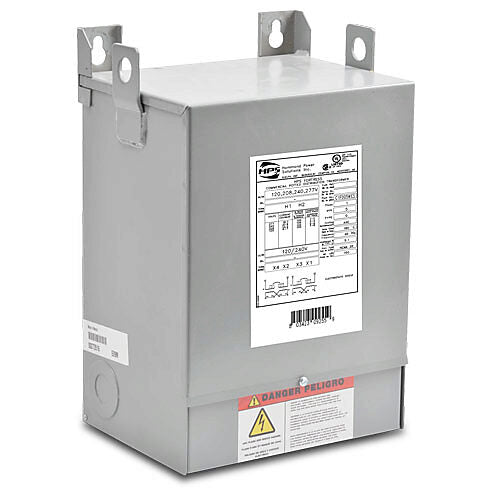

C1F003WES - Hammond Power Solutions 3 kVA 1-Phase Wall Mount Encapsulated Transformer 120/208/240/277V Primary 120/240V Secondary

C1F003WES

C1F003WES is a 3 kVA single-phase encapsulated transformer designed for wall mounting by Hammond Power Solutions.This transformer features multiple primary voltage taps of 120, 208, 240, and 277 volts with a 120/240 volts secondary output. It operates at 60 Hz frequency and is UL and CSA certified. The unit is encapsulated for durability and suitable for commercial and industrial applications requiring reliable voltage isolation and conversion.

Key Specifications
• Power Rating: 3 kVA
• Phase: Single-phase
• Primary Voltage: 120/208/240/277 V
• Secondary Voltage: 120/240 V
• Frequency: 60 Hz
• Mounting Type: Wall mount
• Encapsulation: Encapsulated isolation type
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: C1F003WES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 3kVA 277,240,208,120V-120/240V 60Hz CU
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 277, 240, 208, 120
• Primary Connection : Series (V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 3
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ5-N3R
• Enclosure Dimensions : 17.25in/439mm(H), 10in/254mm(W), 7.75in/197mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 3
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No



Product Data

• UPC : 803423093907
• GTIN : 00803423093907
• Weight : 86
• Certification : CSA, UL
