Hammond Power Solutions C1F002WES - 2 kVA Transformer 277/240/208/120V-120/240V

C1F002WES

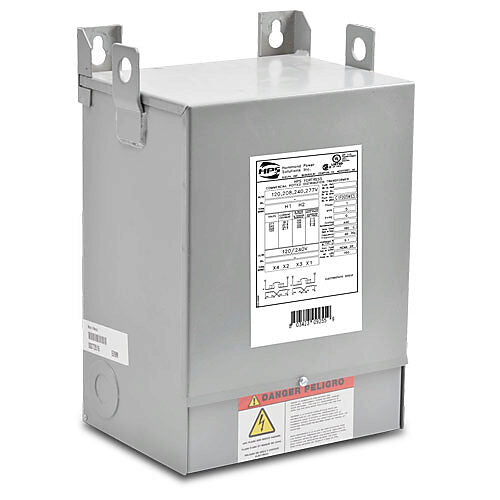

Hammond Power Solutions C1F002WES is a general duty transformer designed for industrial power distribution applications. This single-phase 2 kVA unit features versatile primary voltage compatibility (277V, 240V, 208V, or 120V) with secondary output configurable for 120/240V operation. Constructed with copper windings and housed in a Type 3R/IP24 rated enclosure with ANSI 61 grey finish, the transformer measures 11.75" H × 7.06" W × 6.25" D and operates with a 135°C temperature rise and 180°C insulation class. The unit complies with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and maintains a 45 dBA sound level per NEMA ST-20. Typical applications include commercial lighting, control circuits, and industrial equipment power supply where reliable voltage transformation is required. Key Features & Specifications

• Type: Single-phase general duty transformer
• Voltage: Primary 277/240/208/120V, Secondary 120/240V
• Current: 2 kVA capacity
• Frequency: 60 Hz
• Impedance: 1% - 5% standard
• Material: Copper windings
• Temperature Rise: 135°C
• Insulation Class: 180°C
• Enclosure: Type 3R / IP24 rated
• Dimensions: 11.75" H × 7.06" W × 6.25" D
• Sound Level: 45 dBA (NEMA ST-20)
• Seismic Compliance: IBC 2018 (Sds=2.0)

Specifications

• Part Number: C1F002WES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 2kVA 277,240,208,120V-120/240V 60Hz CU
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 277, 240, 208, 120
• Primary Connection : Series (V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 2
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ4-N3R
• Enclosure Dimensions : 11.75in/299mm(H), 7.06in/180mm(W), 6.25in/159mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 2
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423092726
• Weight : 50
• Certification : CSA, UL
