BR290 - Cutler Hammer 90 Amp 2-Pole 120/240V Type BR Plug-On Circuit Breaker, 10 kAIC, Common Trip, UL 489

BR290

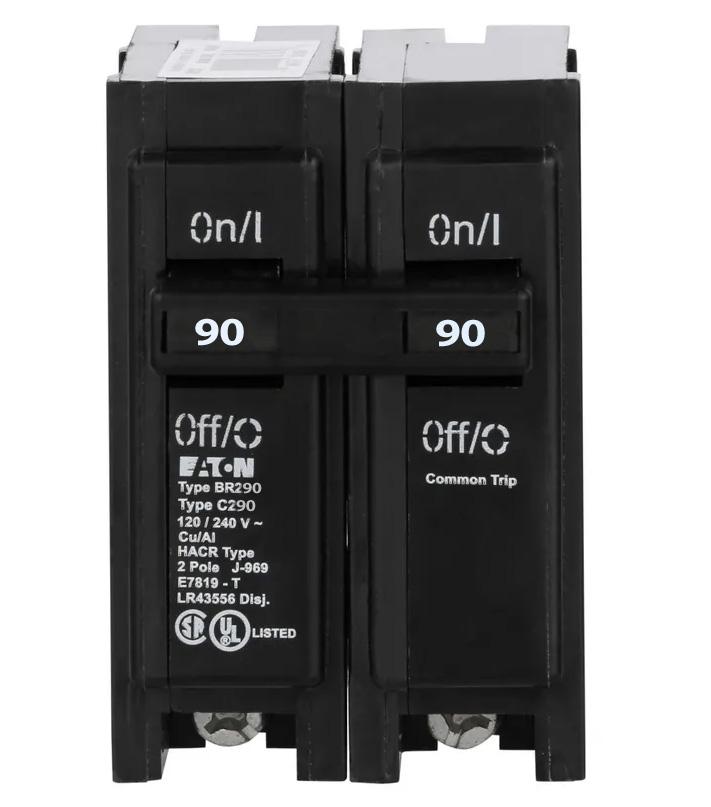

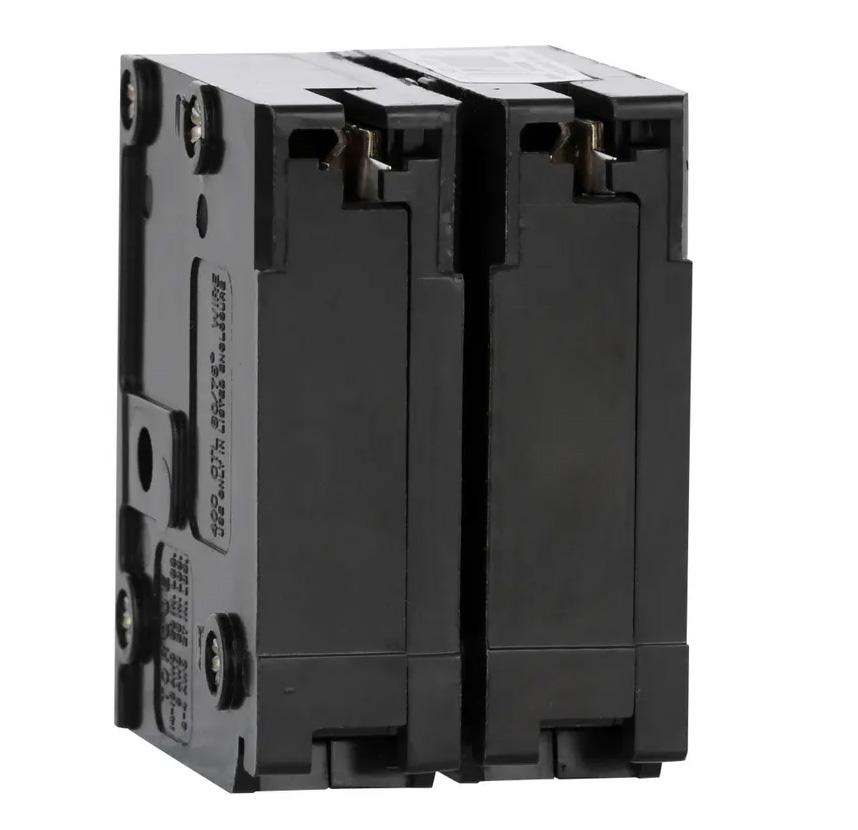

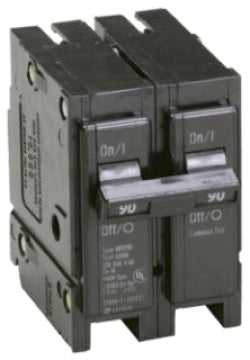

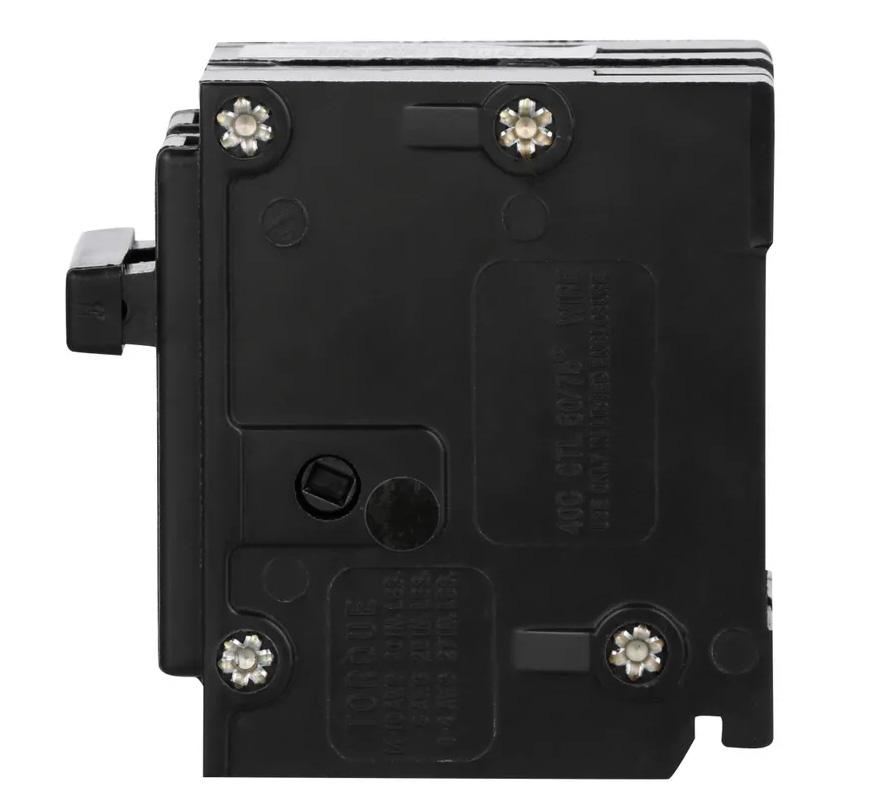

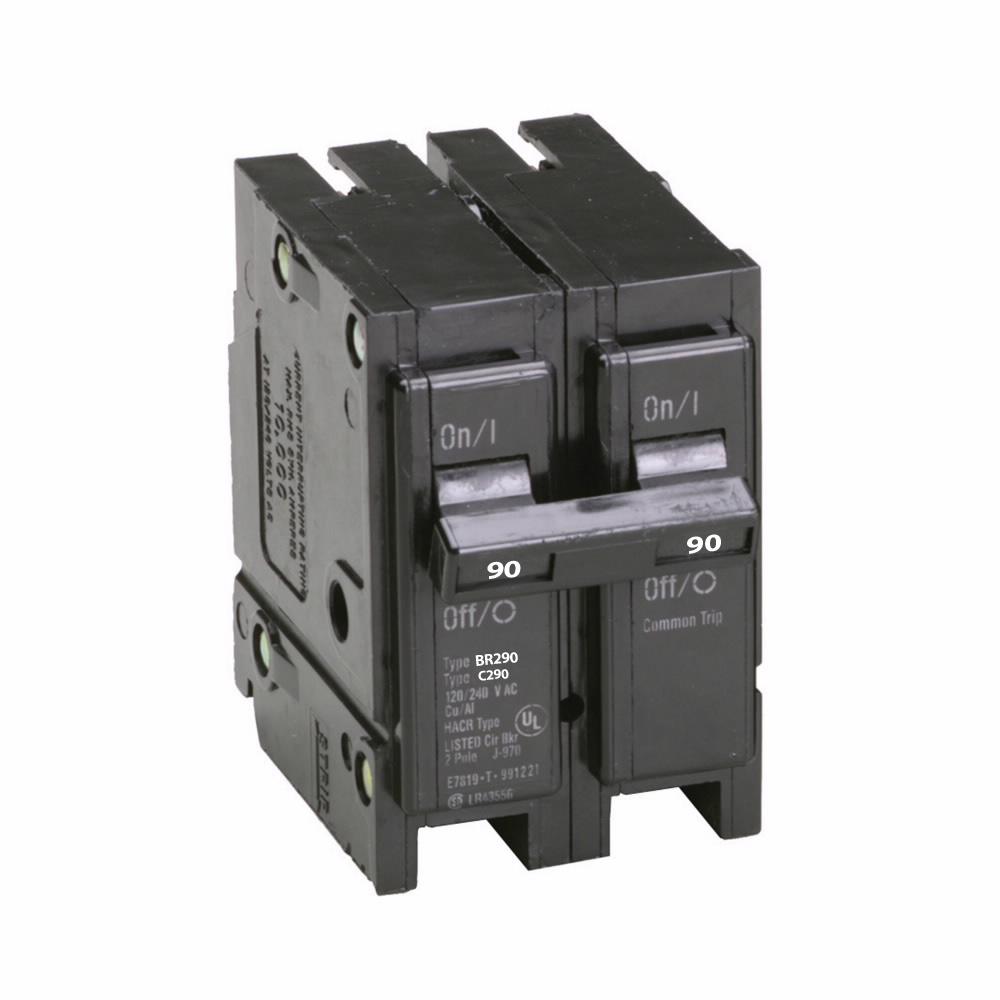

BR290 is a Cutler Hammer (Eaton) Type BR thermal magnetic circuit breaker designed for residential and light commercial load centers.

This two-pole, plug-on mount breaker offers a 90 amp rating, 120/240V voltage, and a 10 kAIC interrupting capacity, with a common trip mechanism for enhanced safety and compliance. It is compatible with Type BR load centers and accepts #8-1/0 AWG copper or aluminum wire.

Key Specifications
• Amperage: 90 A
• Voltage: 120/240 V
• Poles: 2
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC
• Series/Frame: Type BR
• Trip Unit: Common breaker trip
• Certifications: UL 489, Federal Spec W-C375
• Wire Size: #8-1/0 AWG Cu/Al
• Dimensions: 2 in (L) x 2.5 in (H) x 2.9 in (W)
• Weight: 0.7 lb
• UPC: 786676363204

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR290
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Load Center
• Family : BR Series
• Type : BR
• Voltage : 2
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676363204
• GTIN : 00786676363204
• Country of Origin : Dominican Republic
• Dimensions : 2 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 0.7
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 8 to AWG 1/0, Cu/Al
