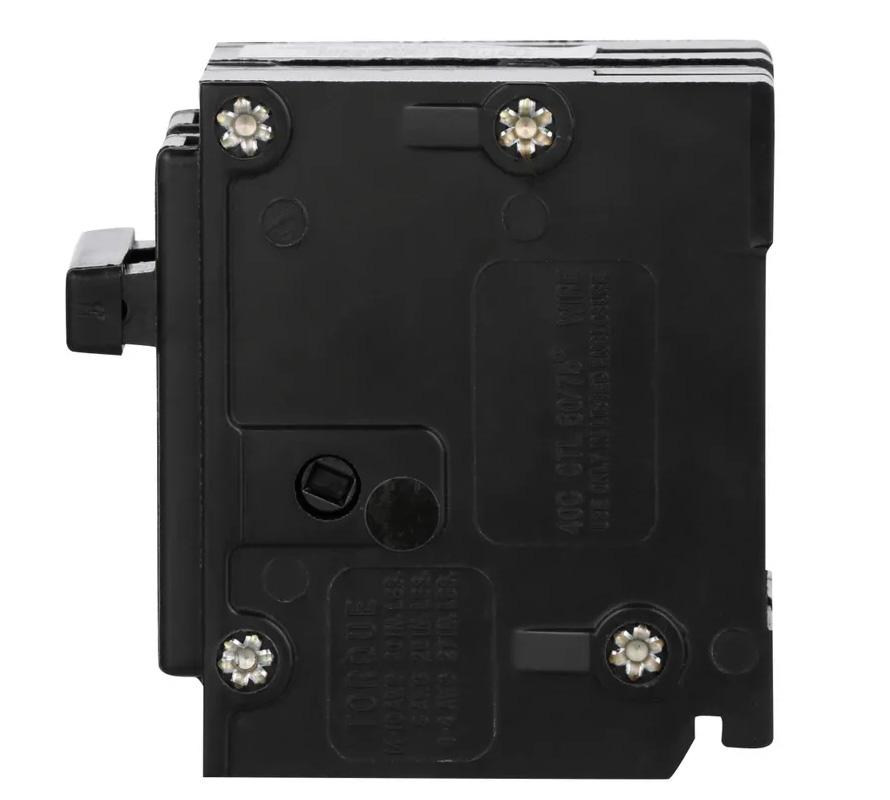

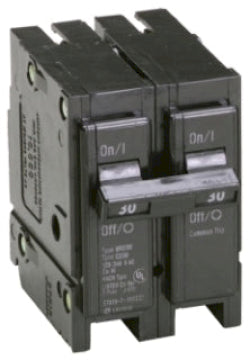

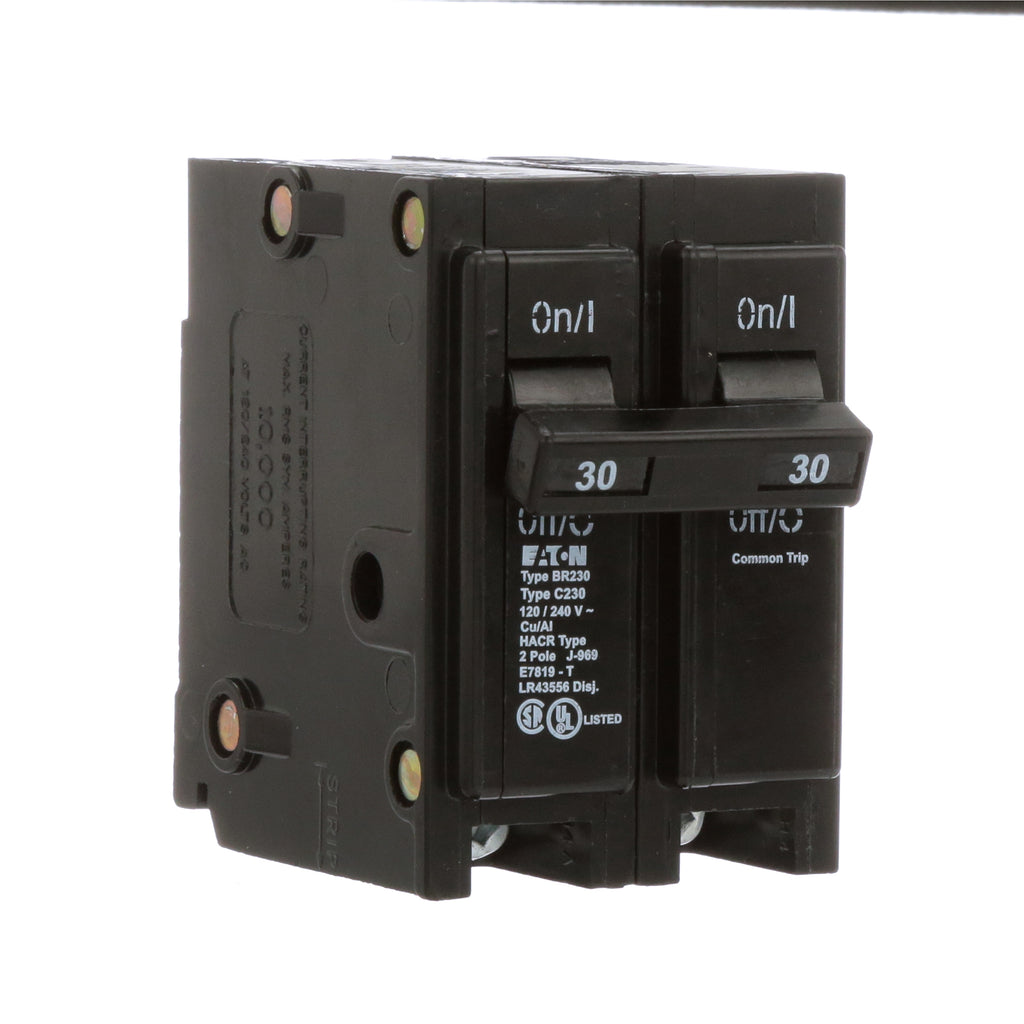

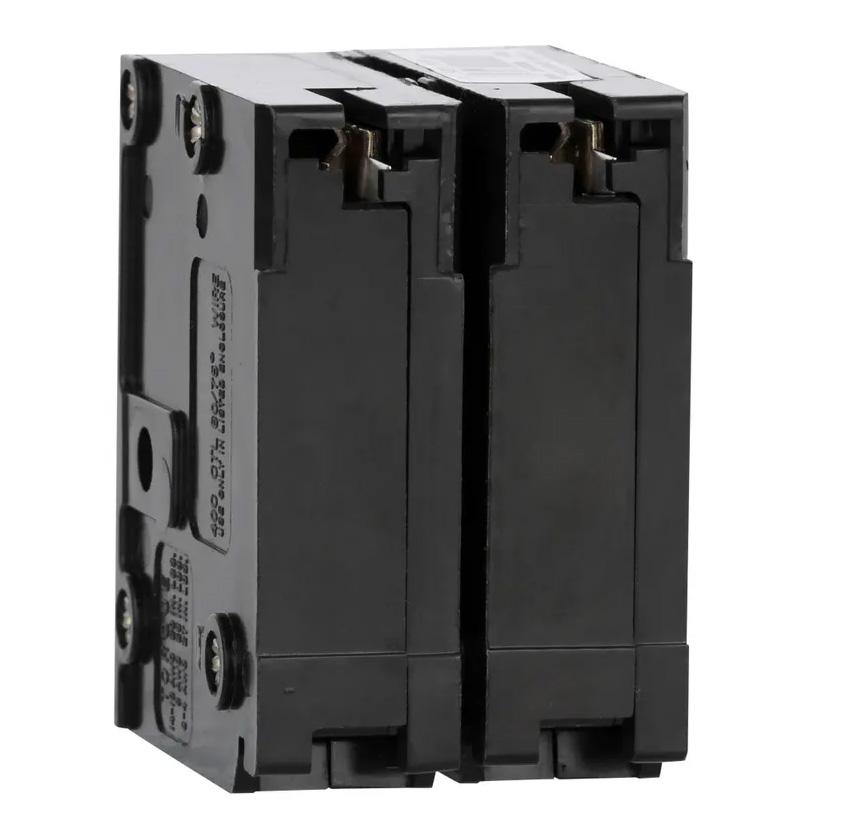

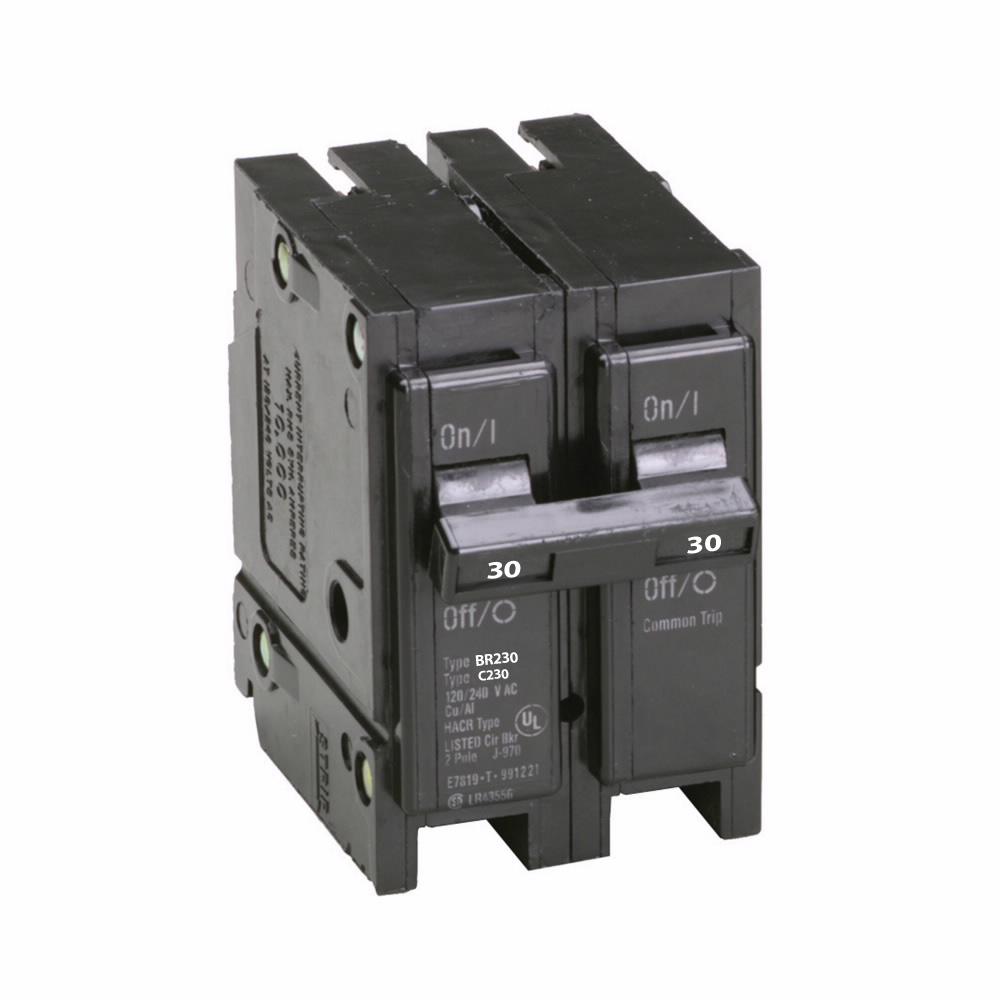

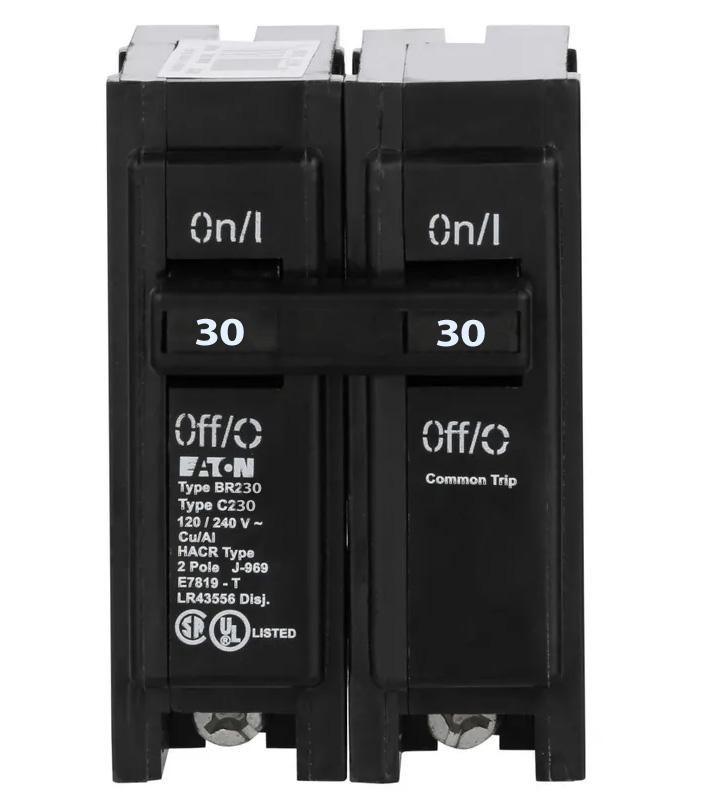

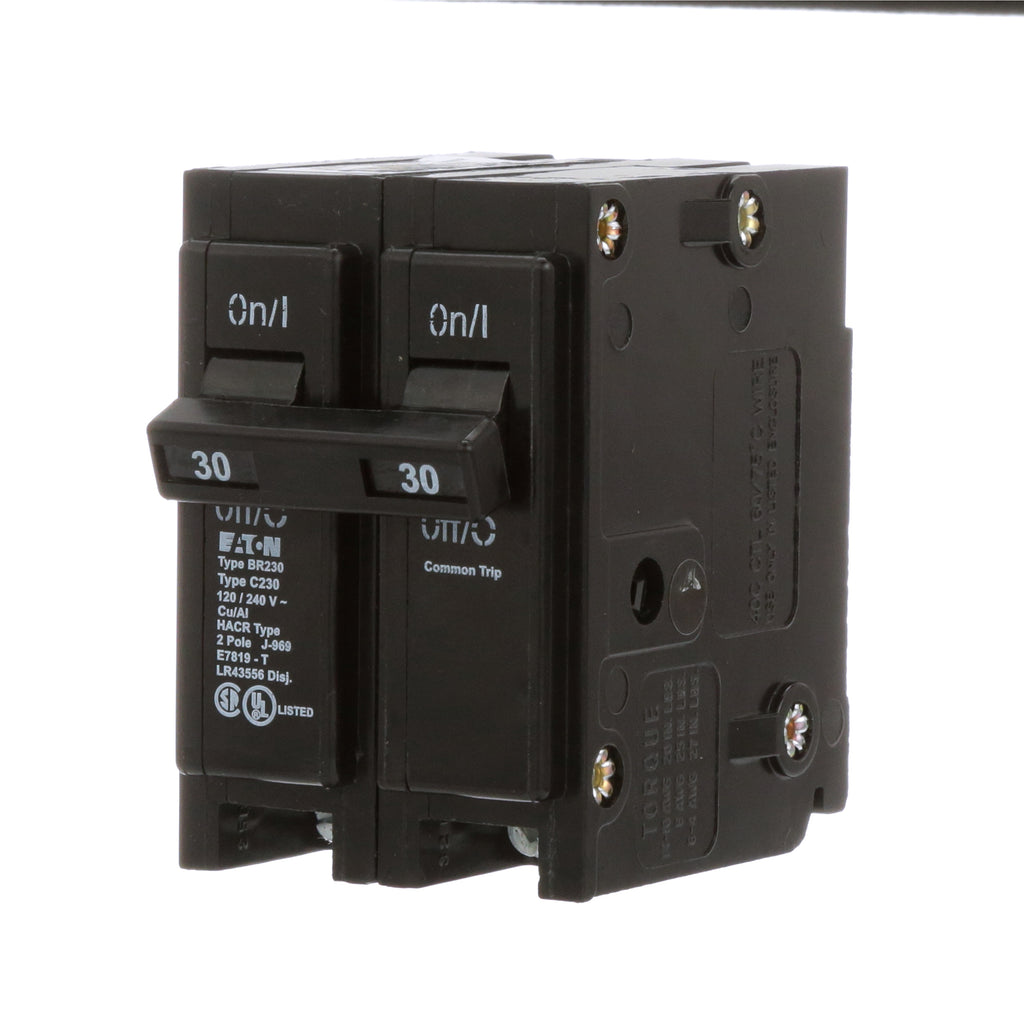

BR230 - Eaton 30 Amp 120/240V 2 Pole Thermal Magnetic Circuit Breaker Plug-On BR Frame

BR230

BR230 is an Eaton 2 pole thermal magnetic circuit breaker rated for 30 amps and 120/240 volts AC with plug-on mounting.This Eaton BR230 circuit breaker features a 10 kA interrupting rating at 240V, common trip mechanism, and thermal magnetic protection. It is designed for use in Type BR load centers and supports wire sizes from #14 to #4 AWG copper or aluminum. The breaker complies with UL 489 certification and Federal Specification W-C375. Its compact 1.9 in depth, 2.5 in height, and 2.9 in width dimensions fit standard residential and light commercial panels.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-On
• Interrupting Rating: 10 kAIC at 240 V
• Series/Frame: BR
• Trip Unit: Thermal Magnetic, Common Trip
• Wire Size: #14-4 AWG Cu/Al
• Certifications: UL 489, Federal Spec W-C375
• Dimensions (LxWxH): 1.9 x 2.9 x 2.5 in
• Weight: 0.65 lb
• For Use With: Type BR Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR230
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786676362955
• GTIN : 00786676362955
• Country of Origin : United States
• Dimensions : 1.9 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 0.65
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 14 to AWG 4, Cu/Al
