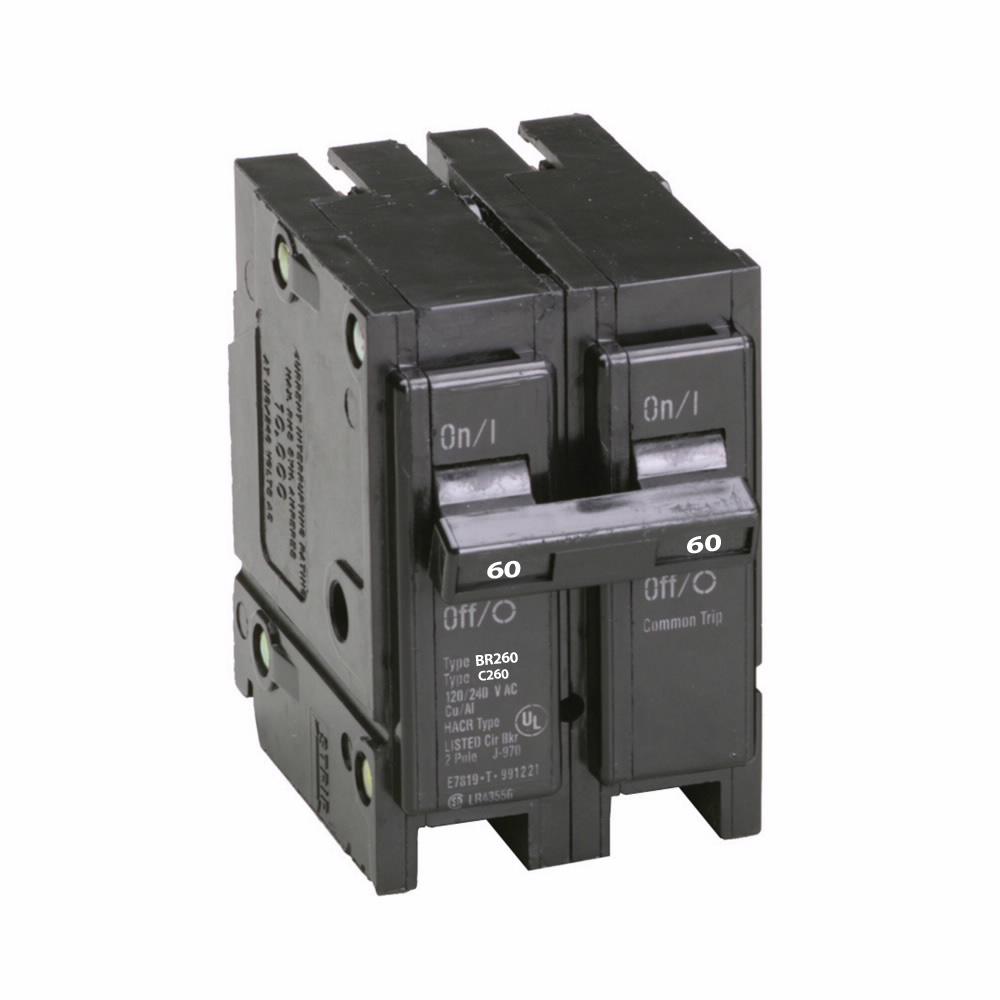

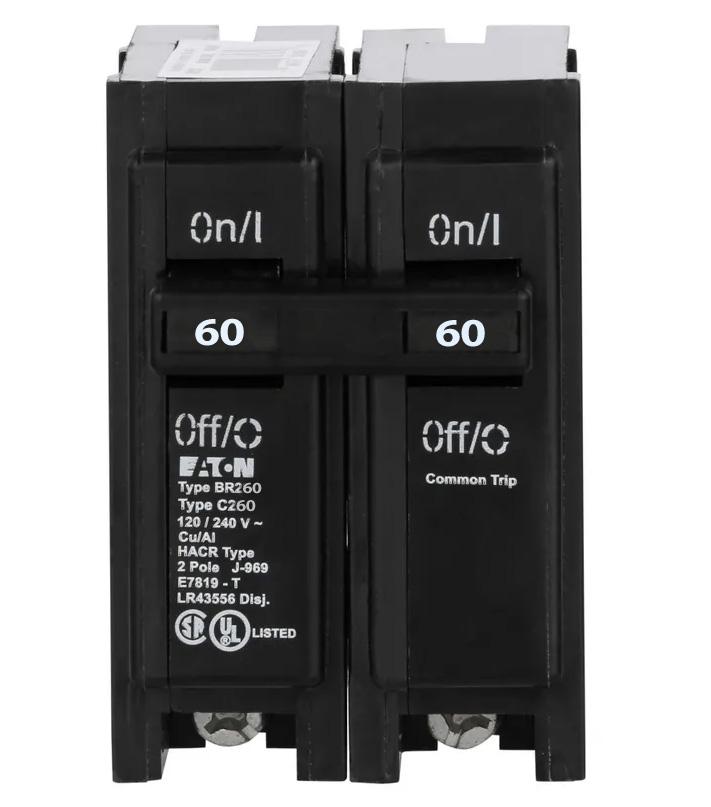

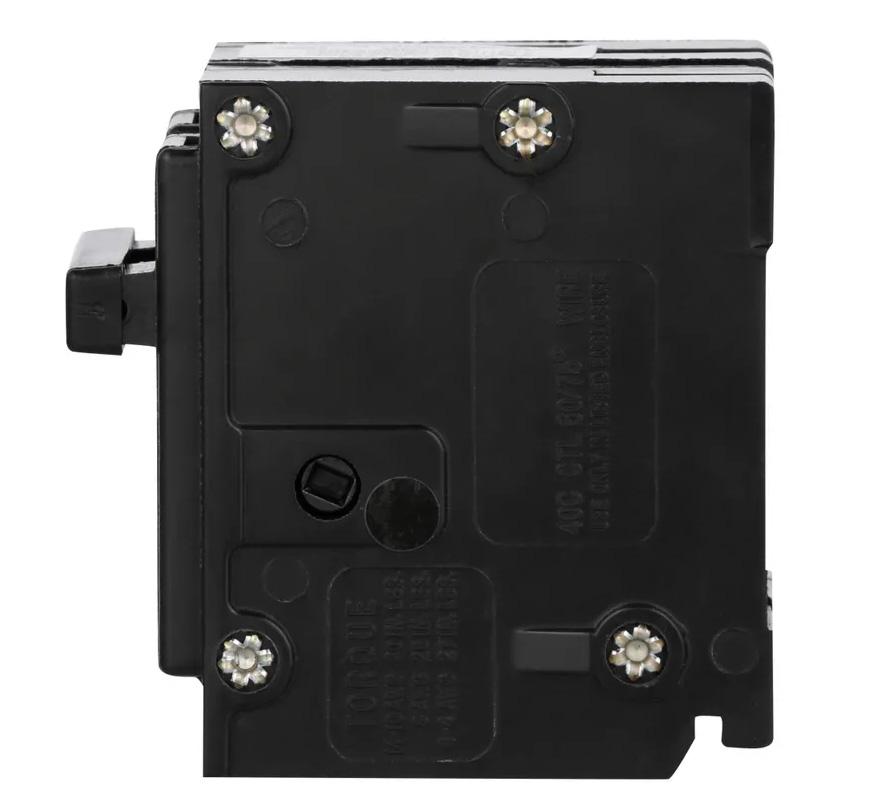

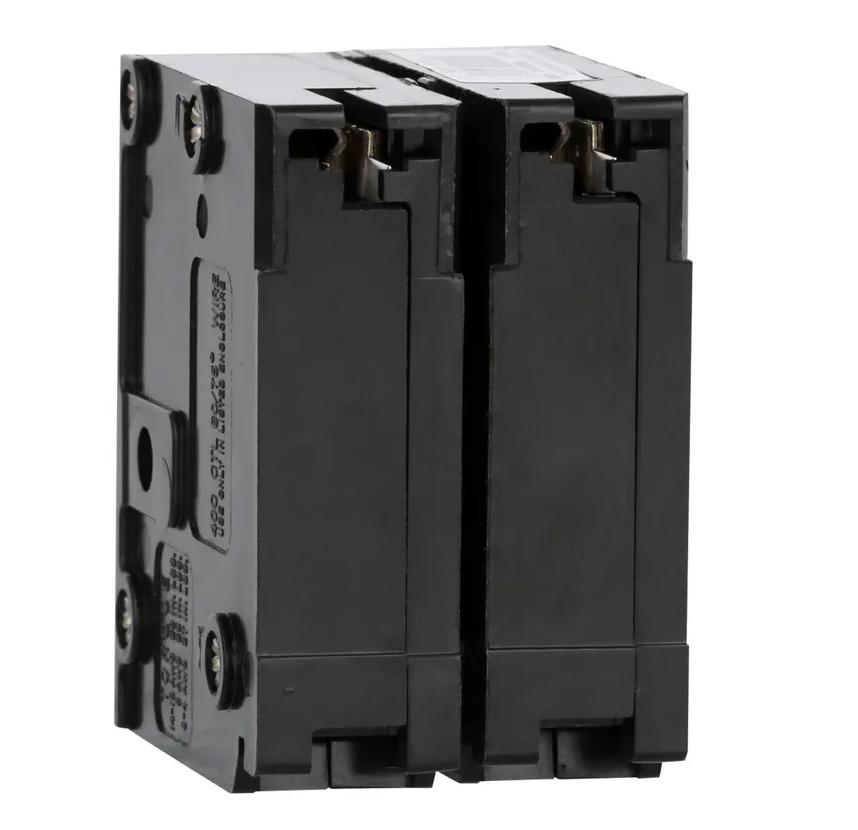

BR260 - Cutler Hammer 60 Amp 2 Pole 120/240V Type BR Plug-On Circuit Breaker, 10kAIC, Thermal Magnetic Trip, UL/CSA Listed

BR260

BR260 is a Cutler Hammer (Eaton) 60 Amp, 2-pole, 120/240V circuit breaker designed for Type BR load centers.

This thermal magnetic molded case circuit breaker features a plug-on mounting style, common trip mechanism, and an interrupting rating of 10kAIC at 240V. It is UL and CSA certified for safety and reliability in residential and light commercial applications.

Key Specifications
• Amperage: 60A
• Voltage: 120/240V
• Poles: 2
• Mounting Type: Plug-on
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: Type BR
• Trip Unit: Thermal magnetic, common trip
• Certifications: UL 489, CSA
• Wire Size: #8 to 1/0 AWG Cu/Al
• Temperature Rating: 40°C
• Dimensions: 1.9" L x 2.9" W x 2.5" H
• Weight: 0.55 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR260
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG (Cu/Al) Max. Wire Size 1/0 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786676363105
• GTIN : 00786676363105
• Country of Origin : United States
• Dimensions : 1.9 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 0.55
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 8 to AWG 1/0, Cu/Al
