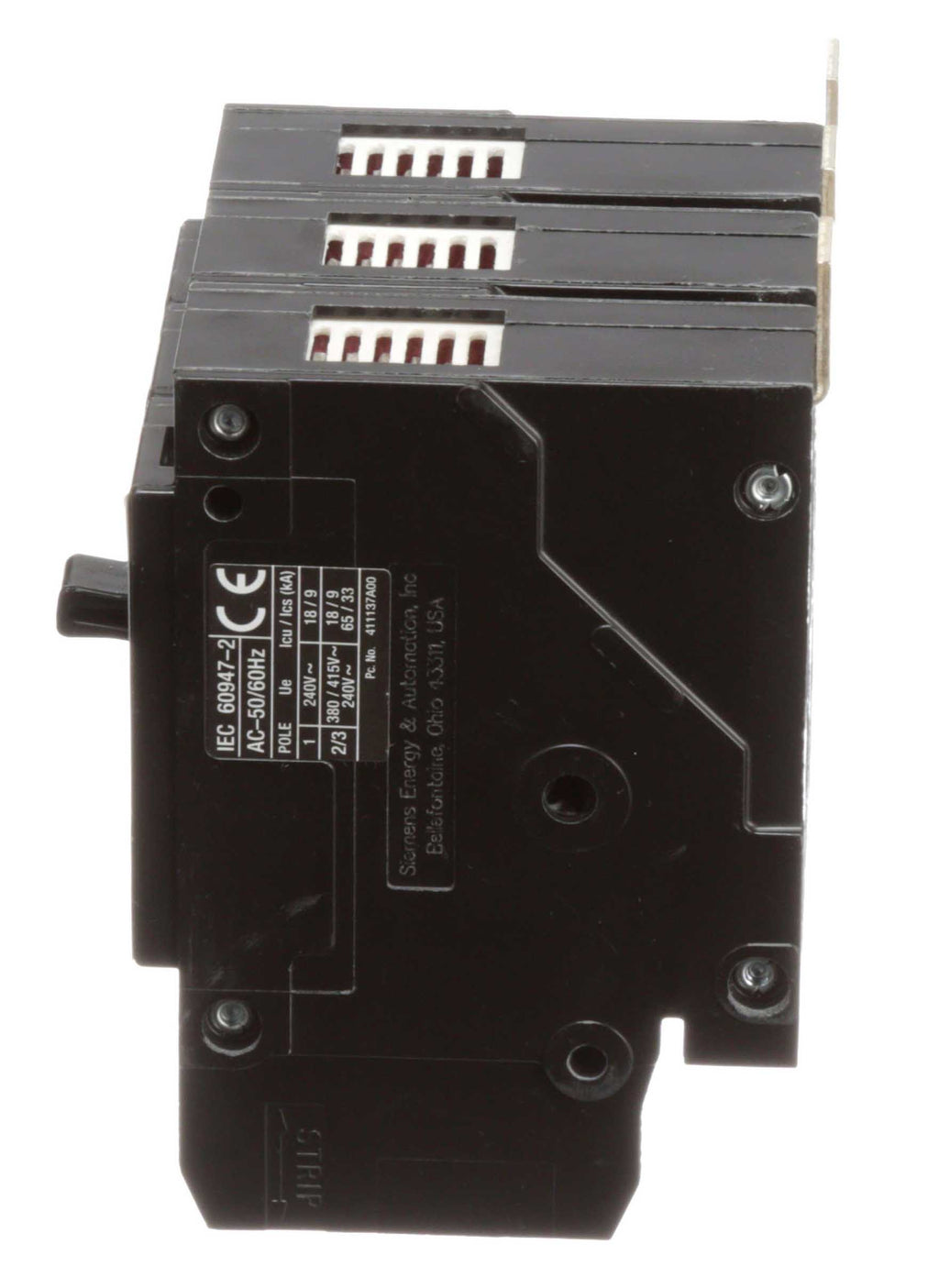

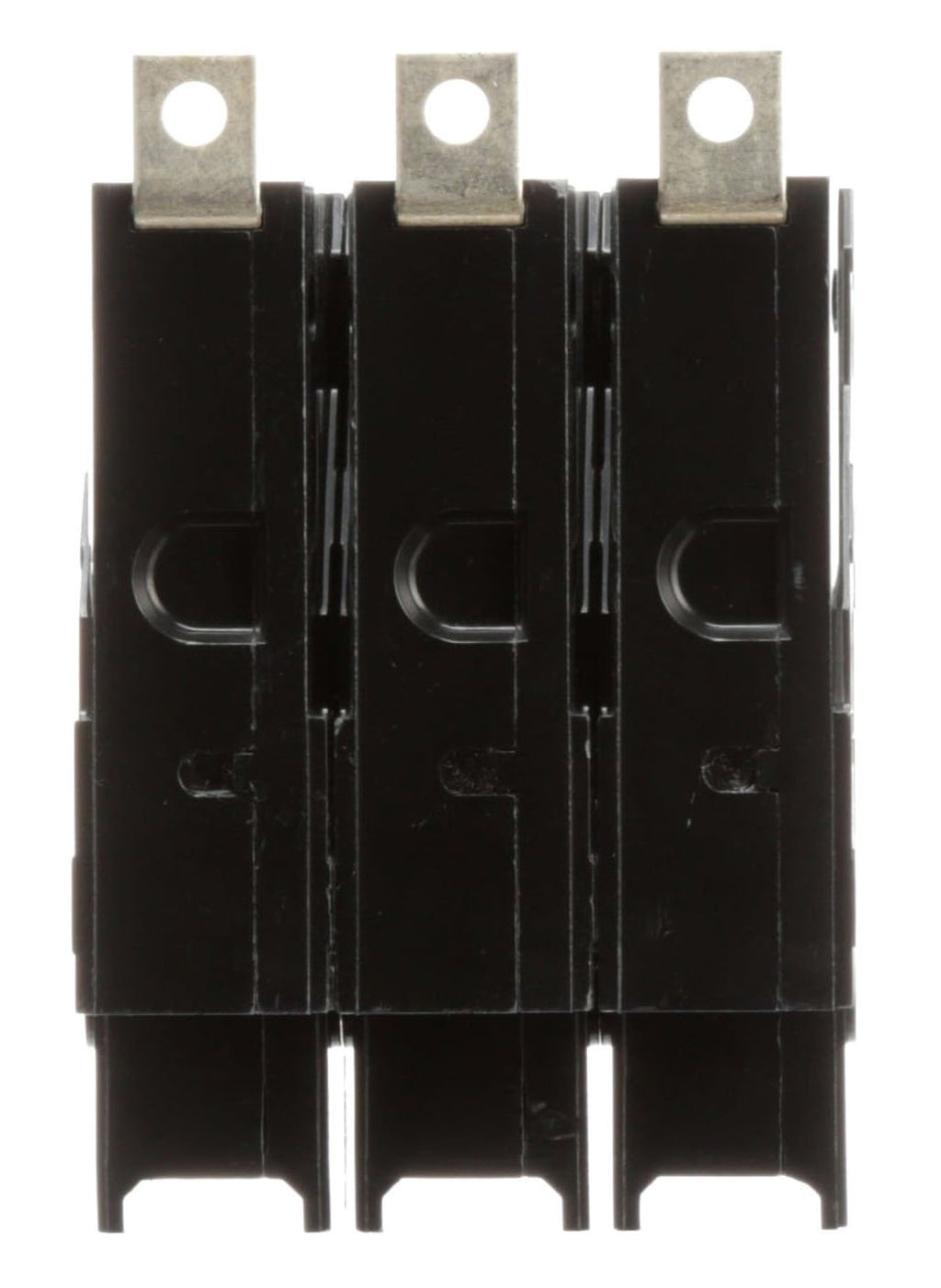

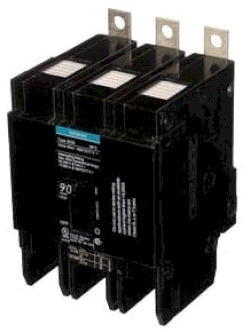

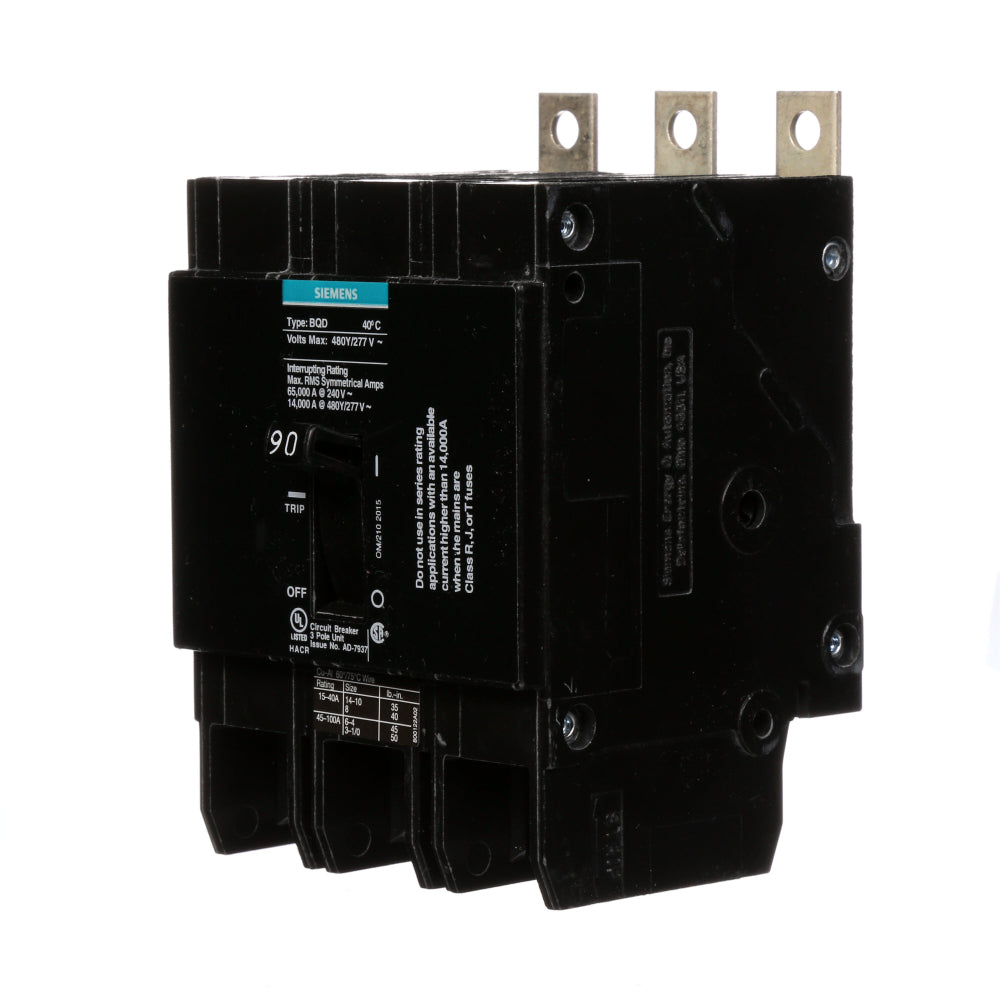

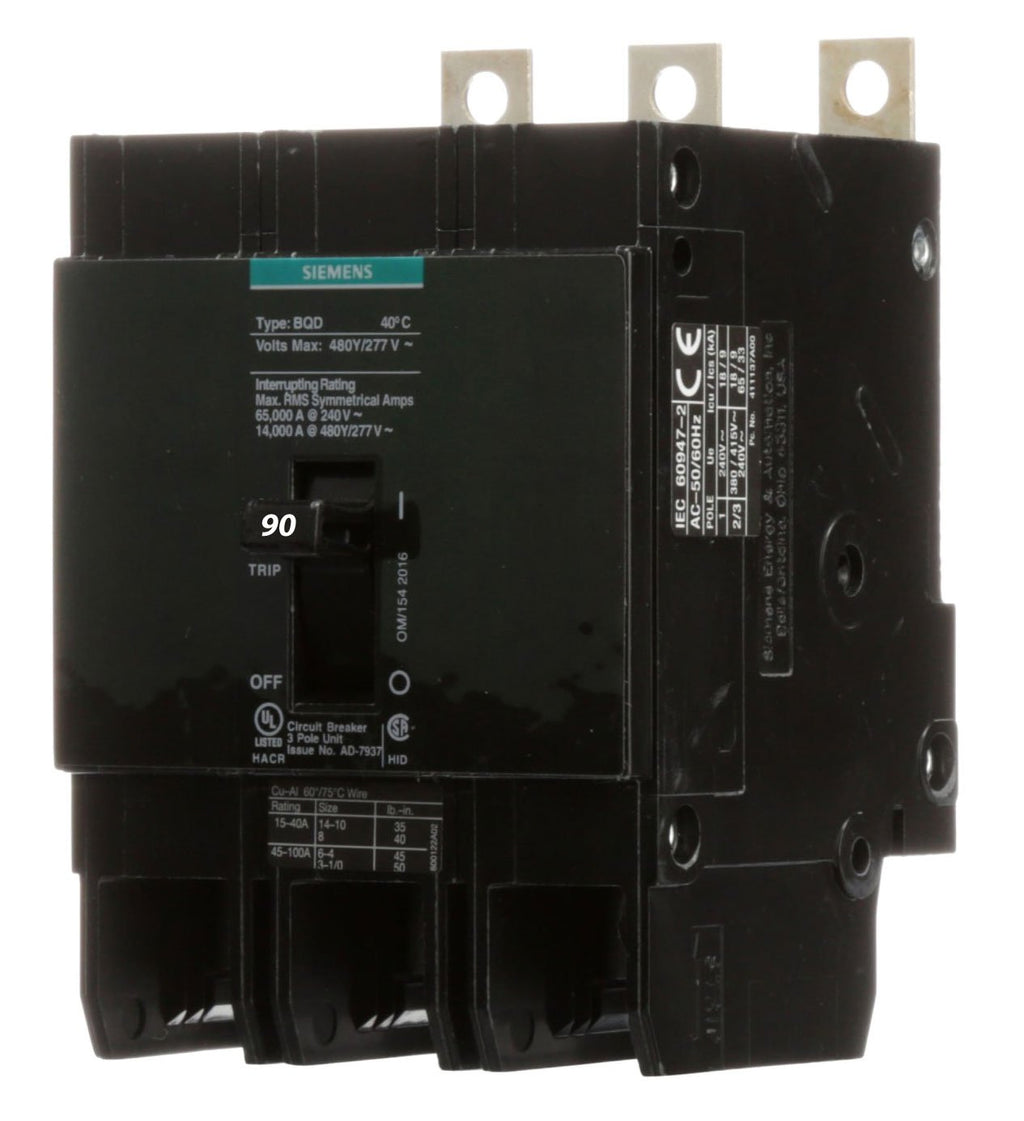

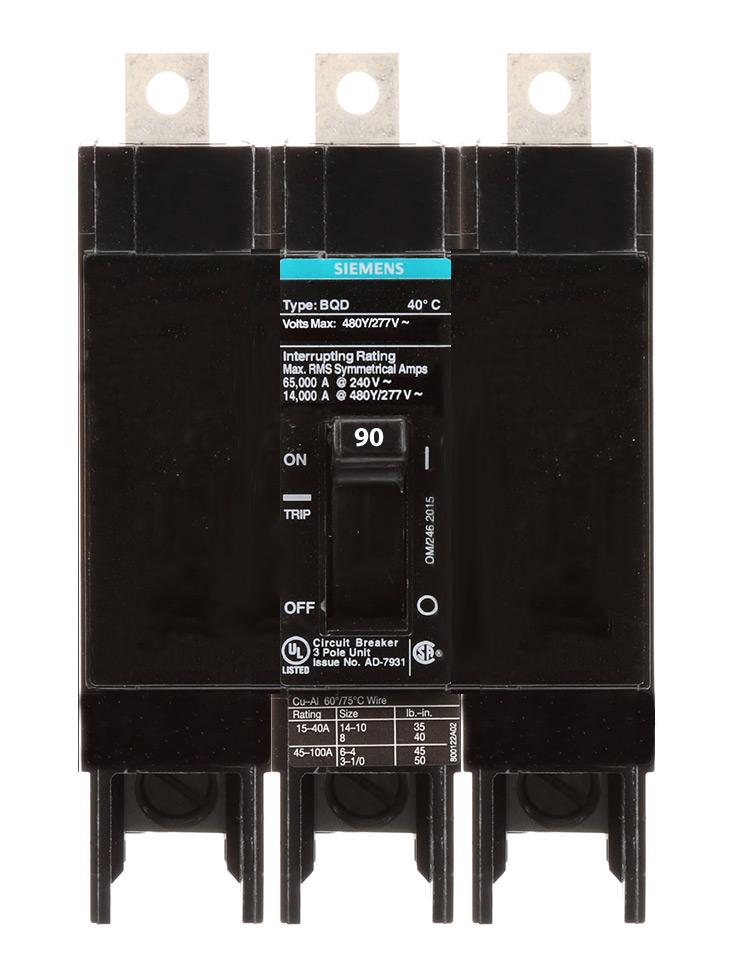

BQD390 - Siemens 90 Amp 480VAC 3 Pole Bolt-On Circuit Breaker BQD Frame Thermal Magnetic Trip

BQD390

BQD390 is a Siemens 3 Pole, 90 Amp, 480VAC bolt-on circuit breaker with a thermal magnetic trip unit designed for reliable protection.This Siemens BQD390 circuit breaker features a 14kA interrupting rating at 480VAC, long time and instantaneous trip functions, and a bolt-on mounting type. It is UL and CSA certified and compatible with P1 panelboards. The breaker supports wire sizes from AWG 6 copper to AWG 1/0 aluminum and includes lug terminal connections.

• Manufacturer: Siemens
• Part Number: BQD390
• Amperage: 90 Amps
• Voltage Rating: 480VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 14kAIC at 480VAC
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Frame/Series: BQD
• Certifications: UL, CSA
• Terminal Connection: Lug
• Compatible Panelboards: P1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQD390
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQD Series
• Type : BQD
• Voltage : 480
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/BQD
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 6 AWG (Al), 8 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643277458
• GTIN : 00783643277458
• Country of Origin : Mexico
• Dimensions : 3 in x 4.49 in x 4.49 in
• Weight : 1.649
• Panel Type : Siemens P1 Panelboards
• Standards : CSA-C22.2,UL 540
• Certification : CSA-C22.2,UL 540
