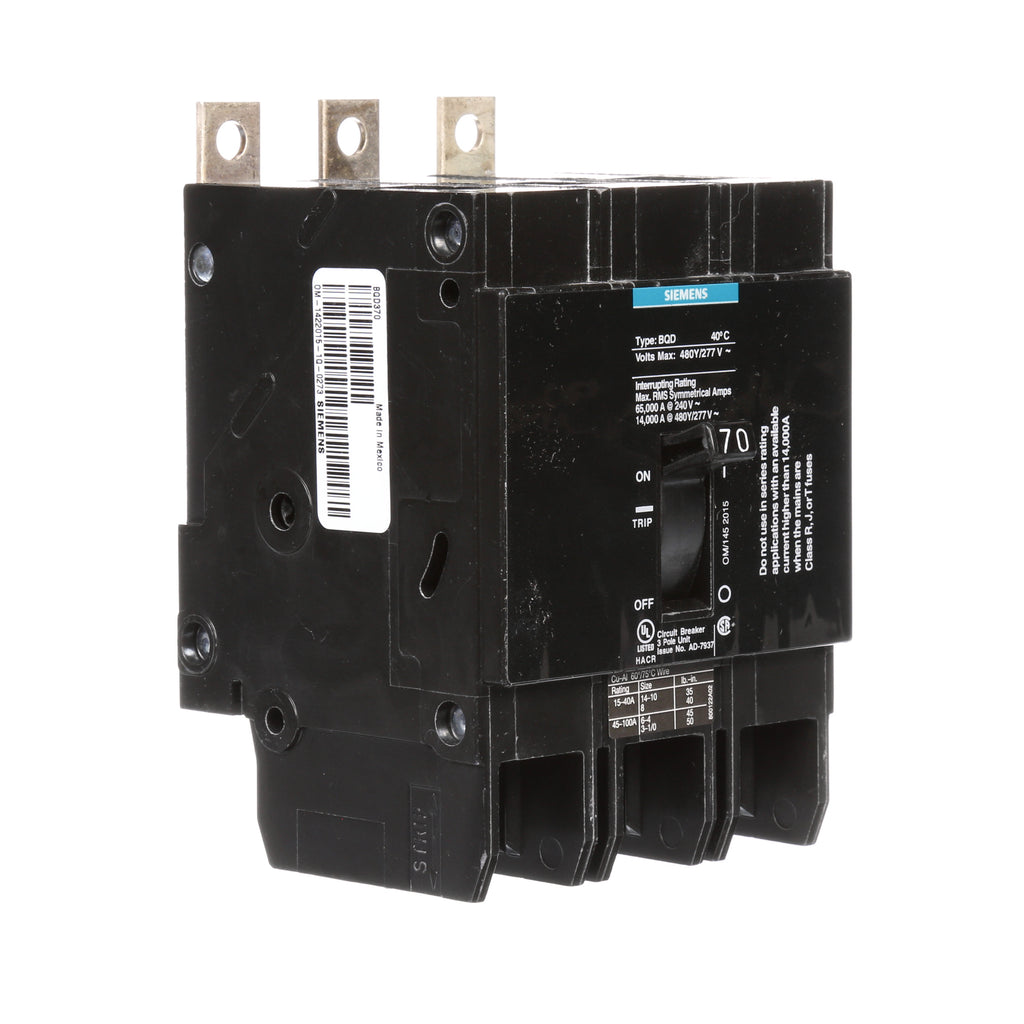

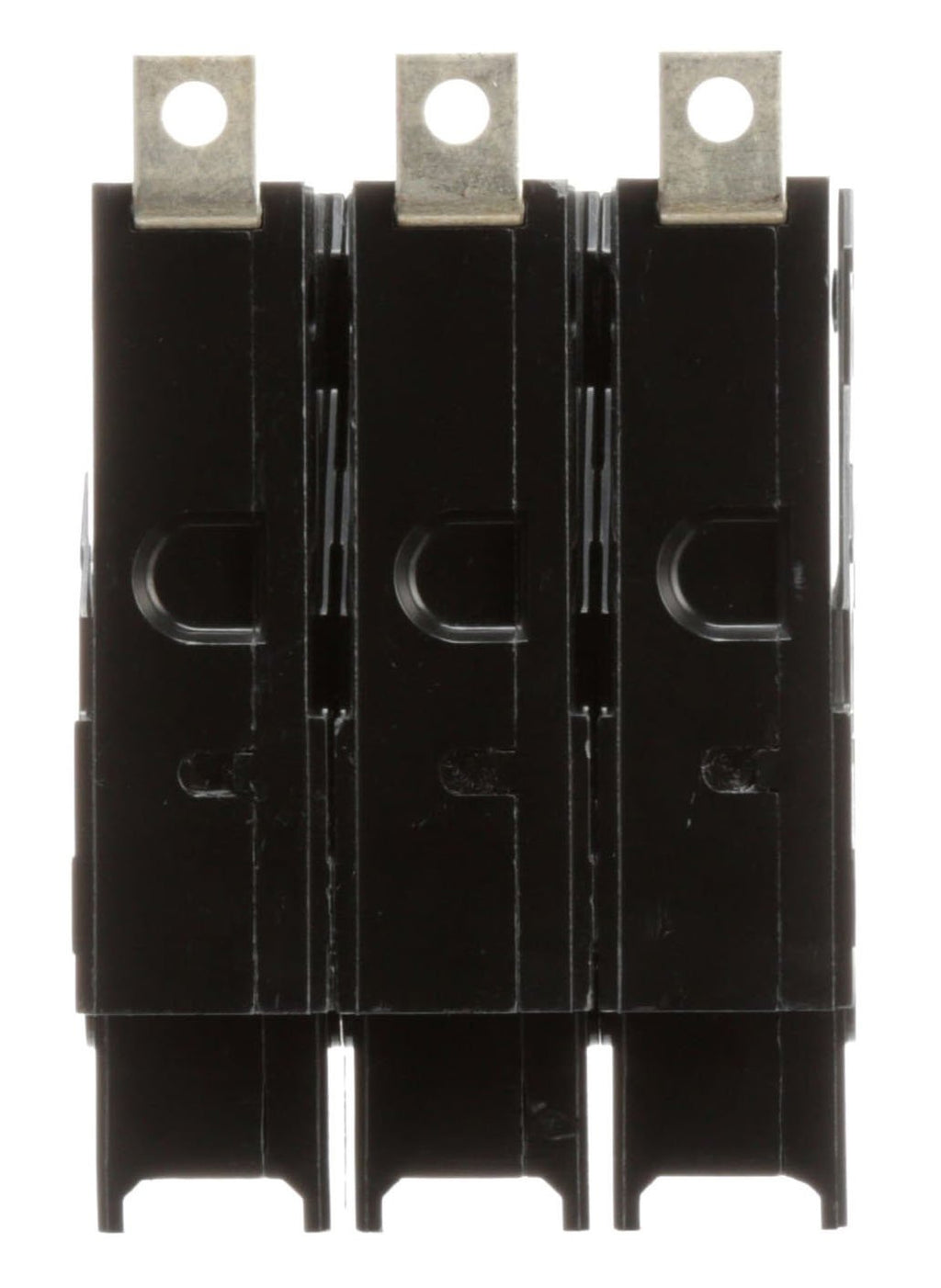

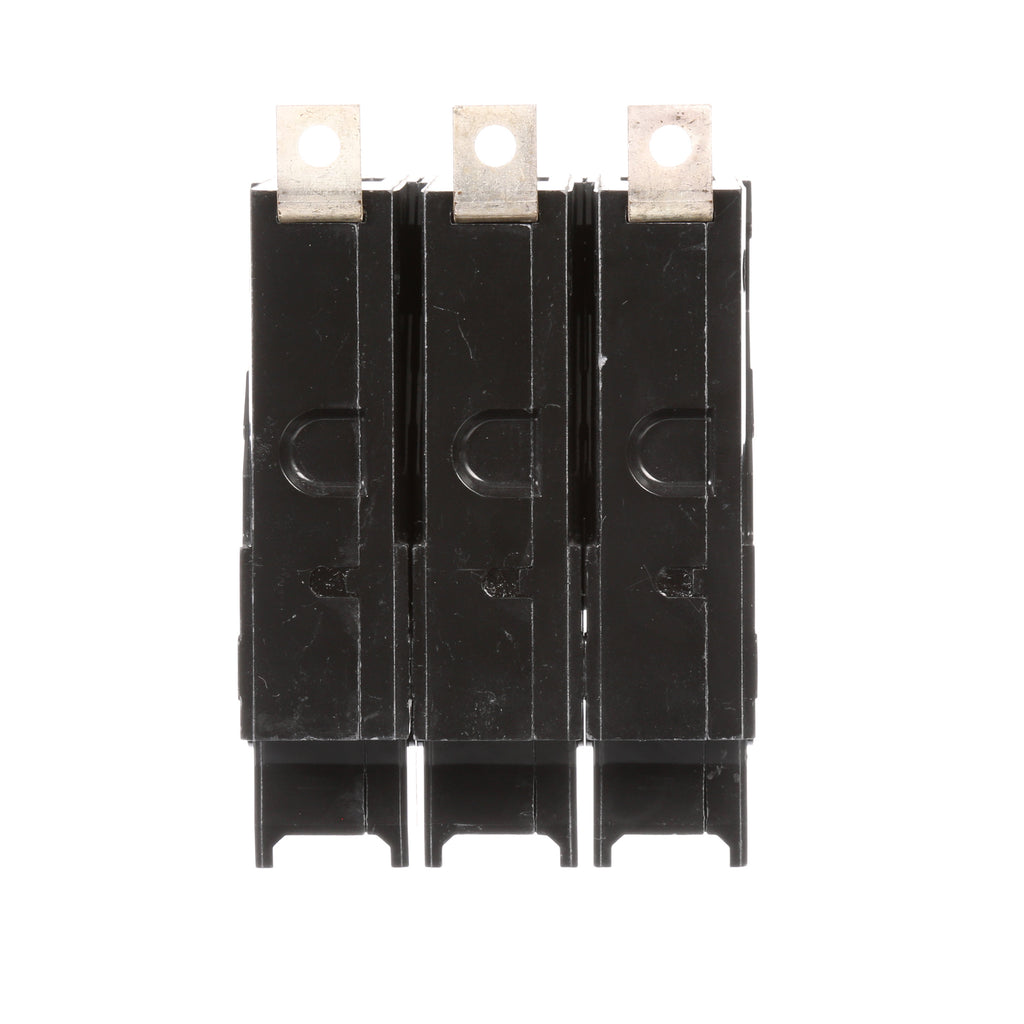

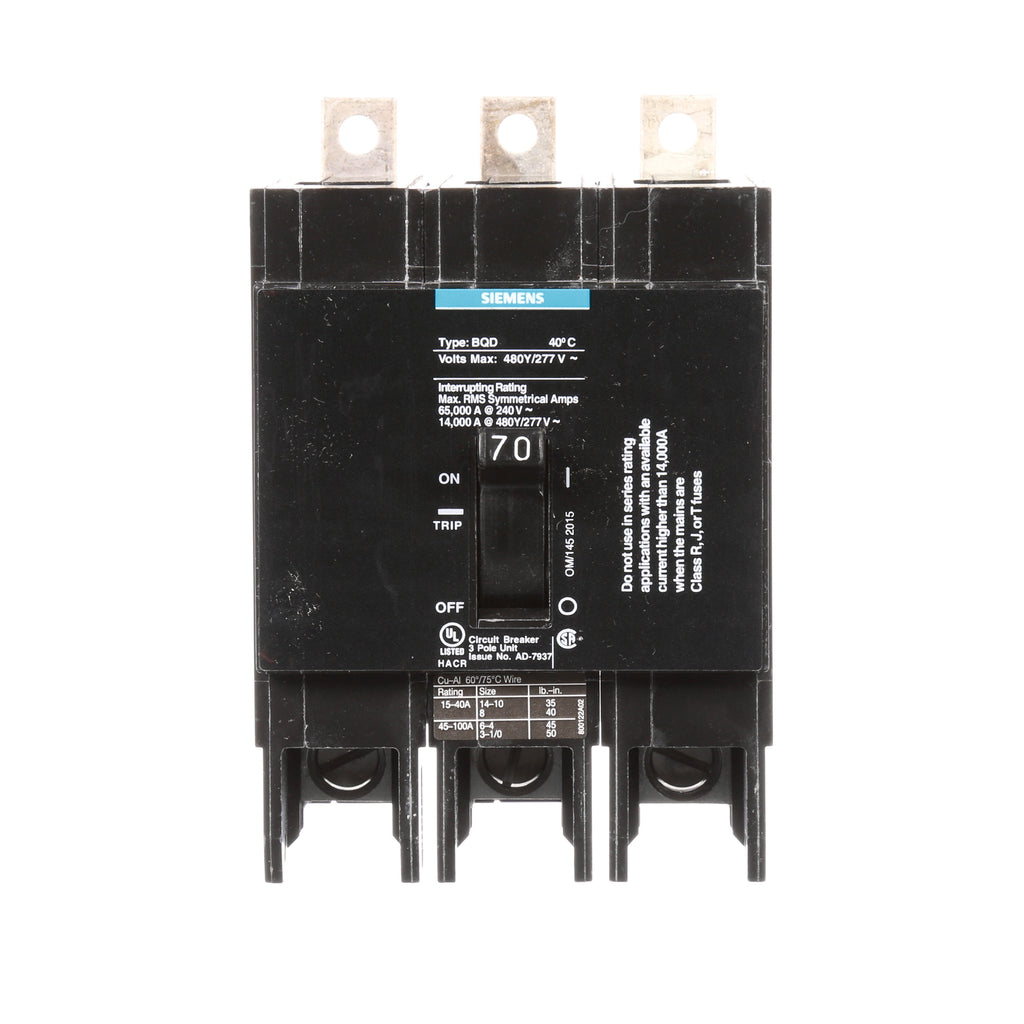

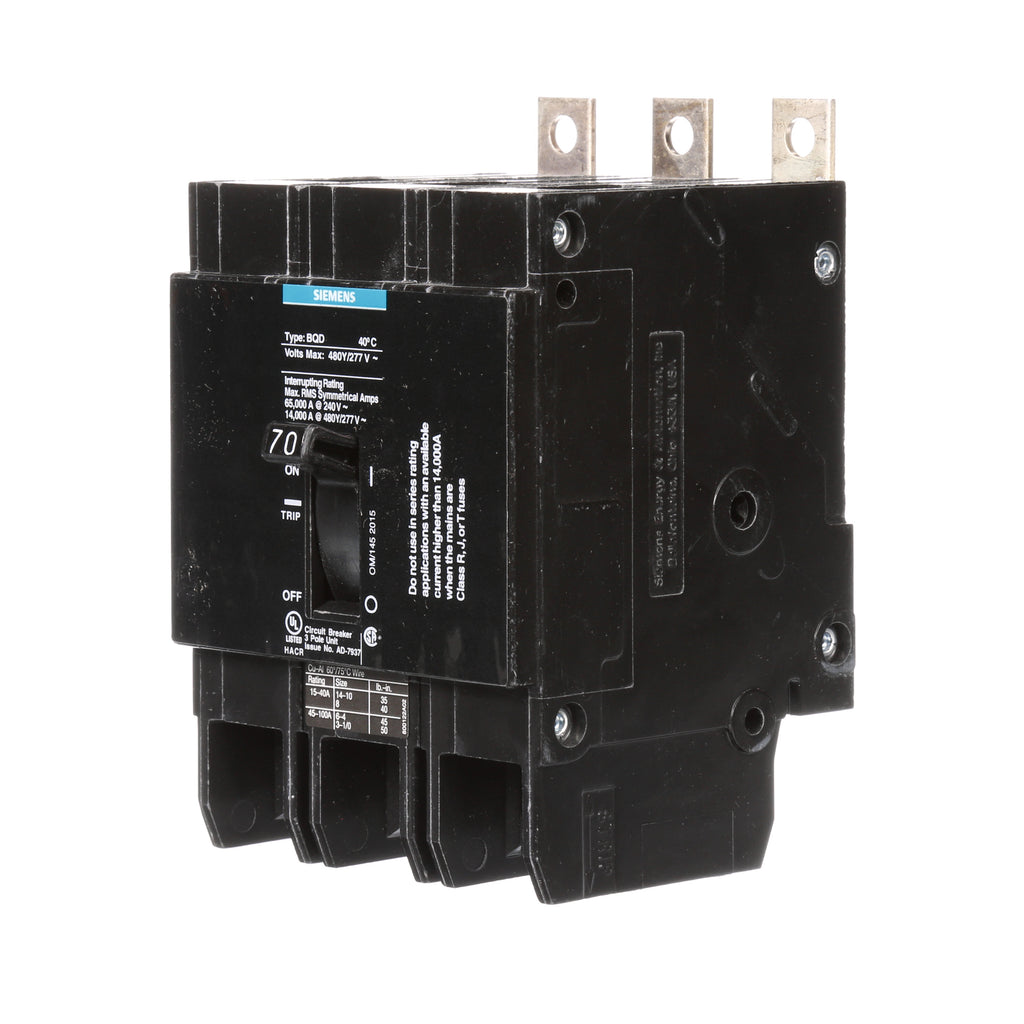

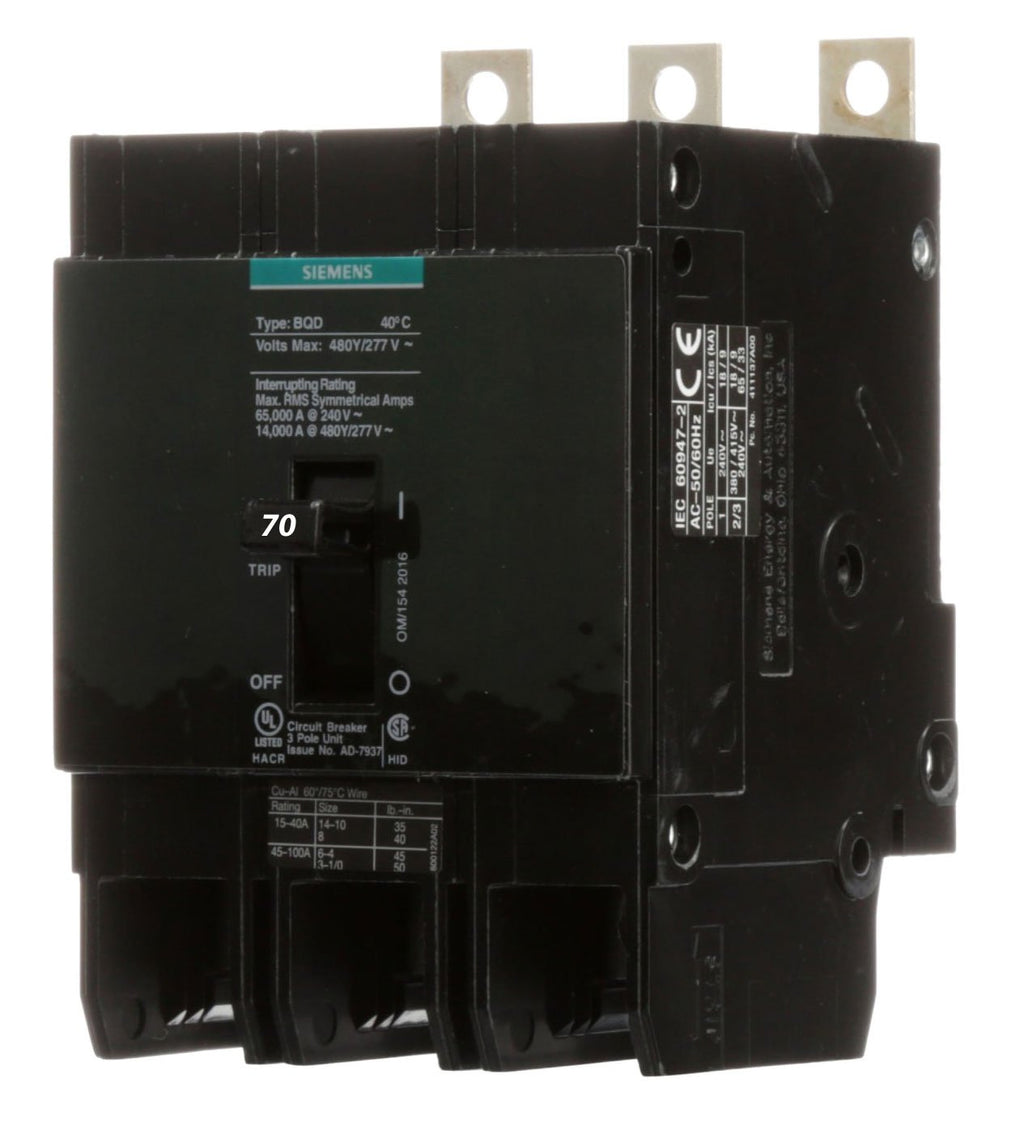

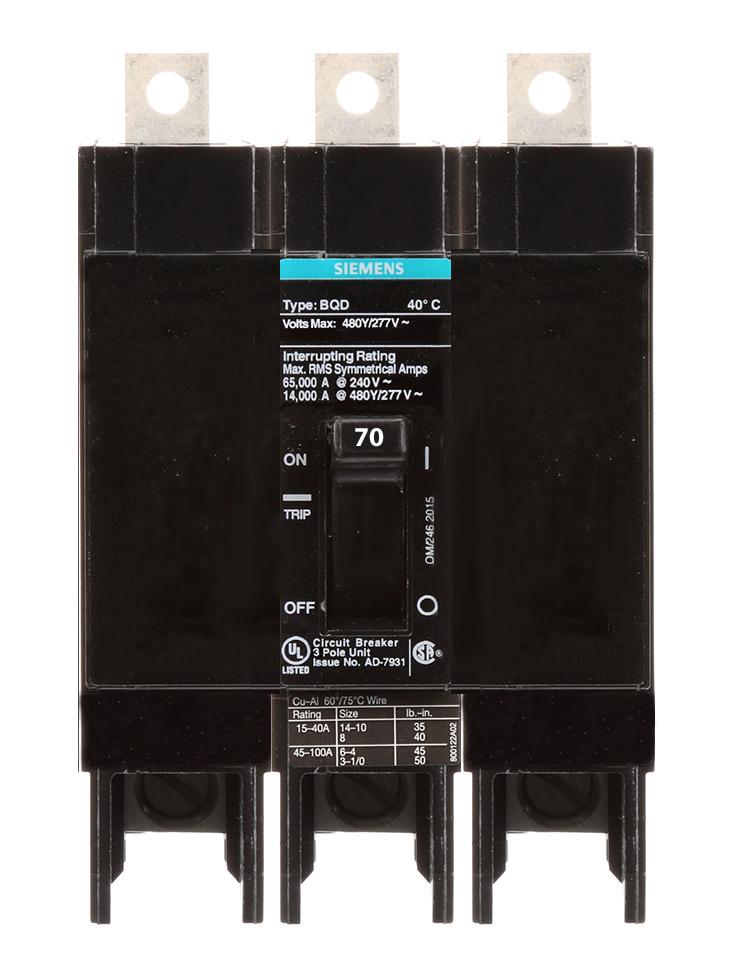

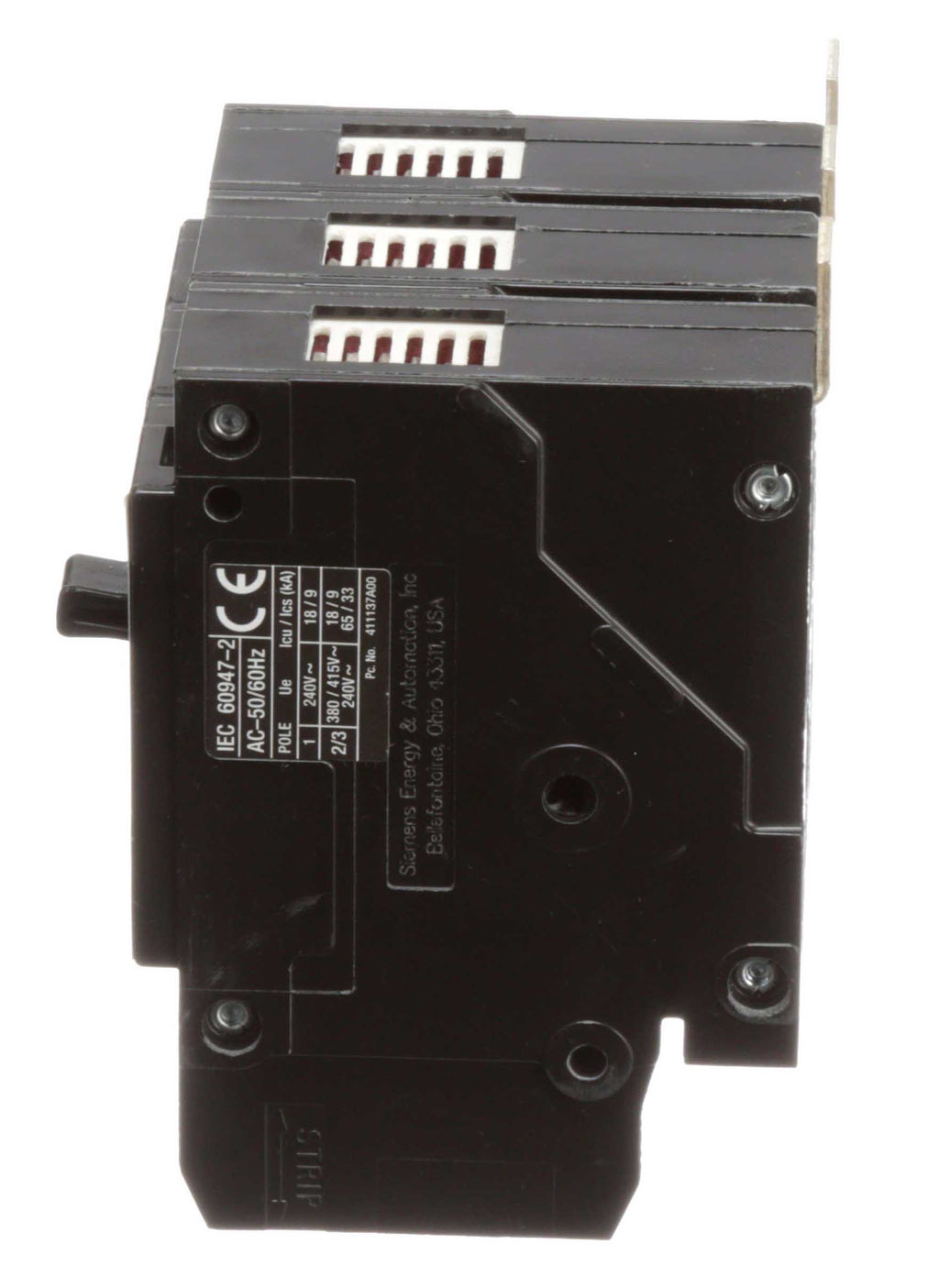

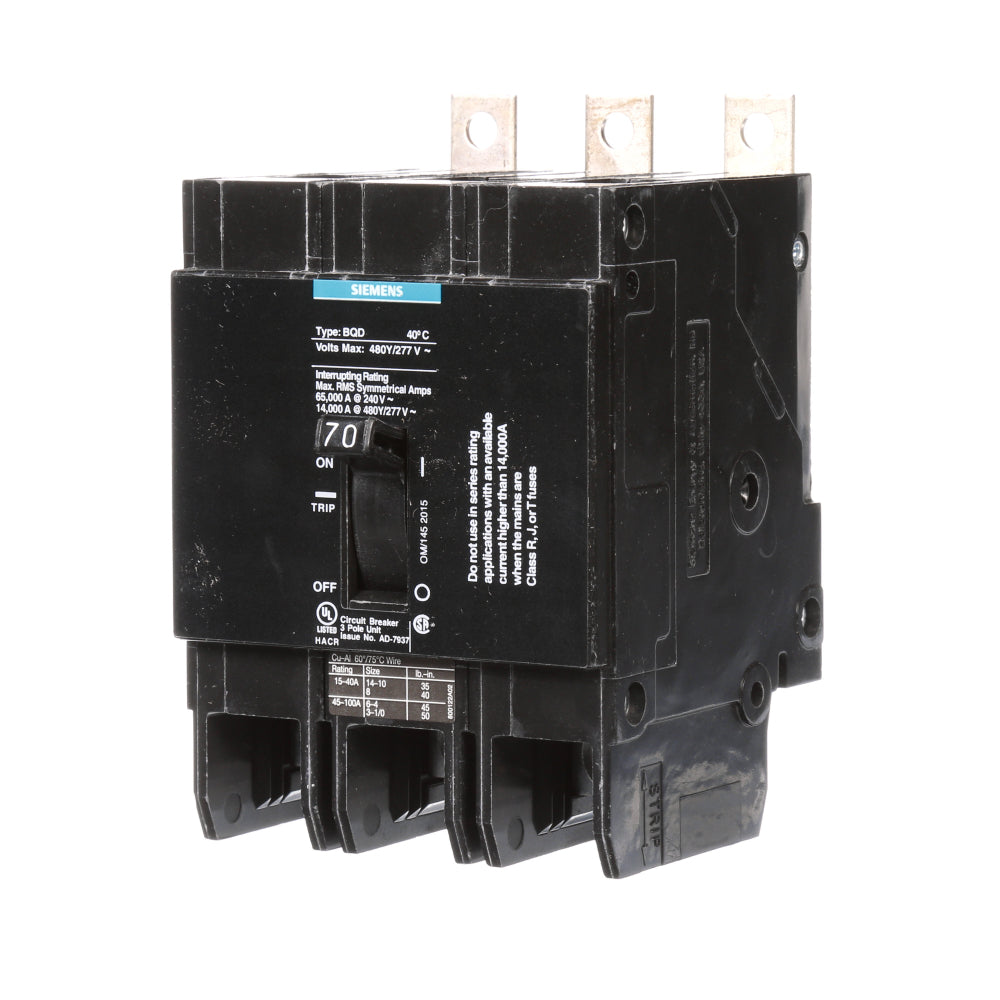

BQD370 - Siemens 70A 480/277VAC 3-Pole Bolt-On Molded Case Circuit Breaker, 14kA Interrupt, Thermal Magnetic Trip

BQD370

BQD370 is a Siemens 3-pole molded case circuit breaker designed for panelboard mounting with a 70 ampere rating and 480/277 VAC voltage rating.This Siemens BQD370 circuit breaker features a bolt-on mounting type, thermal magnetic trip unit, and a 14 kA interrupt rating suitable for commercial applications.

Key Specifications
• Amperage: 70 A
• Voltage Rating: 480/277 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kA
• Trip Type: Thermal Magnetic
• Frequency: 60 Hz
• Terminal Type: Load Lug
• Wire Size Capacity: 8 - 1 AWG Copper, 6 - 1/0 AWG Aluminum
• Operating Temperature: 40¡C
• Certifications: UL Listed, CSA Certified, HACR Rated
• Dimensions: Approximately 5" L x 3" W x 3" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQD370
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQD Series
• Type : BQD
• Voltage : 480
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/BQD
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 6 AWG (Al), 8 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643277434
• GTIN : 00783643277434
• Country of Origin : Mexico
• Dimensions : 3 in x 4.49 in x 4.49 in
• Weight : 0.58
• Panel Type : Siemens P1 Panelboards
• Standards : CSA-C22.2,UL 536
• Certification : CSA-C22.2,UL 536
