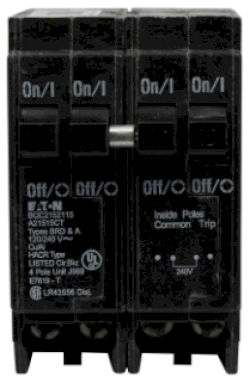

BQC225225 - Cutler Hammer Eaton 4-Pole 25A 120/240V BR Frame Circuit Breaker

BQC225225

BQC225225 - Eaton BR thermal magnetic quadplex circuit breaker with (1) two-pole 25A and (1) two-pole 25A, common trip, plug-on mount. Type BQC 1-inch CTL plug-on circuit breaker for BR loadcenters, featuring rejection tab, 10 kAIC interrupt rating at 120/240V, wire size #14-4 AWG Cu/Al, UL 489 certified. Key Specifications

• Amperage: 25A per two-pole section
• Voltage: 120/240V AC
• Poles: Two-pole x2 (quad configuration)
• Mounting: Plug-on
• Interrupt Rating: 10 kAIC
• Series/Frame: BQC, BR family
• Trip Unit: Thermal magnetic, common trip
• Certifications: UL 489
• Wire Size: #14-4 AWG Cu/Al
• Type: CTL quadplex with rejection tab

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQC225225
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQC
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371889
• GTIN : 00786676371889
• Country of Origin : Dominican Republic
• Dimensions : 2.5 in x 3.2 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Standards : HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C392
• Wire Size : AWG 14 to AWG 4, Cu/Al
