BQC220250 - Cutler Hammer 120/240V 2 Pole Quadplex Circuit Breaker 20A/50A 10kA Interrupt Rating Plug-On Mount

BQC220250

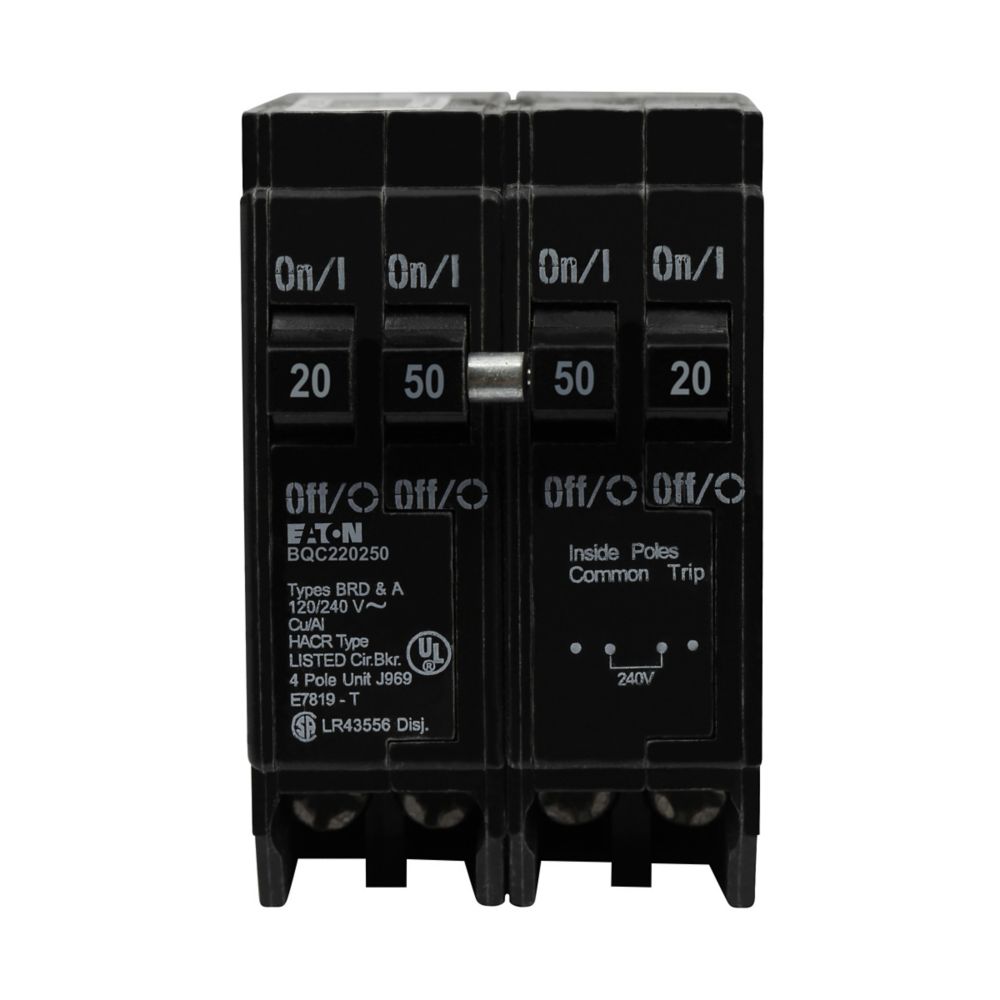

BQC220250 is an Eaton BR thermal magnetic quadplex circuit breaker with one 20A two-pole and one 50A two-pole configuration for Type BR loadcenters.This Type BQC 1-inch CTL plug-on circuit breaker features common trip, rejection tab, 10 kAIC interrupt rating at 120/240V, and accepts #14-4 AWG Cu/Al wire. It is a four-pole BQ circuit breaker designed for residential and light commercial applications.

• Amperage Rating: (1) Two-Pole 20A, (1) Two-Pole 50A
• Voltage Rating: 120/240V
• Number of Poles: 4
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC
• Series/Frame: BQC / BR
• Trip Type: Thermal magnetic, common trip
• Wire Size: #14-4 AWG Cu/Al
• Certifications: UL 489
• Special Features: Rejection tab

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQC220250
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQC
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371872
• GTIN : 00786676371872
• Country of Origin : United States
• Dimensions : 2 in x 2.6 in x 3.1 in (Length/Depth x Height x Width)
• Weight : 0.75
• Standards : HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C389
• Wire Size : AWG 14 to AWG 4, Cu/Al
