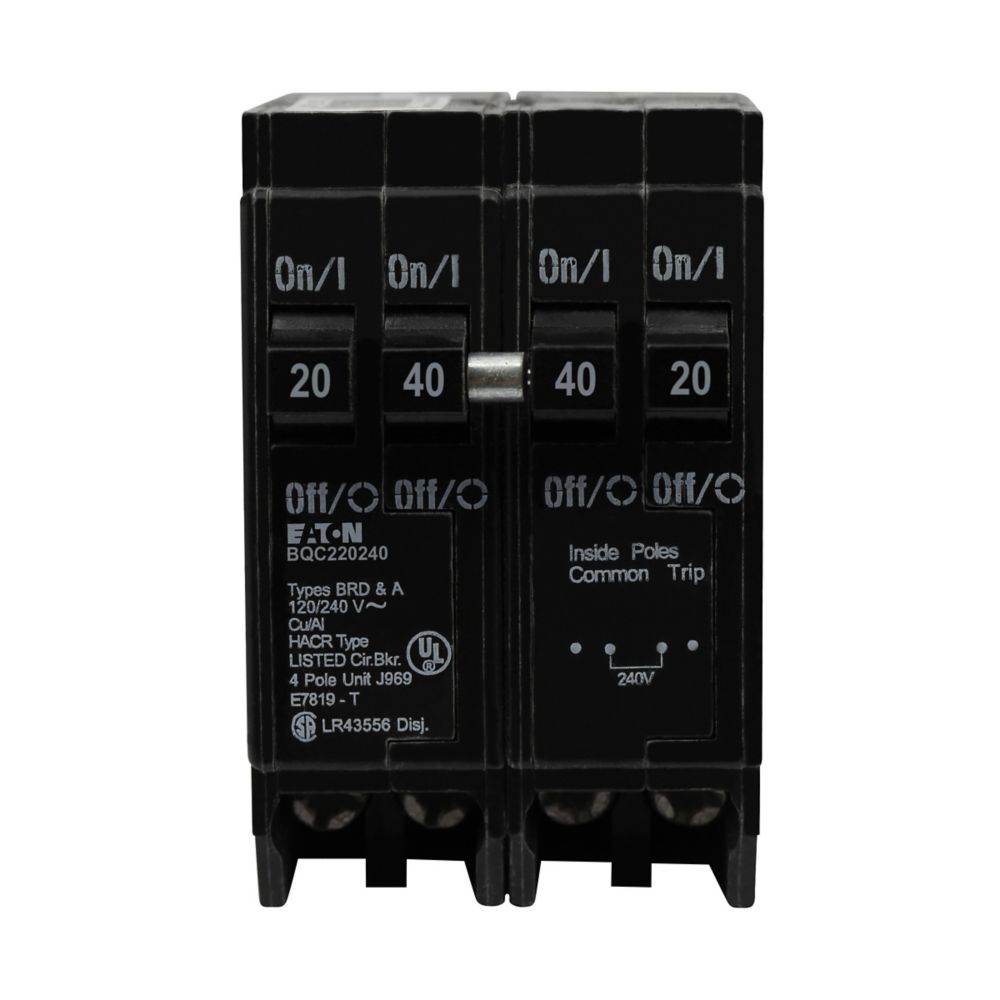

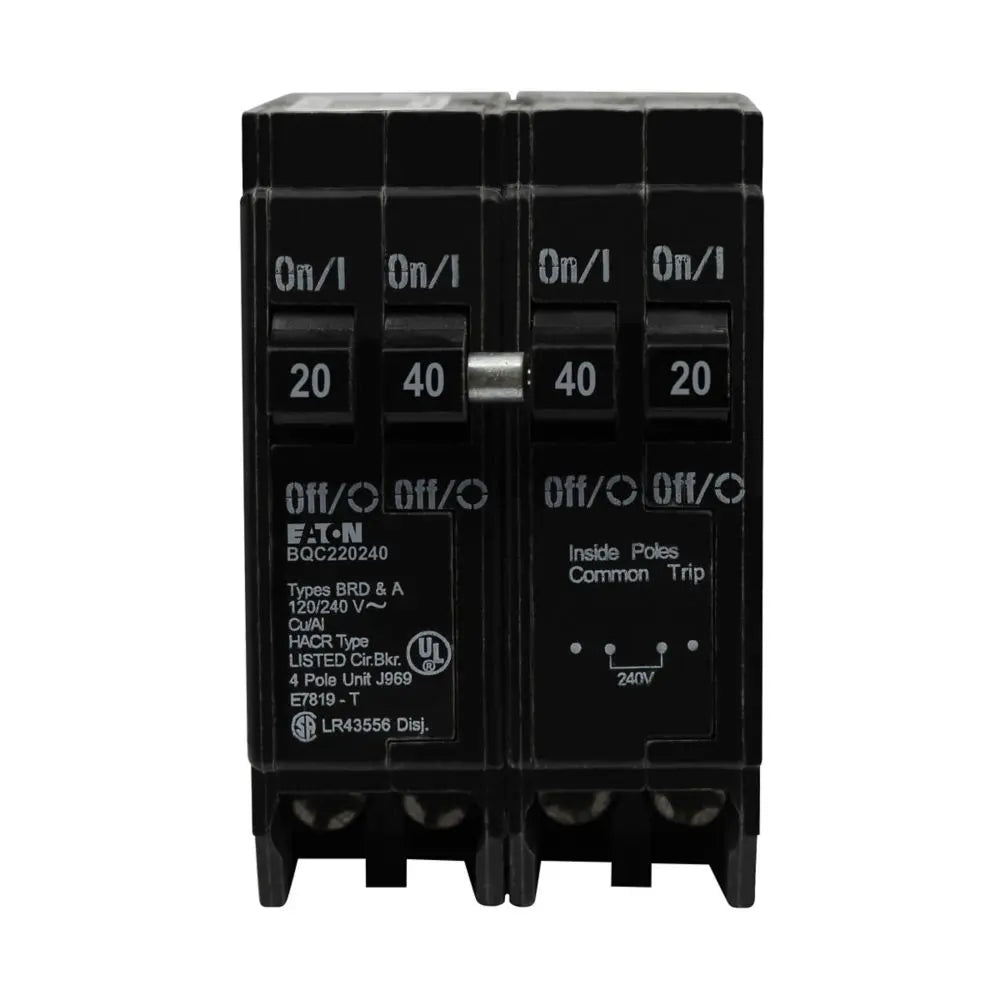

BQC220240 - Cutler Hammer 20/40A 4-Pole 120/240V BR Series Quadplex Circuit Breaker

BQC220240

BQC220240 is a Cutler Hammer 4-pole quadplex circuit breaker designed for 120/240V applications with 20 and 40 amp ratings.This Cutler Hammer BQC220240 circuit breaker features a 4-pole configuration with one 2-pole 20A and one 2-pole 40A common trip breaker, 10 kA interrupt rating, and plug-on CTL mounting for BR series loadcenters.

Key Specifications
• Amperage: 20A and 40A
• Voltage: 120/240 VAC
• Poles: 4 (two 2-pole breakers)
• Mounting Type: 1-inch CTL plug-on with rejection tab
• Interrupt Rating: 10 kAIC at 240V
• Series/Frame: BR Series
• Trip Unit: Common thermal magnetic trip
• Wire Size: #14-4 AWG compatible
• Application: Residential quadplex breaker
• Made in USA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQC220240
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQC
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug

Product Data

• UPC : 786676371865
• GTIN : 00786676371865
• Country of Origin : United States
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9 lb
• Standards : HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C388
• Wire Size : AWG 14 to AWG 4, Cu/Al
