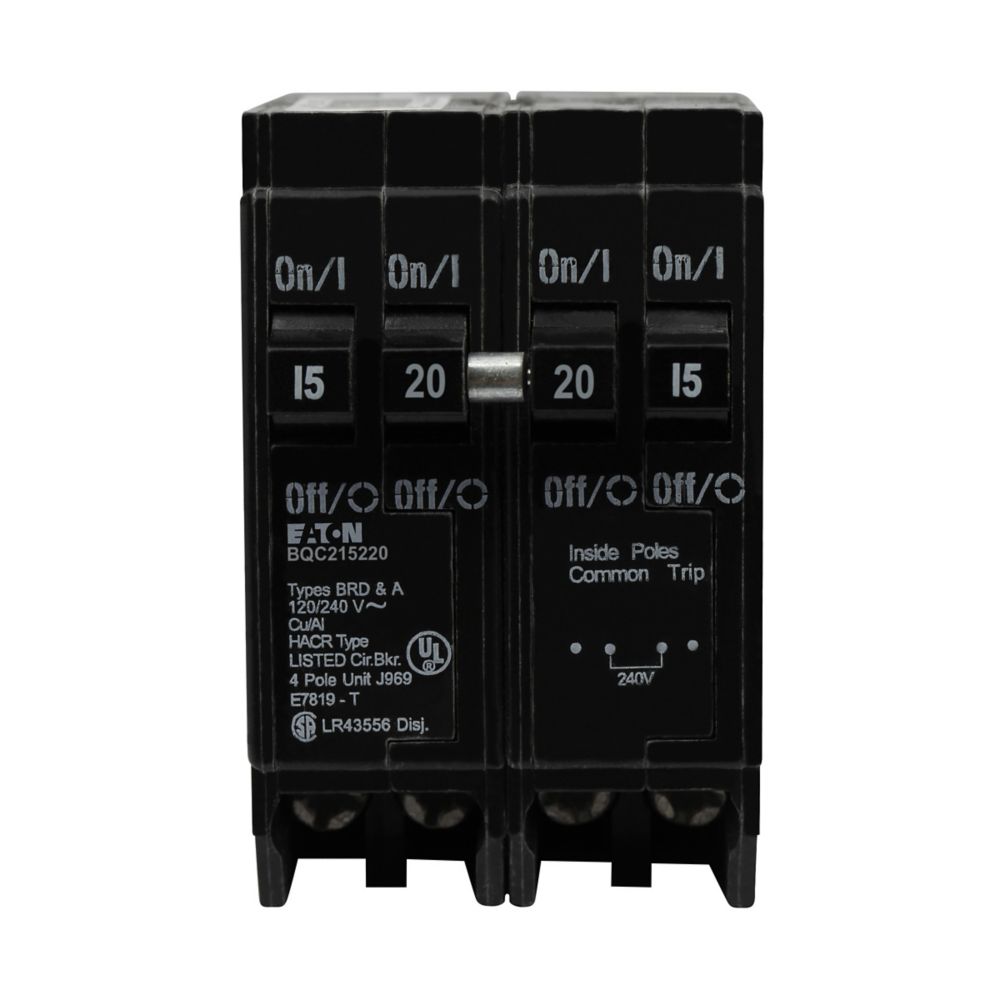

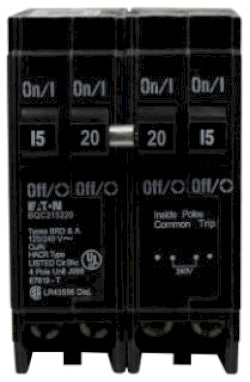

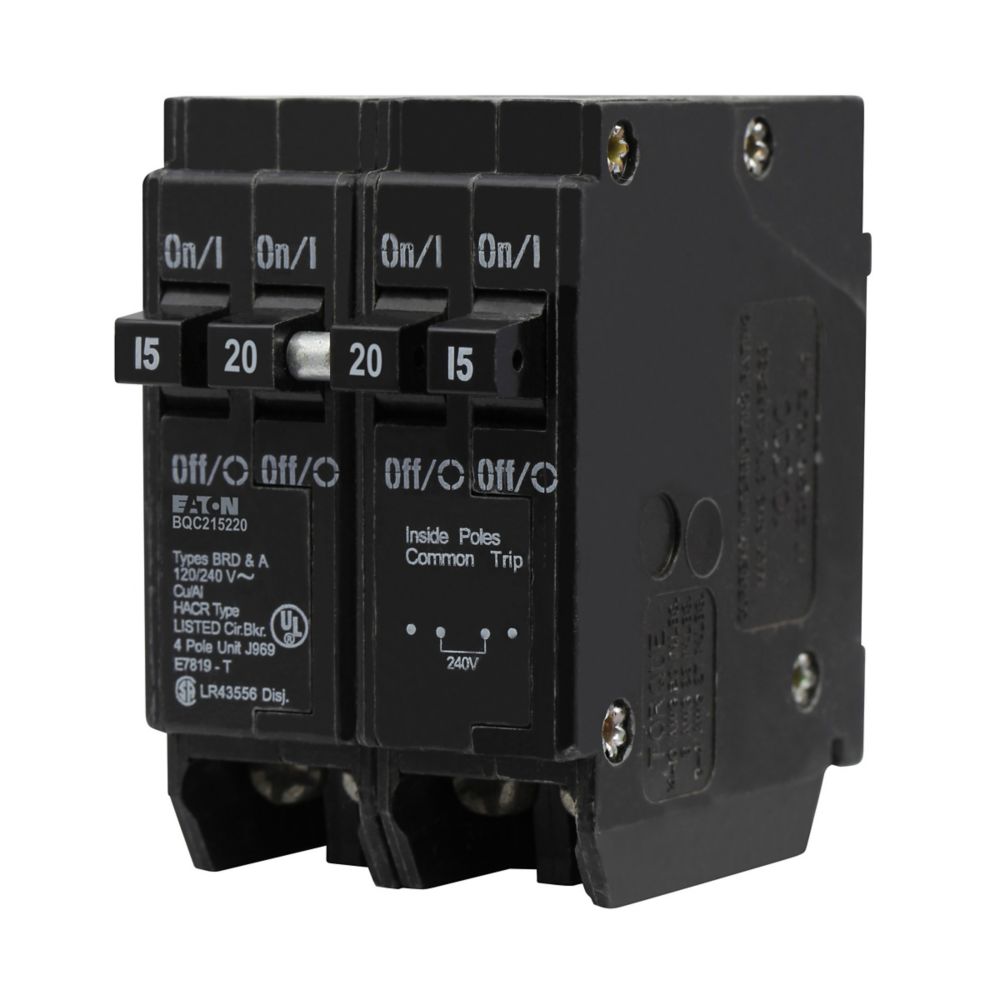

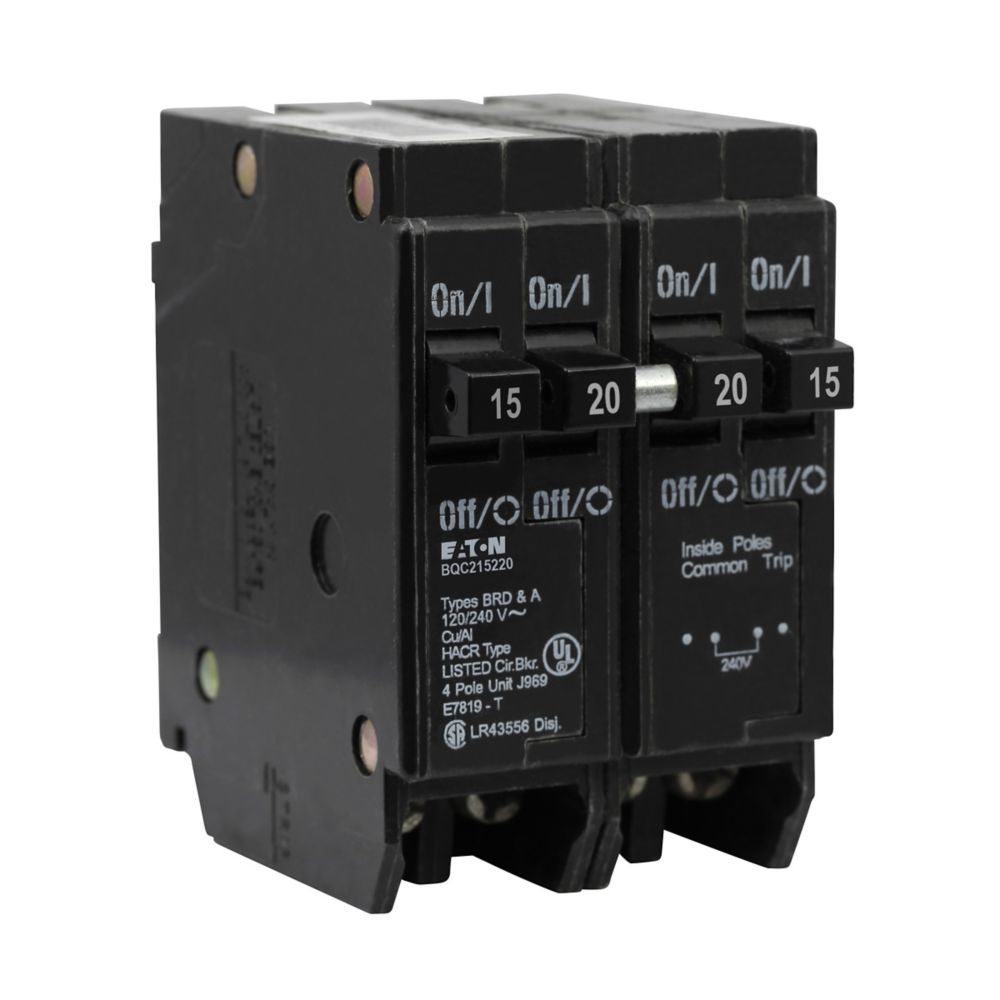

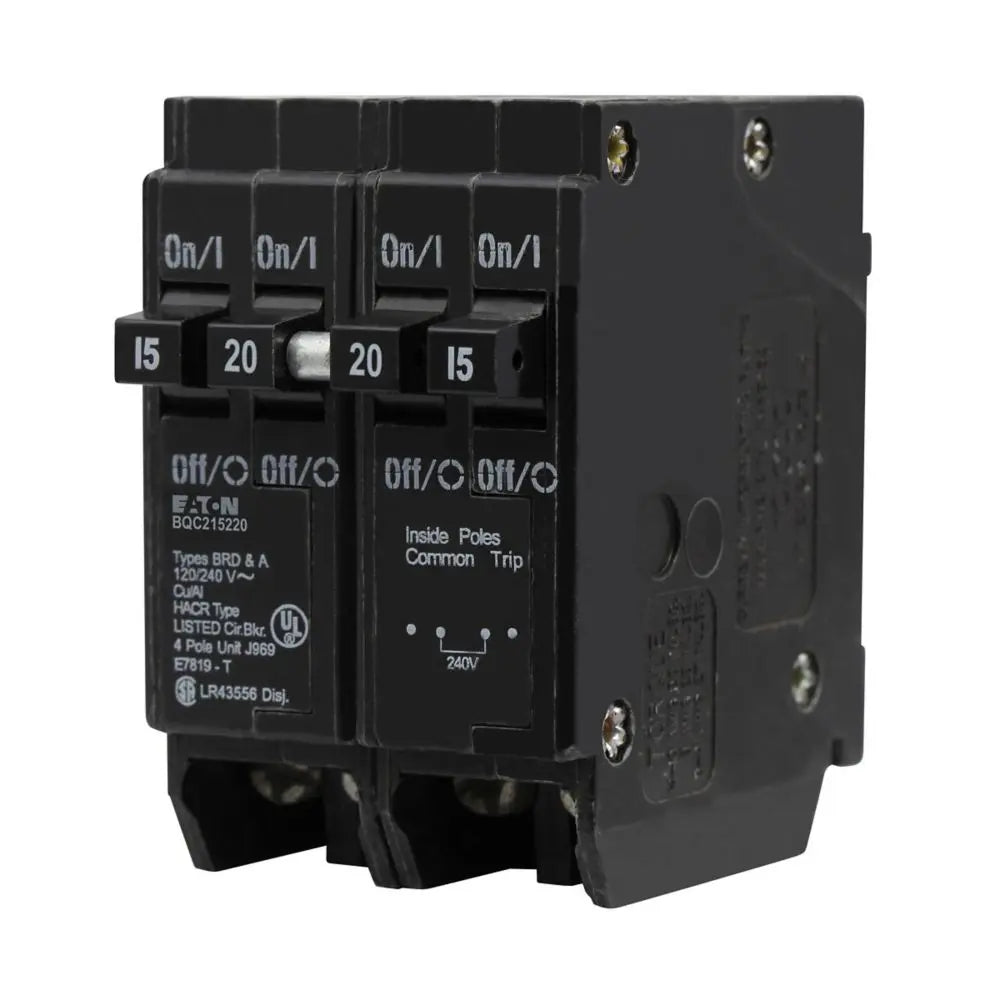

BQC215220 - Cutler Hammer 4-Pole Quad Circuit Breaker 120/240V 10kAIC Plug-On

BQC215220

BQC215220 is an Eaton BR series quad circuit breaker designed to create four circuits in two spaces, featuring thermal magnetic protection with common trip functionality.

This plug-on mount quadplex breaker combines (2) single-pole 20 amp and (2) two-pole 15 amp configurations at 120/240 VAC. The unit includes a rejection tab feature for Type BR loadcenters and supports wire sizes from AWG 14 to AWG 4 (copper or aluminum). Long-time and instantaneous trip functions provide reliable overload and short-circuit protection for residential applications.

• Part Number: BQC215220
• Manufacturer: Eaton Cutler-Hammer
• Amperage: (2) Single-Pole 20A, (2) Two-Pole 15A
• Voltage: 120/240 VAC
• Poles: 4
• Interrupt Rating: 10 kAIC at 240V
• Series/Frame: BR
• Mounting Type: Plug-On
• Trip Type: Common Trip with Rejection Tab
• Wire Gauge: AWG 14 to AWG 4, Cu/Al
• Protection Type: Thermal Magnetic
• Dimensions: 3 in H x 3 in W x 2 in D
• Weight: 0.9 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQC215220
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQC
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676005982
• GTIN : 00786676005982
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Standards : HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C379
• Wire Size : AWG 14 to AWG 4, Cu/Al
