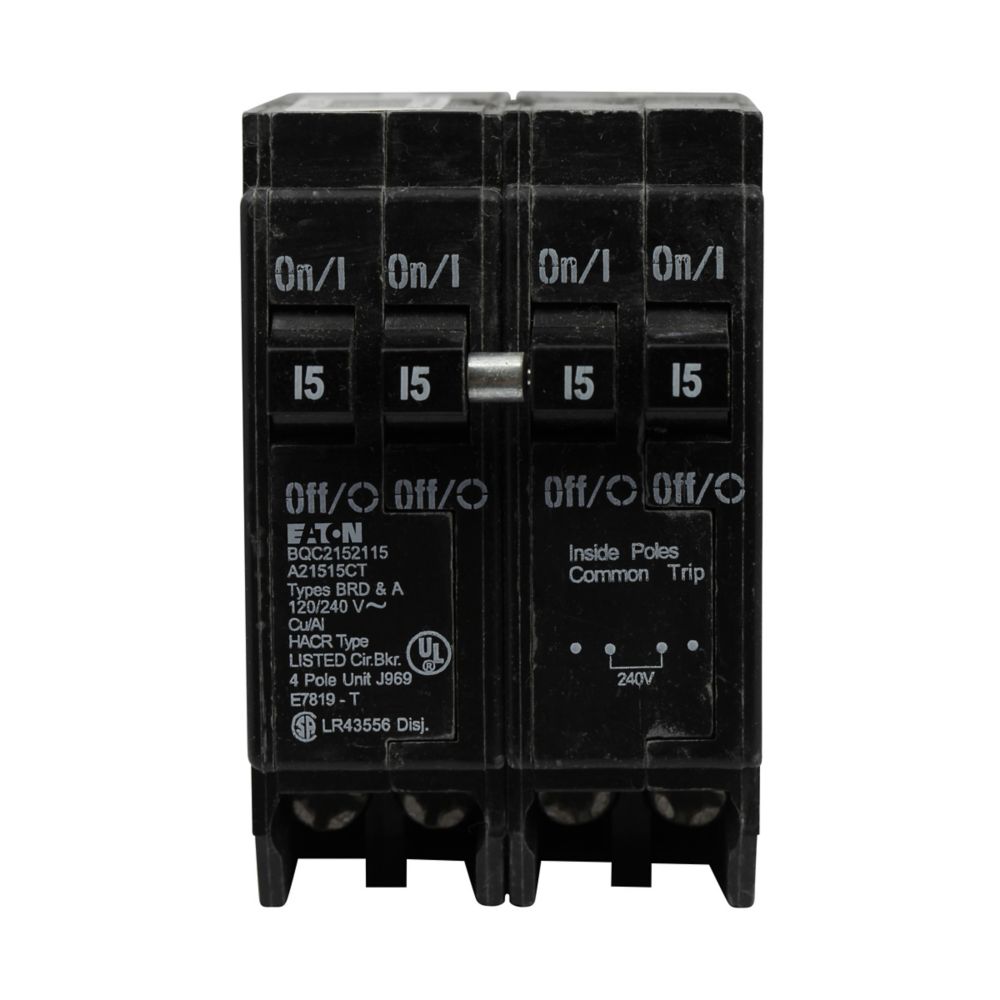

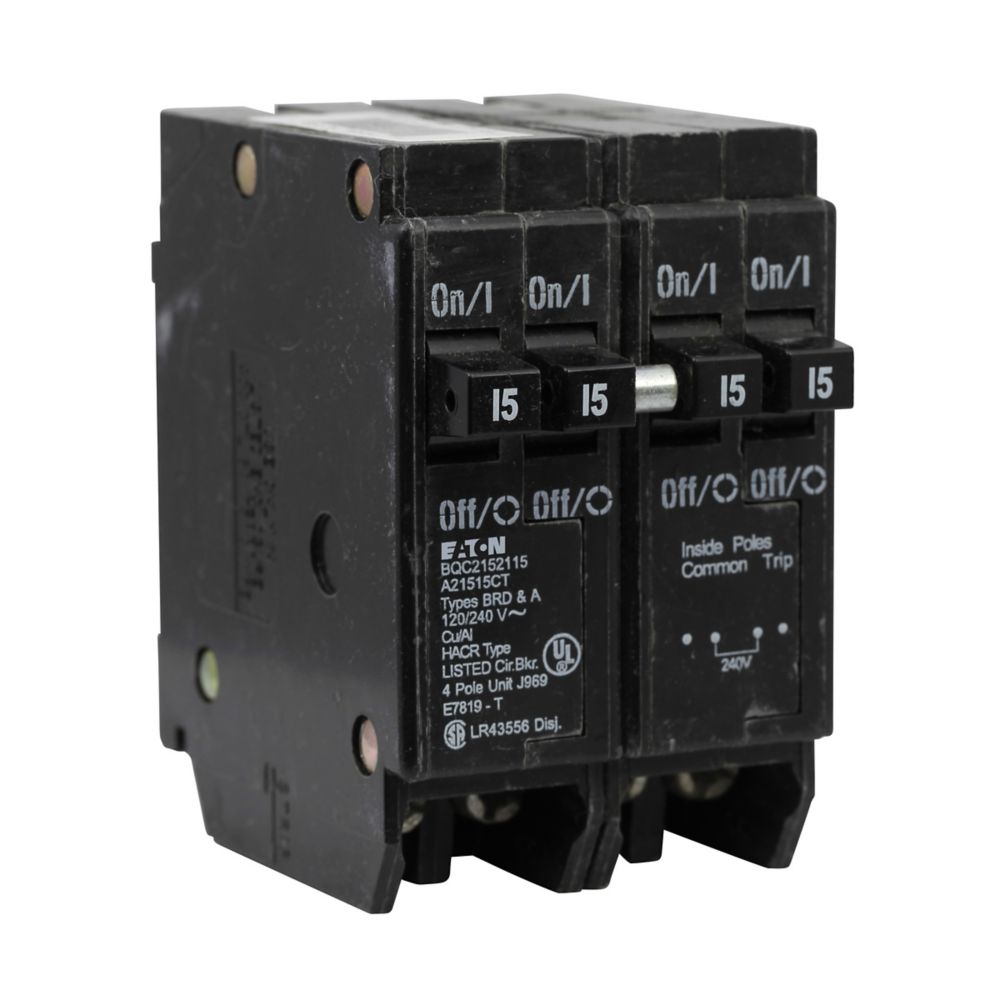

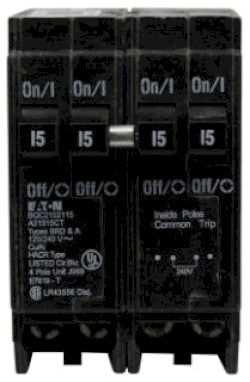

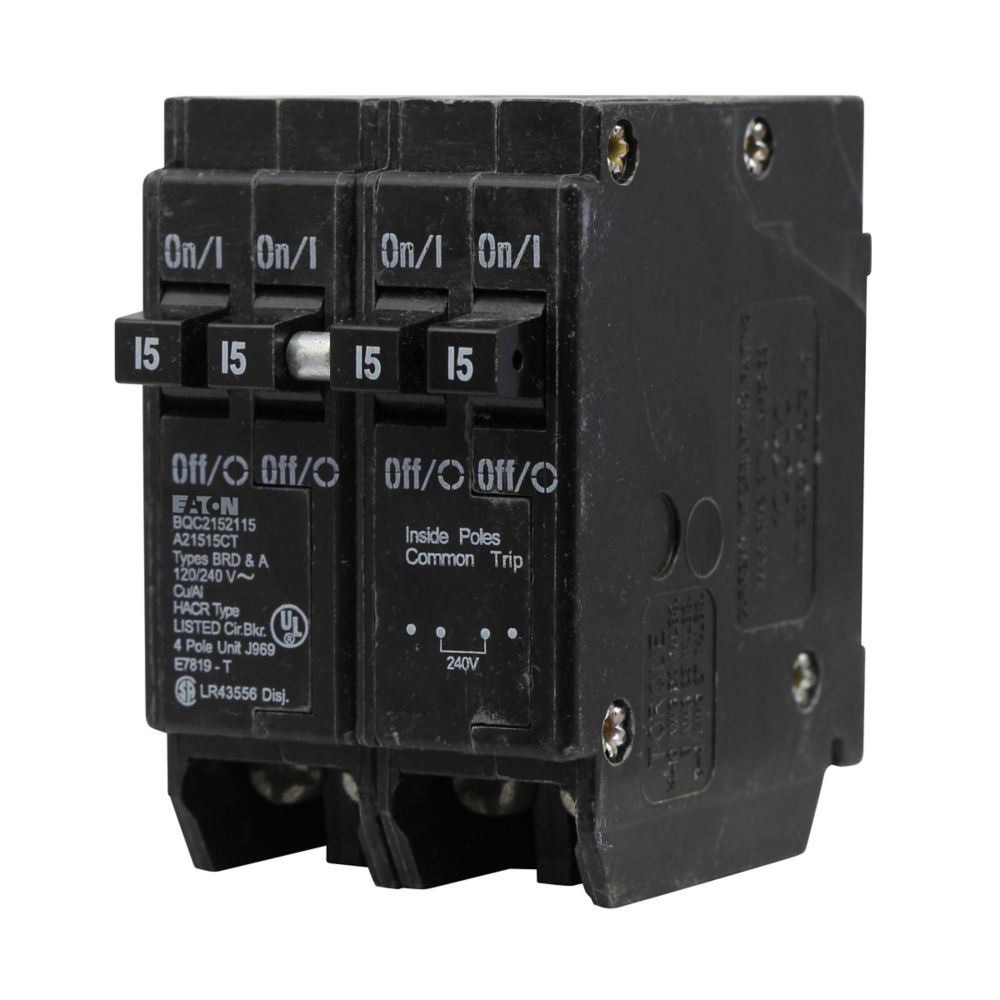

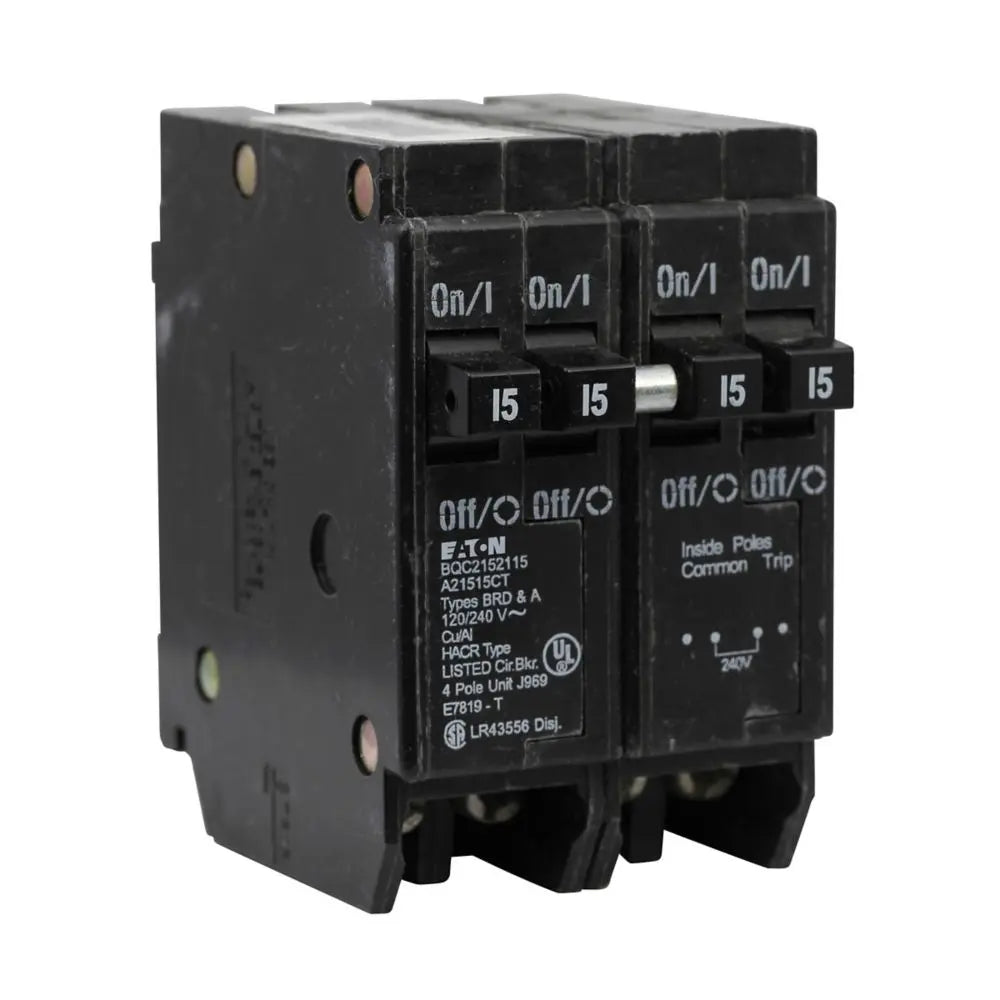

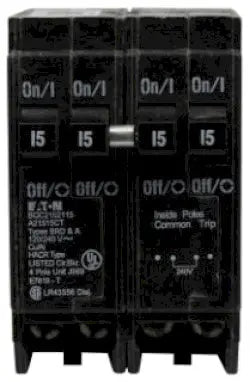

BQC215215 - Cutler Hammer 15A 120/240V 4-Pole BQ Series Plug-On Circuit Breaker

BQC215215

BQC215215 - Eaton Type BQC 1-inch CTL plug-on quadplex thermal magnetic circuit breaker with rejection tab feature for Type BR loadcenters.This four-pole circuit breaker features (2) two-pole 15A outer common trip and (2) two-pole 15A center common trip configuration, rated at 120/240V and 10 kAIC interrupt rating. It accepts #14-4 AWG Cu/Al wire and mounts via plug-on method in two 1-inch spaces.Key Specifications

• Amperage Rating: (2) Two-Pole 15A
• Voltage Rating: 120/240V
• Number of Poles: Four-pole
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC
• Series/Frame: BQC
• Trip Type: Common breaker trip
• Wire Size: #14-4 AWG Cu/Al
• Type: Type BQC 1-Inch CTL plug-on
• Special Features: Includes rejection tab feature
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQC215215
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQC
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371834
• GTIN : 00786676371834
• Country of Origin : Dominican Republic
• Dimensions : 2.5 in x 3.2 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Standards : HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C378
• Wire Size : AWG 14 to AWG 4, Cu/Al
