BQC2152115 - Cutler Hammer Quadplex Circuit Breaker 15A 120/240V 4 Pole Plug-In BR Frame

BQC2152115

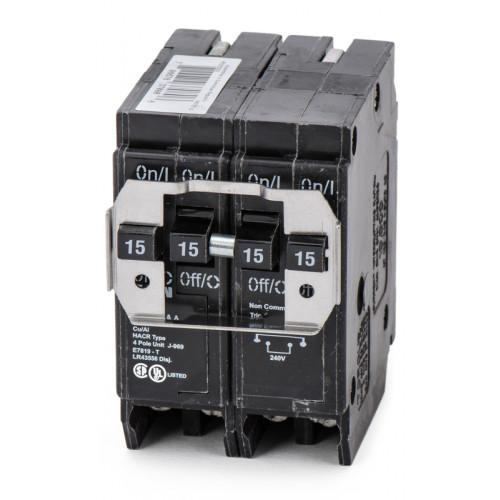

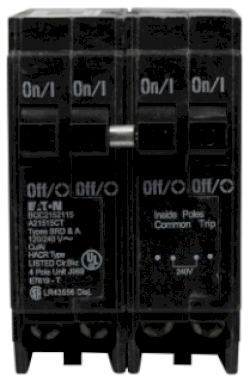

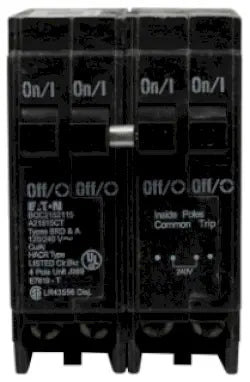

BQC2152115 is a Cutler Hammer quadplex circuit breaker designed for 120/240 VAC systems with a 15 amp rating and 4 poles.This Eaton Cutler Hammer BQC2152115 is a thermal magnetic, plug-on type molded case circuit breaker featuring two 1-pole 15 amp poles and one 2-pole 15 amp pole with a common trip mechanism. It includes CTL (Circuit Total Limiting) rejection clips and fits BR frame panels, providing reliable circuit protection for residential, commercial, and industrial applications.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 15 Amps
• Voltage: 120/240 VAC
• Poles: 4 (two 1-pole and one 2-pole)
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC
• Series/Frame: BR Frame
• Trip Unit: Thermal Magnetic, Common Trip
• CTL Rejection Clip: Included
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BQC2152115
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQC
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic



Product Data

• UPC : 786676005449
• GTIN : 00786676005449
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Standards : HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 14 to AWG 4, Cu/Al
