Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B125L

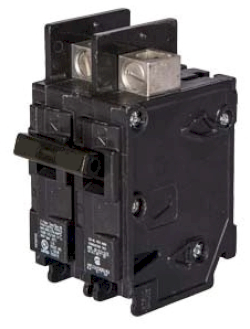

BQ2B125L is a Siemens 2-pole molded case circuit breaker rated for 125 amps and 240 volts, designed for reliable circuit protection.This BQ Series breaker features a toggle actuator and is suitable for general-purpose applications requiring a 10kA interrupting rating at 240V. It provides robust protection in a compact design with dimensions approximately 3 in L x 2 in W x 4 in H.
- Key Specifications
- Manufacturer: Siemens
- Part Number: BQ2B125L
- Series: BQ
- Poles: 2
- Amperage: 125 A
- Voltage: 240 V
- Interrupt Rating: 10kA @ 240V
- Actuator Type: Toggle
- Part Number: BQ2B125L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
- UPC : 783643414976
- GTIN : 00783643414976
- Country of Origin : Mexico
- Dimensions : 2.756 x 1.969 x 3.937 inch
- Weight : 0.772
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
