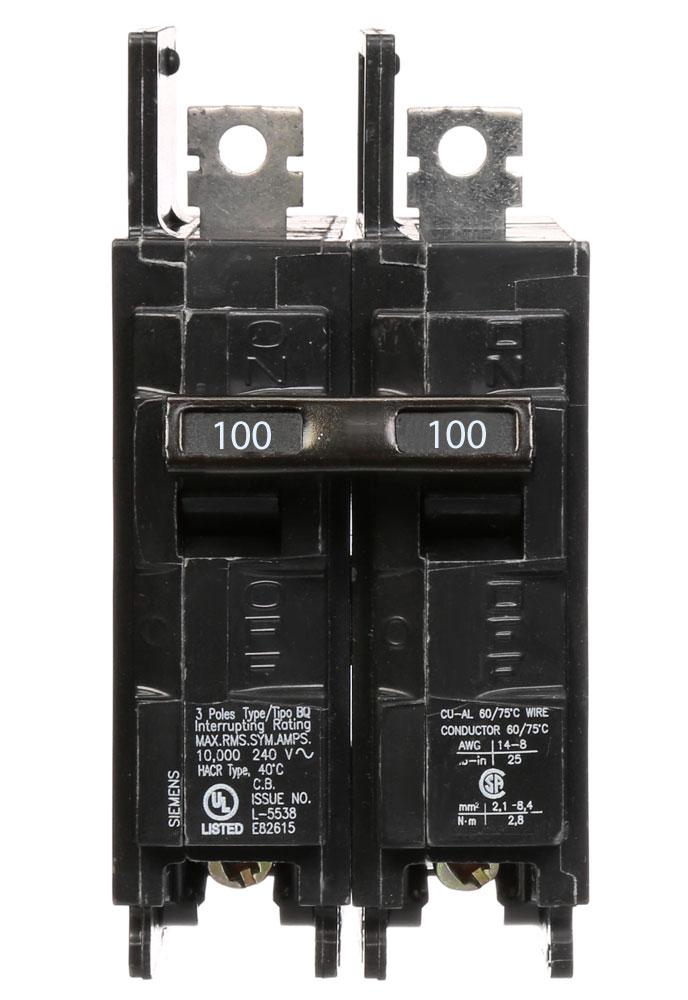

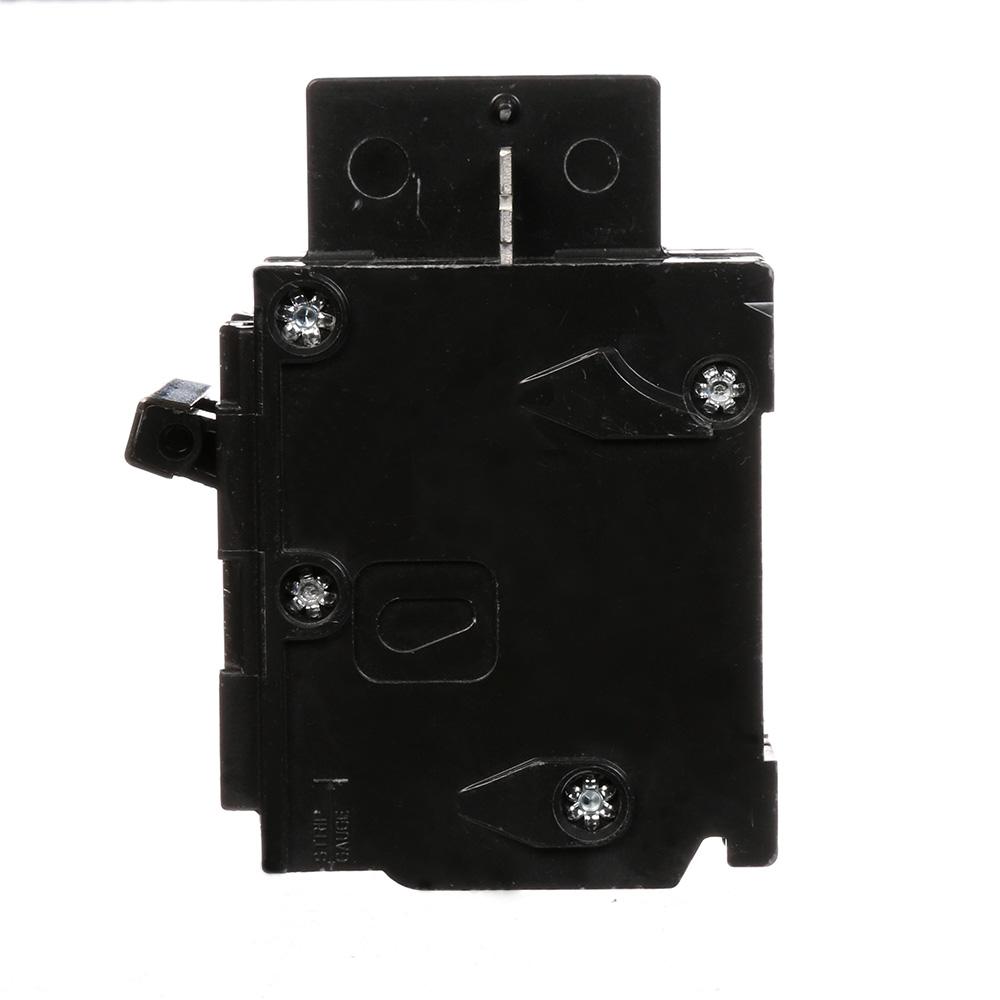

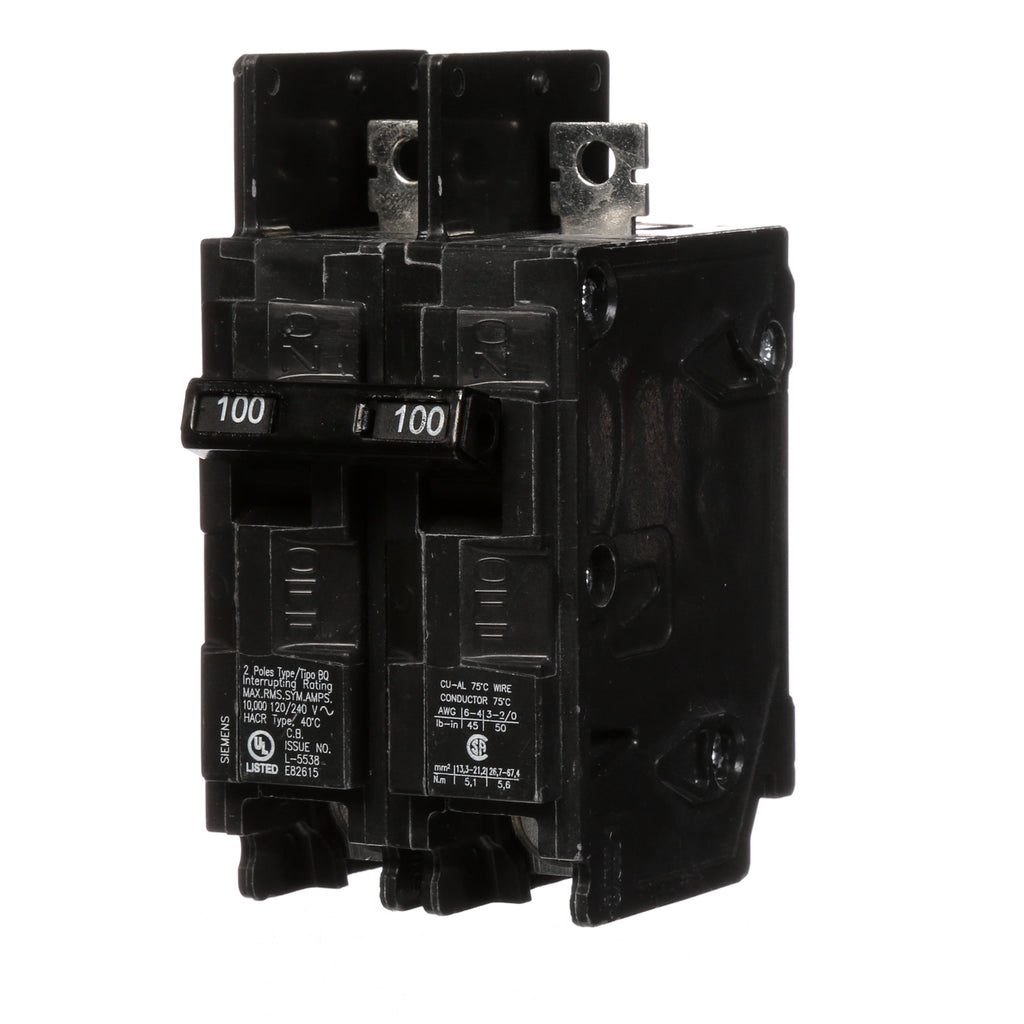

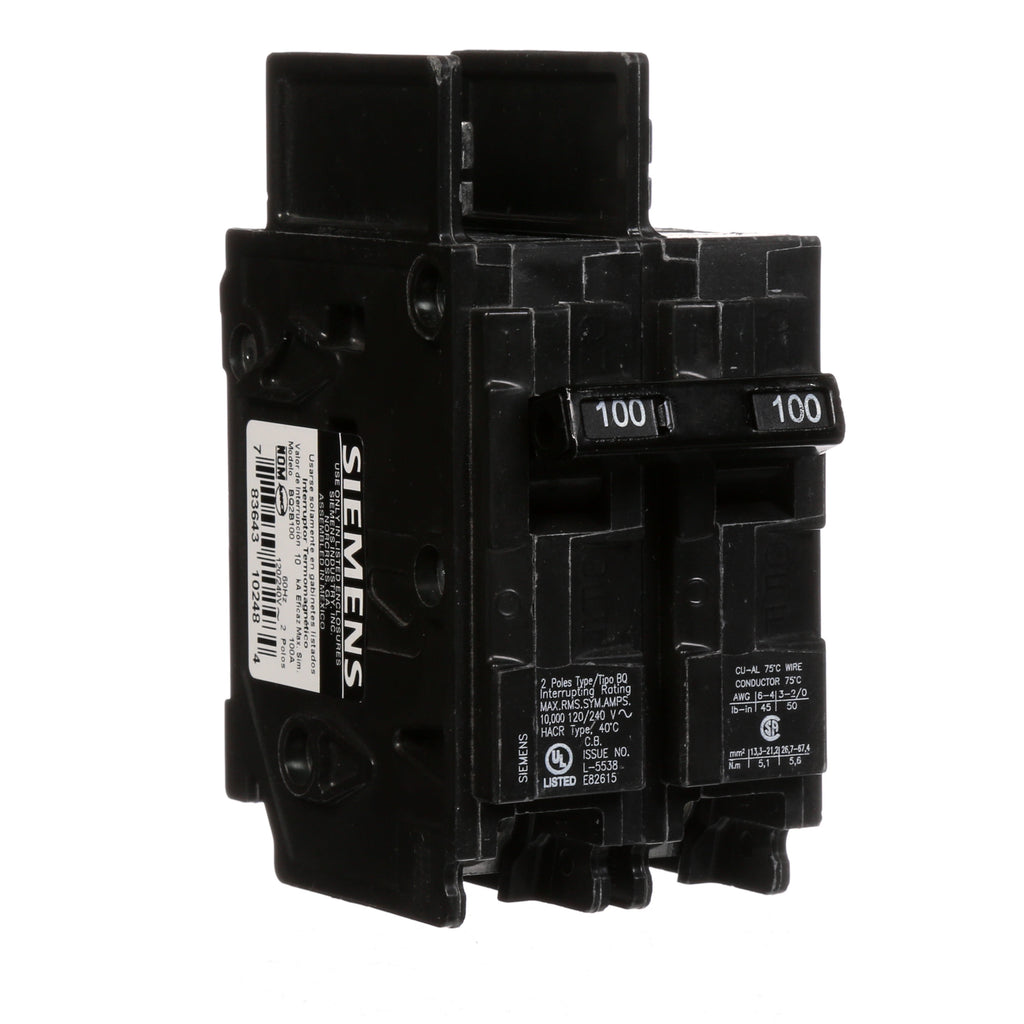

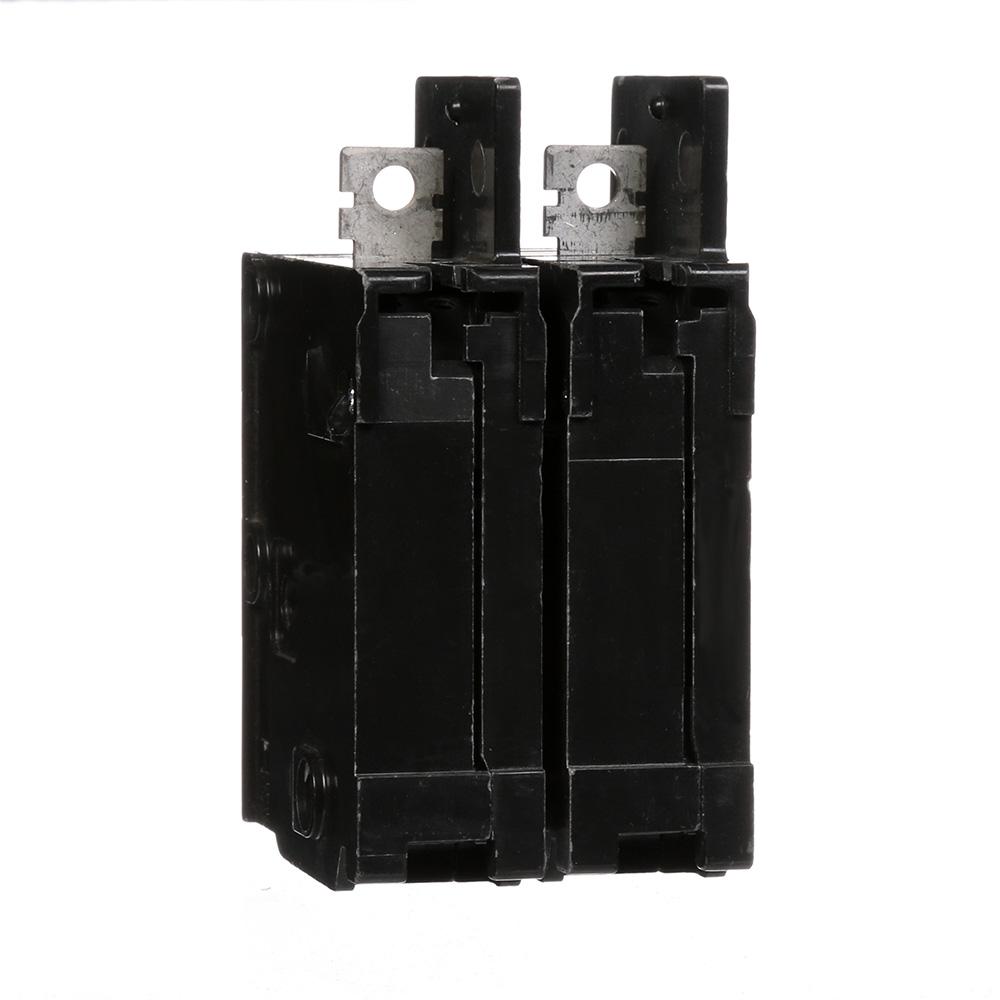

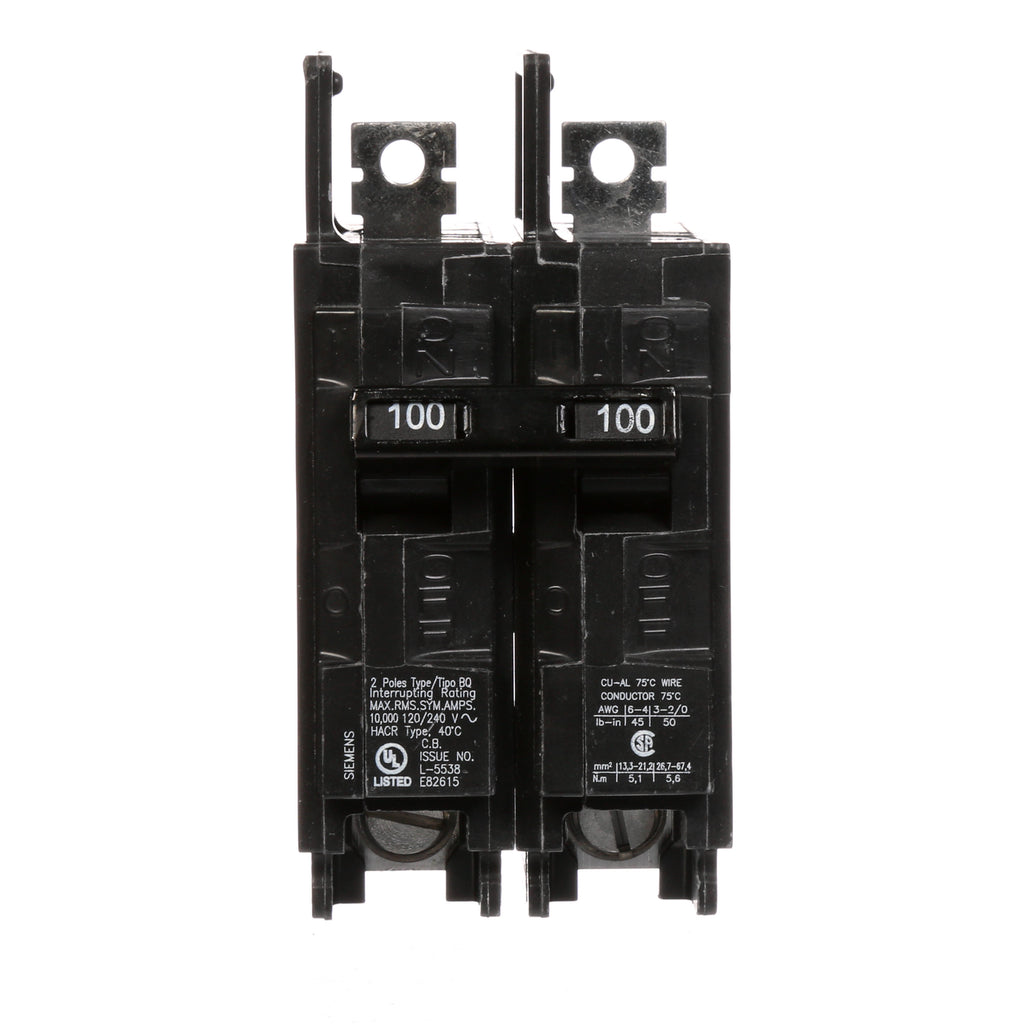

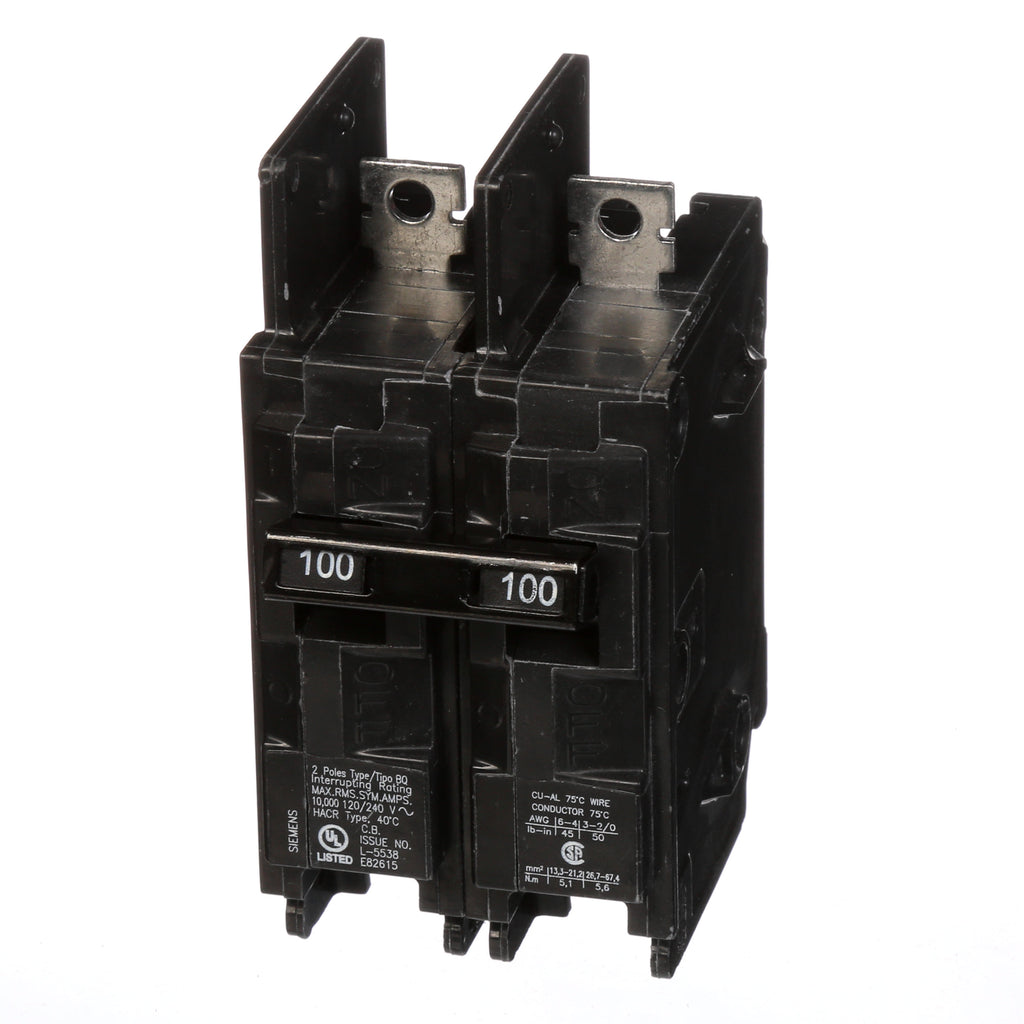

BQ2B100 - Siemens 100A 120/240V 2-Pole Molded Case Circuit Breaker BQ Series 10kA Interrupt Rating

BQ2B100

BQ2B100 is a Siemens 2-pole, 100 amp molded case circuit breaker designed for 120/240V applications with a 10kA interrupt rating.This Siemens BQ Series circuit breaker features a thermal-magnetic trip unit, lug-in/lug-out mounting type, and is UL 489 and HACR rated for electrical distribution and general purpose use. It includes load side lugs and supports wire sizes from 4 to 1/0 AWG on line side and 2 to 1/0 AWG on load side.

Key Specifications
• Amperage: 100A
• Voltage: 120/240V AC
• Poles: 2
• Interrupt Rating: 10kA at 240V
• Series/Frame: BQ
• Trip Unit: Thermal-Magnetic
• Mounting Type: Lug-In/Lug-Out
• Certifications: UL 489, HACR Rated
• Includes Load Side Lugs
• Wire Range: 4 to 1/0 AWG (line), 2 to 1/0 AWG (load)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ2B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120/240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643102484
• GTIN : 00783643102484
• Country of Origin : Mexico
• Dimensions : 12.598 x 4.331 x 3.543 inch
• Weight : 0.639
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
