Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B100L

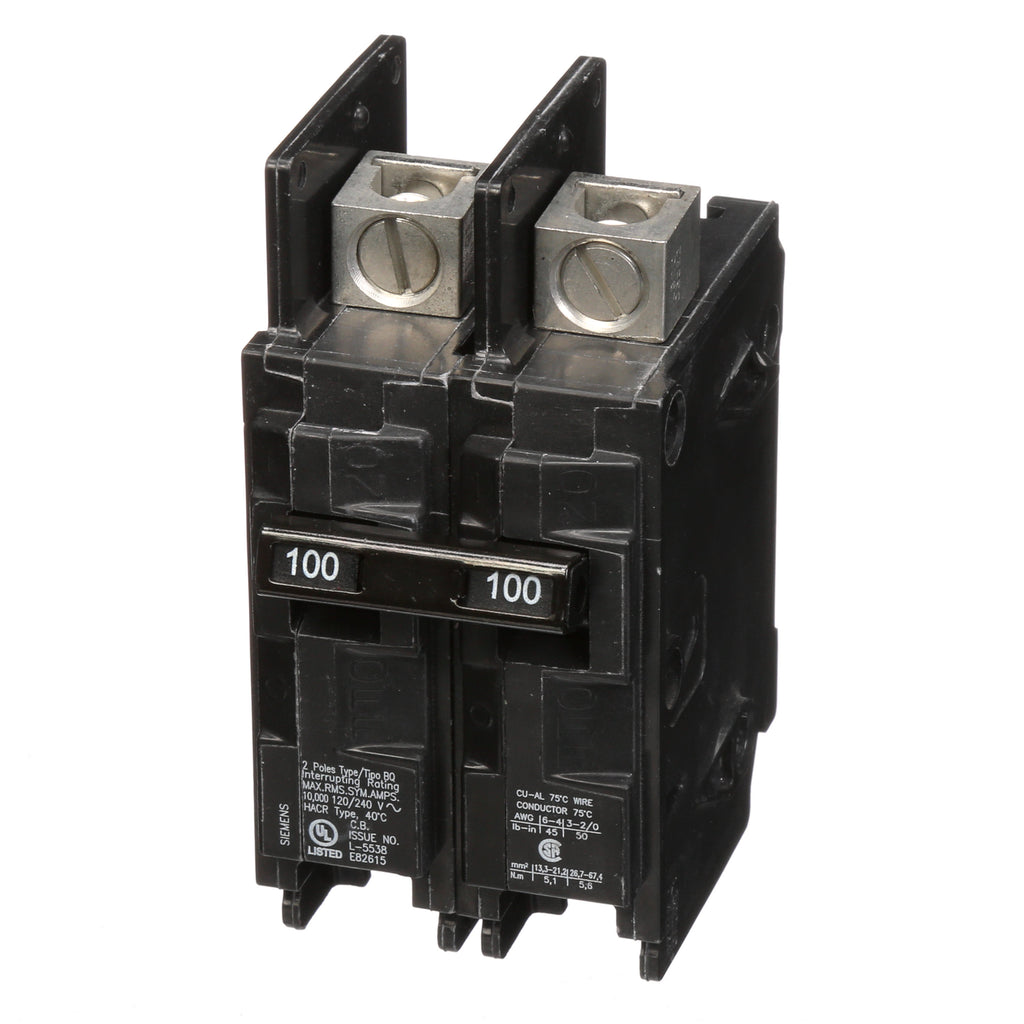

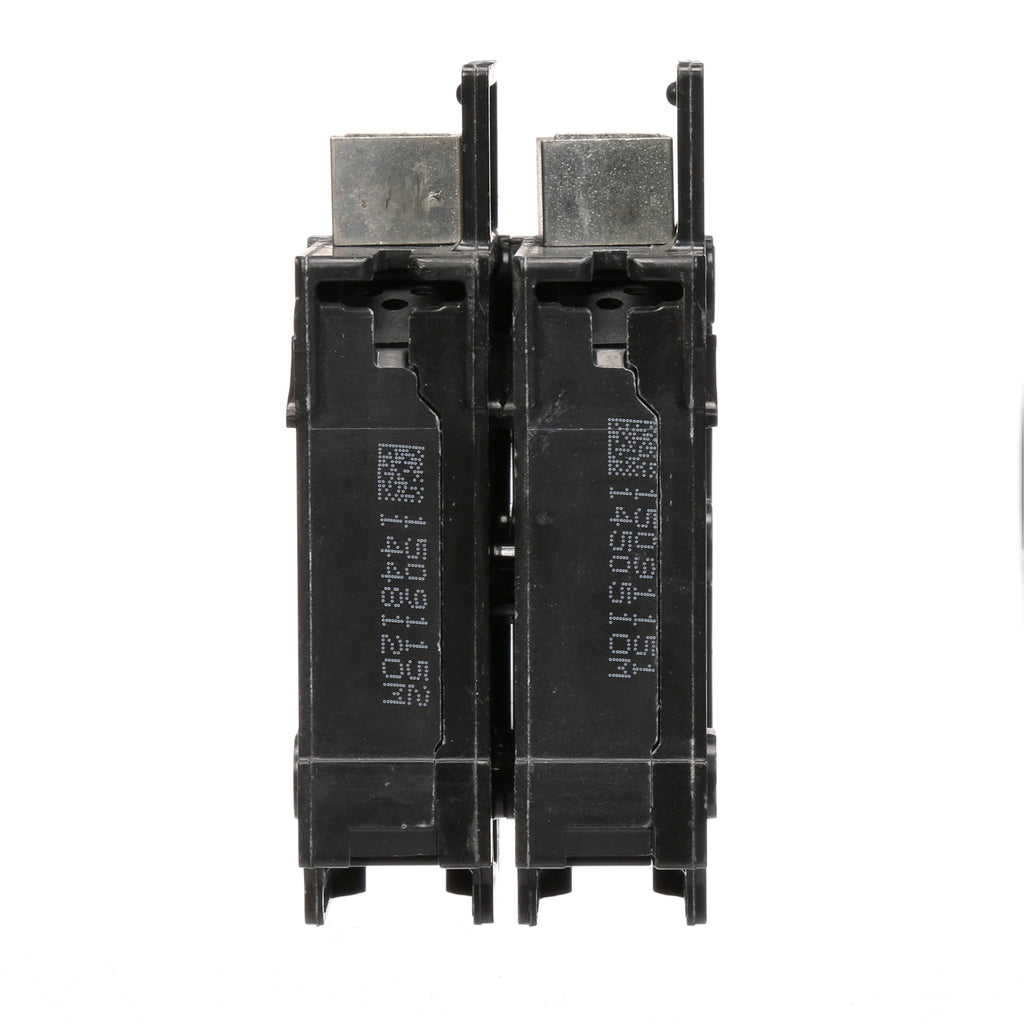

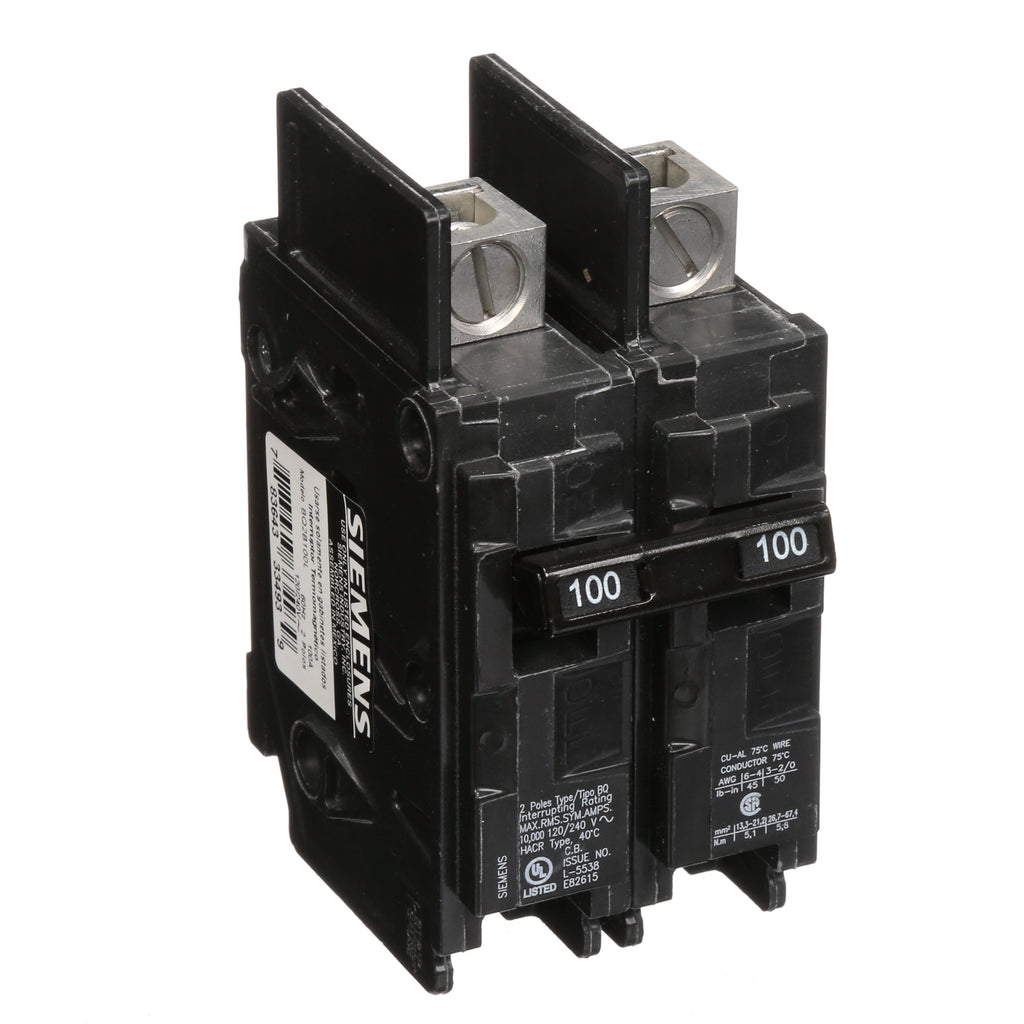

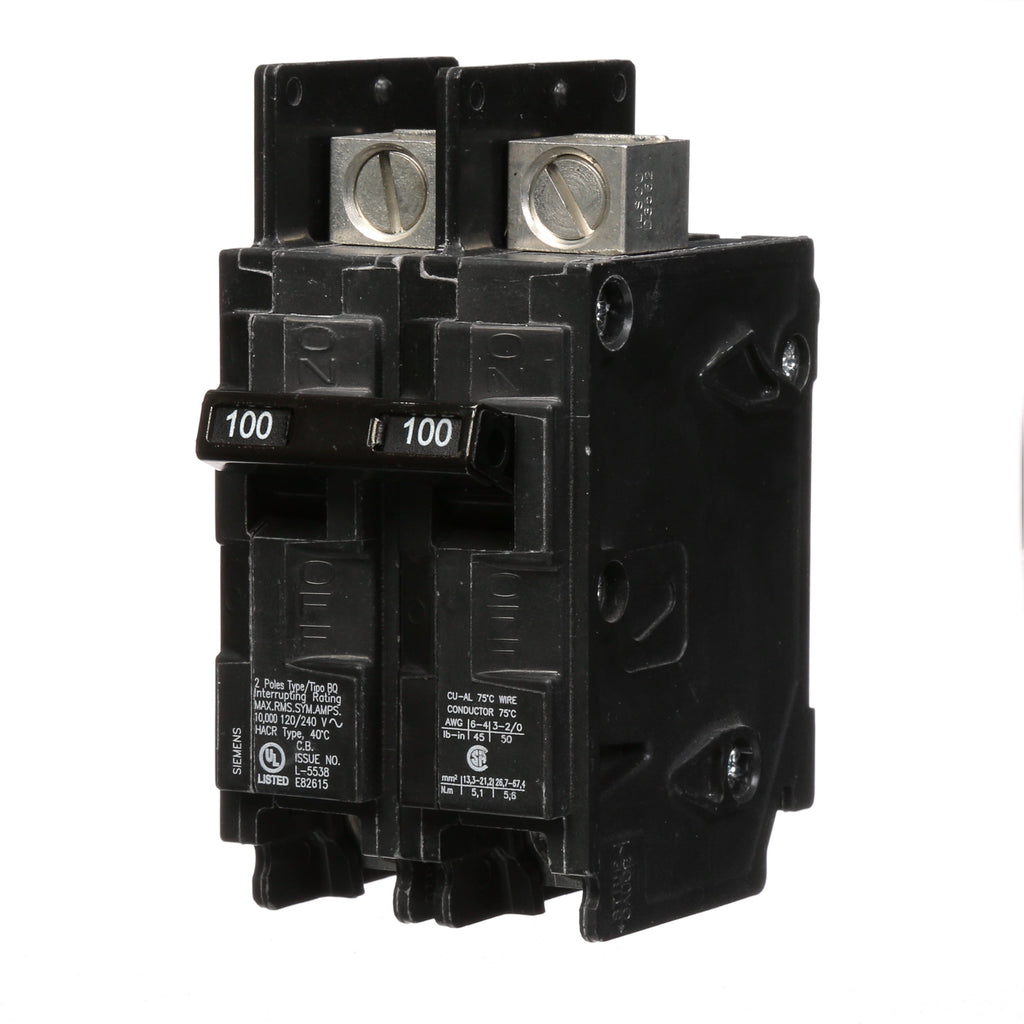

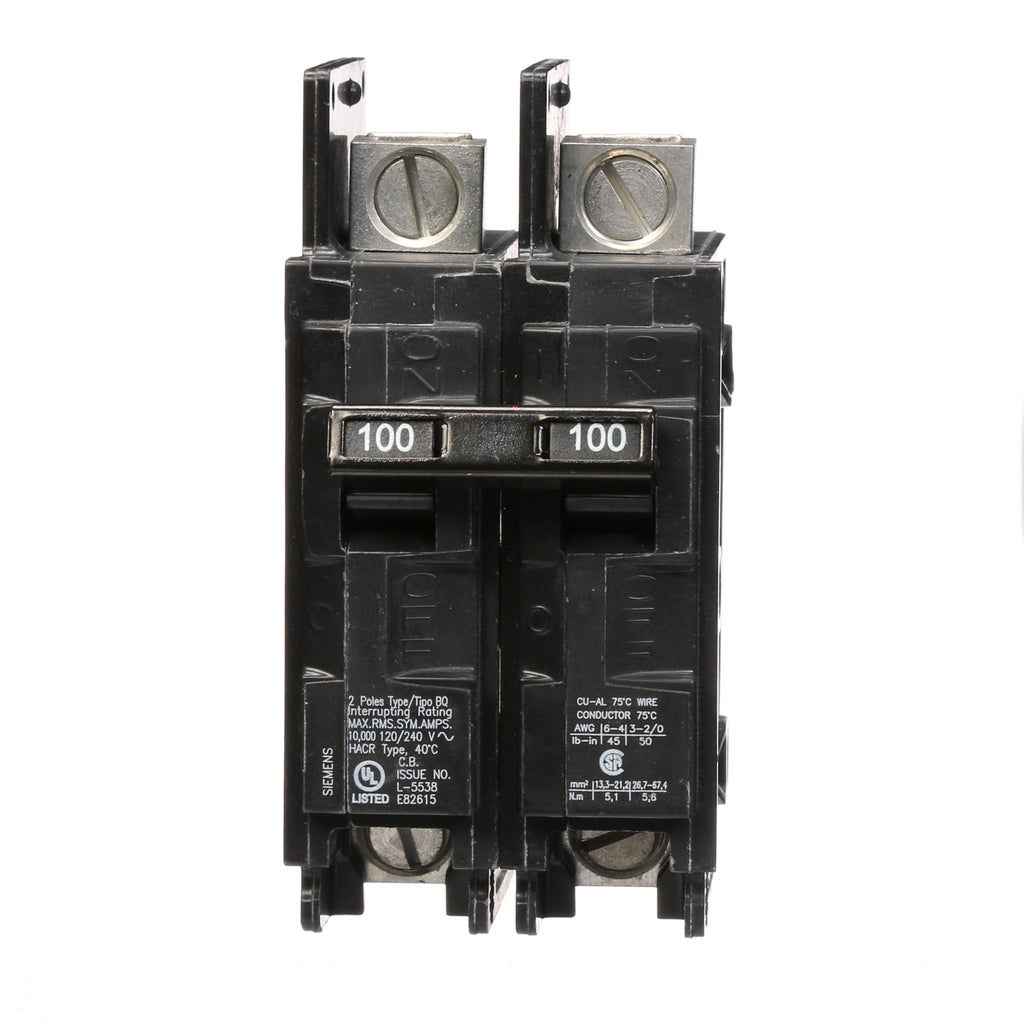

BQ2B100L - Siemens 100 Amp, 2-Pole, 240V Bolt-On Standard Trip Circuit Breaker for Siemens loadcenters. The Siemens BQ2B100L is a Type BQ low voltage molded case circuit breaker featuring thermal/magnetic trip protection, bolt-on connection, and 10 kA interrupt rating. Rated at 120/240 VAC with line side lugs included, it provides reliable circuit protection for residential and commercial electrical systems.
- Part Number: BQ2B100L
- Manufacturer: Siemens
- Amperage: 100 Amp
- Voltage: 120/240 VAC
- Poles: 2-Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kA
- Series/Frame: Type BQ
- Trip Unit: Thermal/Magnetic (Standard Trip)
- Certifications: UL Listed, CSA Approved
- Wire Size: #1 to #4/0 AWG
Specifications
- Part Number: BQ2B100L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643334939
- GTIN : 00783643334939
- Country of Origin : Mexico
- Dimensions : 2.756 x 1.969 x 3.937 inch
- Weight : 0.639
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
