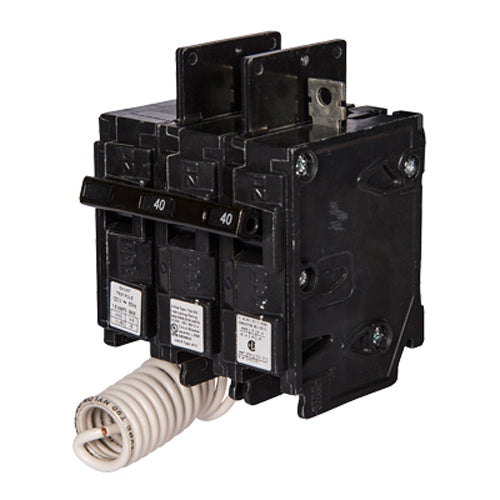

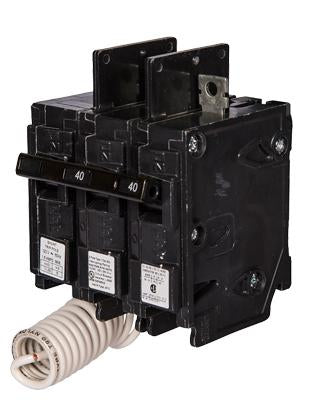

BQ2B10000S01 - Siemens 100A 2-Pole 120/240VAC Bolt-On Molded Case Circuit Breaker with Shunt Trip

Save $856.00
SKU: BQ2B10000S01-New
Condition: New
Price:
$195.00 $1,051.00
Stock:
14 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BQ2B10000S01 - SIemens Bolt-On 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BQ2B10000S01 - Siemens 100A 2-Pole 120/240VAC Bolt-On Molded Case Circuit Breaker with Shunt Trip - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BQ2B10000S01 - SIemens Bolt-On 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BQ2B10000S01 - Siemens 100A 2-Pole 120/240VAC Bolt-On Molded Case Circuit Breaker with Shunt Trip - Essential Electric Supply

Description

BQ2B10000S01


BQ2B10000S01 is a Siemens Type BQ low voltage molded case circuit breaker with shunt trip.BQ2B10000S01 features 2 poles, 100A rating, 120/240V AC, 10kA interrupt at 240V, thermal magnetic trip unit with shunt trip, and bolt-on mounting in a BQ frame.
  • Part Number: BQ2B10000S01
  • Manufacturer: Siemens
  • Amperage: 100A
  • Voltage: 120/240V AC
  • Poles: 2
  • Frame/Series: BQ
  • Interrupt Rating: 10kA at 240V
  • Trip Unit: Thermal Magnetic with Shunt Trip
  • Mounting Type: Bolt-On
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with non-interchangeable 120V shunt trip


Specifications

  • Part Number: BQ2B10000S01
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : BQ Series
  • Type : BQ
  • Voltage : 240
  • Amperage : 100
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Bolt-on
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/BQ
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
  • Breaker Type : Shunt Trip
  • Protection : Thermal Magnetic

Product Data

  • UPC : 078364323780
  • GTIN : 00783643237803
  • Country of Origin : Mexico
  • Dimensions : 2.563 x 3.00 x 3.972 inch
  • Weight : 0.926
  • Panel Type : Siemens Panelboards
  • Standards : HACR Rated, UL Listed
  • Certification : CSA, HACR, UL

Accesories

Part Manufacture Sub Category
QTH3
TA1Q1
