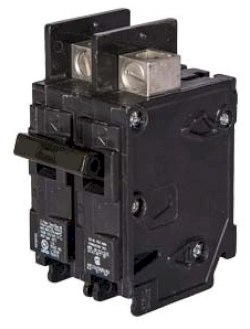

BQ2B12500S01 - Siemens 125A 240V 2-Pole Bolt-On Circuit Breaker with 120V Shunt Trip, 10kA Interrupt Rating

BQ2B12500S01

BQ2B12500S01 is a Siemens 2-pole, 125 amp, 240 Volt AC bolt-on circuit breaker with a 120V shunt trip feature and a 10,000 A interrupting rating.This molded case circuit breaker from the BQ series is designed for electrical distribution applications. It features thermal magnetic trip units with long time and instantaneous trip functions. The breaker is UL 489 listed and includes load side lugs. Its compact design measures 3 inches wide, 5 inches deep, and 3 inches high, suitable for bolt-on mounting.

• Amperage: 125 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 240 V
• Series/Frame: BQ
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Certifications: UL 489
• Dimensions: 3" W x 5" D x 3" H
• Load Side Lugs Included

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: BQ2B12500S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643088849
• GTIN : 00783643088849
• Country of Origin : Mexico
• Dimensions : 4.724 x 2.756 x 2.756 inch
• Weight : 1.146
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
• Wire Size : AWG 1/0 to AWG 2/0, AWG 2 to AWG 1/0, Aluminum/Copper
