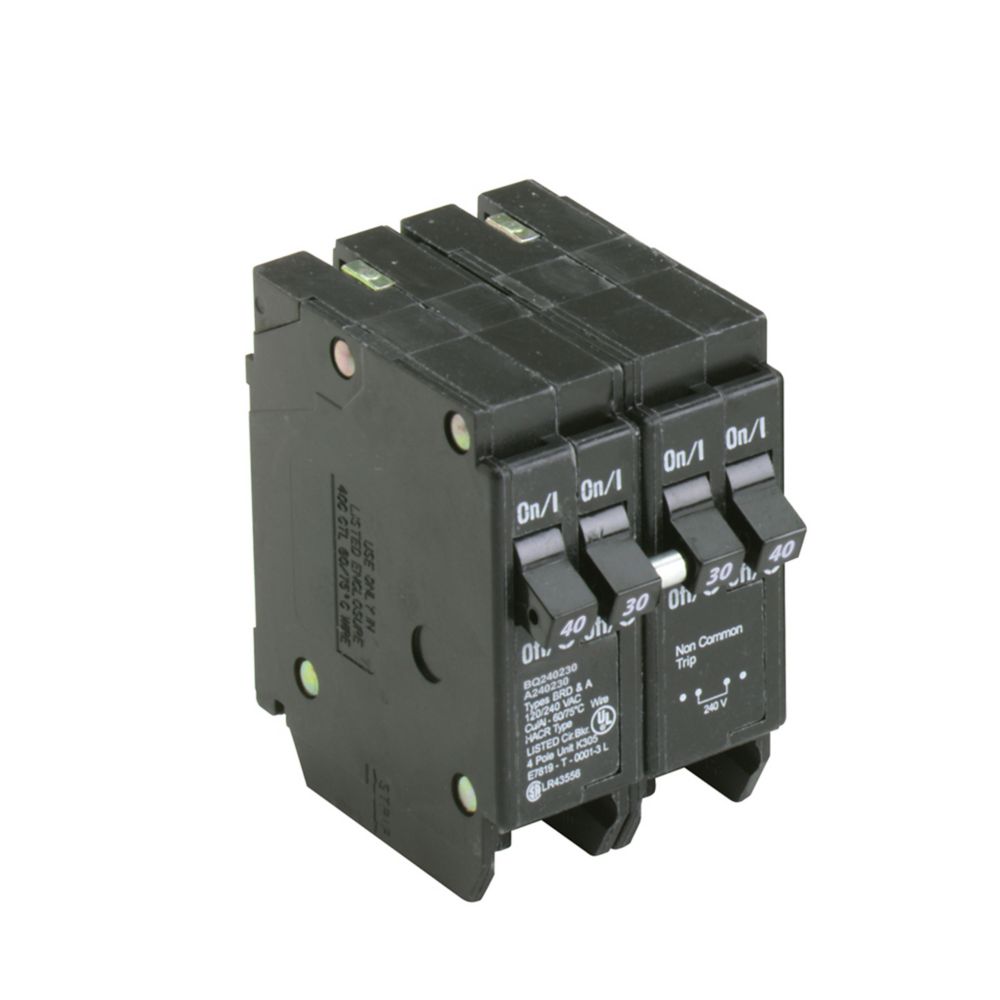

BQ240230 - Cutler Hammer 40/30A 120/240V 4-Pole Plug-On Circuit Breaker 10kAIC BR Frame

BQ240230

BQ240230 is a Cutler Hammer 4-pole plug-on circuit breaker designed for 120/240V applications with 40/30 ampere ratings and a 10kA interrupt rating.This Eaton BR frame thermal magnetic circuit breaker features a Type BQ 1-inch CTL plug-on design with rejection tab for secure mounting. It supports #14-4 AWG Cu/Al wiring, includes long-time and instantaneous trip functions, and is UL 489 certified for HACR applications. The breaker is suitable for use in Type BR loadcenters and offers a limited lifetime residential warranty.

Key Specifications
• Amperage: 40/30 Amps
• Voltage: 120/240 Volts AC
• Number of Poles: 4 (Quadplex)
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 240V
• Frame/Series: BR Frame
• Trip Unit: Thermal Magnetic
• Wire Size: #14-4 AWG Copper/Aluminum
• Certifications: UL 489
• Special Features: Rejection Tab, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ240230
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676004633
• GTIN : 00786676004633
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C375
