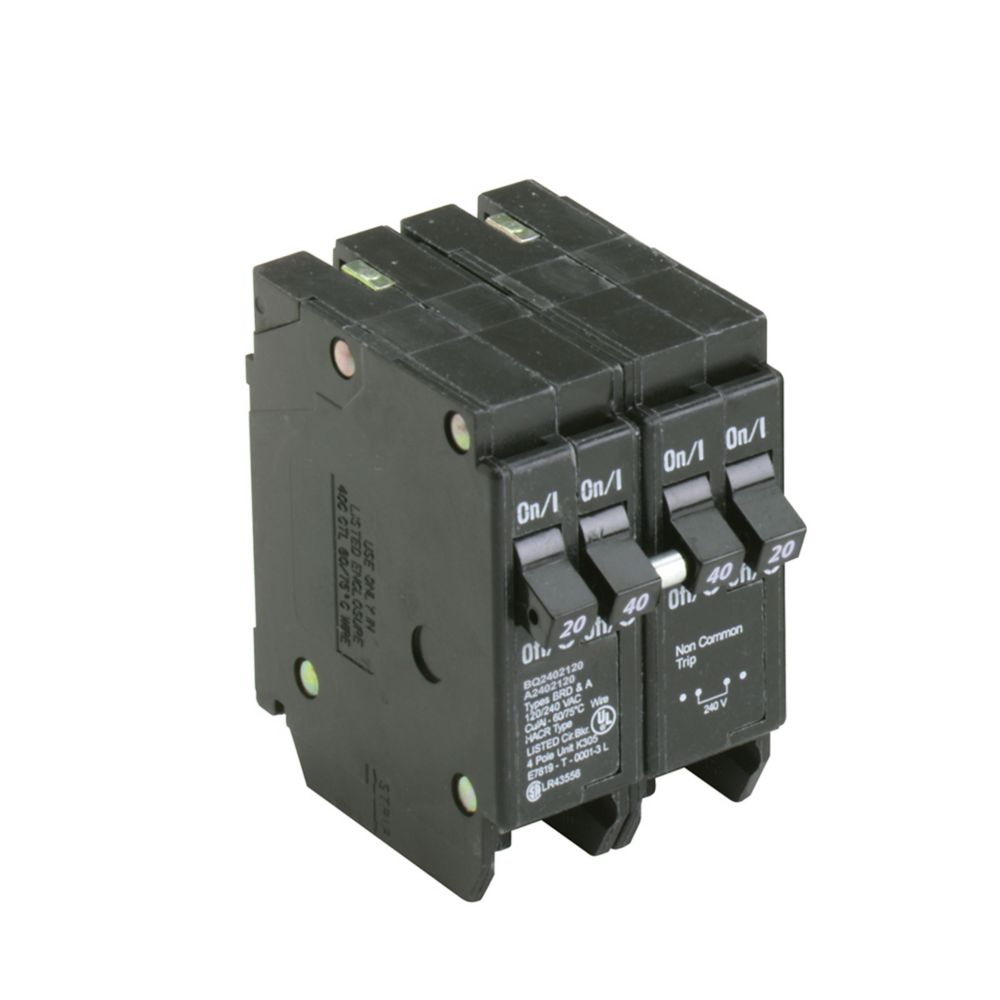

BQ2402120 - Cutler Hammer BQ Series 20/40/20 Amp 120/240V 4-Pole Plug-On Circuit Breaker

BQ2402120

BQ2402120 is a Cutler Hammer BQ Series 4-pole circuit breaker designed for residential use with 20/40/20 amp ratings and 120/240 volts.This plug-on type breaker features a thermal magnetic trip unit, a 10 kA interrupt rating at 120 VAC, and supports wire sizes from #14 to 4 AWG copper or aluminum. It includes a rejection tab feature for compatibility with Eaton BR load centers and carries UL 489 certification.

• Amperage: (2) 20A single-pole, (1) 40A two-pole
• Voltage: 120/240 V
• Number of Poles: 4 (quadplex)
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC @ 120 VAC
• Series/Frame: BQ
• Trip Unit: Thermal Magnetic (T194)
• Wire Size: #14-4 AWG Cu/Al
• Certifications: UL 489
• Includes rejection tab feature
• Compatible with Eaton BR load centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ2402120
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371650
• GTIN : 00786676371650
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.7
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C375
