BQ2402115 - Cutler Hammer 15/40/15A 240V 4-Pole Quadplex Plug-On Circuit Breaker, Type BQ, 50A Frame, Thermal Magnetic Trip, 10kA Interrupt

BQ2402115

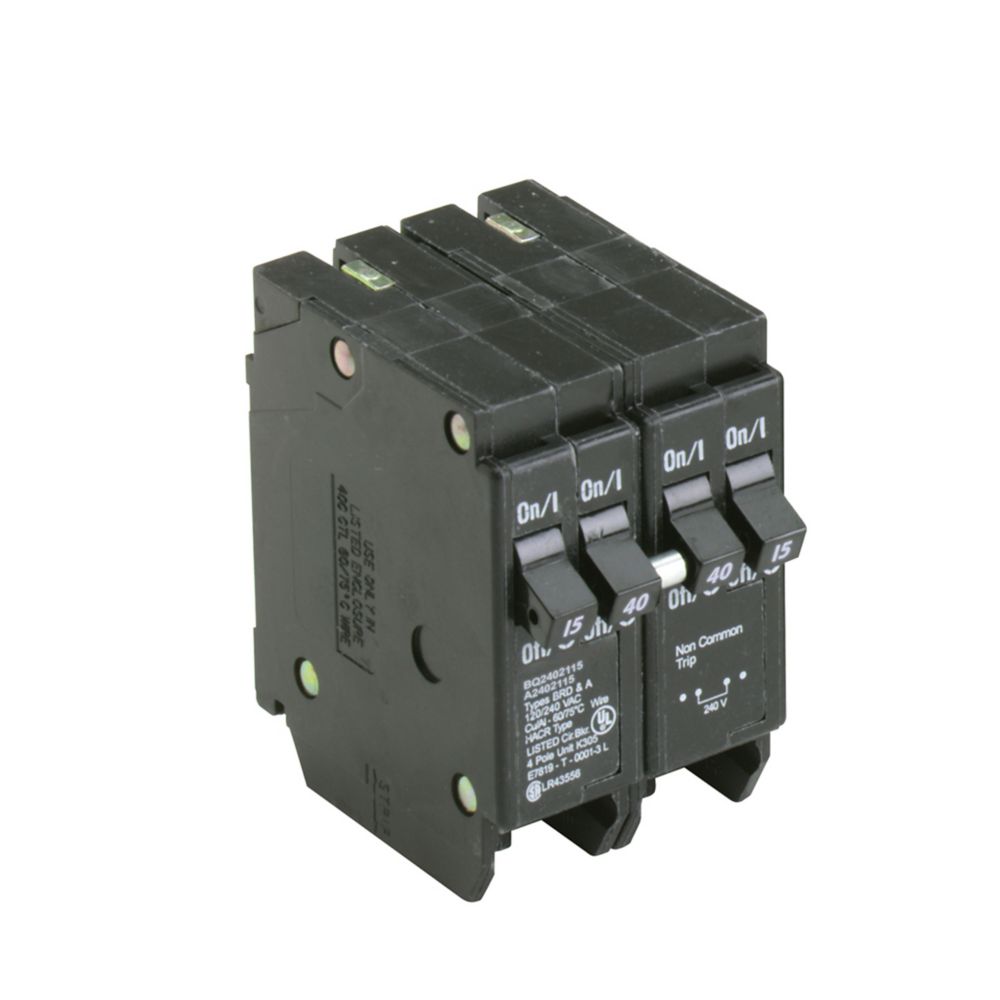

BQ2402115 is an Eaton BR thermal magnetic quadplex circuit breaker designed for residential and light commercial 120/240V electrical systems.

This Type BQ 1-inch CTL plug-on circuit breaker features independent trip operation with two single-pole 15A outer positions and one two-pole 40A center position. The breaker includes a rejection tab feature for secure installation in BR series loadcenters and is rated for HACR applications. All 15 and 20 ampere single poles are switch duty rated. The thermal magnetic trip mechanism provides reliable protection against overloads and short circuits.

• Amperage Rating: (2) Single-Pole 15A, (1) Two-Pole 40A
• Voltage Rating: 120/240V at 40A, 120V at 15A
• Number of Poles: Four-pole
• Mounting Method: Plug-on CTL
• Interrupt Rating: 10 kAIC
• Wire Size: #14-4 AWG Cu/Al
• Trip Type: T194 Thermal Magnetic
• Special Features: Rejection tab, Independent trip
• Certifications: UL 489
• Compatible with: Type BR Loadcenters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ2402115
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 078667637160
• GTIN : 00786676000000
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : 14 To 4 AWG (Aluminum/Copper)
