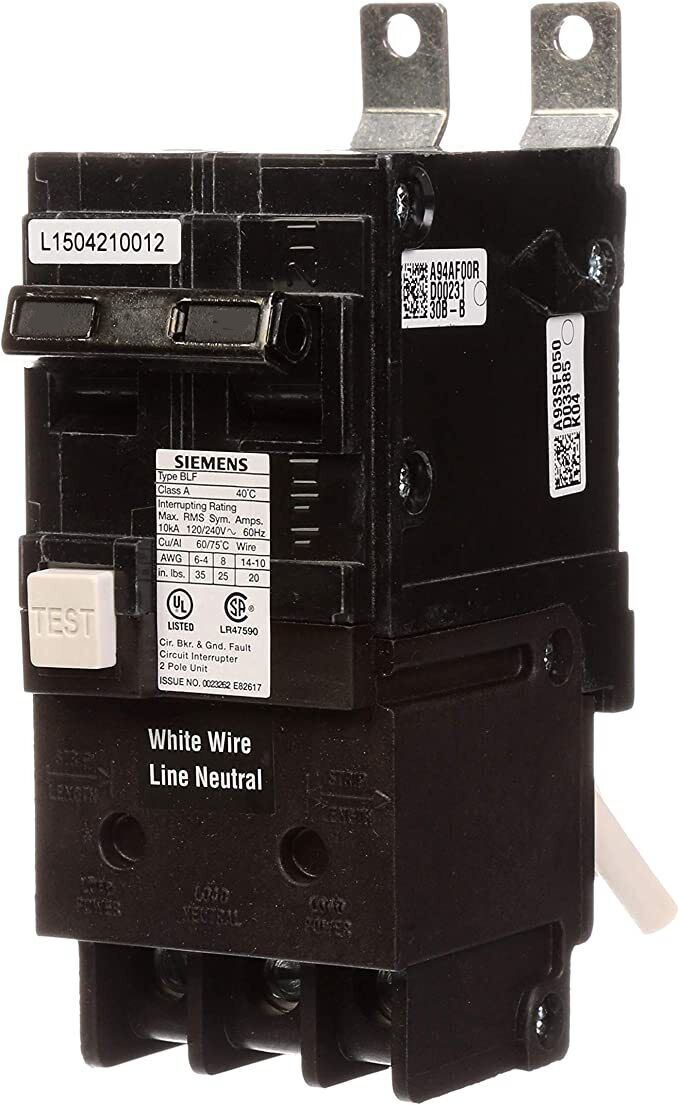

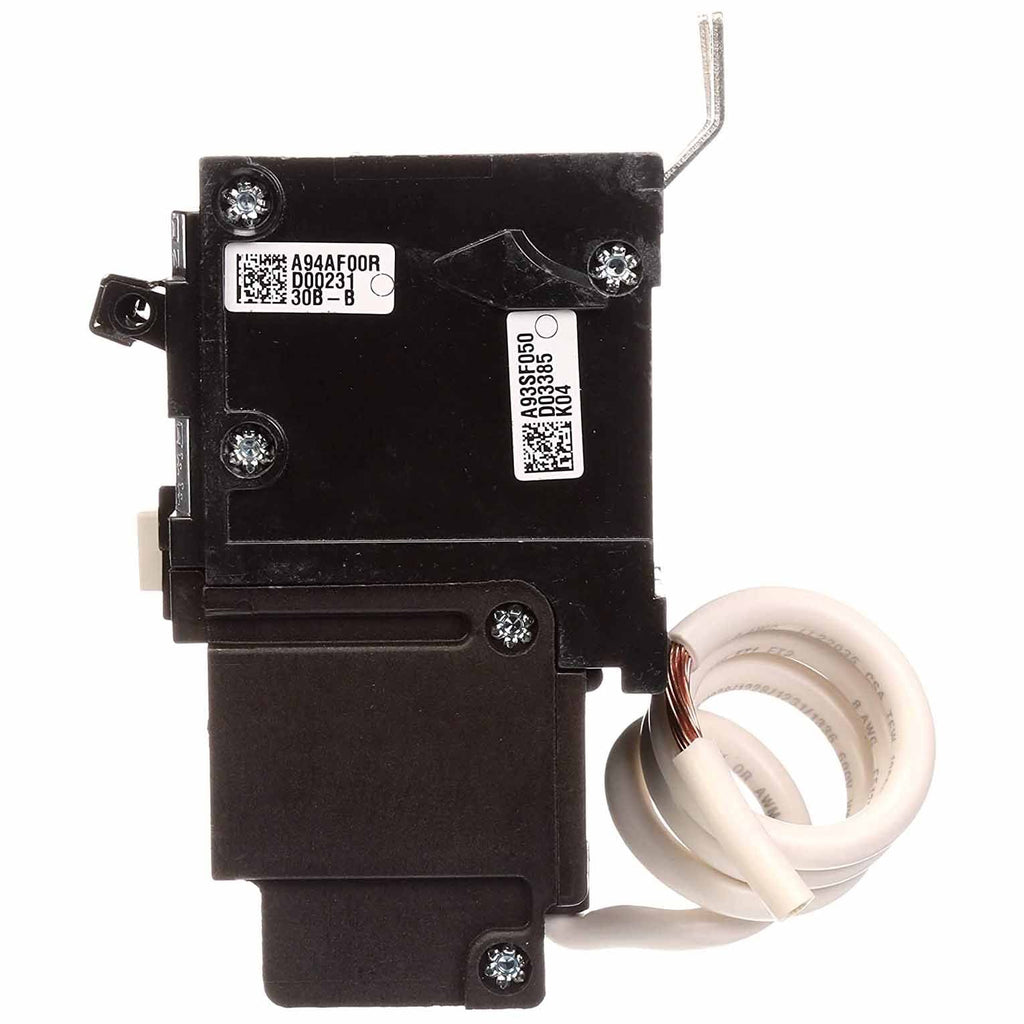

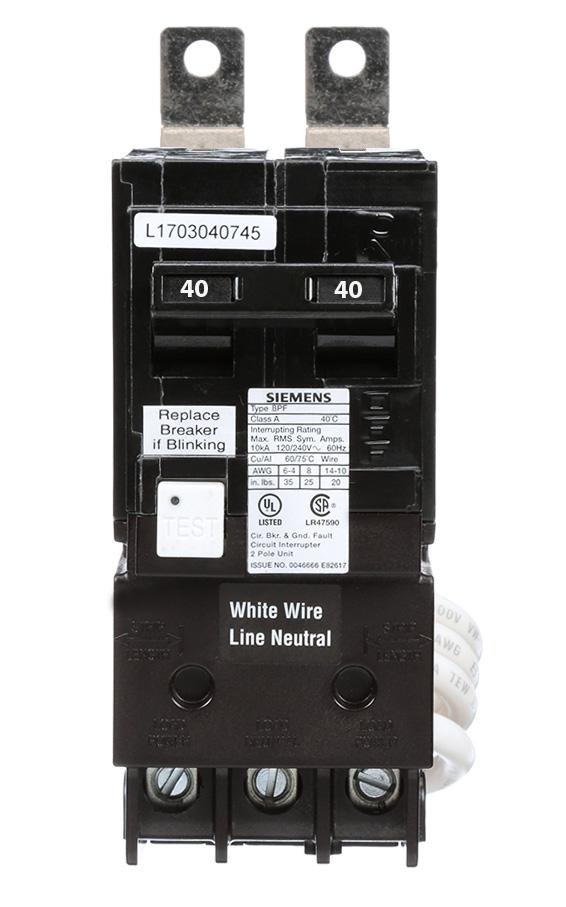

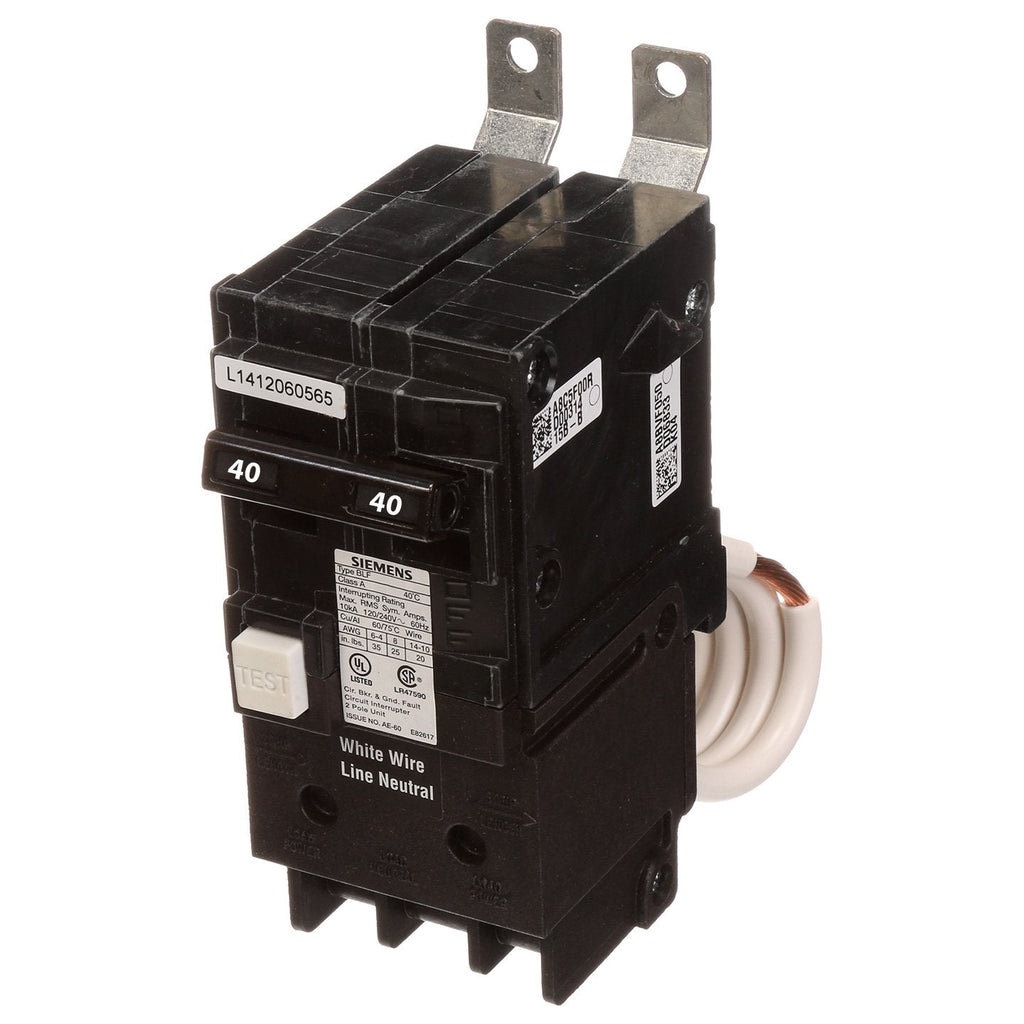

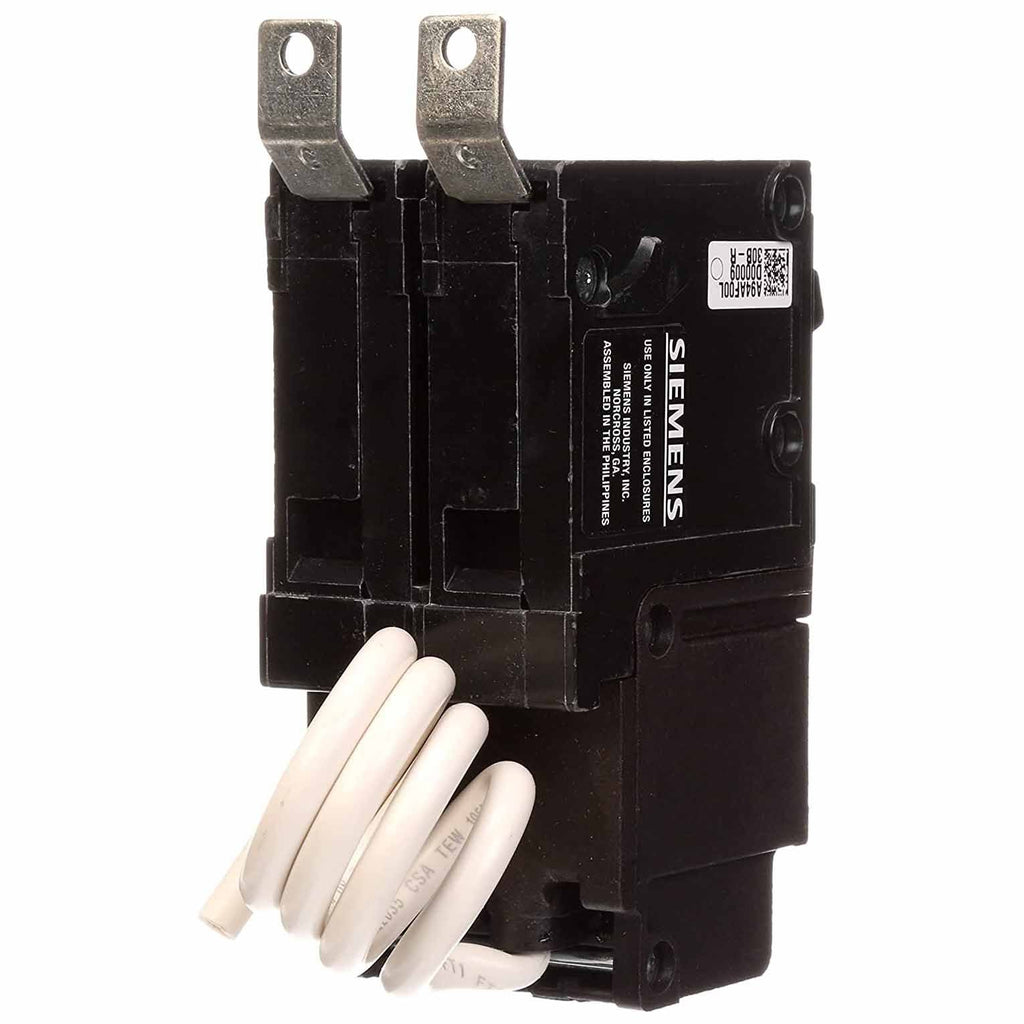

BF240 - Siemens 40 Amp 2 Pole 120/240VAC Bolt-On Ground Fault Circuit Breaker BLF Series

BF240

BF240 is a Siemens 2 pole, 40 amp ground fault circuit breaker designed for 120/240VAC applications with bolt-on mounting.This Siemens BLF series molded case circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions. It has a 10kA interrupting rating at 240 volts and is UL and CSA certified. The breaker uses load side lug terminals and supports wire sizes from 8 to 6 AWG copper or 8 to 4 AWG aluminum. It is intended for use in Siemens panelboards and provides reliable ground fault protection with a trip sensitivity of 5 milliamperes.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10kAIC at 240V
• Series/Frame: BLF / B Frame
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Terminal Connection: Load Side Lug
• Trip Sensitivity: 5 mA Ground Fault
• Certifications: UL Listed, CSA Certified
• Wire Size: 8 to 6 AWG Copper, 8 to 4 AWG Aluminum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BF240
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLF
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643274013
• GTIN : 00783643274013
• Country of Origin : Philippines
• Dimensions : 5.906 x 3.937 x 2.756 inch
• Weight : 1.058
