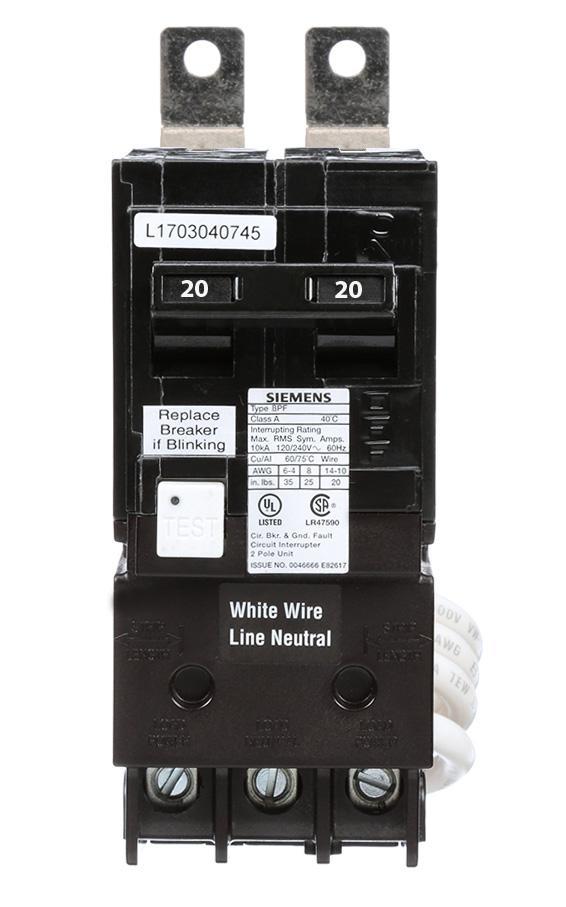

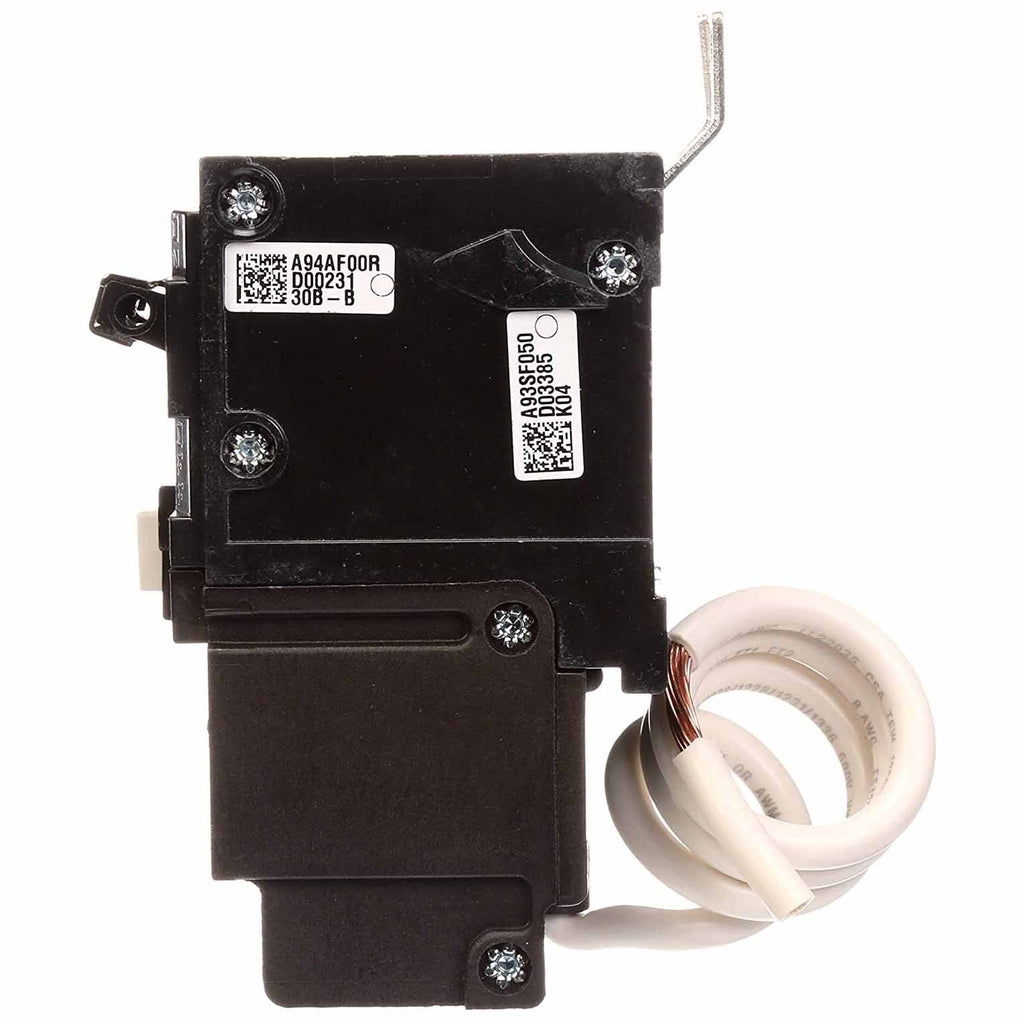

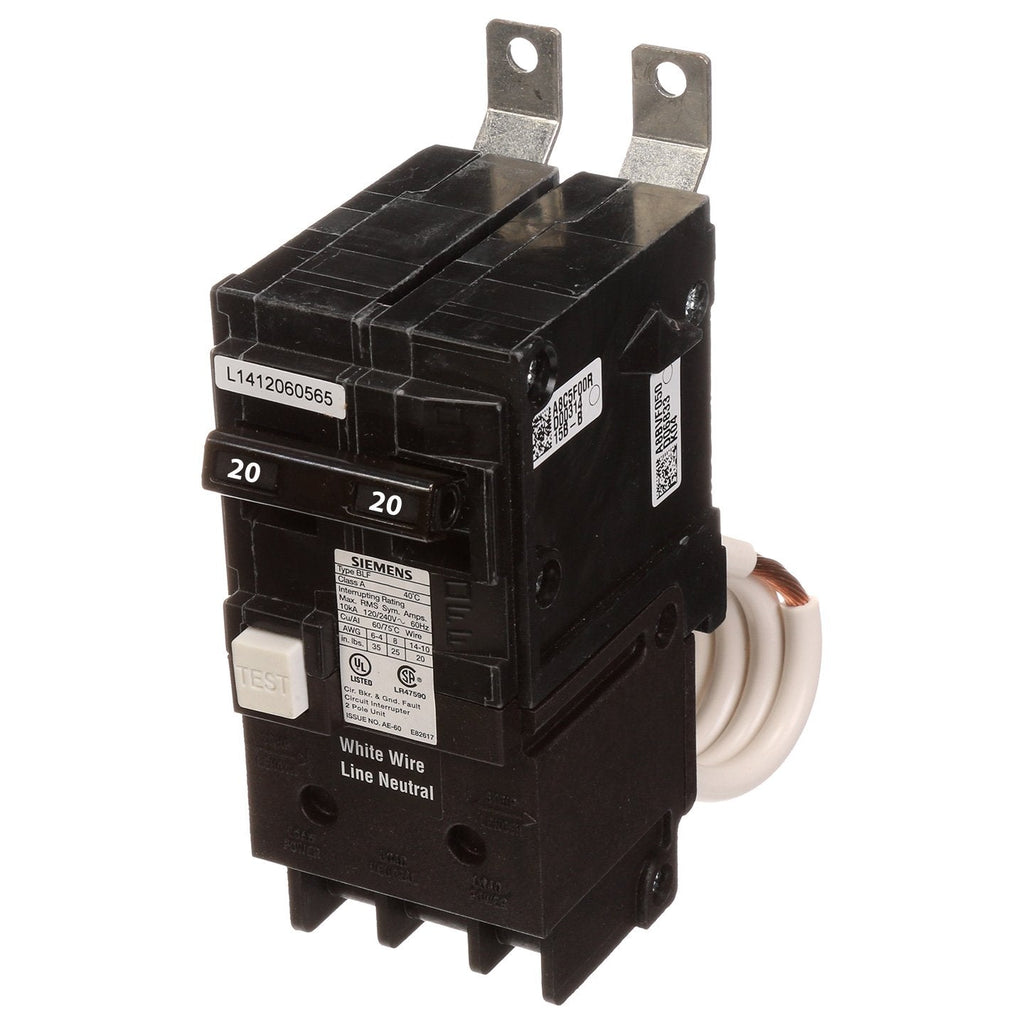

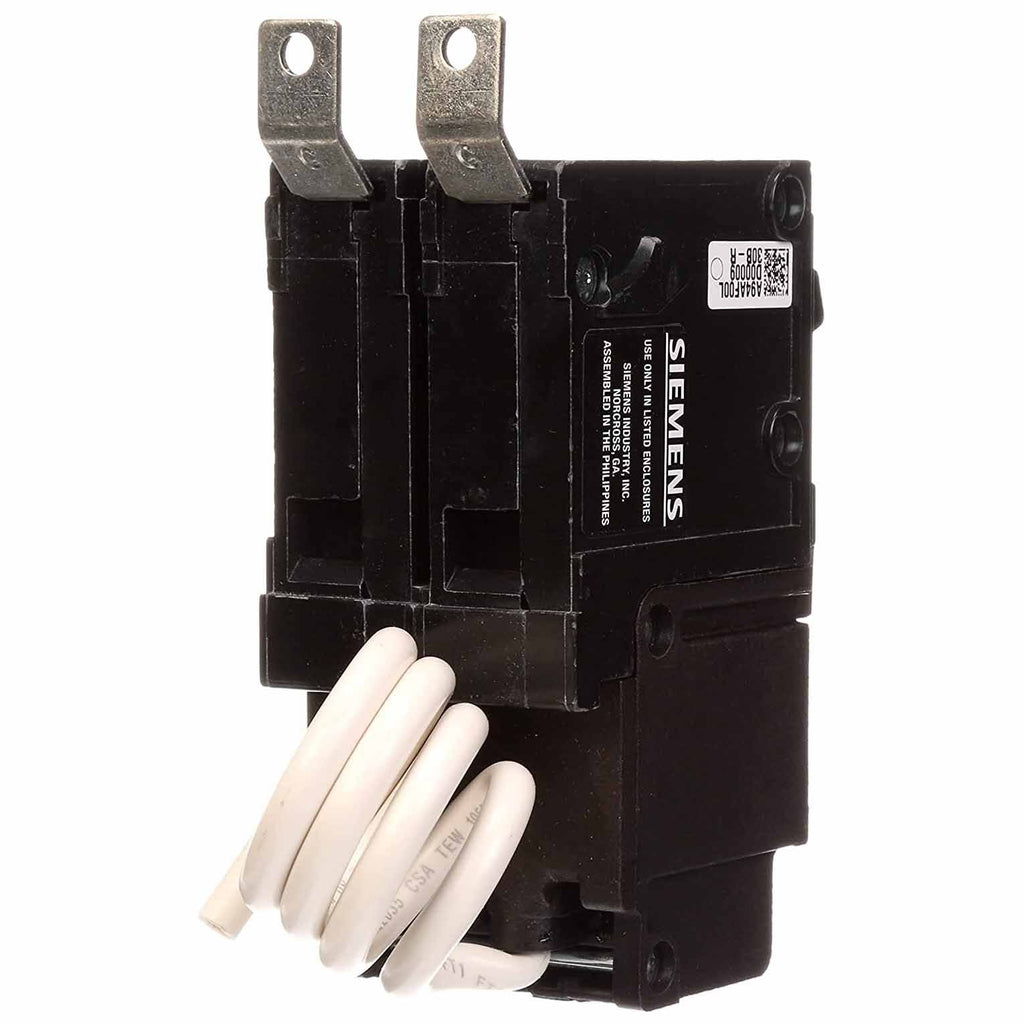

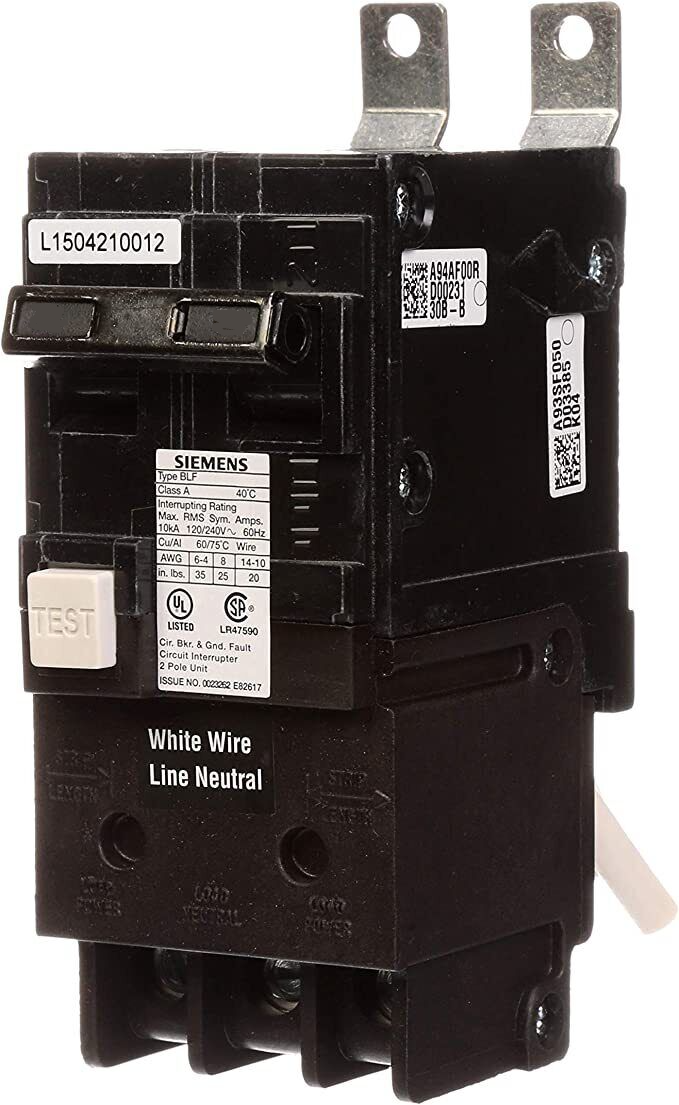

BF220A - Siemens 20 Amp 240 Volt 2 Pole Ground Fault Circuit Breaker BLF Frame

BF220A

BF220A is a Siemens 20 Amp, 240 Volt, 2 Pole Ground Fault Circuit Breaker with BLF frame type designed for reliable circuit protection.This Siemens BF220A circuit breaker features a bolt-on mounting type, thermal-magnetic trip unit, and a 10,000 Amp interrupt rating. It is UL listed, CSA approved, and NOM certified, ensuring compliance with safety standards. The breaker is part of the B / BL series and provides ground fault protection with a 5mA trip sensitivity for enhanced safety in electrical systems.

• Manufacturer: Siemens
• Part Number: BF220A
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps
• Frame Type: BLF
• Trip Unit: Thermal-Magnetic Ground Fault (5mA)
• Certifications: UL Listed, CSA Approved, NOM Certified
• Series: B / BL Series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BF220A
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLF
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 60A/BLHF
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621215392
• GTIN : 03606481153715
• Country of Origin : Philippines
• Dimensions : 7.874 x 1.969 x 2.756 inch
• Weight : 0.992 lb
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
