BF125 - Siemens 25 Amp 120 Volt 1 Pole Bolt-On Circuit Breaker 10kA Interrupt Rating

BF125

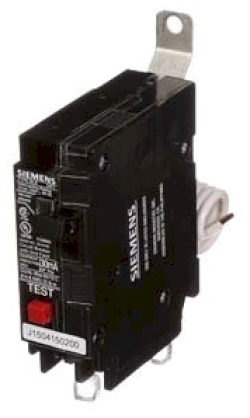

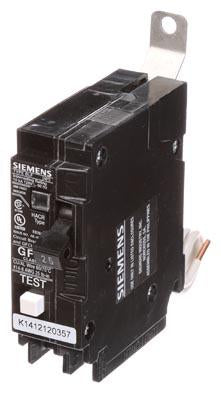

BF125 is a Siemens 25 Amp, 120 Volt, 1 Pole bolt-on circuit breaker designed for reliable electrical protection.This molded case circuit breaker features a 10kA interrupting rating at 120V AC, suitable for panelboard mounting and general branch circuit protection. It uses a bolt-on mounting type and belongs to the Siemens B frame series. The breaker provides ground fault protection and meets industry certifications for safety and performance.

• Amperage: 25 Amps
• Voltage: 120 Volts AC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120V
• Series/Frame: B Frame
• Trip Unit: Ground Fault Circuit Breaker (GFCI)
• Certifications: Industry standard safety certifications
• Type: Molded Case Circuit Breaker
• Manufacturer: Siemens

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BF125
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLF
• Voltage : 120
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 60A/BLHF
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643271326
• GTIN : 00783643271326
• Country of Origin : Philippines
• Dimensions : 4.724 x 3.937 x 1.969 inch
• Weight : 0.507
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
