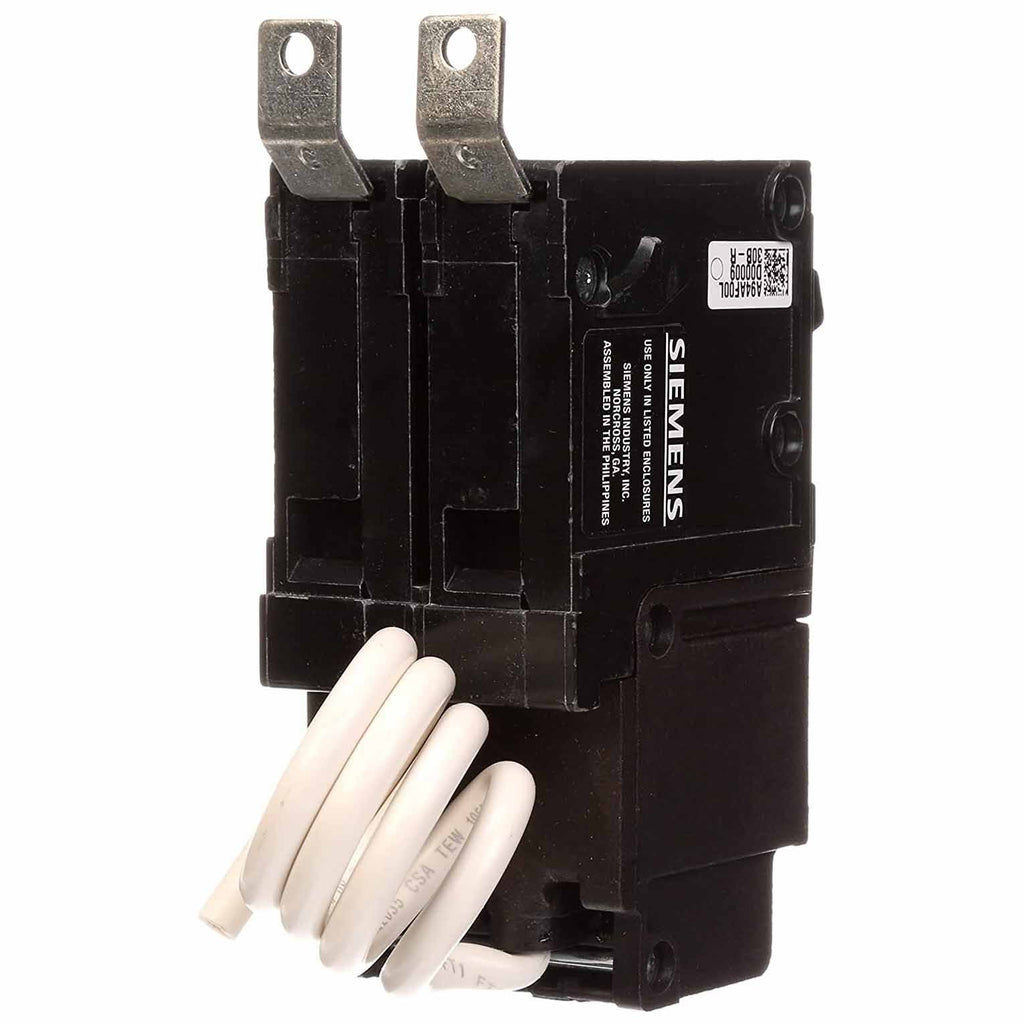

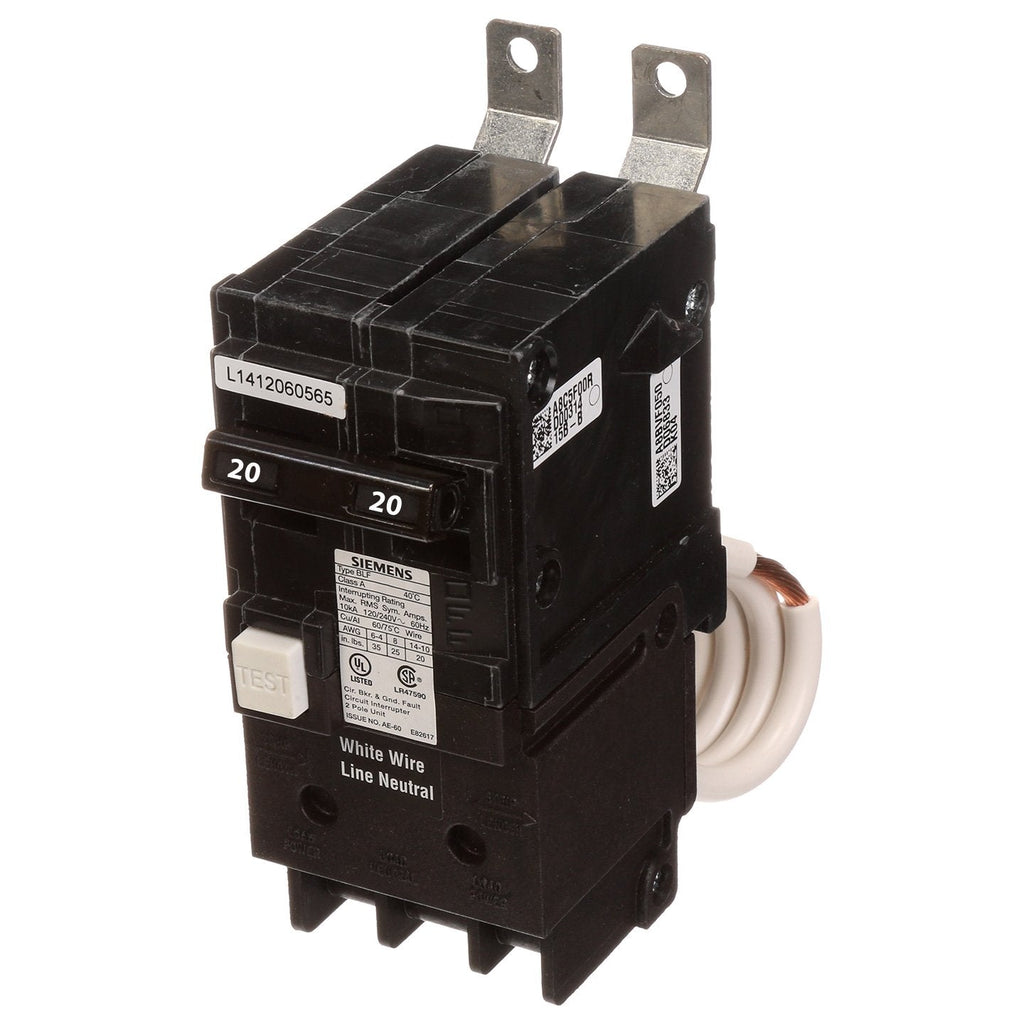

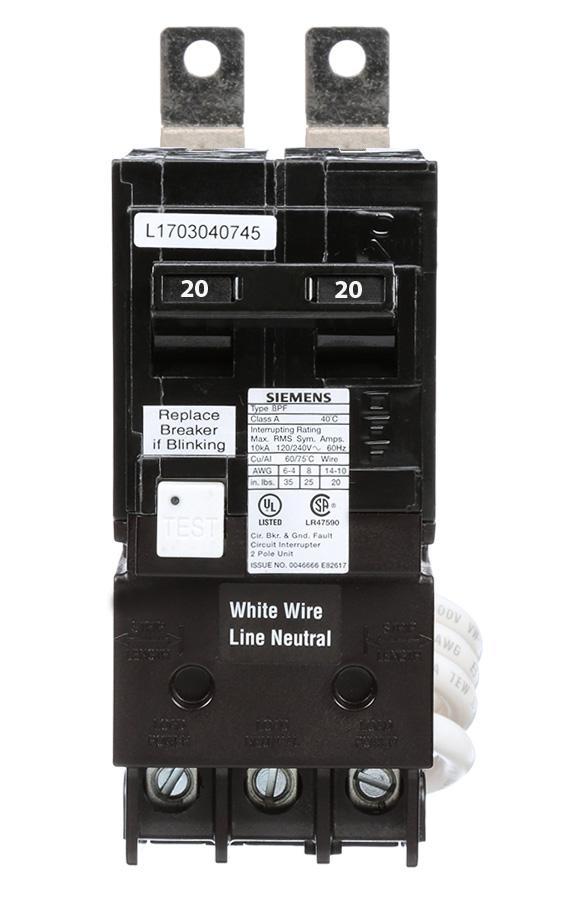

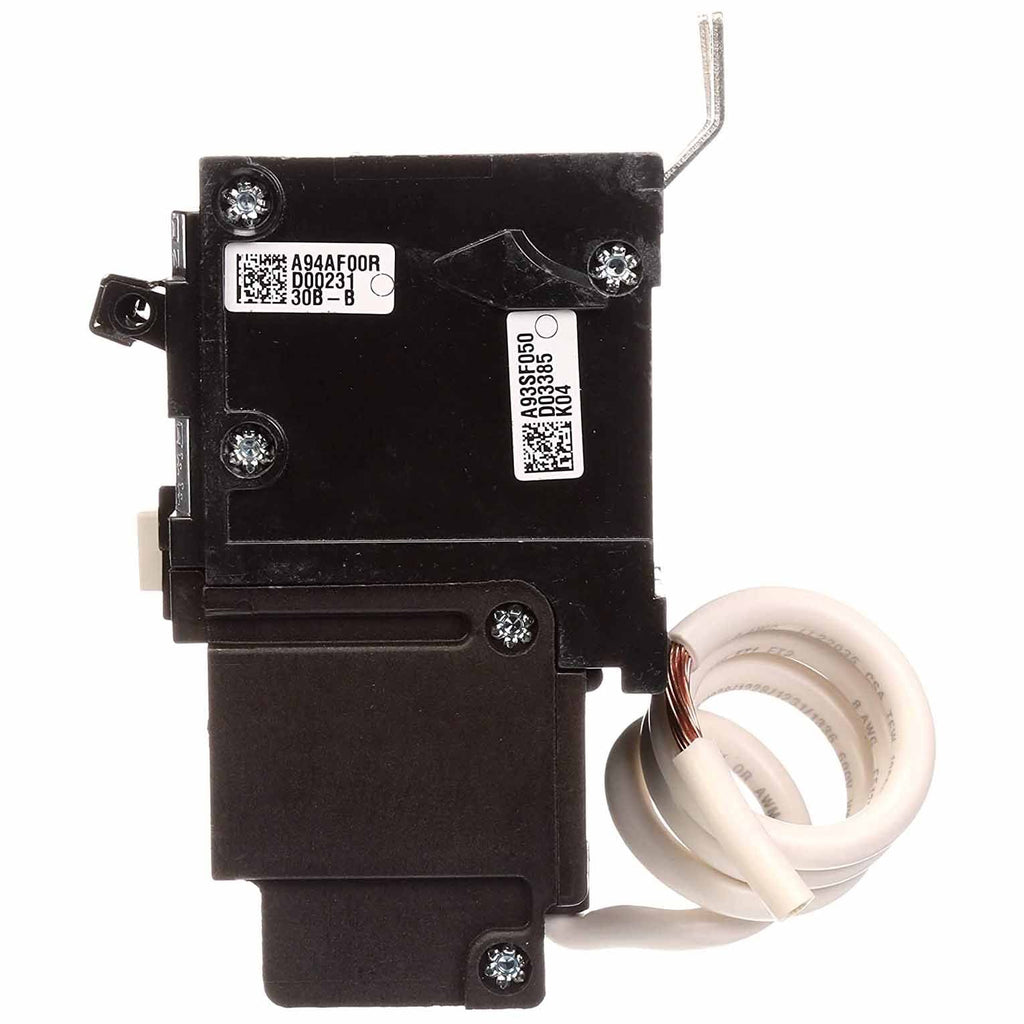

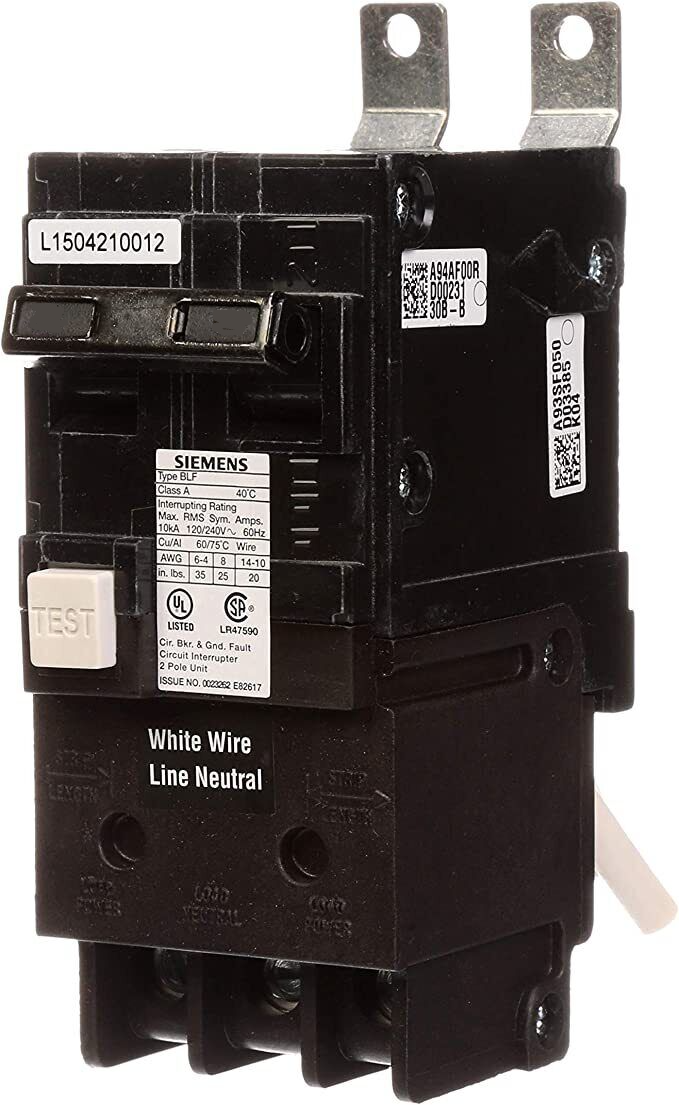

BF220 - Siemens 20 Amp 240V 2 Pole Ground Fault Circuit Breaker Bolt-On

BF220

BF220 is a Siemens 20 Amp, 2 Pole Ground Fault Circuit Breaker designed for 120/240 VAC applications with bolt-on mounting.This Siemens BF220 circuit breaker features a thermal magnetic trip unit and provides reliable ground fault protection with a 10 kA interrupting rating. It is UL listed, CSA certified, and suitable for use in Siemens loadcenters and panelboards. The breaker supports wire sizes from 14 to 10 AWG copper and 12 to 8 AWG aluminum with load lug terminals.

Key Specifications
• Amperage: 20 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10 kA
• Trip Unit: Thermal Magnetic
• Terminal Type: Load Lug
• Wire Size: 14-10 AWG Copper, 12-8 AWG Aluminum
• Series/Frame: BF / BQD Frame
• Certifications: UL Listed, CSA Certified, NOM Certified
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BF220
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLF
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643273993
• GTIN : 00783643273993
• Country of Origin : Philippines
• Dimensions : 12.598 x 6.693 x 7.48 inch
• Weight : 1.058
