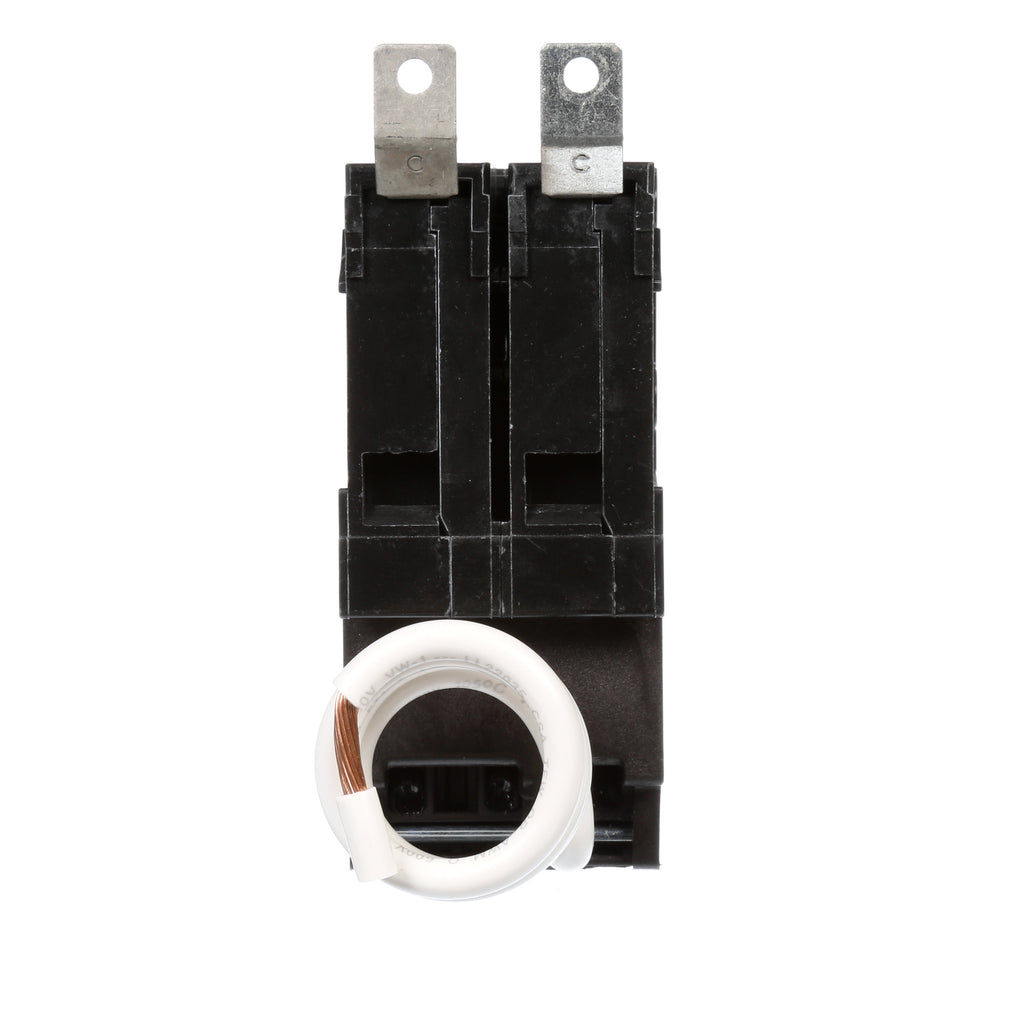

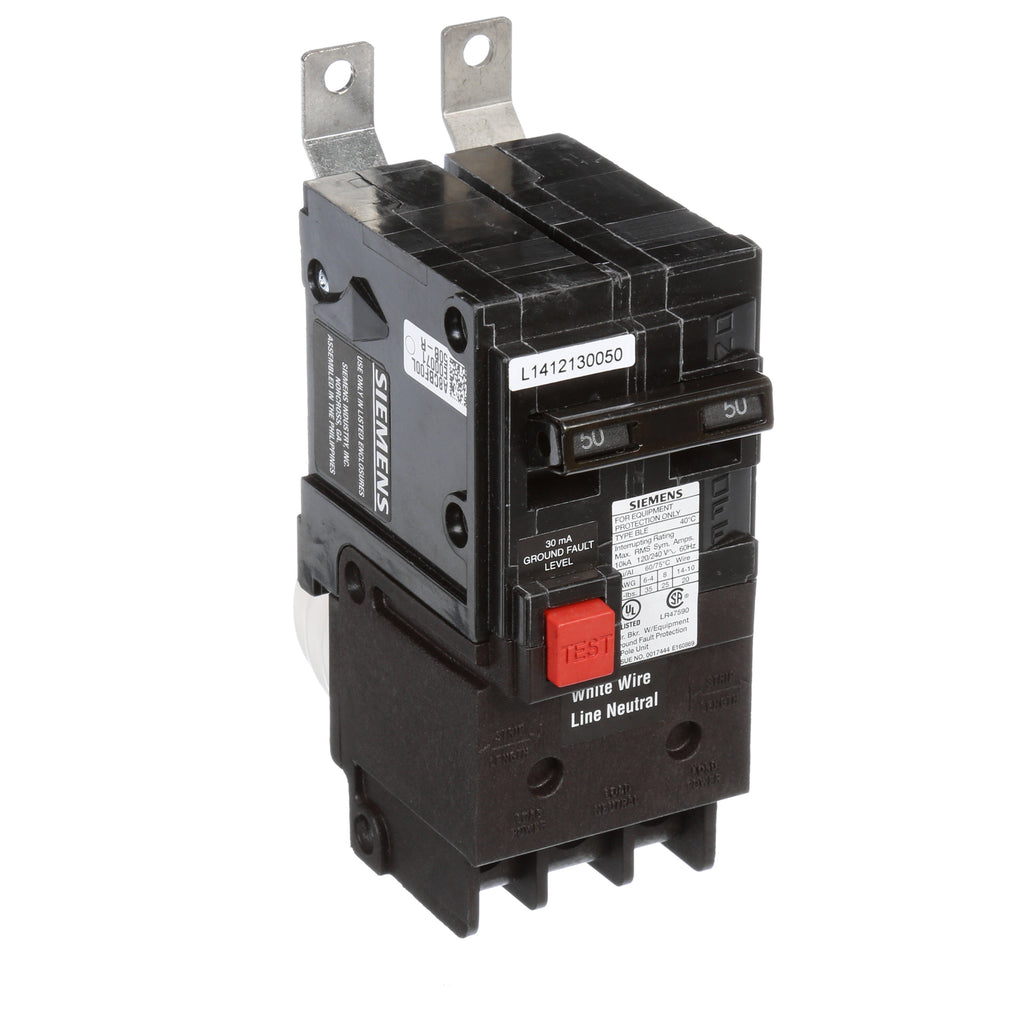

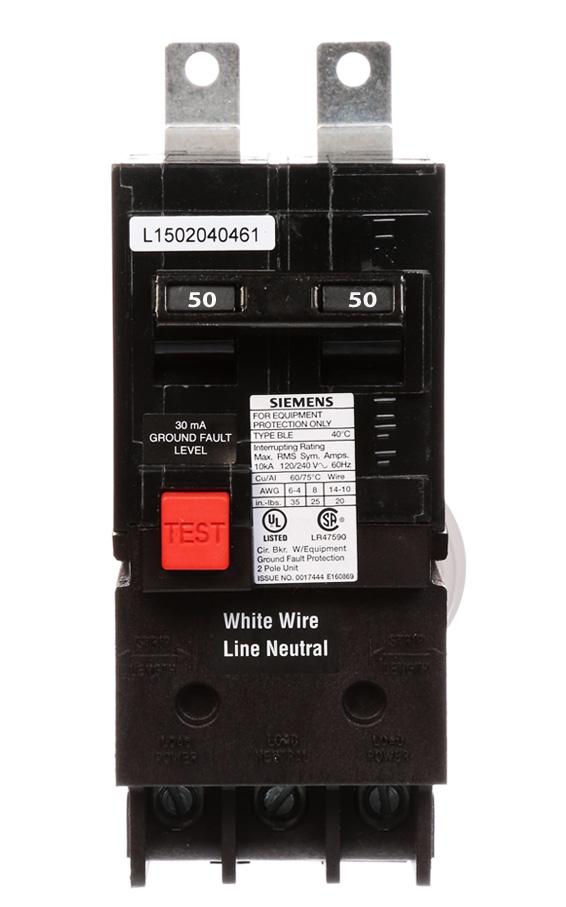

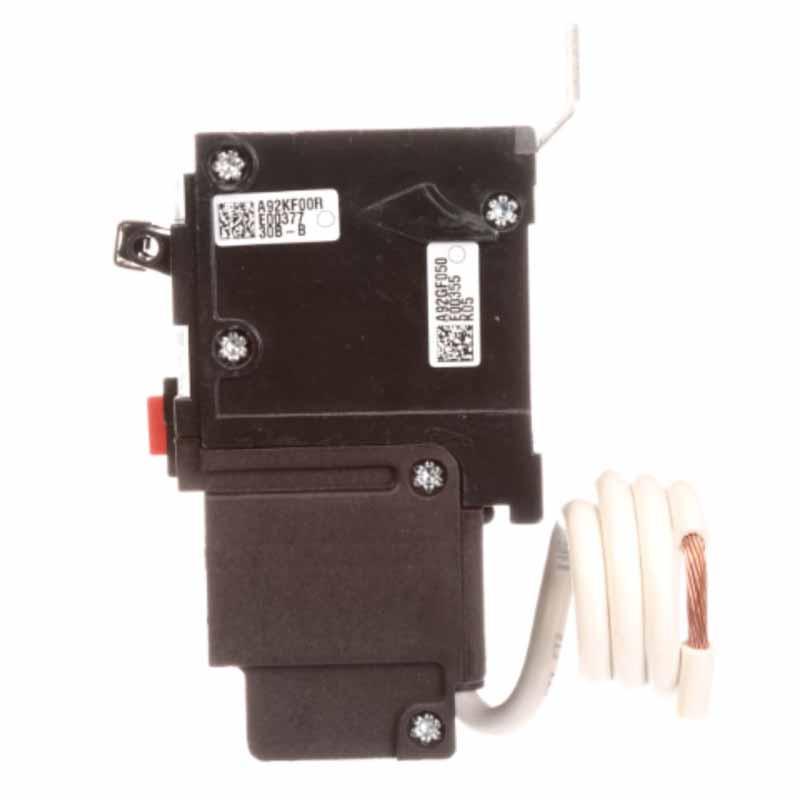

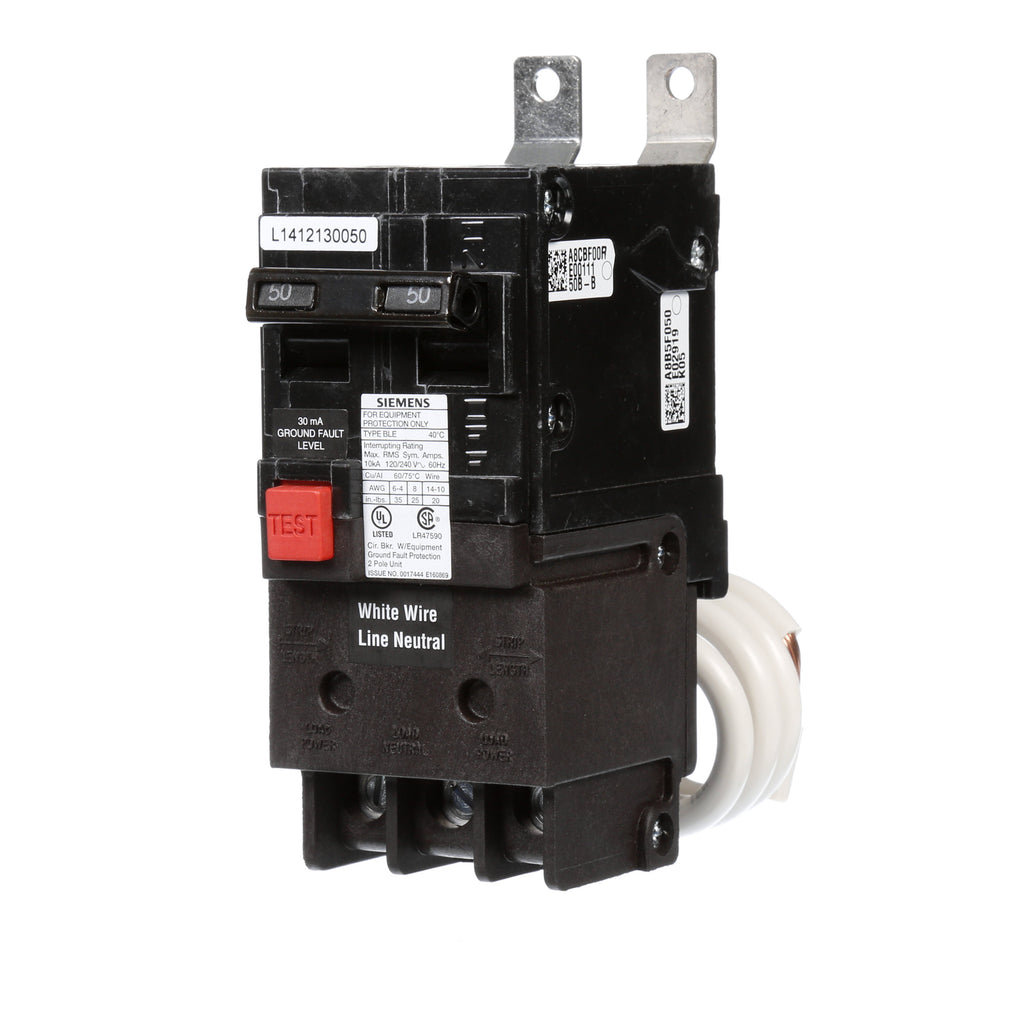

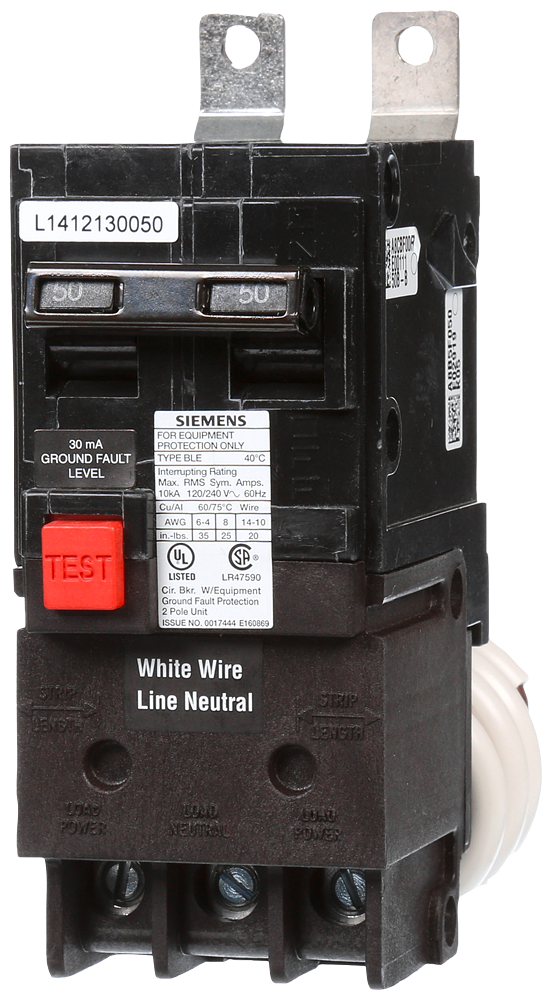

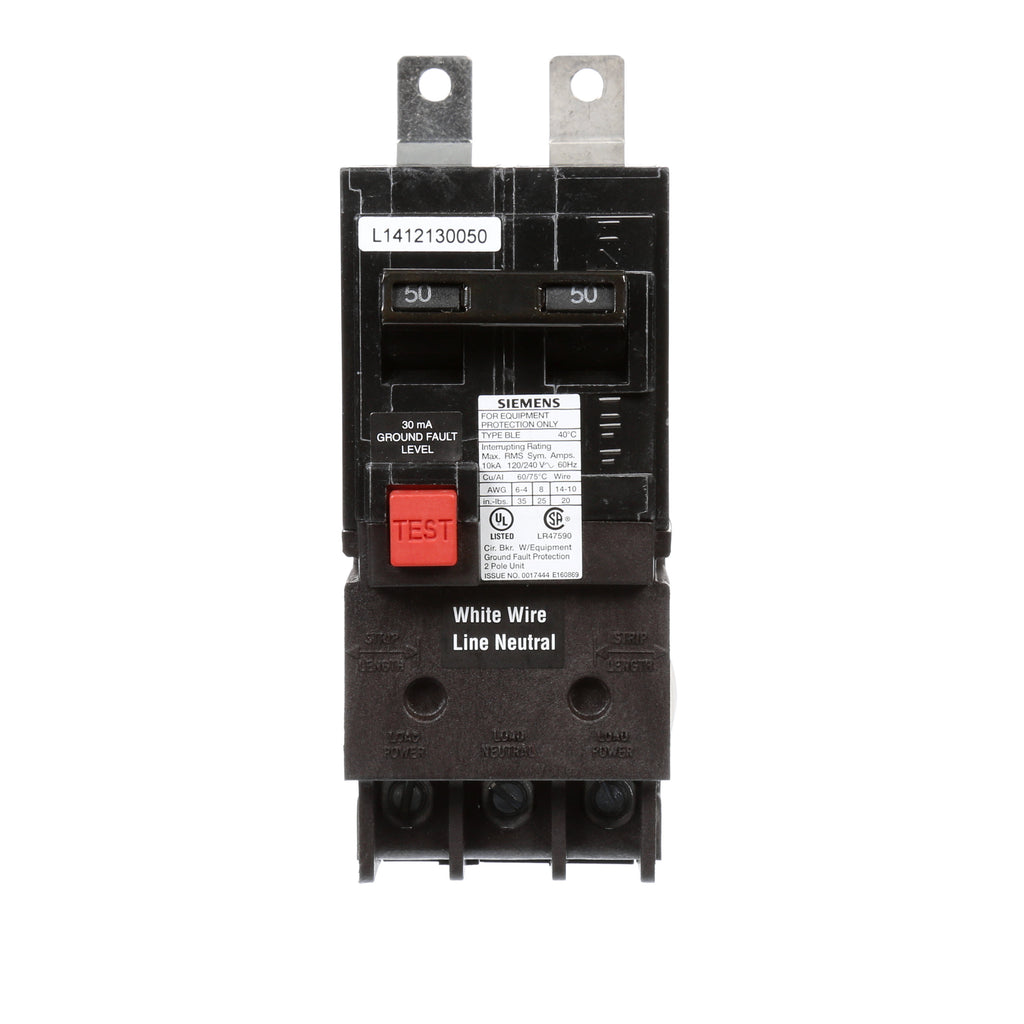

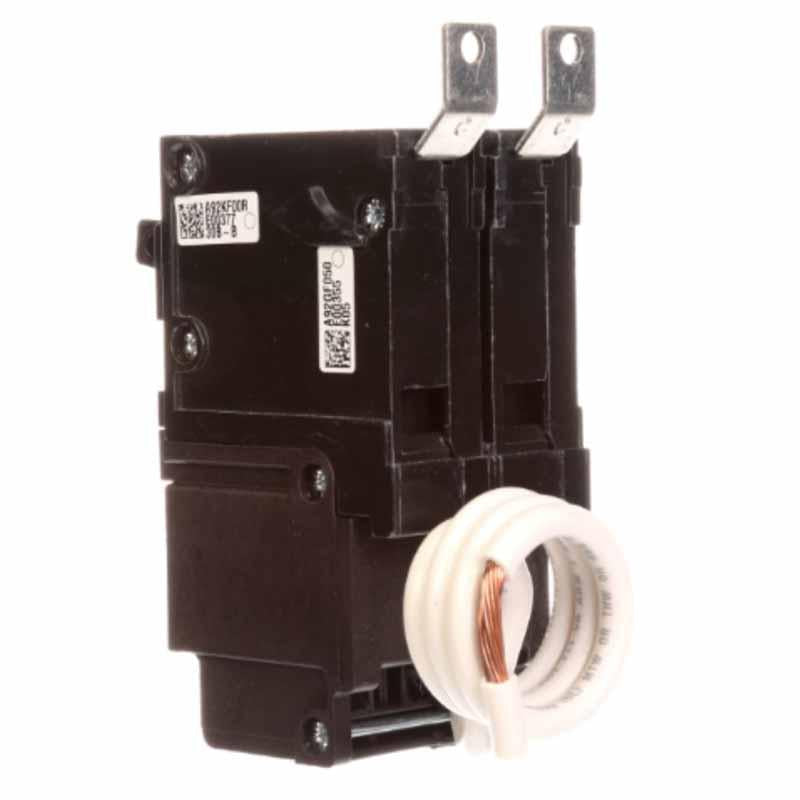

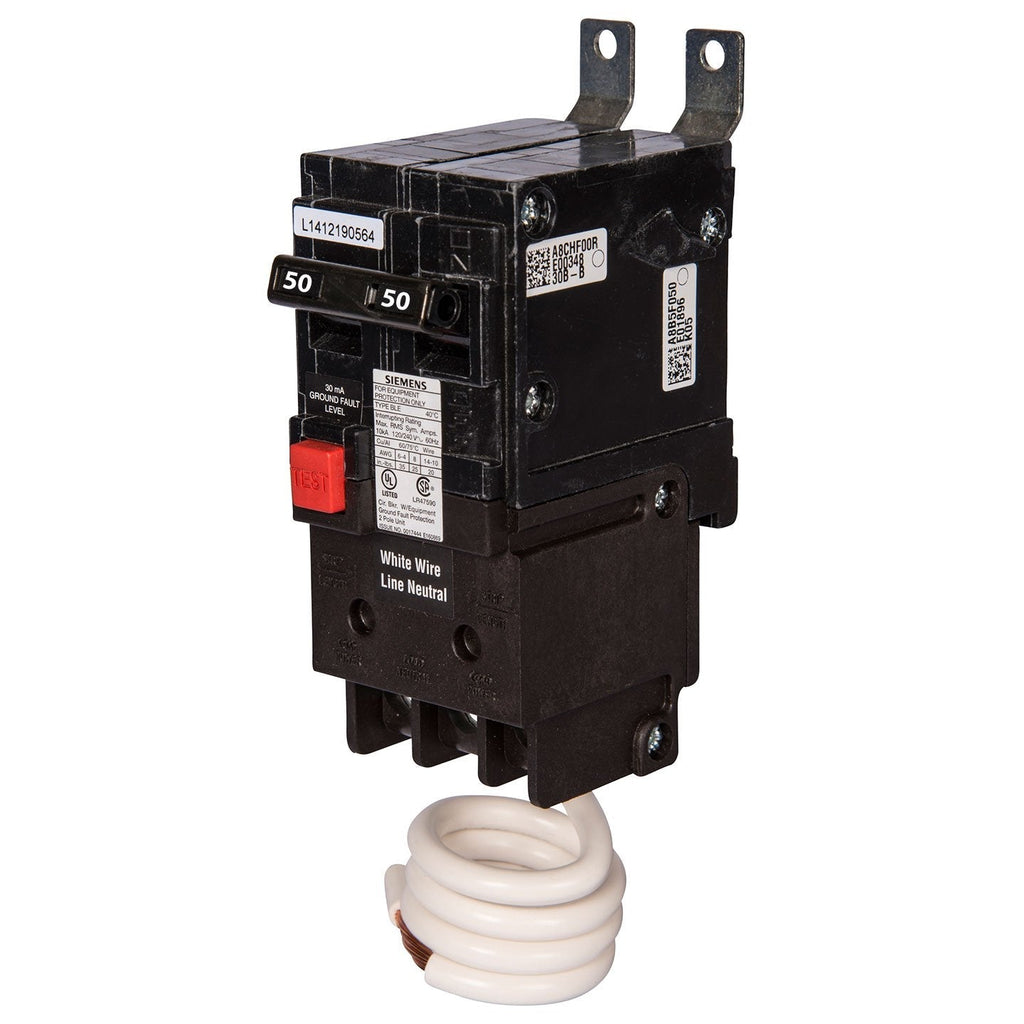

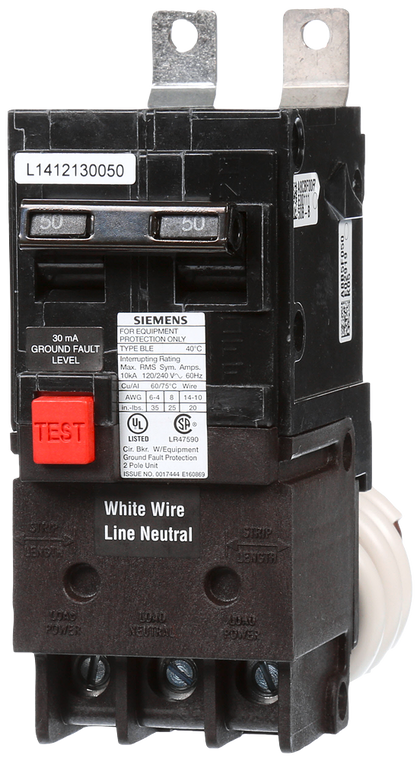

BE250 - Siemens 50 Amp 2 Pole 120/240V Bolt-On Circuit Breaker Type BE BLE Frame

BE250

BE250 is a Siemens 50 Amp, 2 Pole, 120/240 Volt bolt-on circuit breaker designed for reliable panel protection.This Type BE circuit breaker features a BLE frame with thermal-magnetic trip unit and a 10,000 Amp interrupt rating. It provides ground fault equipment protection (GFEP) with 30 mA trip sensitivity, suitable for protecting equipment from line-to-ground faults. The breaker mounts via bolt-on connection and is UL listed and CSA approved for safety compliance.

• Manufacturer: Siemens
• Type: BE, BLE Frame
• Amperage: 50 Amp
• Voltage: 120/240 Volt
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps
• Trip Unit: Thermal-Magnetic with 30 mA GFEP
• Certifications: UL Listed, CSA Approved
• Connection: Bolt-On

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BE250
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLE
• Voltage : 120/240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 60A/BLE
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 783643274143
• GTIN : 00783643274143
• Country of Origin : Philippines
• Dimensions : 1.969 x 2.756 x 5.906 inch
• Weight : 1.036
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
