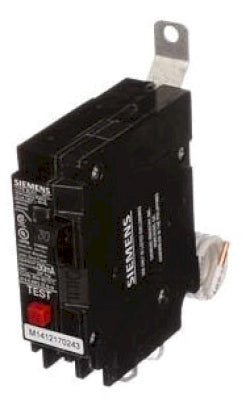

BE120 - Siemens 20 Amp 1 Pole 120VAC 10kAIC Bolt-On Ground Fault Circuit Breaker, Type BL, Thermal Magnetic Trip, UL/CSA/NOM

BE120

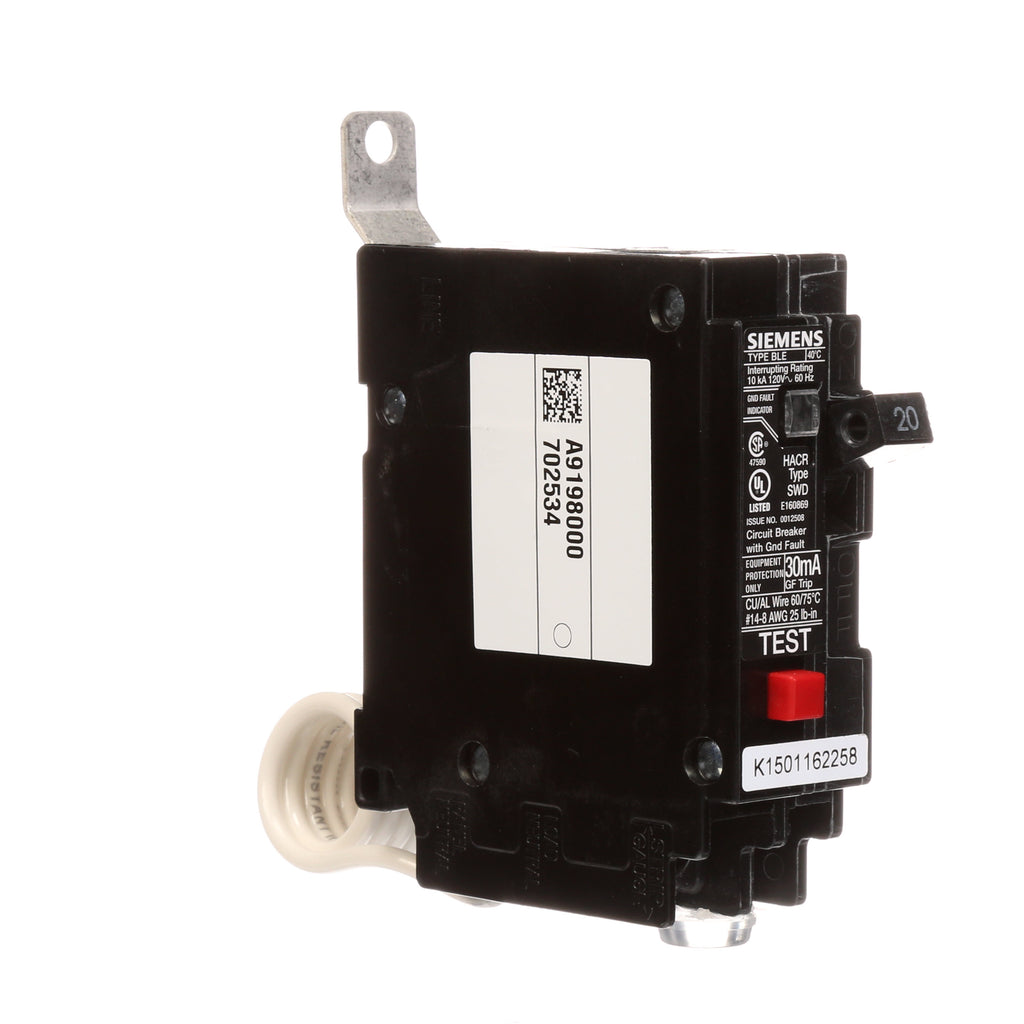

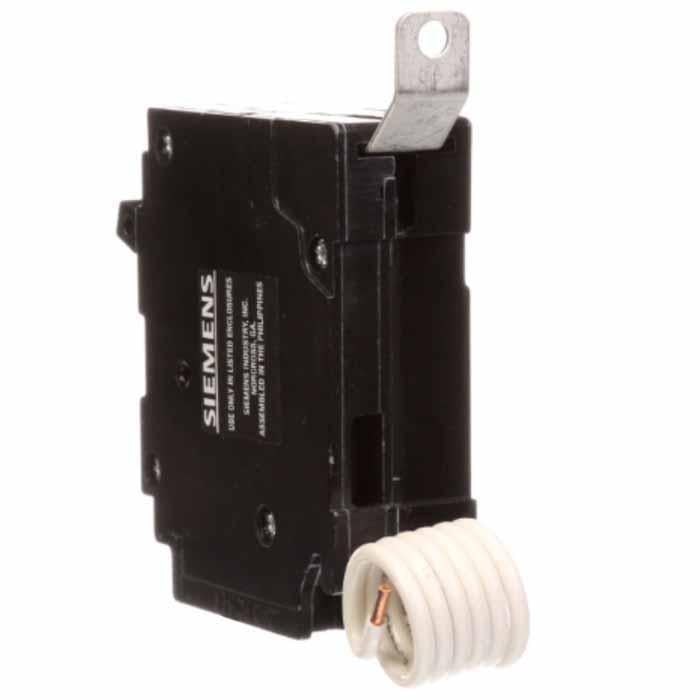

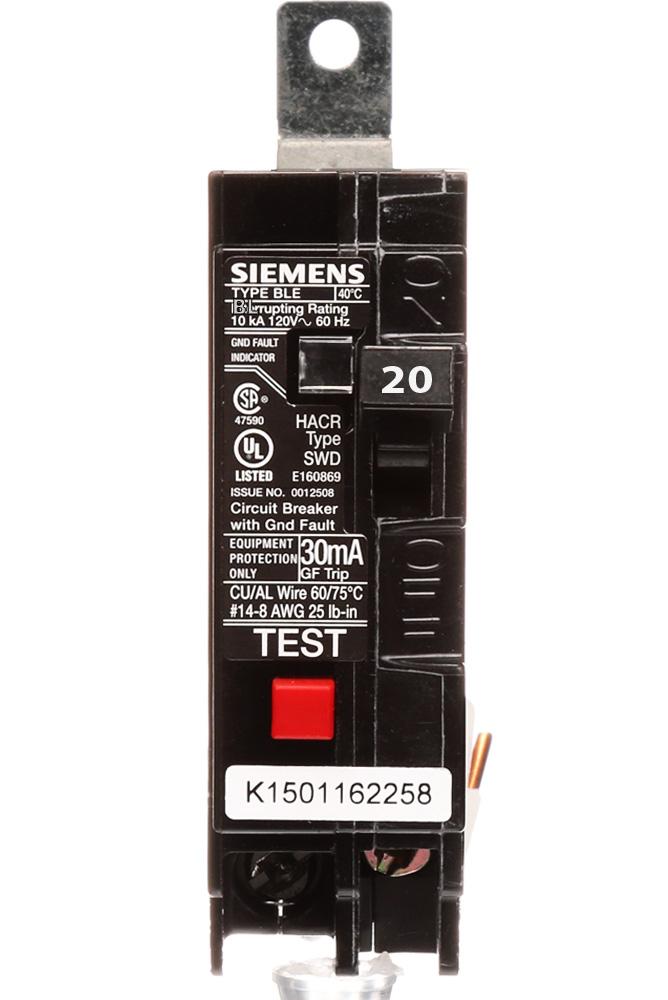

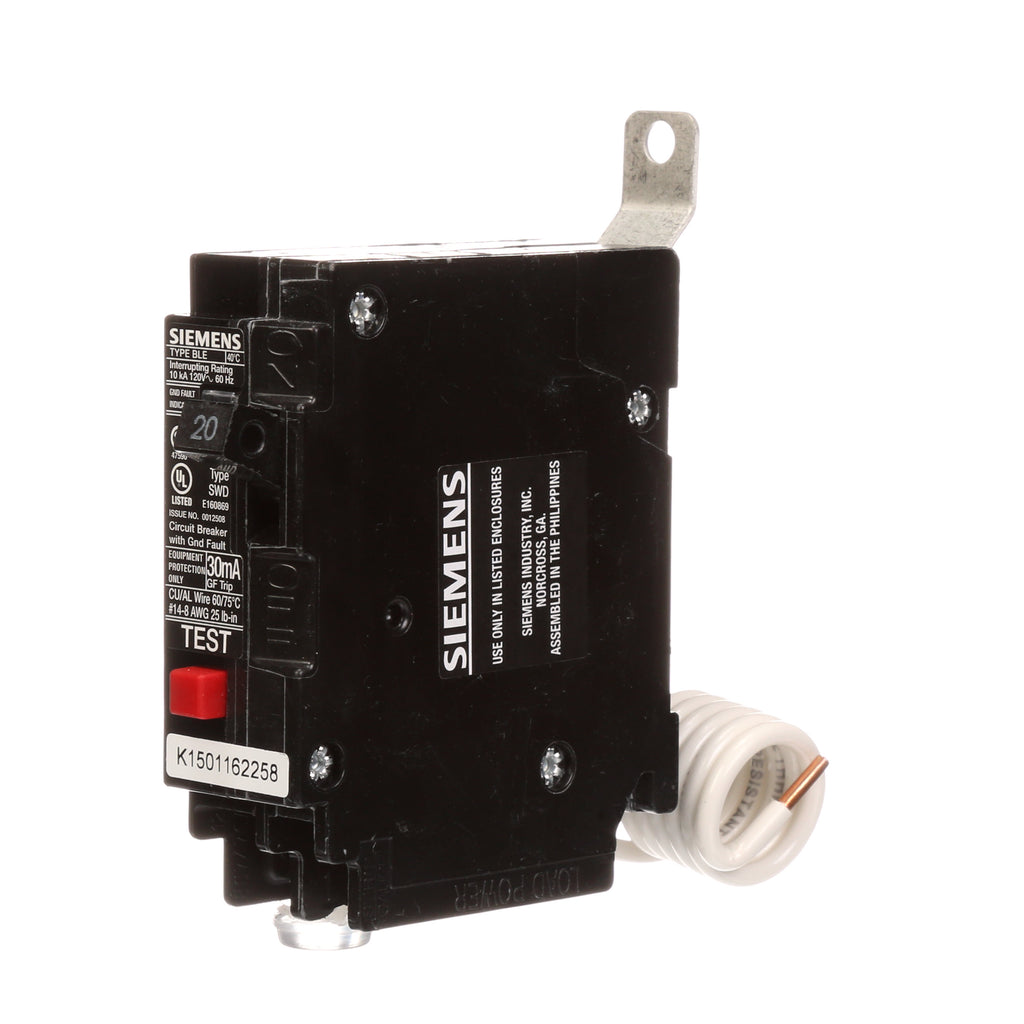

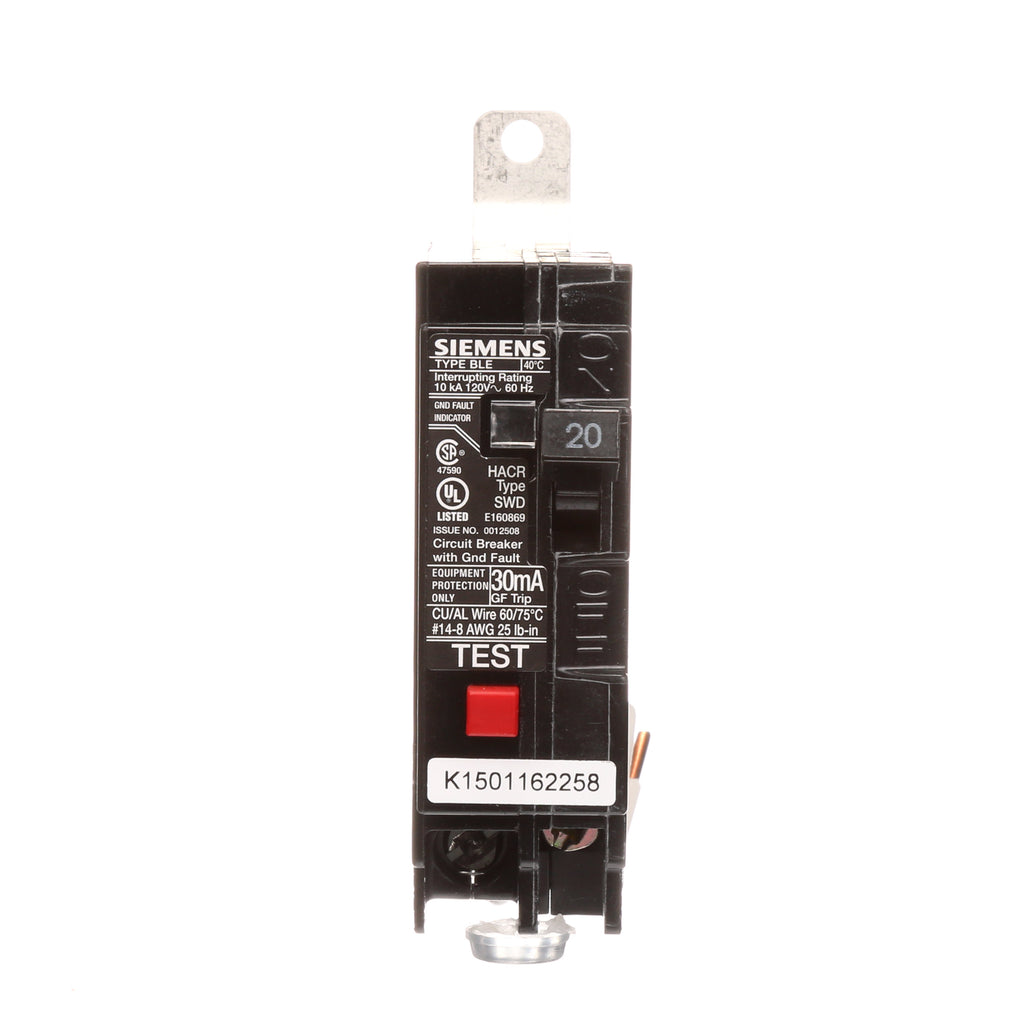

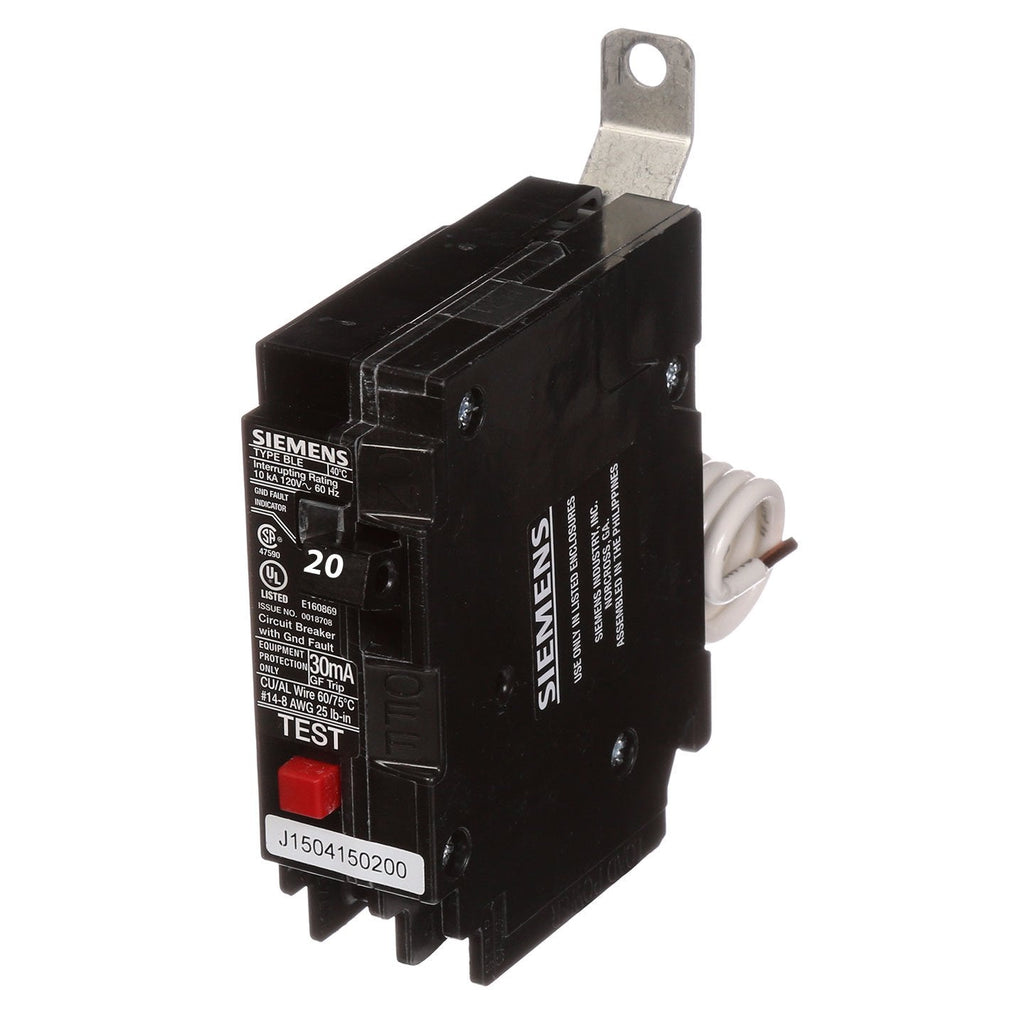

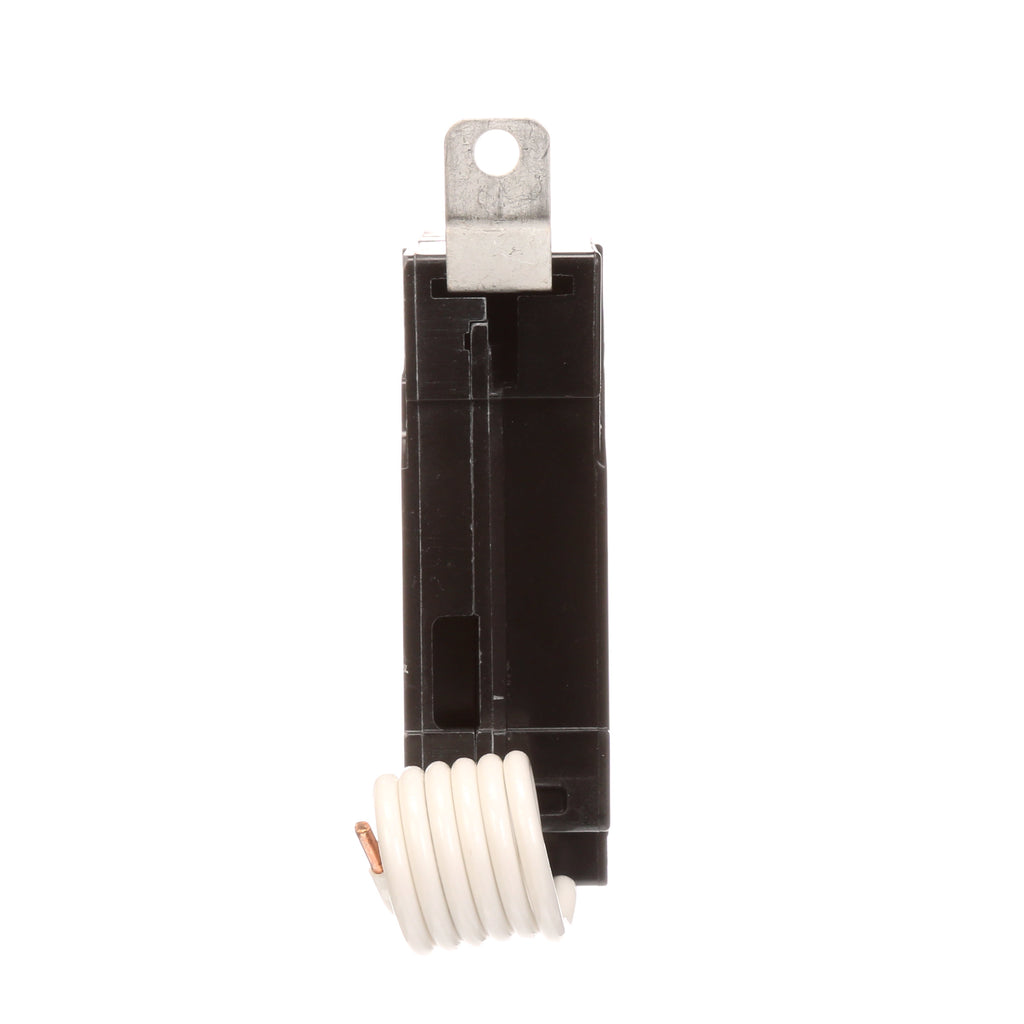

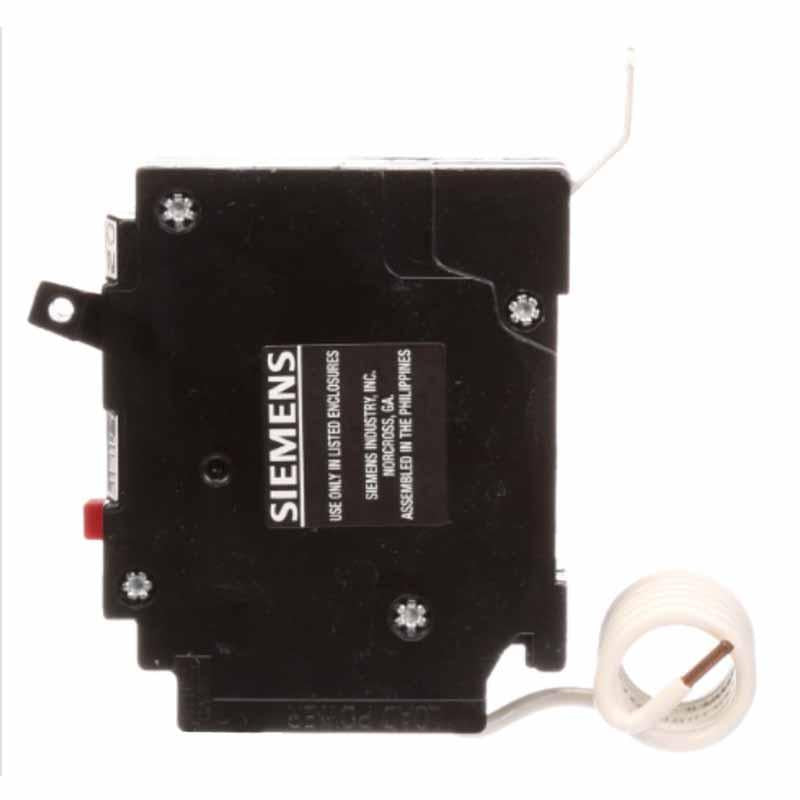

BE120 is a Siemens 1 pole, 20 amp, 120VAC ground fault circuit breaker designed for panelboard mounting and equipment protection.

This thermal magnetic trip breaker features a bolt-on connection, 10kA interrupting rating, and 30 mA ground fault protection, making it ideal for applications requiring reliable equipment safety. It is part of the Siemens BL series and is approved for use in P1 panelboards.

Key Specifications
• Part Number: BE120
• Manufacturer: Siemens
• Amperage: 20 Amp
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC at 120VAC
• Series/Frame: BL, Frame B
• Trip Unit: Thermal Magnetic (Long-Time & Instantaneous)
• Certifications: UL Listed, CSA Approved, NOM
• Protection: Ground Fault Equipment Protection (GFEP), 30 mA trip sensitivity
• Connection Type: Bolt-On
• Max Wire Size: 10 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BE120
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLE
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 60A/BLE
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 783643266100
• GTIN : 00783643266100
• Country of Origin : Philippines
• Dimensions : 12.598 x 7.48 x 9.449 inch
• Weight : 0.397
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
