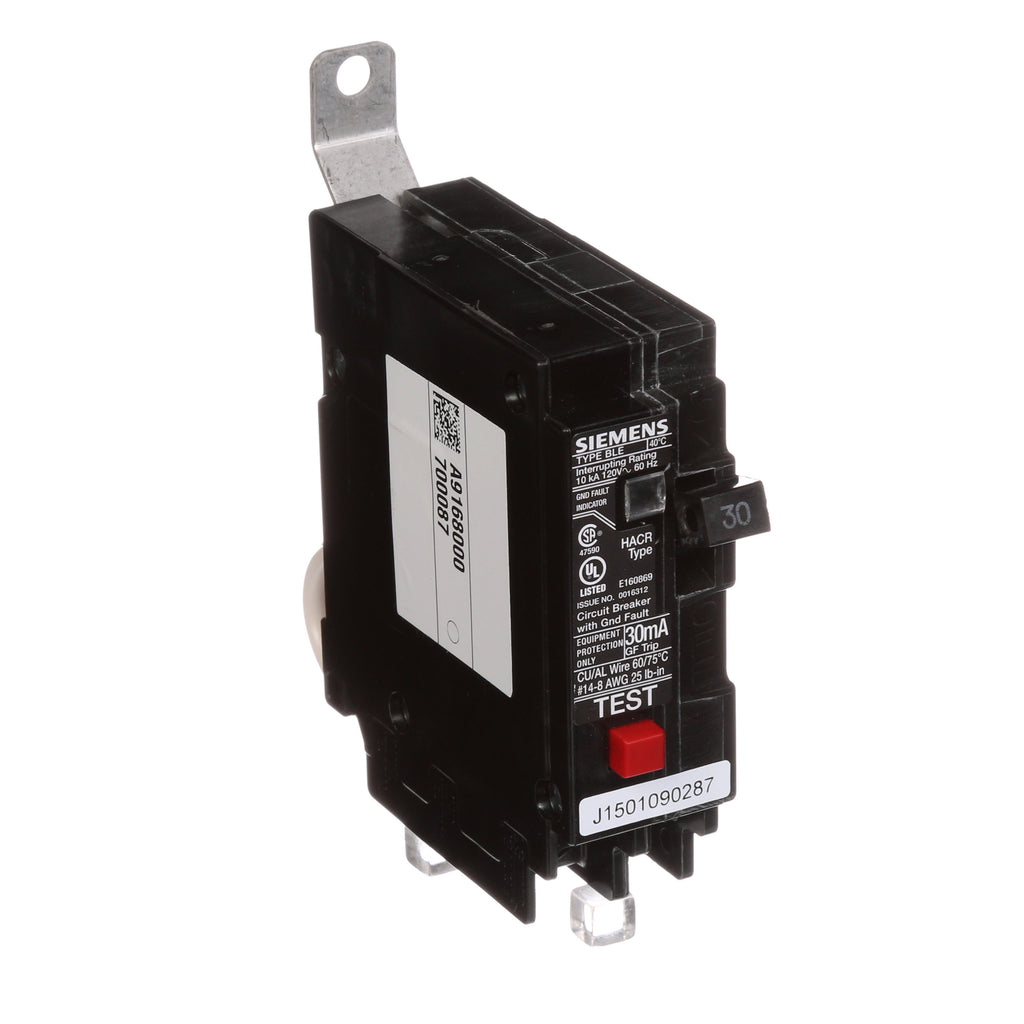

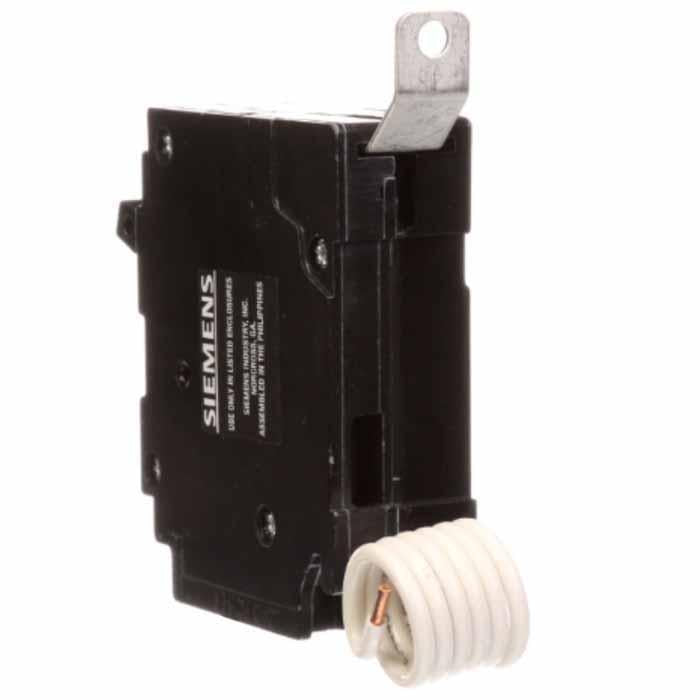

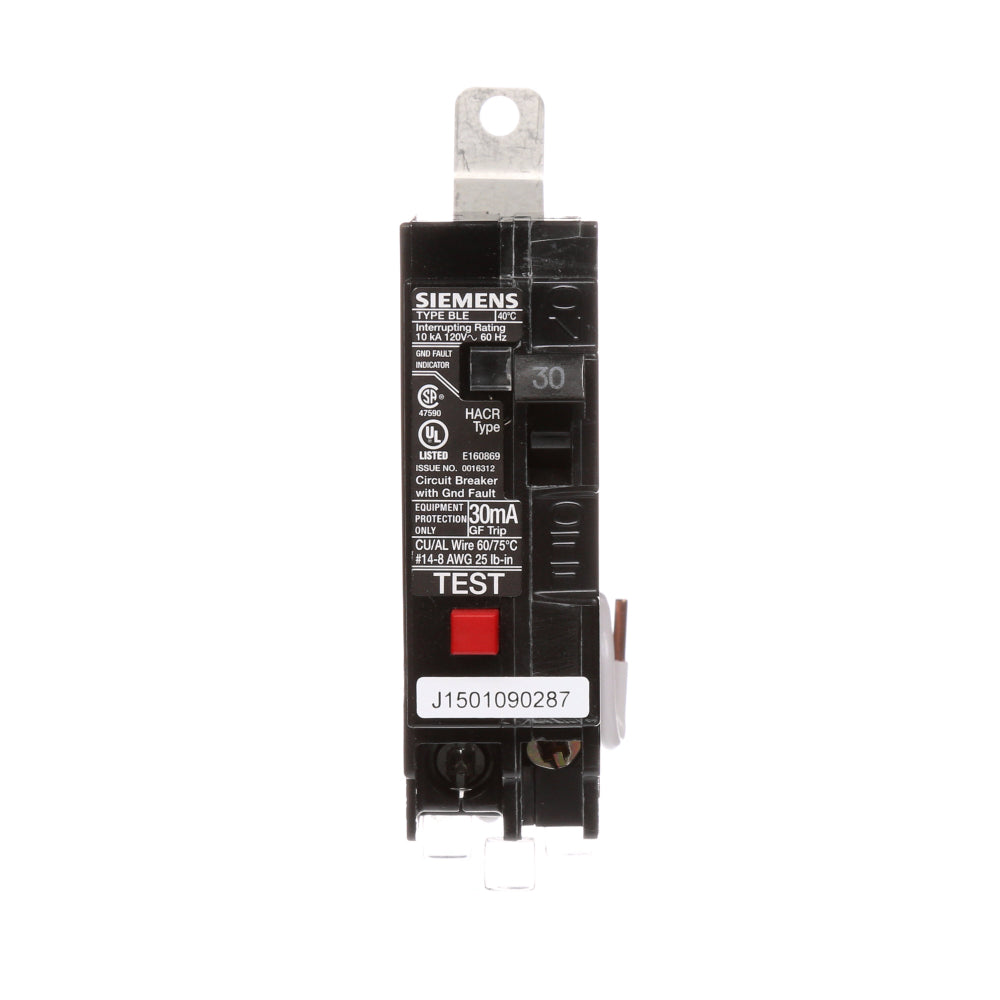

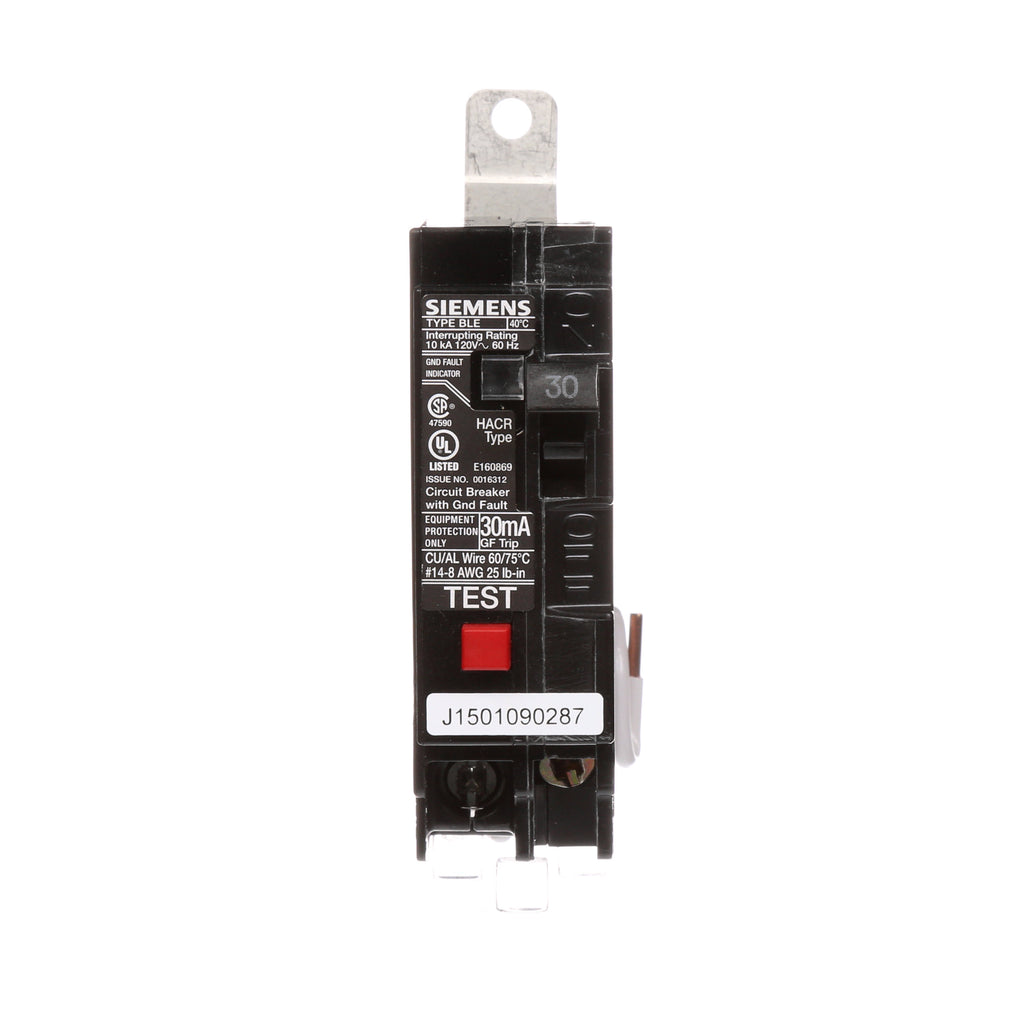

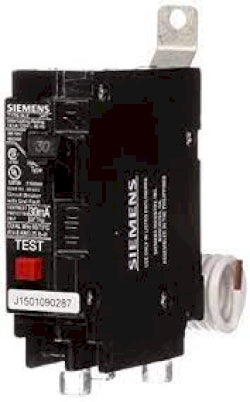

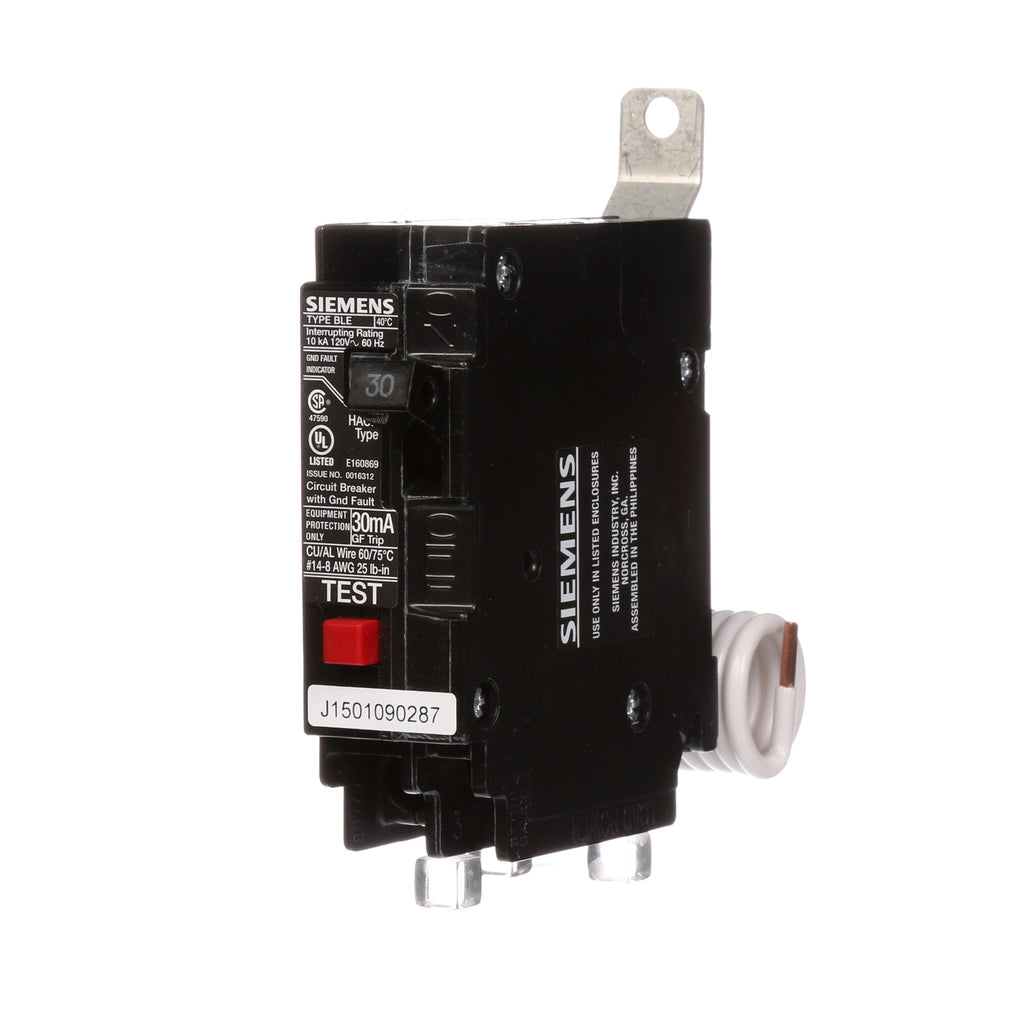

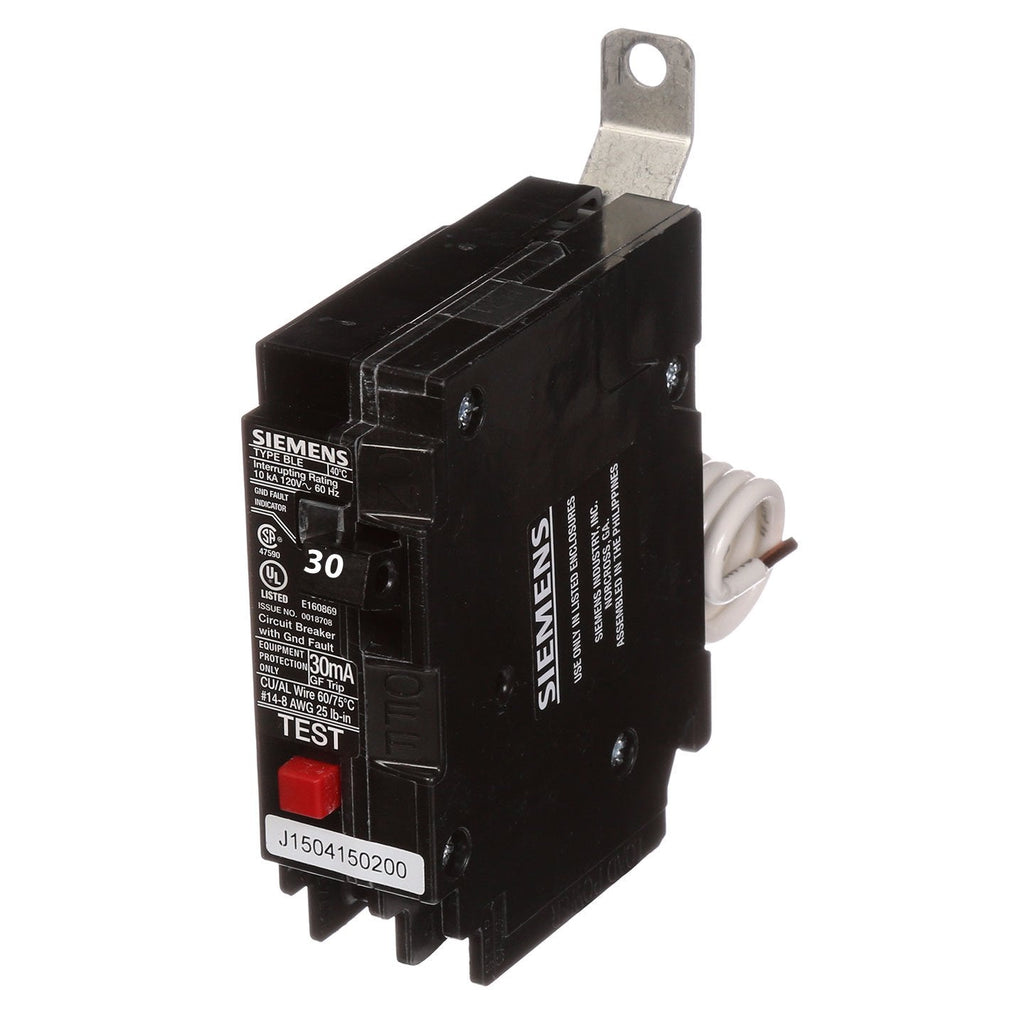

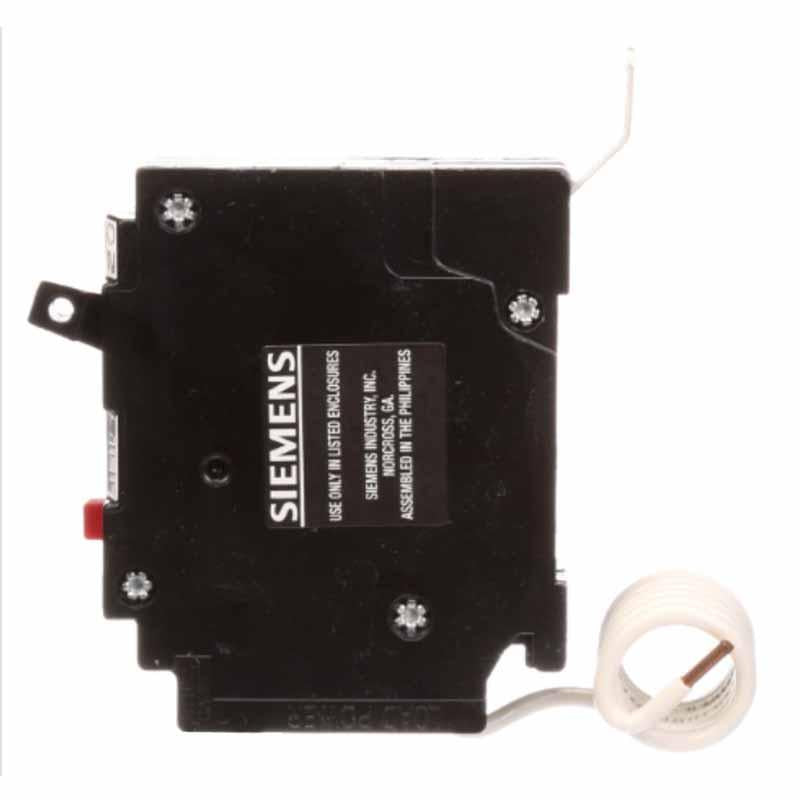

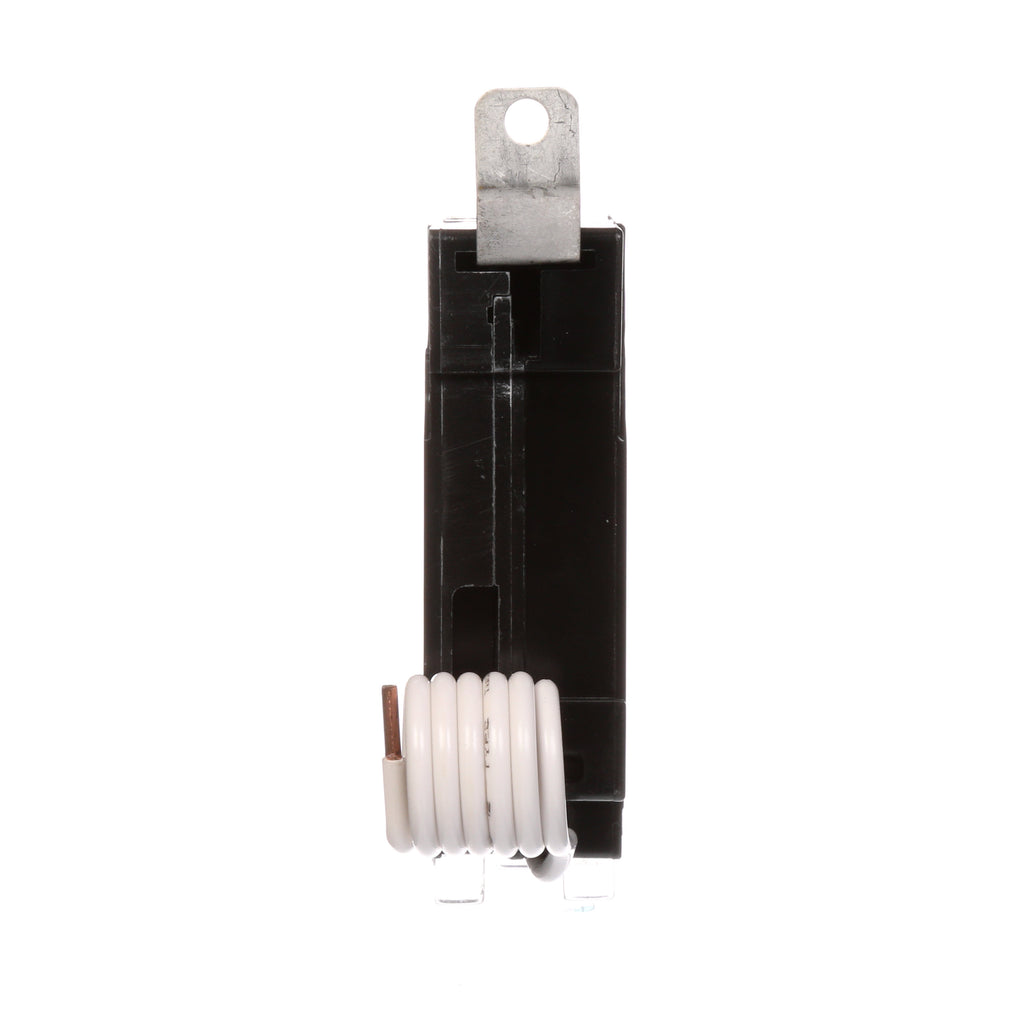

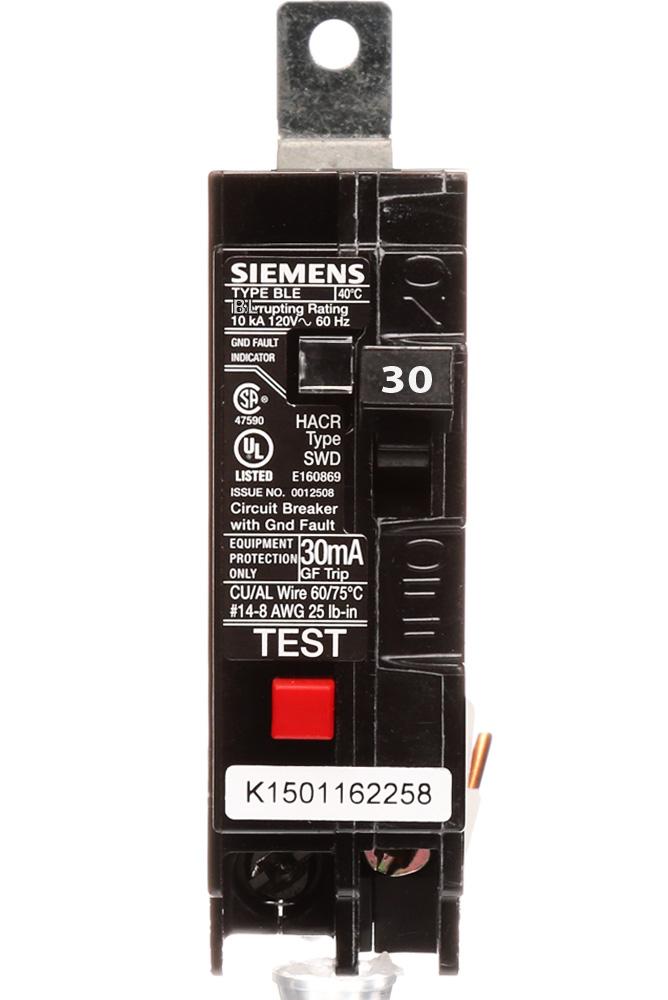

BE130 - Siemens 30 Amp 120V 1-Pole Ground Fault Circuit Breaker Bolt-On BLE Frame

BE130

BE130 is a Siemens 1-pole ground fault circuit breaker with a 30 Amp rating and 120 Volt AC voltage designed for bolt-on mounting.This Siemens BE130 circuit breaker features a BLE series frame with a 10kA interrupting rating at 120VAC. It provides ground fault equipment protection with thermal magnetic trip functions including long time and instantaneous trips. The breaker is UL and CSA certified and suitable for use in Siemens P1 panelboards. It supports wire sizes from 14 AWG copper to 12 AWG aluminum and includes a toggle actuator.

Key Specifications
• Manufacturer: Siemens
• Part Number: BE130
• Amperage: 30 Amps
• Voltage: 120 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120 VAC
• Series/Frame: BLE
• Trip Unit: Thermal Magnetic with Ground Fault Protection
• Certifications: UL, CSA, HACR, NOM
• Connection Type: Bolt-On
• Wire Size Range: 14 AWG CU, 12 AWG AL
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BE130
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLE
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 60A/BLE
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic



Product Data

• UPC : 783643266117
• GTIN : 00783643266117
• Country of Origin : Philippines
• Dimensions : 5.512 x 3.543 x 1.181 inch
• Weight : 0.331
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
