Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BE230H

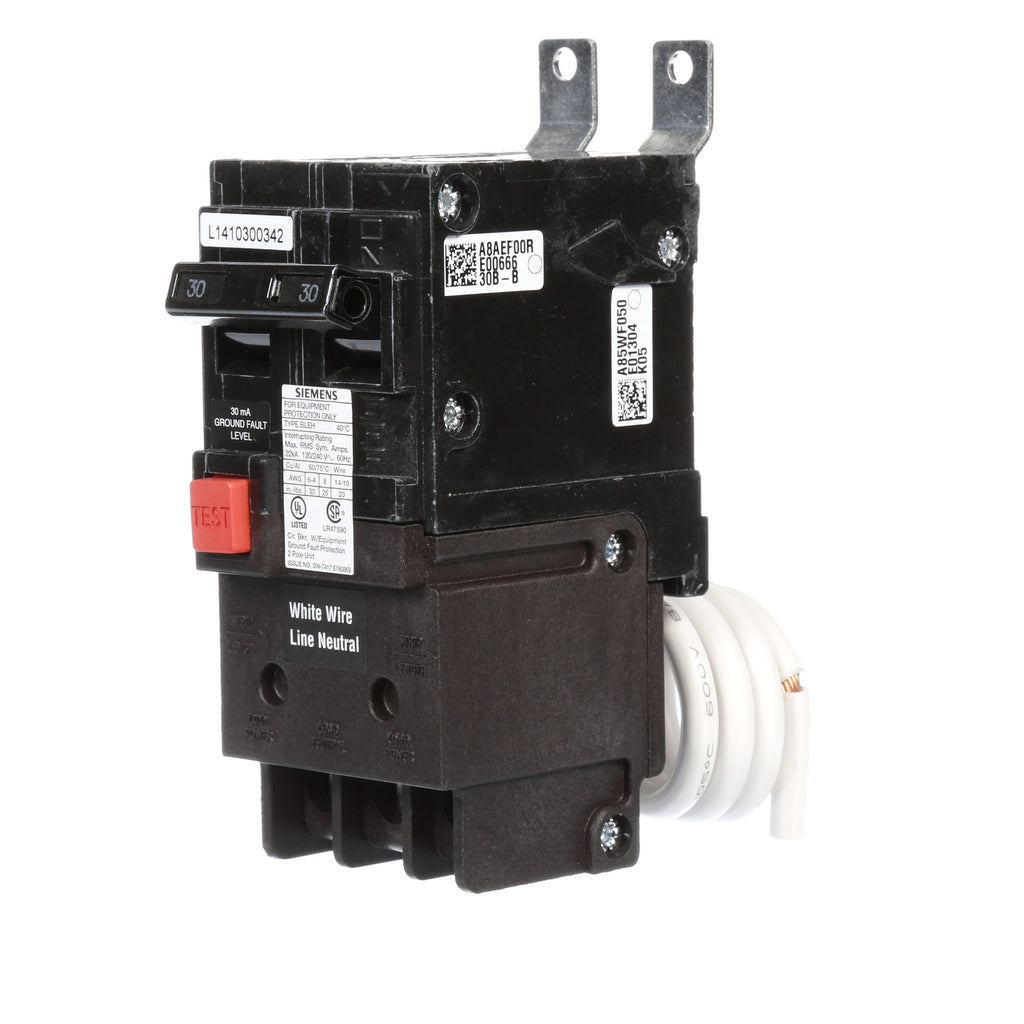

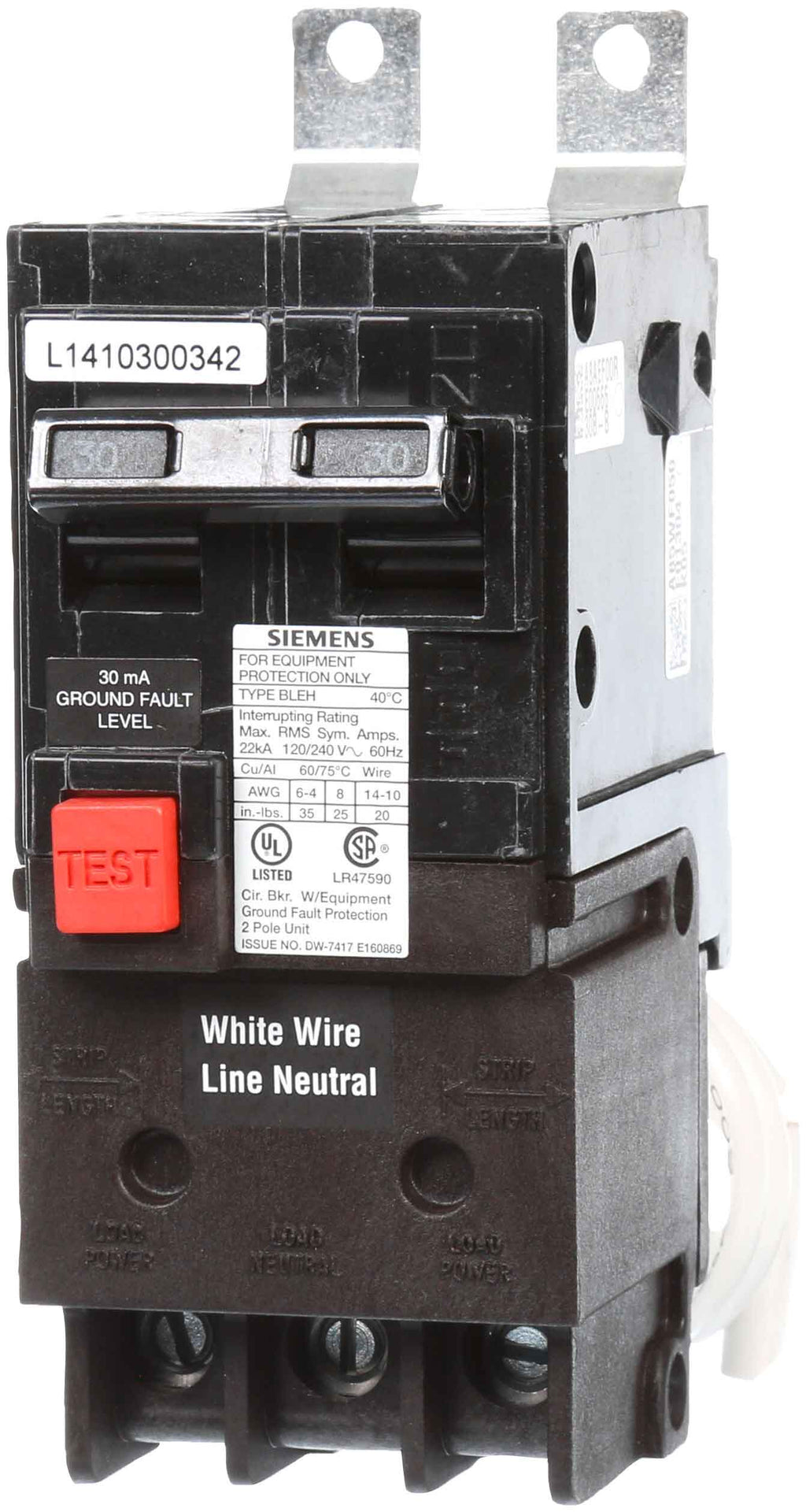

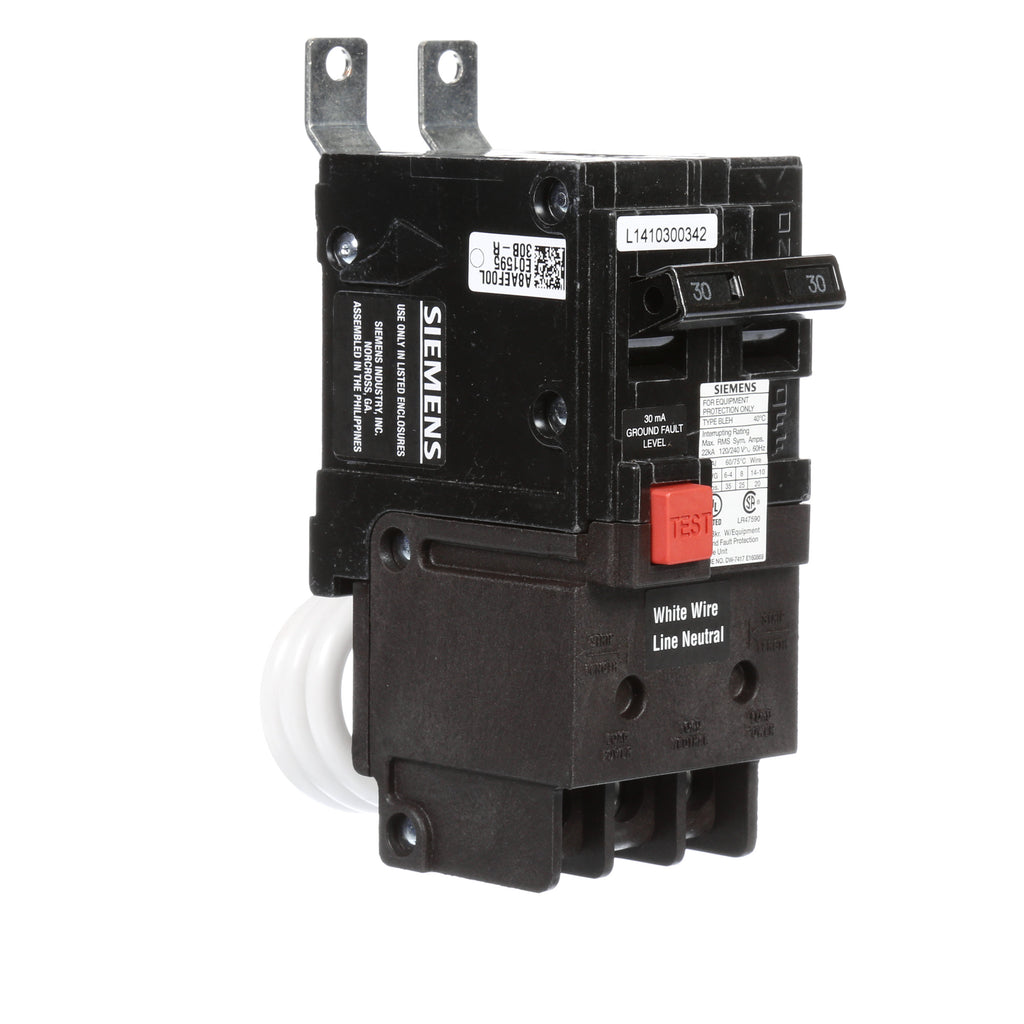

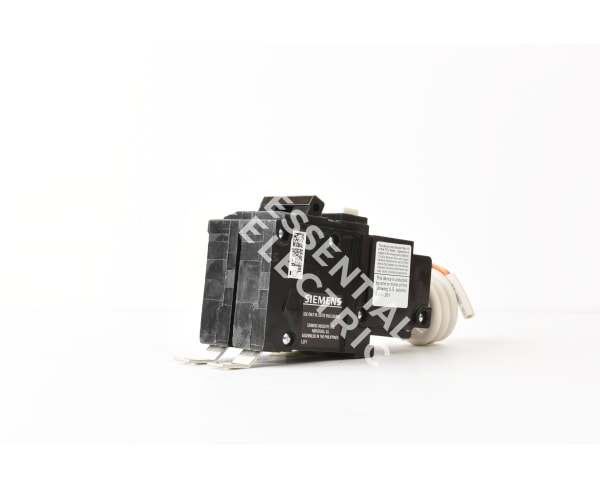

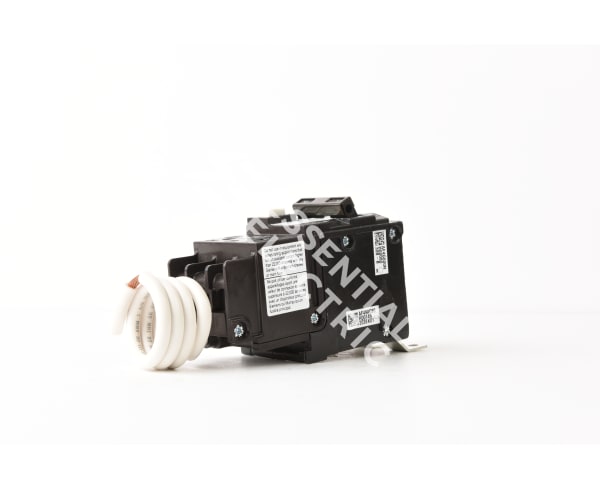

BE230H is a Siemens 2-pole ground fault circuit breaker with a 30 amp rating designed for 120/240 VAC systems.This circuit breaker features a BLEH frame with a thermal/magnetic trip unit and a 22 kA interrupt rating. It is bolt-on mounted for panel installation and provides reliable ground fault protection.
- Key Specifications
- Amperage: 30 A
- Voltage: 120/240 VAC
- Poles: 2
- Frame Type: BLEH
- Interrupt Rating: 22 kA
- Trip Unit: Thermal/Magnetic
- Mounting Type: Bolt-On
- Dimensions: 4 in L x 6 in W x 3 in H
- Category: Ground Fault Circuit Breaker
Specifications
- Part Number: BE230H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BLEH
- Voltage : 120/240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 60A/BLEH
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Ground Fault Equipment Protection
- Protection : Thermal Magnetic
Product Data
- UPC : 783643274181
- GTIN : 00783643274181
- Country of Origin : Philippines
- Dimensions : 3.937 x 5.906 x 2.756 inch
- Weight : 1.036
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
