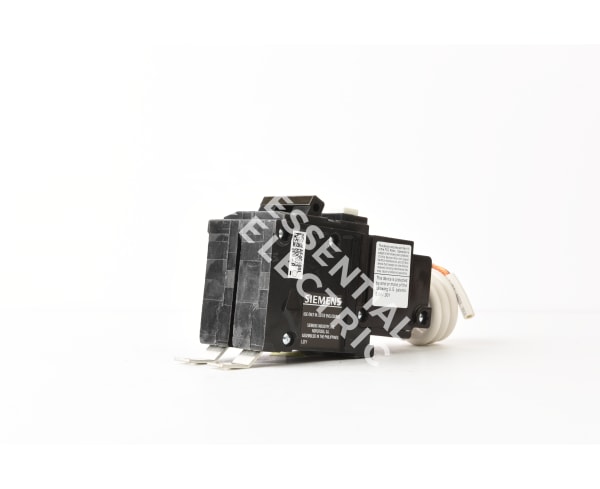

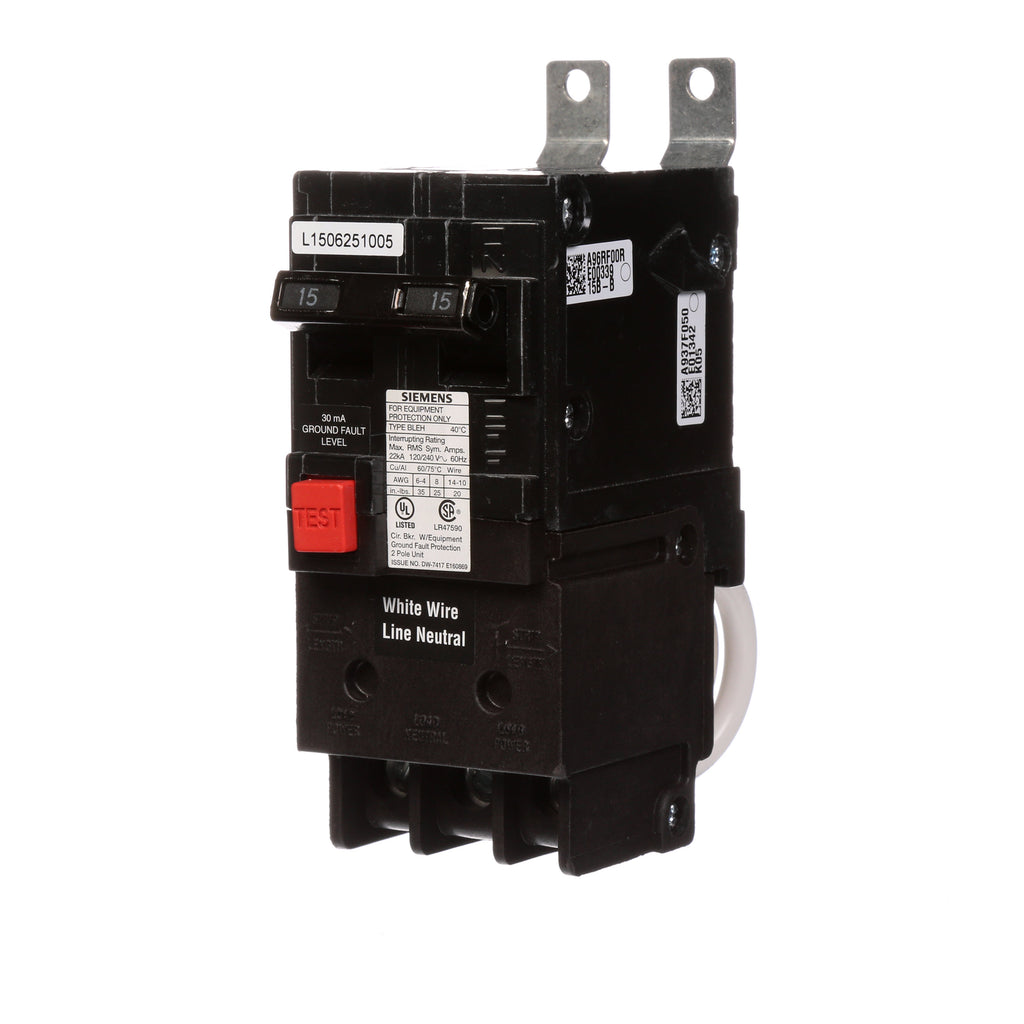

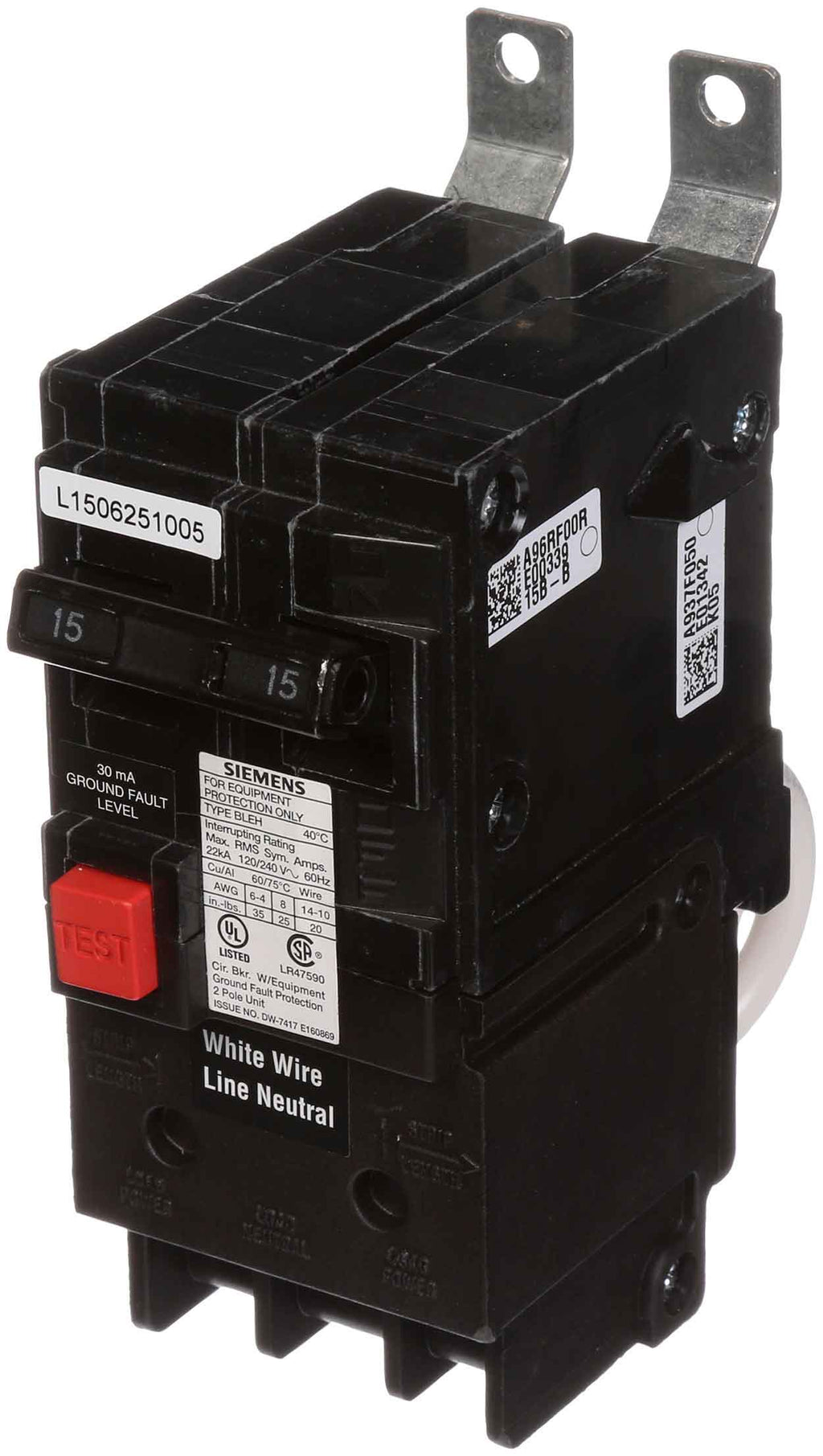

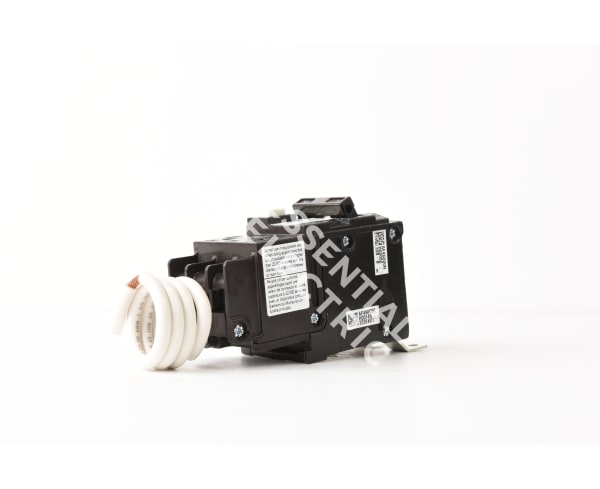

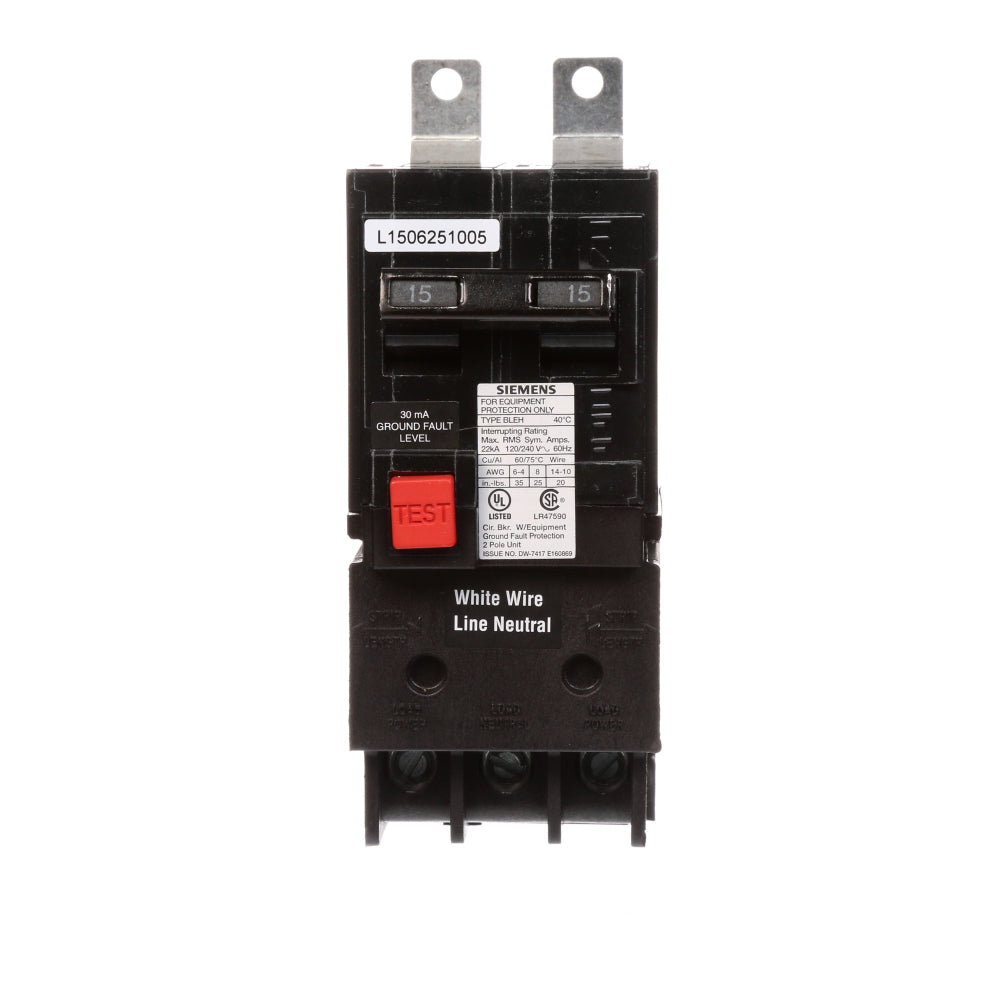

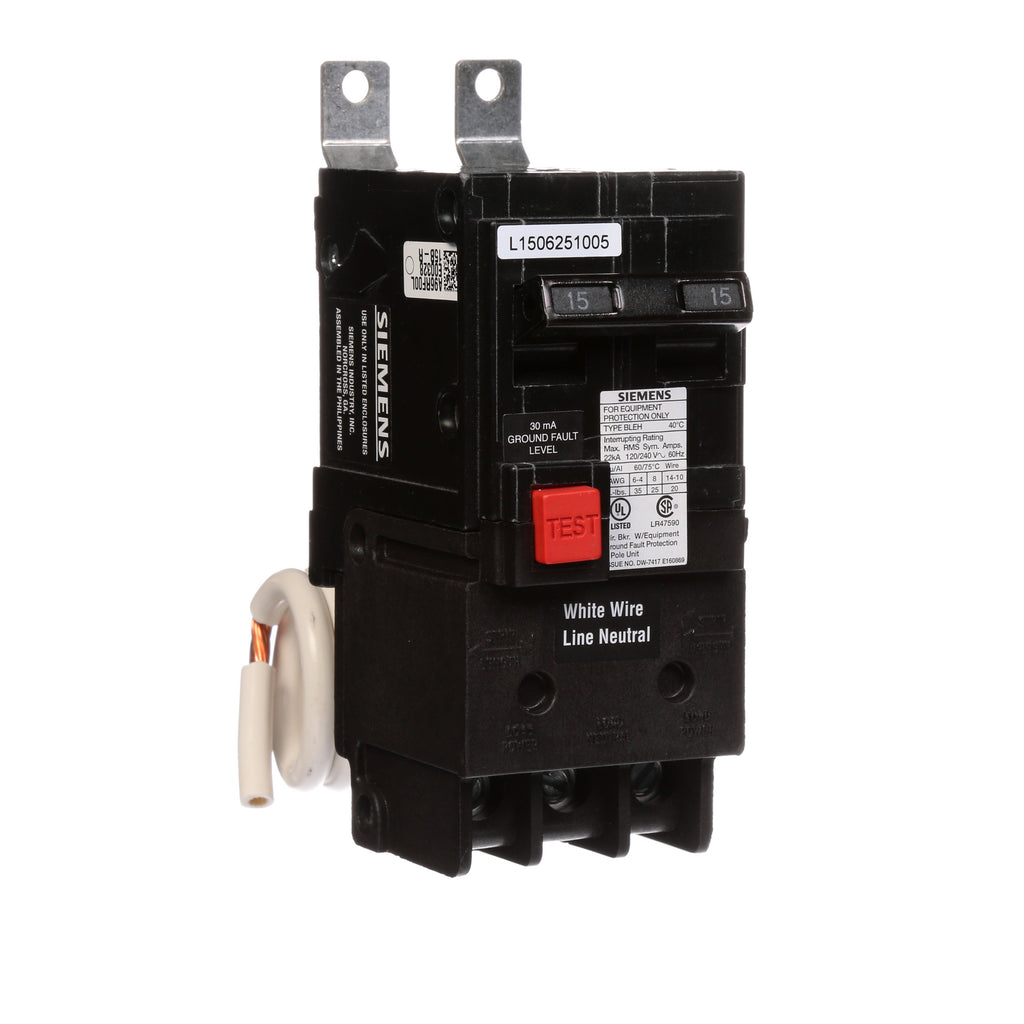

BE215H - Siemens 15 Amp 120/240V 2 Pole Ground Fault Circuit Breaker BLEH Frame

BE215H

BE215H is a Siemens 2 pole ground fault circuit breaker rated for 15 amps and 120/240 volts AC. It features a bolt-on mounting type and is designed for panel mounting applications.

This circuit breaker belongs to the BLEH frame series and provides a 22 kA interrupt rating. It uses a thermal/magnetic trip unit to ensure reliable protection against overloads and ground faults. The breaker is suitable for single-phase systems and offers robust performance for residential and commercial electrical distribution.

• Manufacturer: Siemens
• Part Number: BE215H
• Amperage: 15 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Frame/Series: BLEH
• Interrupt Rating: 22 kA
• Trip Unit: Thermal/Magnetic
• Mounting Type: Bolt-On
• Connection Type: Bolt-On
• Application: Panel Mounting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BE215H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLEH
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 60A/BLEH
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 783643274167
• GTIN : 00783643274167
• Country of Origin : Philippines
• Dimensions : 3.937 x 5.906 x 2.756 inch
• Weight : 1.058
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
