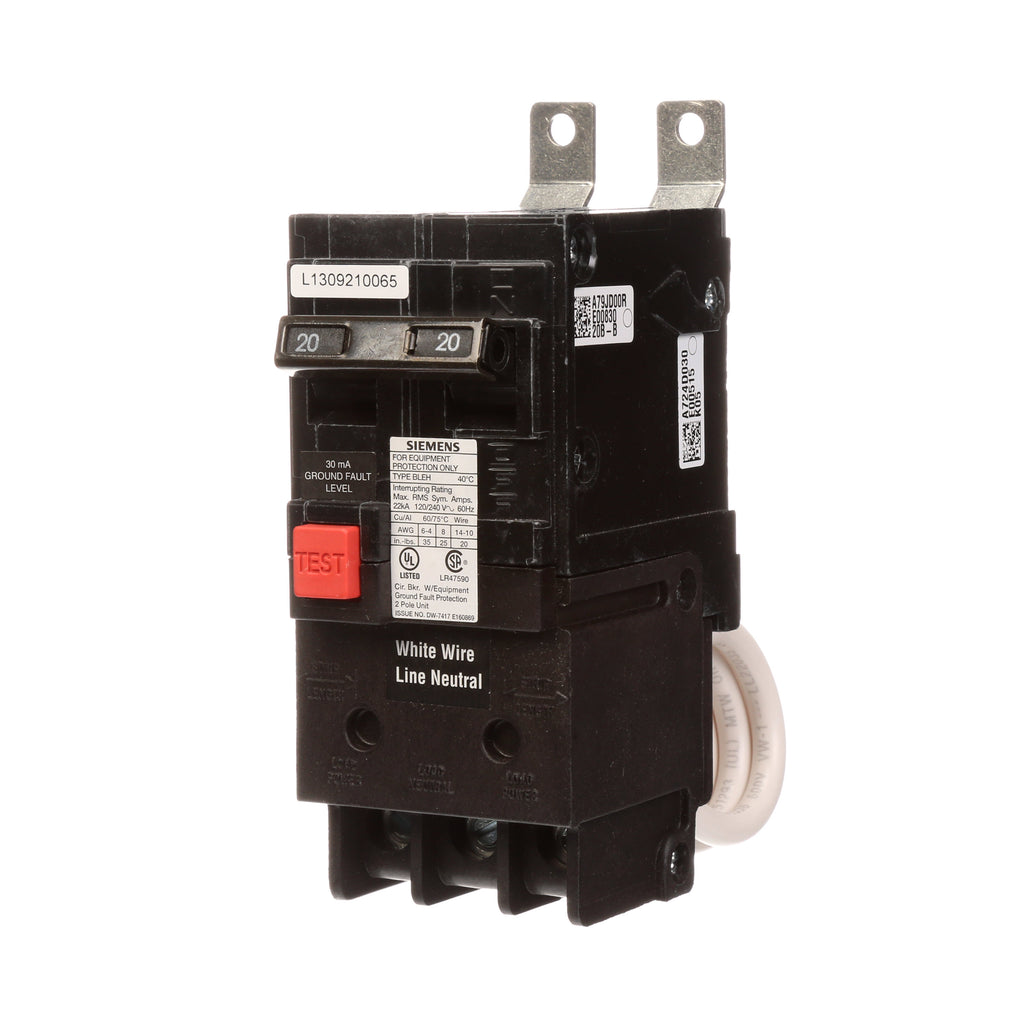

BE220H - Siemens 20 Amp 2 Pole 120/240VAC Bolt-On Molded Case Circuit Breaker, 22kA Interrupt, BL Series, Thermal Magnetic Trip, UL Listed

BE220H

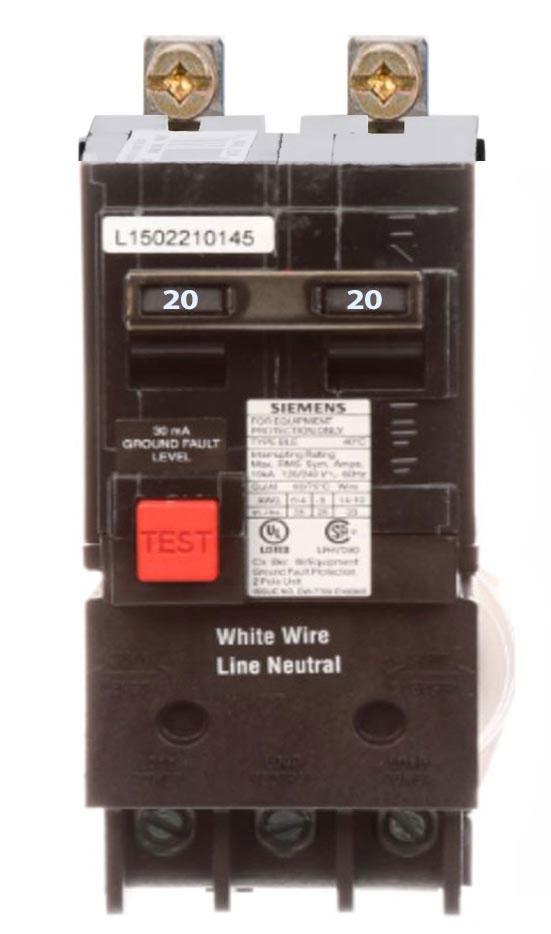

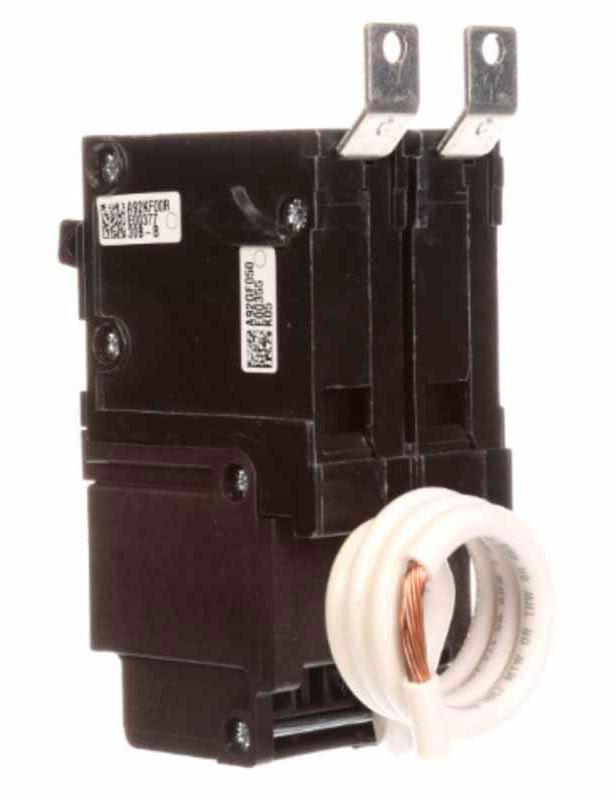

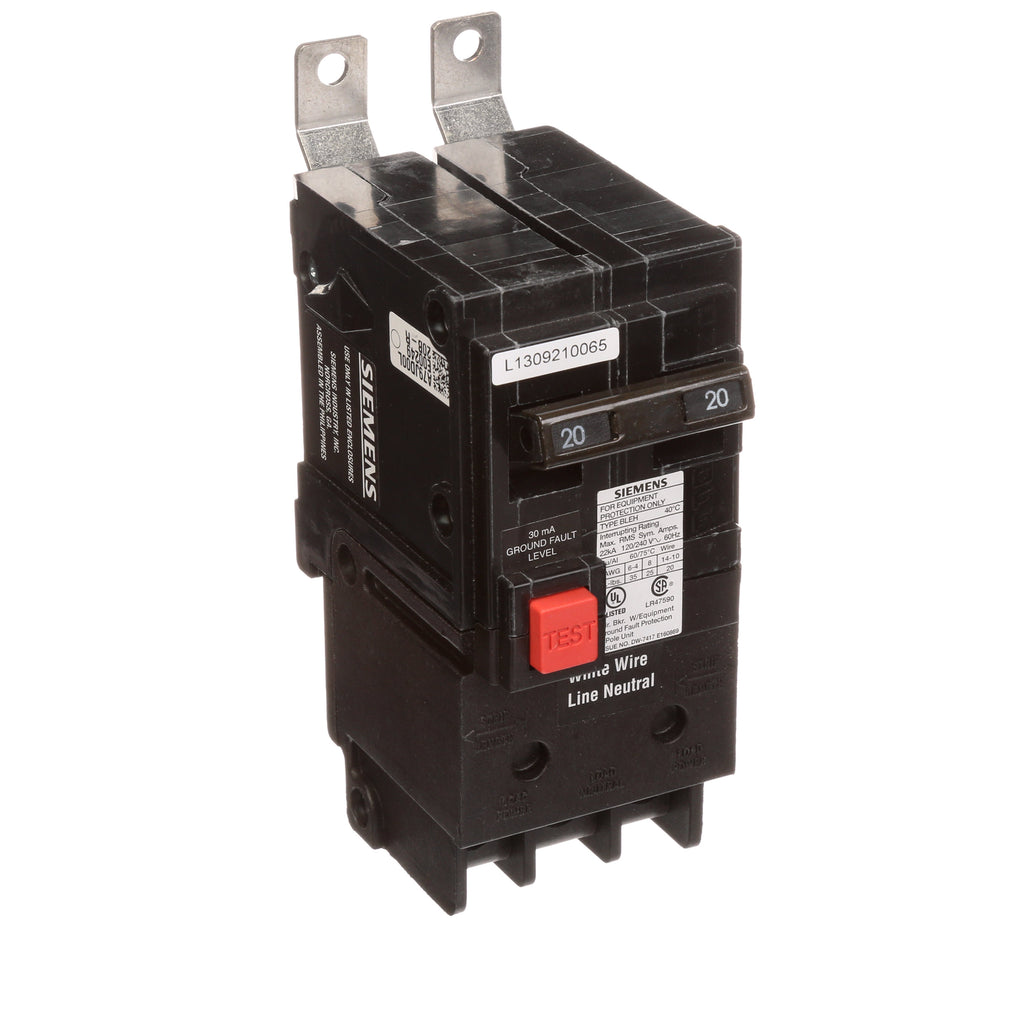

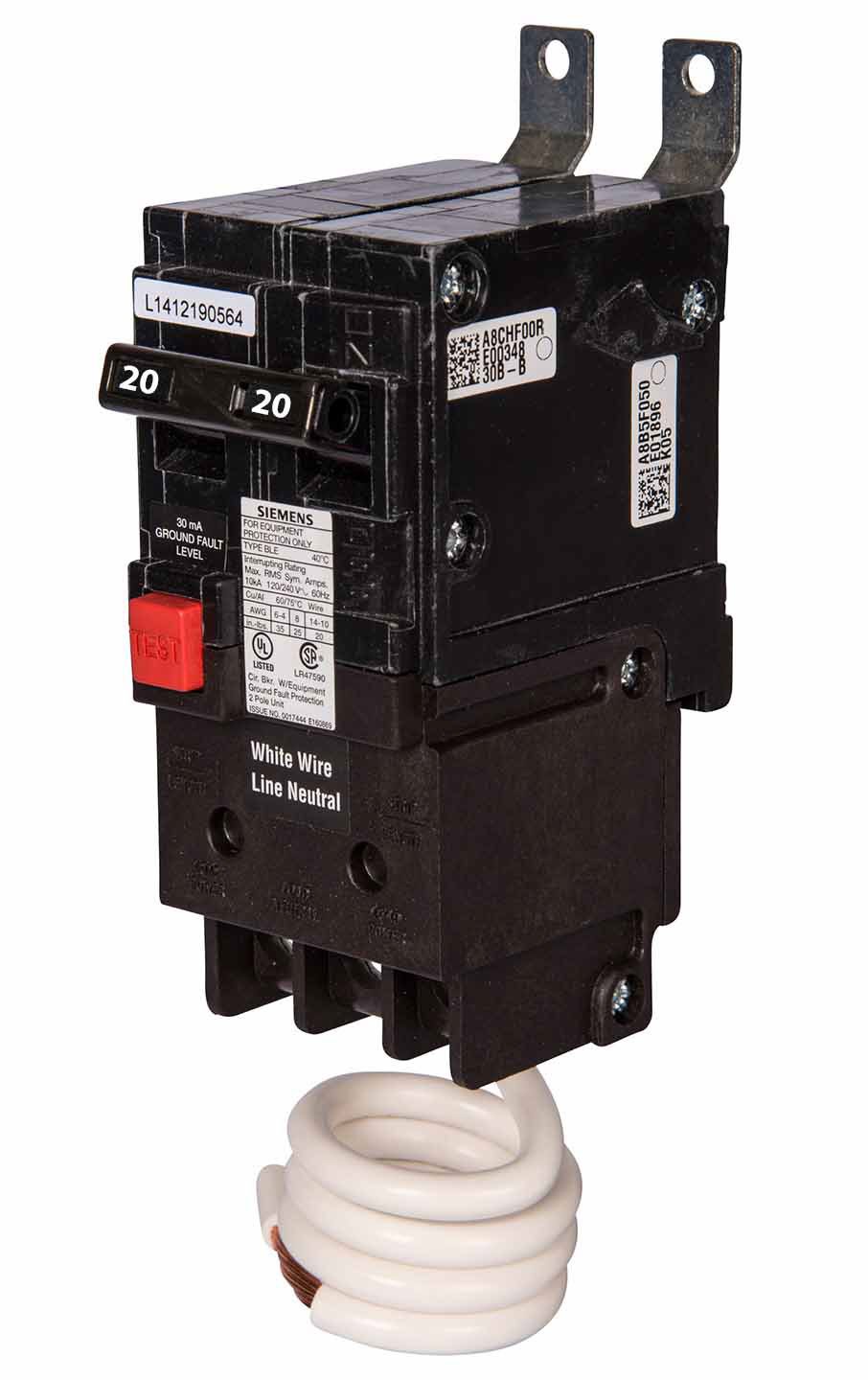

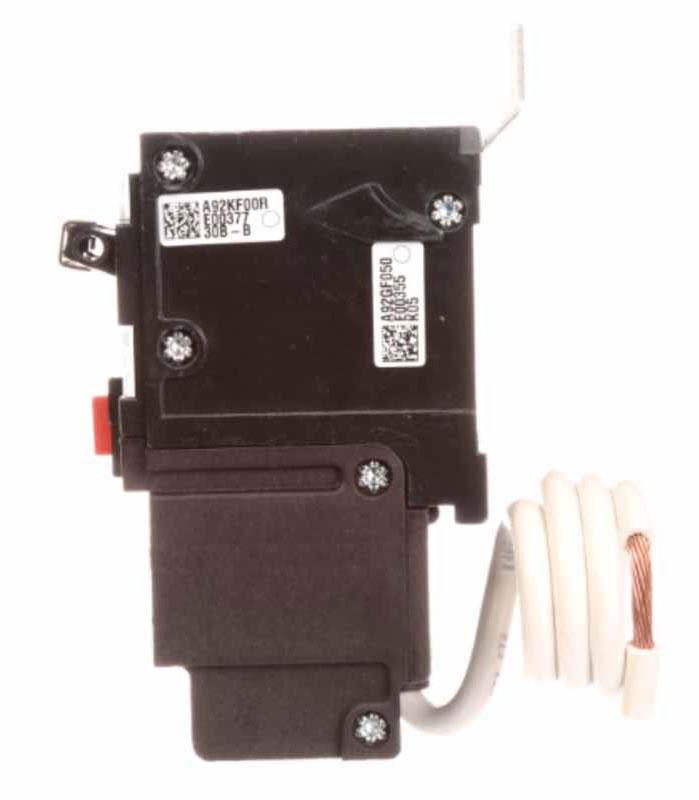

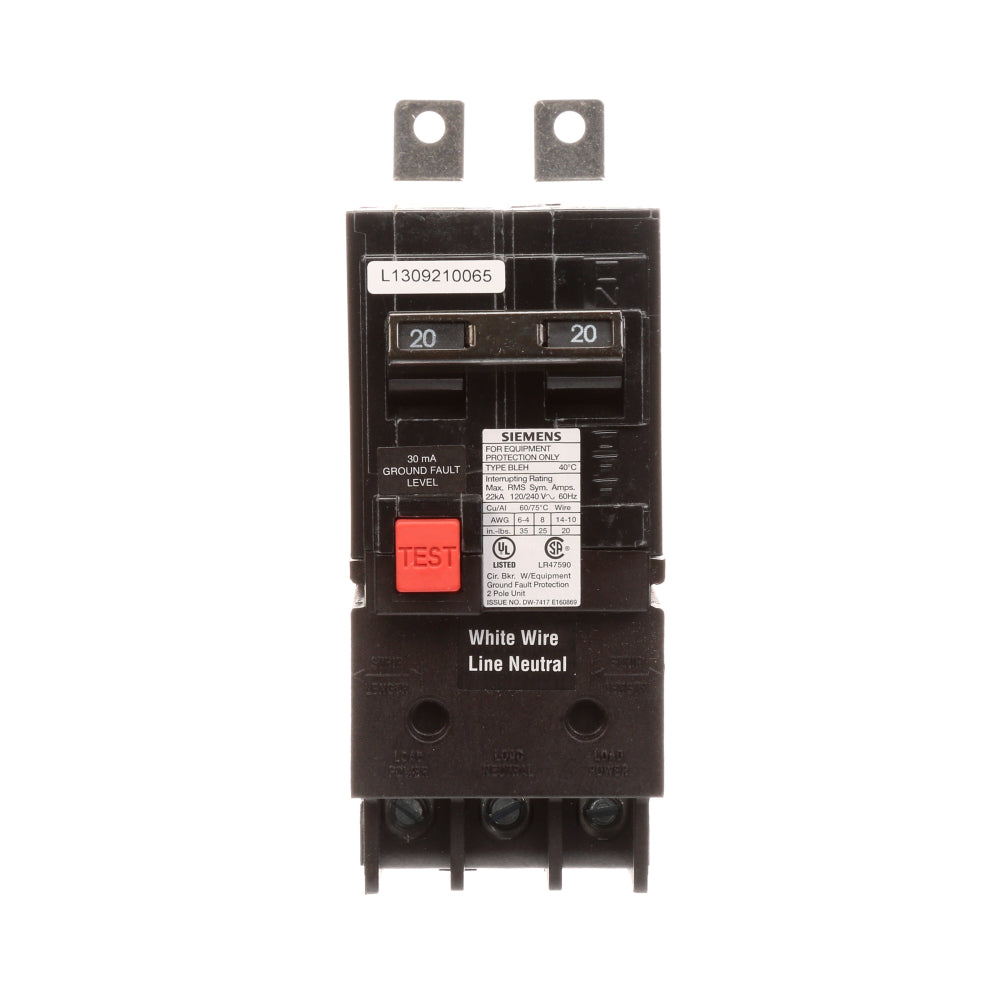

BE220H is a Siemens 2-pole, 20 amp, 120/240VAC bolt-on molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This circuit breaker features a 22kA interrupting rating, thermal magnetic trip unit for both overload and short-circuit protection, and is part of the Siemens BL Series. It is UL listed for safety and compliance, with a robust design suitable for panelboard mounting. The BE220H accepts wire sizes from 14 to 10 AWG and is engineered for dependable performance in demanding environments.

Key Specifications
• Manufacturer: Siemens
• Part Number: BE220H
• Amperage: 20A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA at 120/240VAC
• Series/Frame: BL Series (BLEH)
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL Listed
• Wire Size: 14 to 10 AWG
• Phase: 1
• Termination: Load side lug terminals included

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BE220H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLEH
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 60A/BLEH
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 783643274174
• GTIN : 00783643274174
• Country of Origin : Philippines
• Dimensions : 12.992 x 6.693 x 7.874 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
