BDL36090 - Schneider Electric PowerPacT B Circuit Breaker 90A 3 Pole 600Y/347VAC Thermal Magnetic

BDL36090

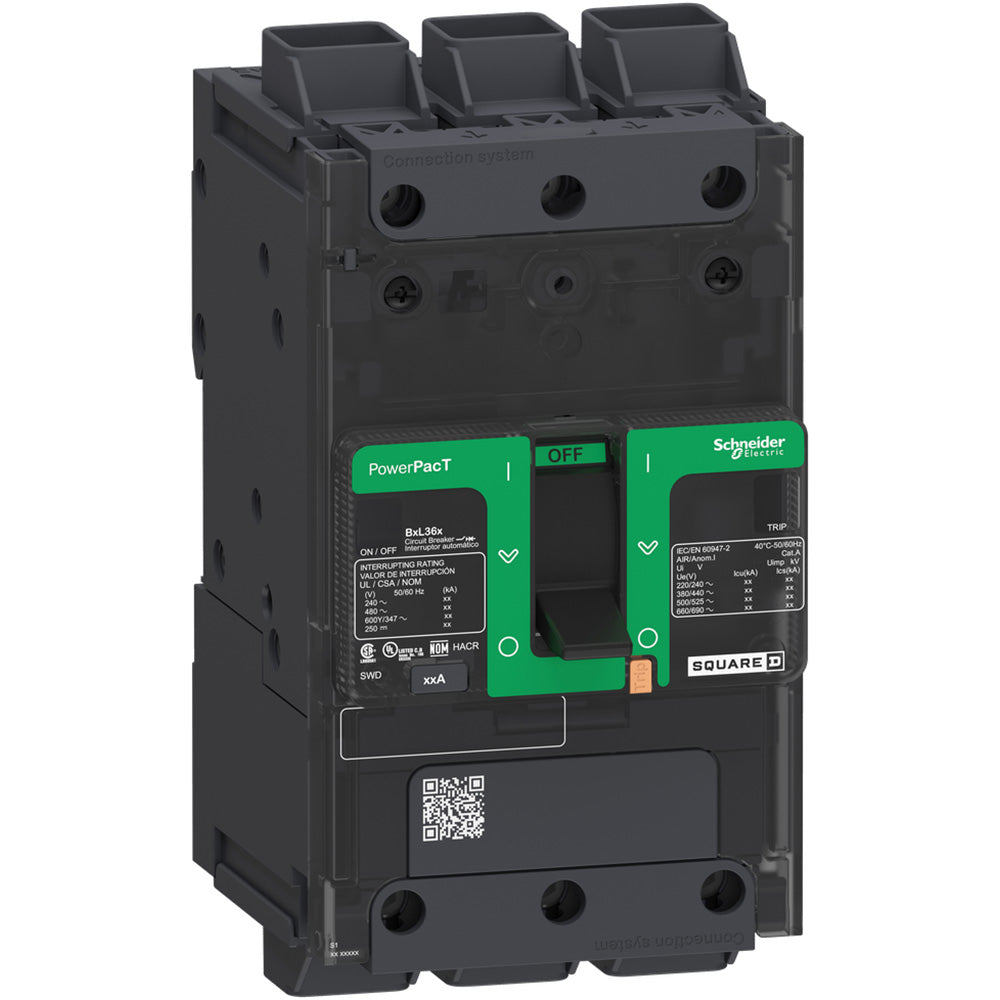

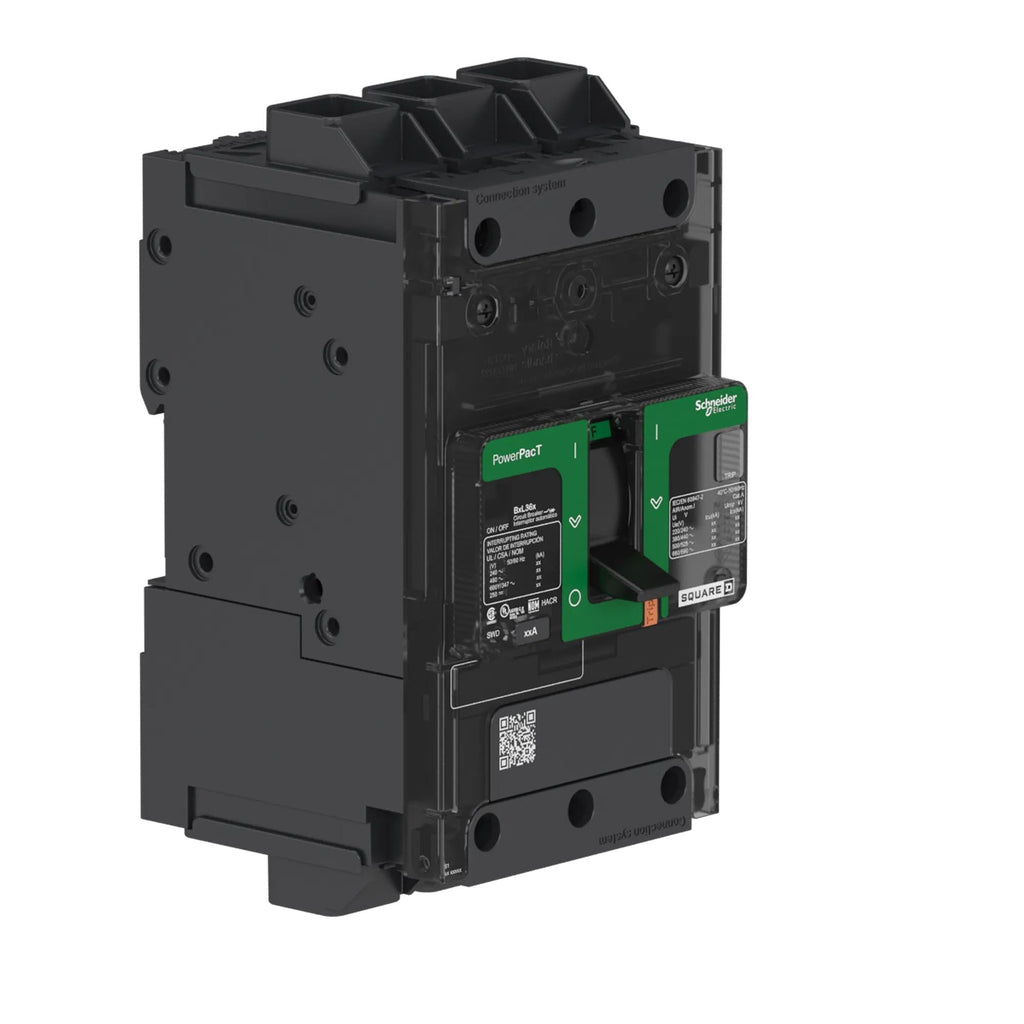

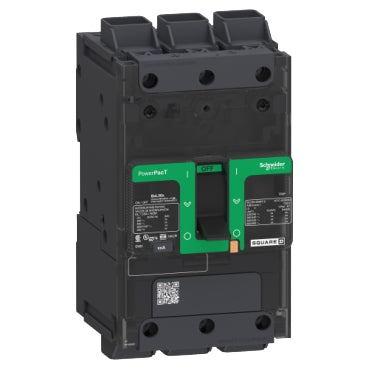

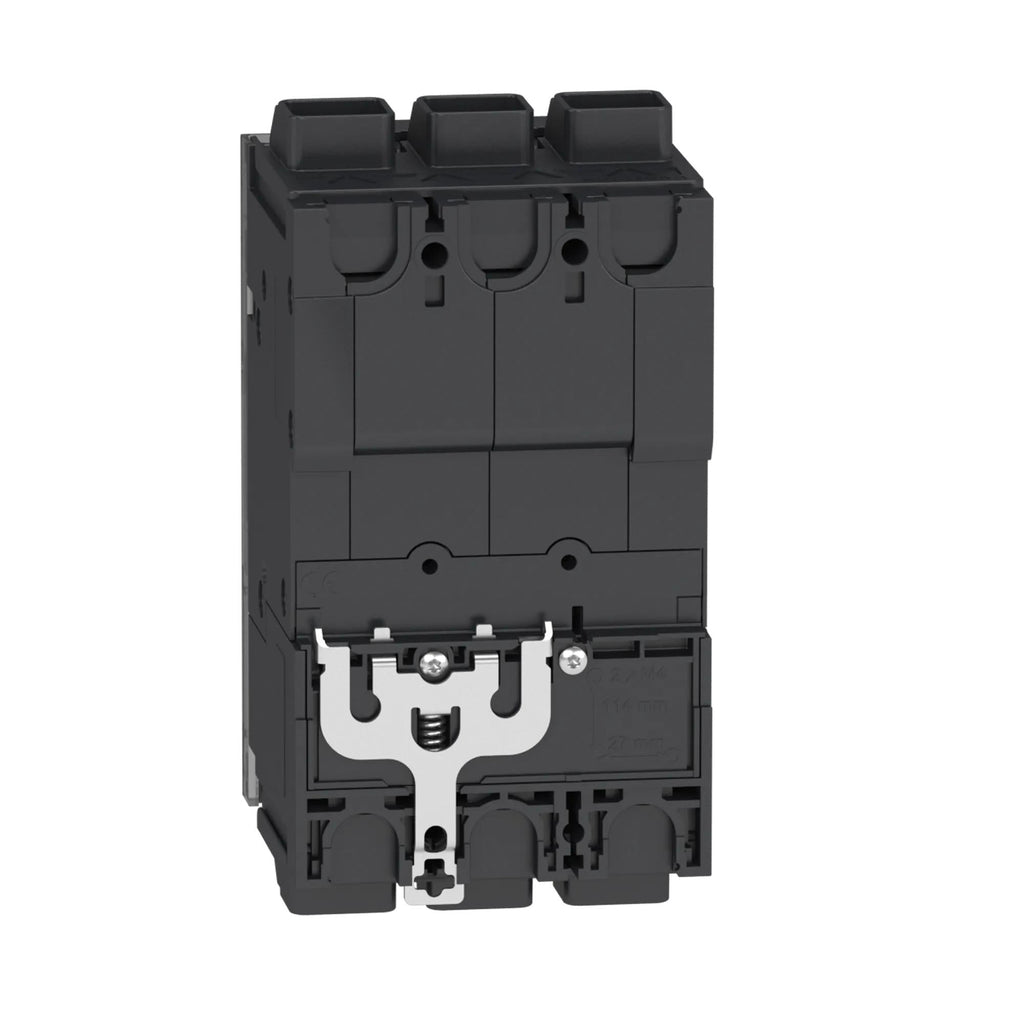

BDL36090 is a Schneider Electric PowerPacT B molded case circuit breaker rated for 90 amps and 3 poles, designed for 600Y/347VAC applications.This circuit breaker features a thermal magnetic trip unit with an 80% continuous current rating and a breaking capacity of 14kA at 600Y/347VAC. It supports lug-type connections and is suitable for unit mount installations. The breaker is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with multiple international standards.

Key Specifications
• Amperage: 90 Amp
• Poles: 3 Pole
• Voltage Rating: 600Y/347VAC
• Interrupt Rating: 14kA at 600Y/347VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Continuous Current Rating: 80%
• Connection Type: Lugs
• Series/Frame: PowerPacT B
• Certifications: UL, CSA, NOM, IEC, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL36090
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901013372
• GTIN : 03606481153203
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.04
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, CSA C22.2 No 5, EN/IEC 60947-2, NMX J-266, GB 14048.2, EN/IEC 60947-5-1, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
