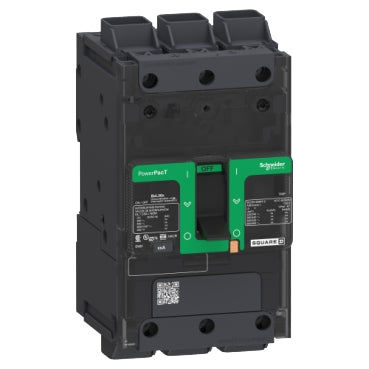

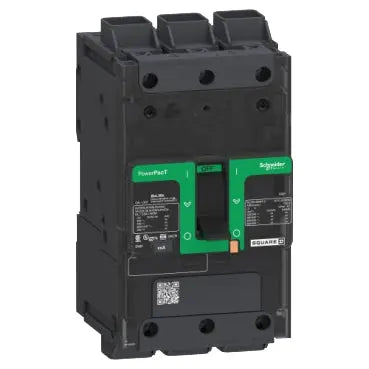

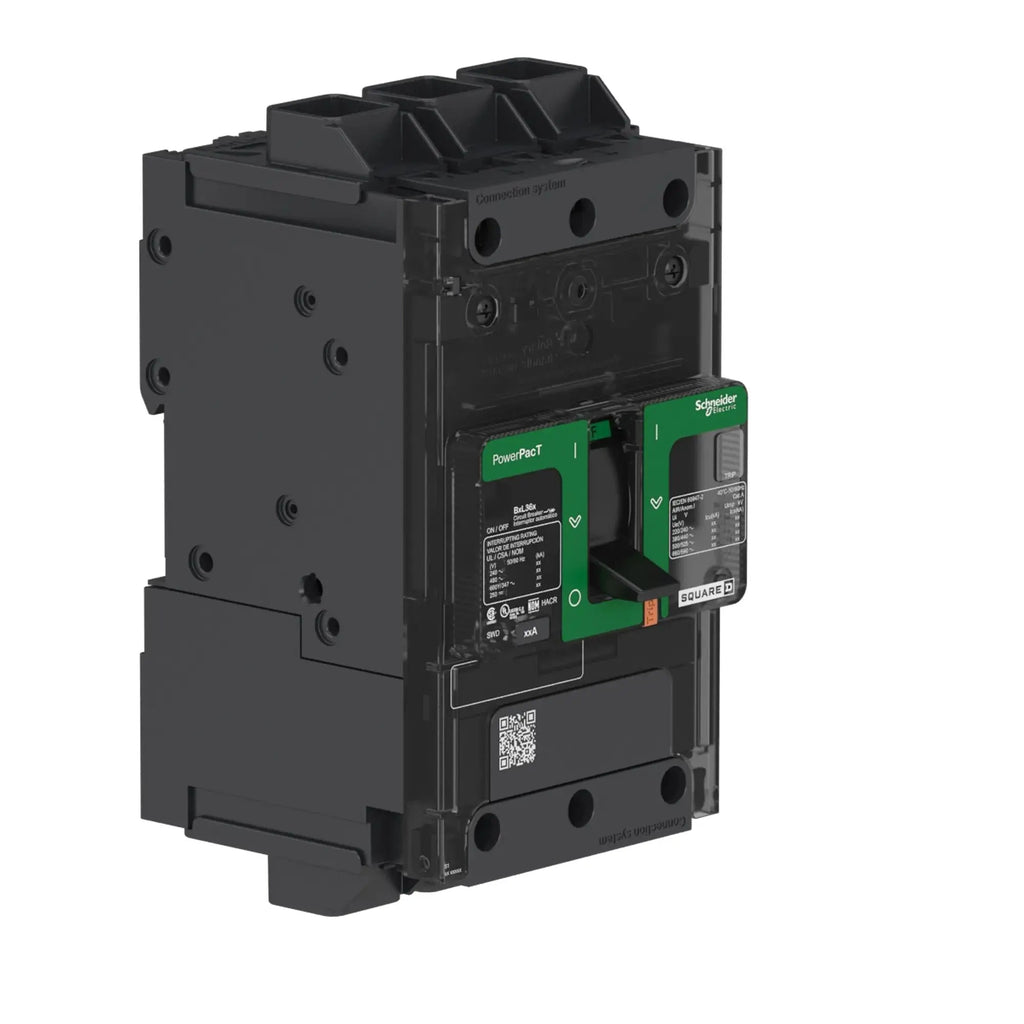

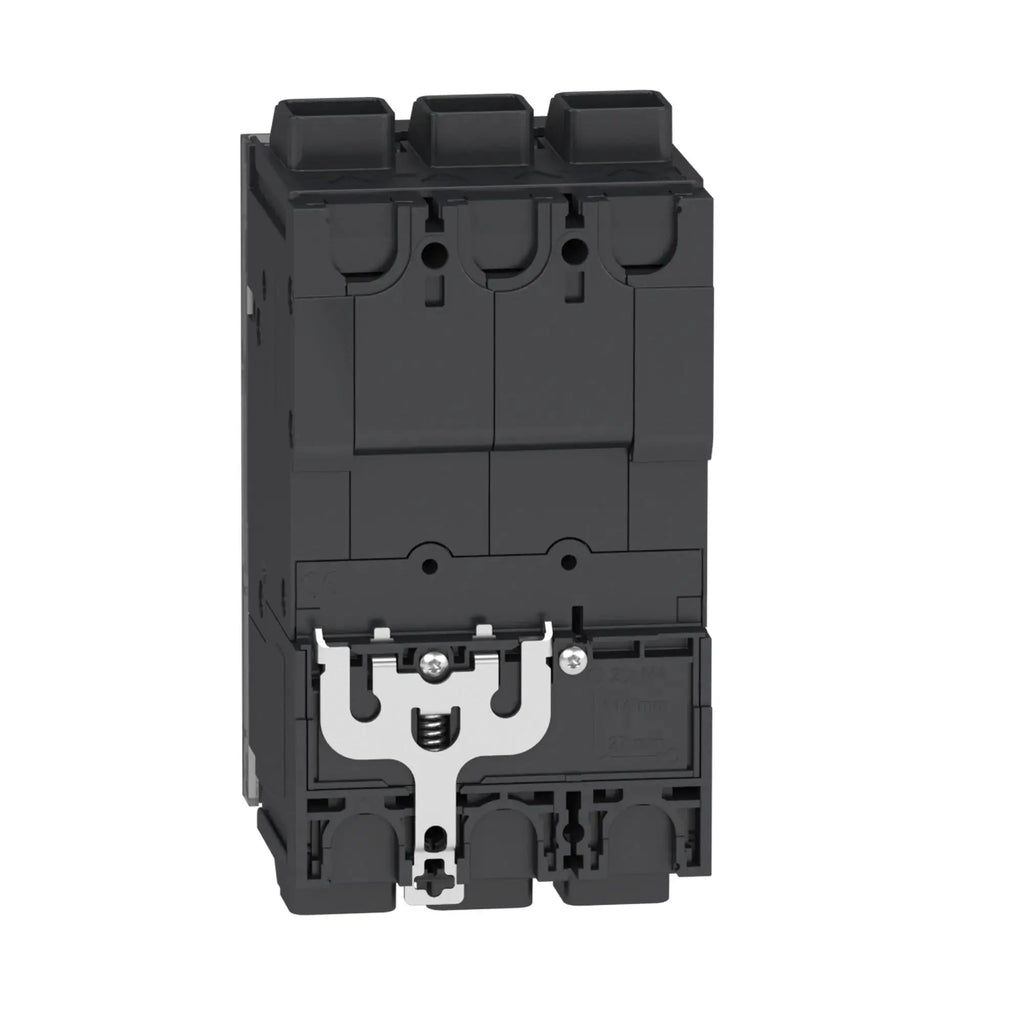

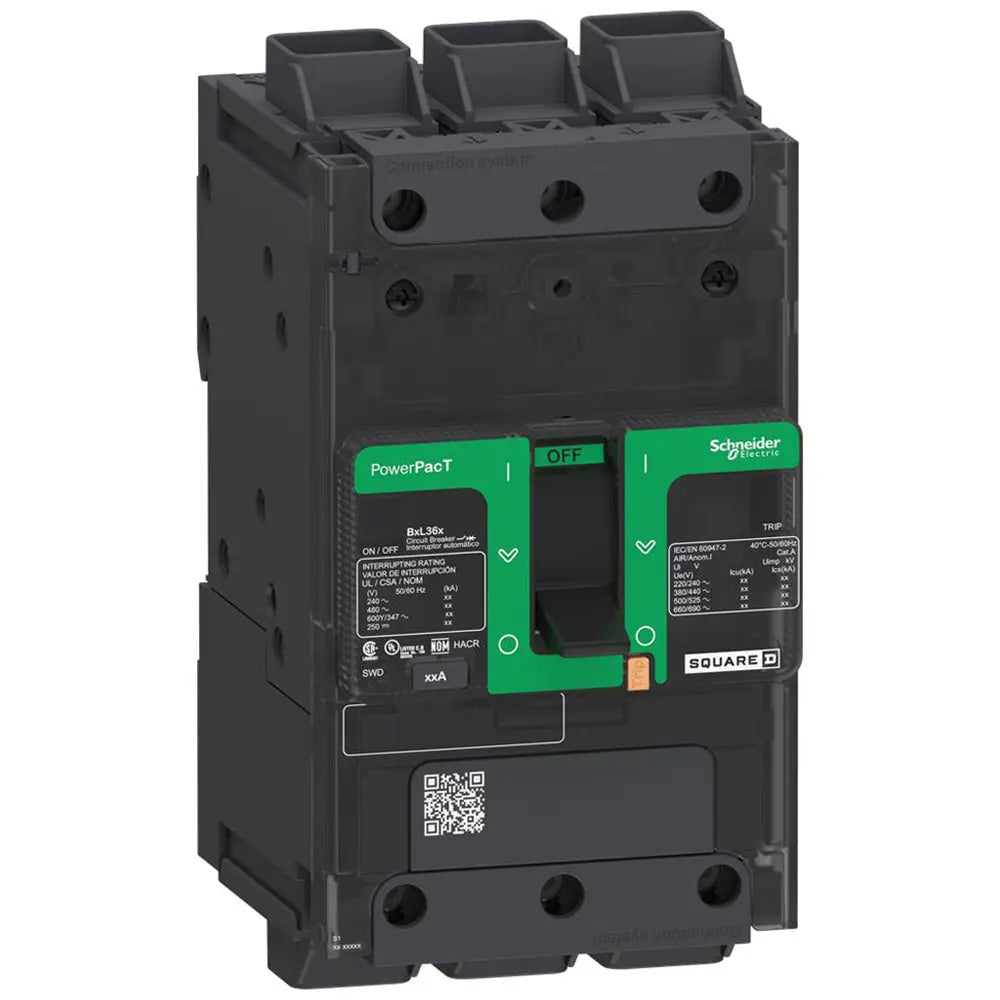

BDL36080 - Square D PowerPact B 80A 3 Pole 600Y/347V AC 14kA Thermal Magnetic Molded Case Circuit Breaker, Unit Mount

BDL36080

BDL36080 is a Square D PowerPact B molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This 3-pole, 80A thermal magnetic circuit breaker features a 600Y/347V AC voltage rating, 14kA interrupting capacity, and unit mounting. It is part of the PowerPact B series, known for flexibility and easy installation, and is suitable for a wide range of electrical distribution needs.

Key Specifications
• Part Number: BDL36080
• Manufacturer: Square D (Schneider Electric)
• Amperage: 80A
• Voltage: 600Y/347V AC
• Poles: 3
• Mounting Type: Unit
• Interrupt Rating: 14kA at 600Y/347V AC
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Certifications: Not specified in available data
• Frequency: 50/60 Hz
• Enclosure: Not specified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901047643
• GTIN : 03606481153180
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.11
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2, CSA C22.2 No 5, UL 489, NEMA AB1, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
