BDL36060 - Square D PowerPact B 60A 3 Pole Molded Case Circuit Breaker 14kA 600Y/347VAC

BDL36060

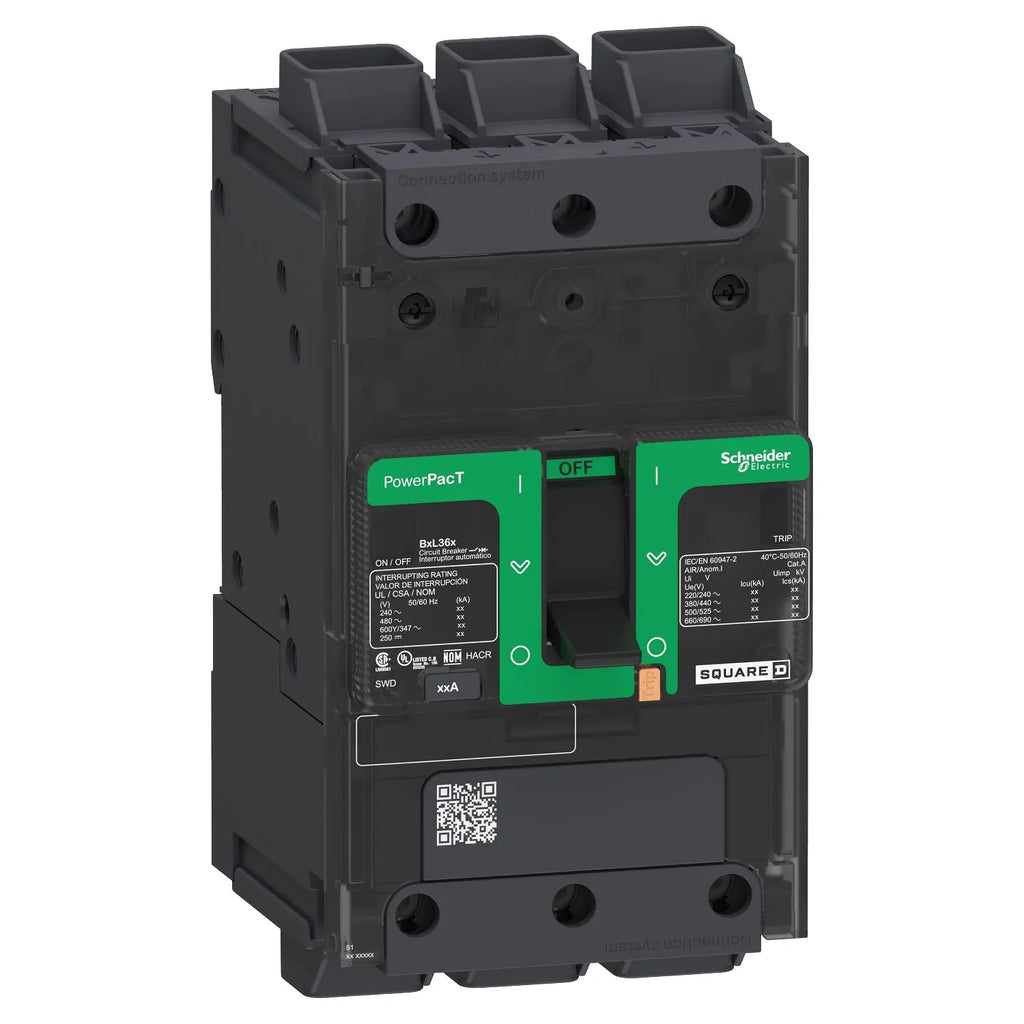

BDL36060 is a Square D PowerPact B-Frame molded case circuit breaker designed for reliable thermal-magnetic circuit protection in commercial and industrial applications. This 3-pole, 60A breaker features a 14kA interrupt rating at 600Y/347VAC and is suitable for both AC and DC systems. The unit mount construction allows for flexible installation with either back pan screws or integrated DIN rail mounting. The breaker is equipped with dual-break rotating contacts for reduced peak current during faults and includes an integral push-to-trip button for manual operation. EverLink lugs provide secure cable termination and reduce loosening over time. The BDL36060 is certified to UL, CSA, NOM, and IEC standards and is CE marked for compliance with international requirements. This PowerPact B-Frame breaker is ideal for use in industrial control panels, electrical distribution equipment, and commercial building applications. It offers a wide range of accessories and auxiliaries for enhanced functionality and system integration. The breaker is rated for 80% continuous current and features a toggle control type for easy operation.

• Part Number: BDL36060
• Manufacturer: Square D
• Series/Frame: PowerPact B-Frame
• Amperage: 60A
• Poles: 3
• Voltage: 600Y/347VAC, 250VDC
• Interrupt Rating: 14kA at 600Y/347VAC
• Mounting Type: Unit Mount (Back Pan or DIN Rail)
• Trip Unit: Thermal Magnetic
• Standards: UL 489, CSA C22.2 No. 5, IEC 60947-2, CE
• Continuous Current Rating: 80%
• Connection Type: EverLink Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL36060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901010791
• GTIN : 03606481153135
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.941
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, EN/IEC 60947-5-1, NEMA AB1, UL 489, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
