BDL36050LU - Schneider Electric PowerPacT B Circuit Breaker 50A 3 Pole 600Y/347VAC 14kA Thermal Magnetic

Save $450.48
SKU: BDL36050LU-New
Condition: New
Price:
$639.52 $1,090.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

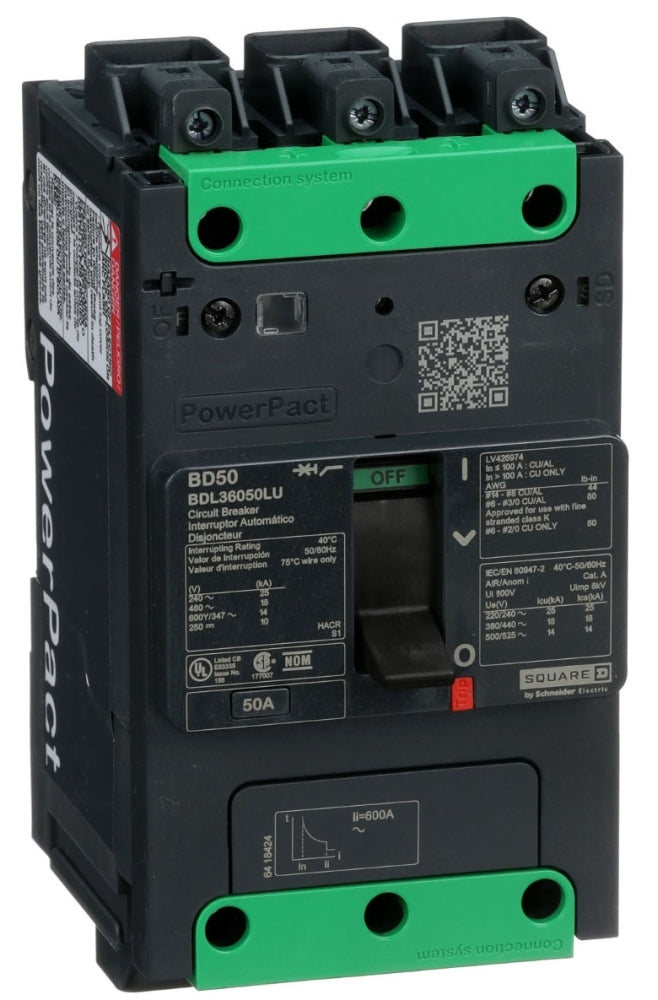

BDL36050LU - Schneider Electric/ Square D Feed-Thru 50 Amp 3 Pole Circuit Breaker - Essential Electric Supply
BDL36050LU - Schneider Electric Feed-Thru 600V 50A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDL36050LU - Schneider Electric/ Square D Feed-Thru 50 Amp 3 Pole Circuit Breaker - Essential Electric Supply
BDL36050LU - Schneider Electric Feed-Thru 600V 50A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

BDL36050LU


BDL36050LU is a Schneider Electric PowerPacT B molded case circuit breaker designed for reliable circuit protection.This 3 pole circuit breaker is rated for 50 amps and operates at 600Y/347 volts AC with a 14kA interrupt rating. It features thermal magnetic trip units and lug-type connections, providing robust protection and easy installation. The breaker supports 80% continuous current rating and includes control wire on the ON end for enhanced control wiring flexibility.
  • Amperage: 50A
  • Voltage: 600Y/347VAC
  • Poles: 3
  • Interrupt Rating: 14kA
  • Series/Frame: PowerPacT B
  • Trip Unit: Thermal Magnetic
  • Mounting Type: Lug
  • Continuous Current Rating: 80%
  • Control Wire on ON End
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDL36050LU
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDL
  • Voltage : 600
  • Amperage : 50
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901094678
  • GTIN : 03606481149121
  • Country of Origin : United States
  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2.599
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NMX J-266, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, NEMA AB1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
