BDL36050 - Square D 50A 3 Pole PowerPact B Frame Molded Case Circuit Breaker 600Y/347VAC 14kA Thermal Magnetic

BDL36050

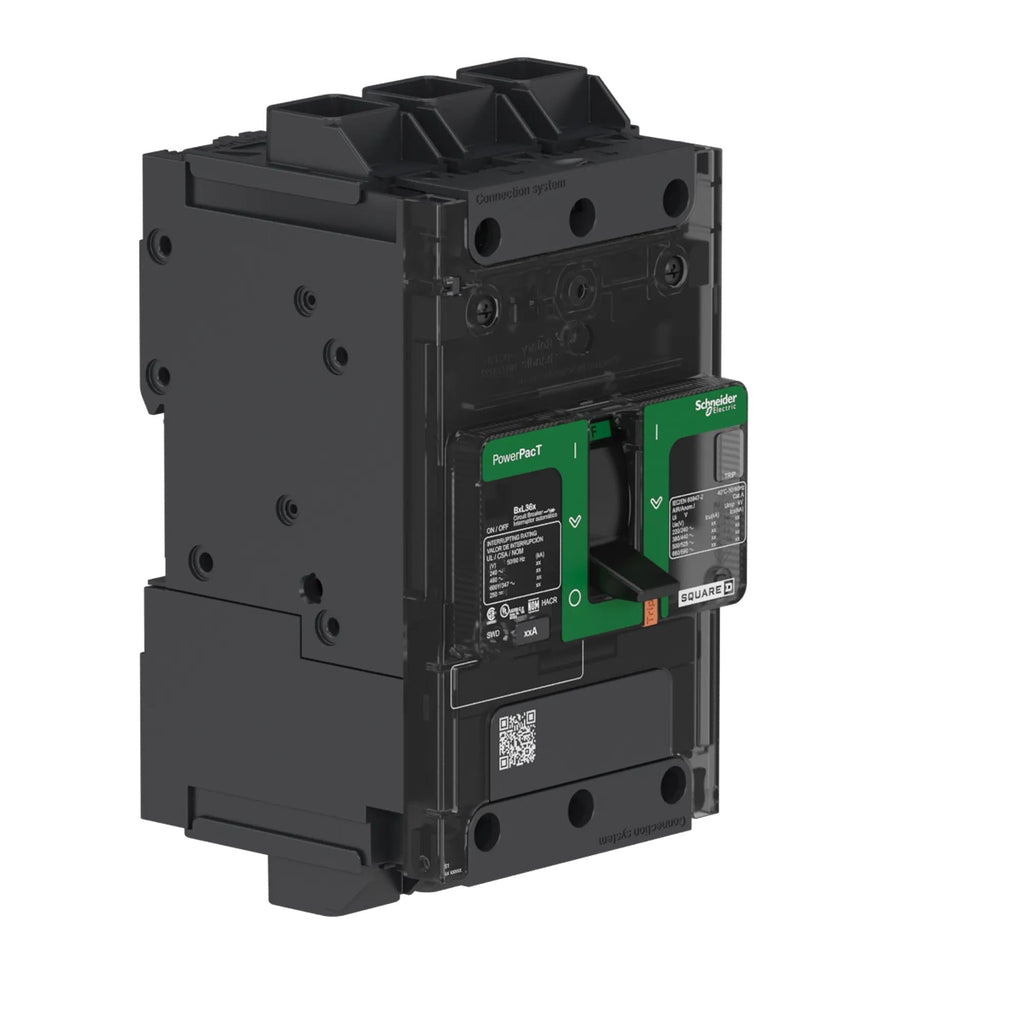

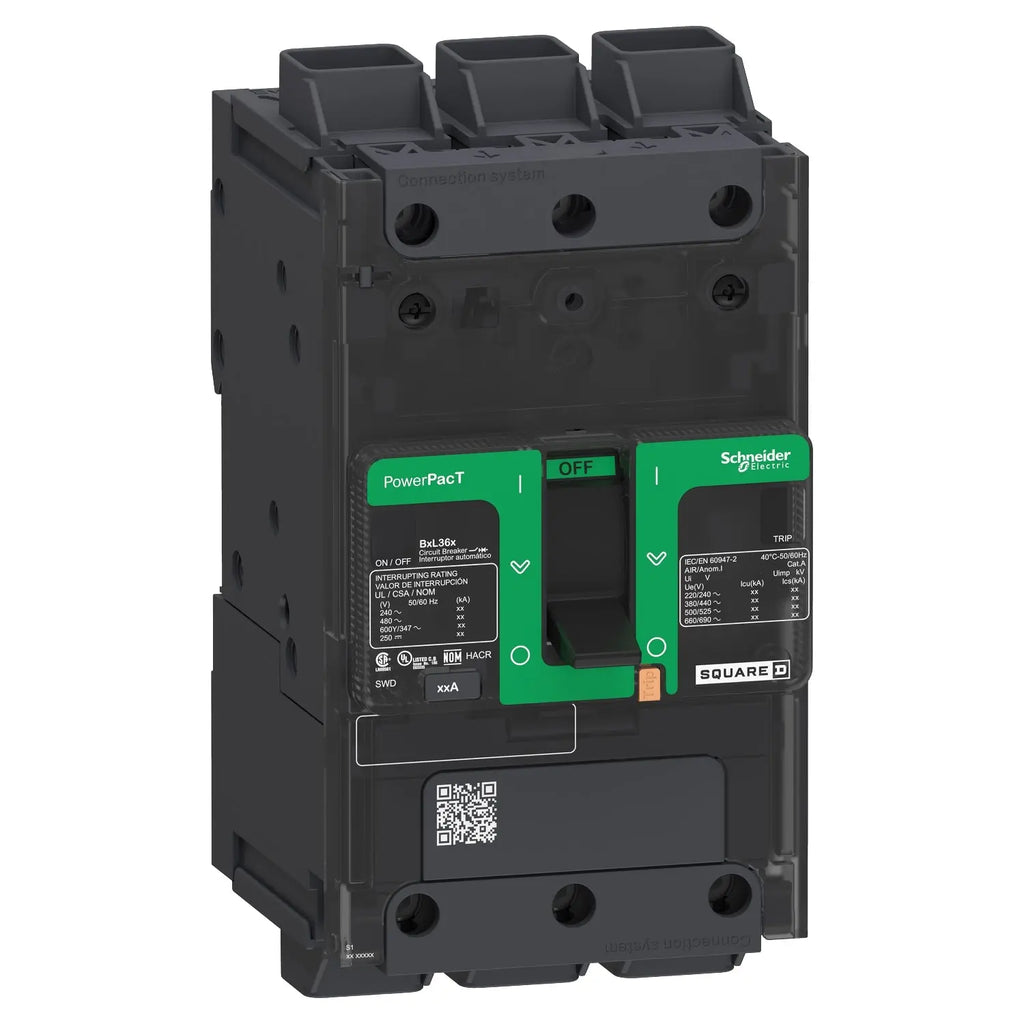

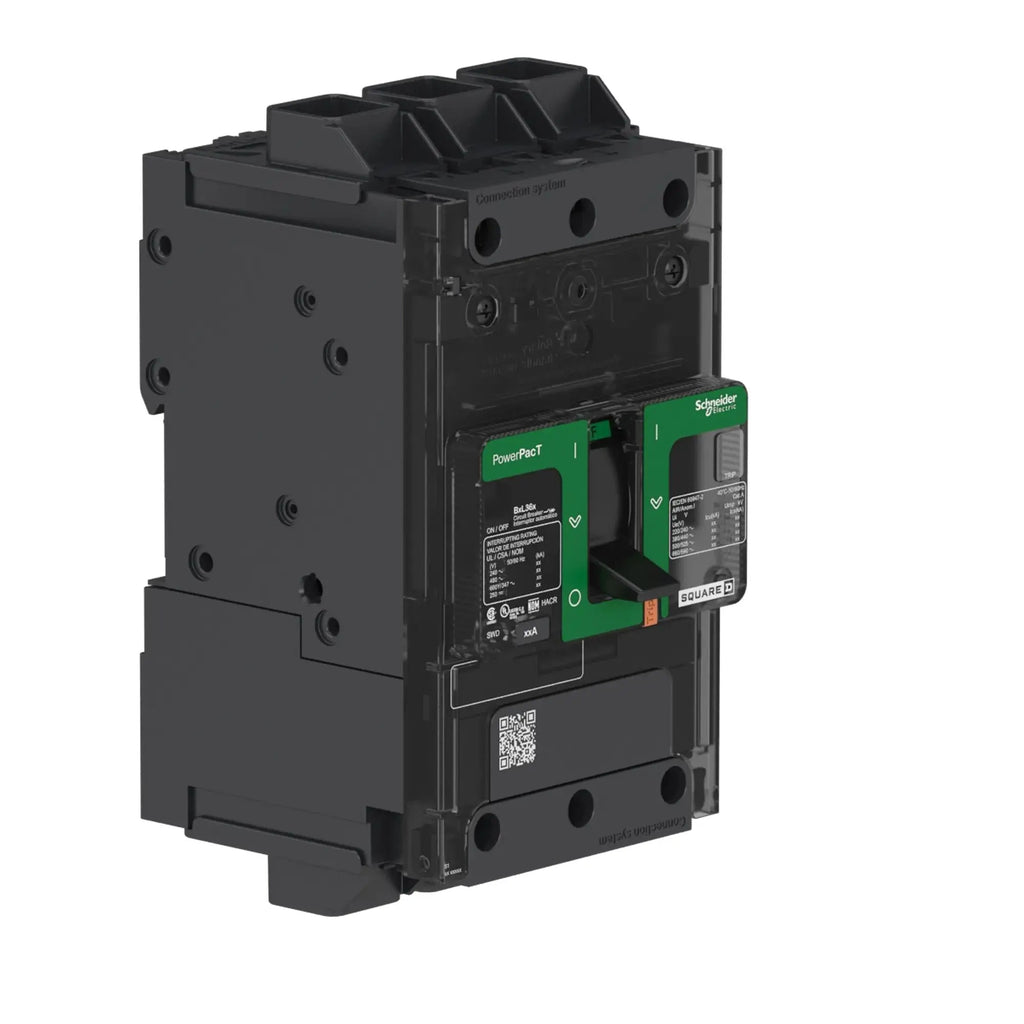

BDL36050 is a Square D PowerPact B Frame molded case circuit breaker rated for 50 amps and 3 poles, designed for reliable circuit protection in industrial and commercial applications.This circuit breaker features a thermal magnetic trip unit with an 80% continuous current rating, suitable for 600Y/347VAC systems with a breaking capacity of 14kA. It supports unit mount installation with integrated DIN rail and back pan mounting options. The breaker includes EverLink lugs compatible with 6 to 2/0 AWG conductors and operates within a temperature range of -13 to 158 degrees Fahrenheit. It is UL, CSA, NOM, IEC, CCC certified, and CE marked for global compliance.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600Y/347 VAC, 250 VDC
• Poles: 3
• Frame/Series: PowerPact B
• Interrupt Rating: 14 kA
• Trip Unit: Thermal Magnetic, 80% rated

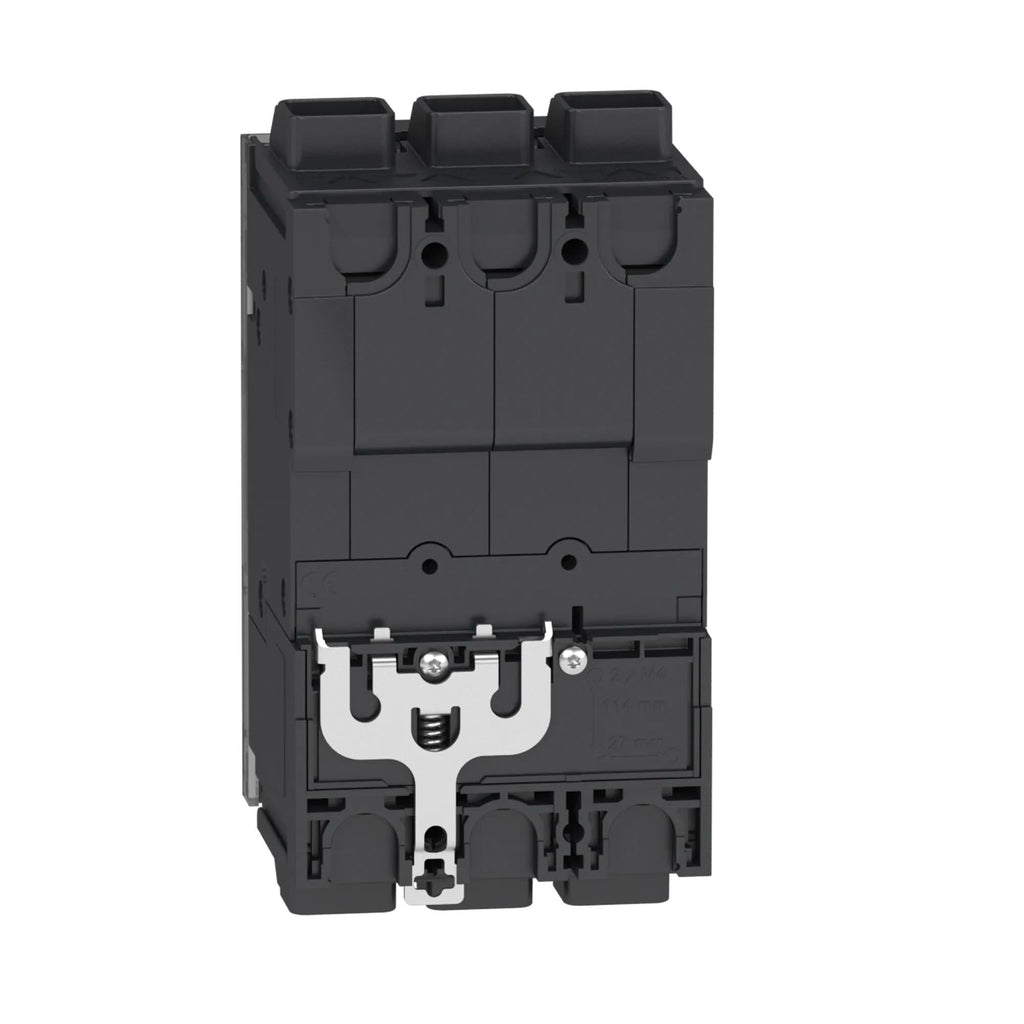

• Mounting Type: Unit mount with DIN rail and back pan options
• Wire Range: 6 to 2/0 AWG (EverLink lugs)
• Operating Temperature: -13 to 158 °F
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Dimensions: 3.19 in W x 3.15 in D x 5.39 in H
• IP Rating: IP40/IK07

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901010678
• GTIN : 03606481153111
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.13
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-5-1, CSA C22.2 No 5, NMX J-266, GB 14048.2, UL 489, NEMA AB1, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
