BDL36045 - Schneider Electric PowerPact B 45A 3-Pole 600Y/347VAC Thermal Magnetic Circuit Breaker

Save $325.34
SKU: BDL36045-New
Condition: New
Price:
$653.66 $979.00
Stock:
5 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

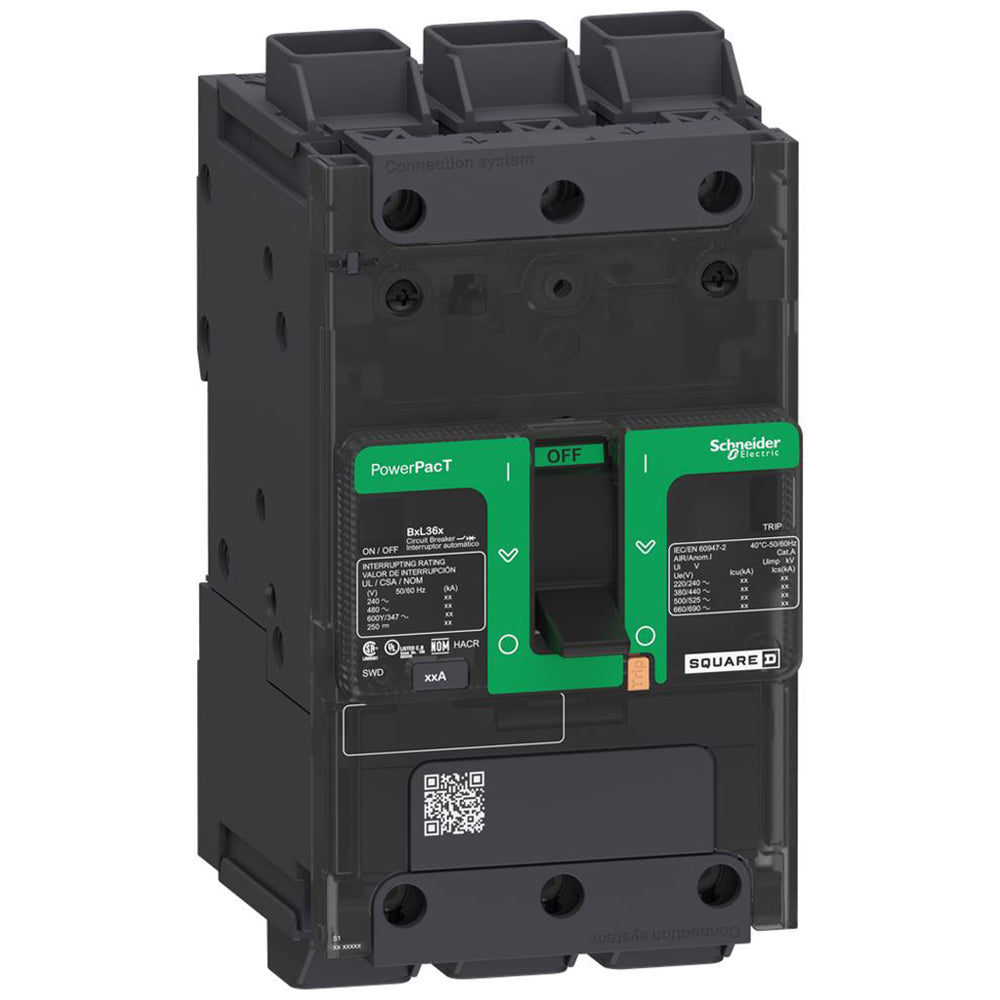

BDL36045 - Essential Electric Supply
BDL36045 - Schneider Electric Feed-Thru 600V 45A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

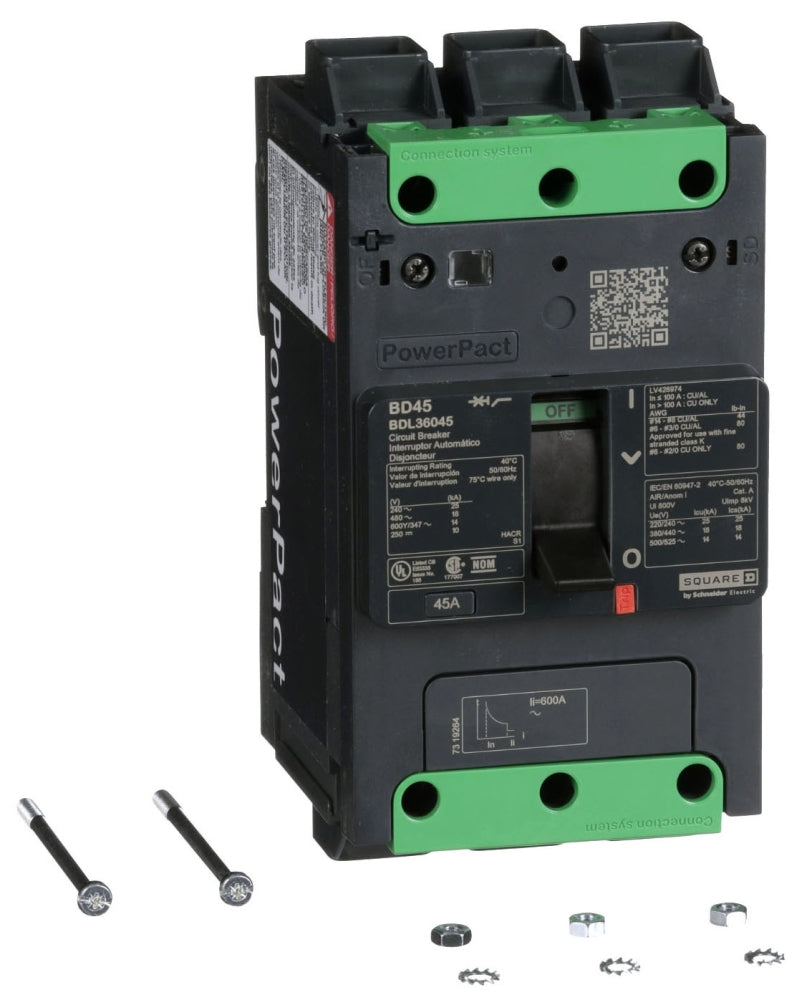

BDL36045 - Essential Electric Supply
BDL36045 - Schneider Electric Feed-Thru 600V 45A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

BDL36045


BDL36045 is a Schneider Electric PowerPact B molded case circuit breaker rated for 45 amperes and 3 poles, designed for industrial and commercial electrical distribution.This circuit breaker features a thermal magnetic trip unit with a 600Y/347VAC voltage rating and a breaking capacity of up to 14kA. It supports unit mount installation and is dual rated for AC/DC applications. The breaker is 80% rated for continuous current and complies with multiple certifications including UL 489, CSA C22.2 #5, IEC 60947-2, CE, and NOM.
    Key Specifications
    • Amperage: 45A
    • Voltage Rating: 600Y/347VAC
    • Poles: 3
    • Trip Unit: Thermal Magnetic
    • Interrupt Rating: 14kA at 600Y/347VAC
    • Mounting Type: Unit Mount
    • Continuous Current Rating: 80%
    • Series/Frame: PowerPact B
    • Certifications: UL 489, CSA, IEC 60947-2, CE, NOM, CCC, EAC
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BDL36045
    • Manufacturer : Schneider Electric
    • Brand : Schneider Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BDL
    • Voltage : 600
    • Amperage : 45
    • Phase : 3
    • Poles : 3
    • AIC rating : 18kA@480V
    • Connection : Feed-Thru
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : Everlink Lug Both Ends
    • Frame Size : 125A/BD
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : ABC

    Product Data

    • UPC : 785901025313
    • GTIN : 03606481153098
    • Country of Origin : Mexico
    • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
    • Weight : 3.13
    • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
    • Standards : UL 489, NMX J-266, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, CSA C22.2 No 5, NEMA AB1
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
      AWG 14...AWG 3/0 rigid or stranded aluminium/copper
