BDA261004 - Square D PowerPact B 100A 2-Pole 600V AC Thermal Magnetic Circuit Breaker I-Line Plug-In

SKU: BDA261004-New
Condition: New
Price:
$542.72
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

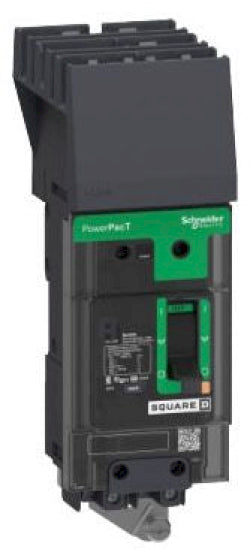

BDA261004 - Schneider Electric/ Square D I-Line Style Plug-In 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA261004 - Schneider Electric/ Square D I-Line Style Plug-In 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply

Description

BDA261004


BDA261004 is a Square D PowerPact B molded case circuit breaker rated for 100 amps, 2 poles, and 600V AC with thermal magnetic trip and I-Line plug-in mounting.This circuit breaker features a 25kA interrupt rating at 240V AC and 14kA at 600Y/347VAC, suitable for HACR rated applications and distribution. It has a B curve trip type, fixed instantaneous trip, and lug terminal connections with BC phase. The breaker is mercury and PVC free and meets UL 489, CSA C22.2 No 5, IEC, CE, and other certifications.
    Key Specifications
    • Amperage: 100A
    • Voltage Rating: 347/600V AC
    • Number of Poles: 2
    • Interrupt Rating: 25kA at 240V AC, 14kA at 600Y/347VAC
    • Trip Type: Thermal Magnetic, B Curve
    • Mounting Type: I-Line Plug-In
    • Terminal Connection: Lugs
    • Frame/Series: PowerPact B
    • Phase Connection: BC
    • Standards: UL 489, CSA, IEC, CE, NOM, CCC, EAC
    • Environmental: Mercury Free, PVC Free
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BDA261004
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BDA
    • Voltage : 600
    • Amperage : 100
    • Phase : 1
    • Poles : 2
    • AIC rating : 18kA@480V
    • Connection : I-Line
    • Functions : Long Time and Instantaneous
    • Terminal Connection : I-Line, Lug
    • Frame Size : D
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
    • Protection : Thermal Magnetic
    • Phase Connection : BC

    Product Data

    • UPC : 078590194202
    • GTIN : 00785901942023
    • Country of Origin : Mexico
    • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
    • Weight : 3.001
    • Standards : EN/IEC 60947-5-1, NEMA AB1, NMX J-266, EN/IEC 60947-2, UL 489, GB 14048.2, CSA C22.2 No 5
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 14...AWG 2/0 aluminium/copper
